HVAC Component Views

WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

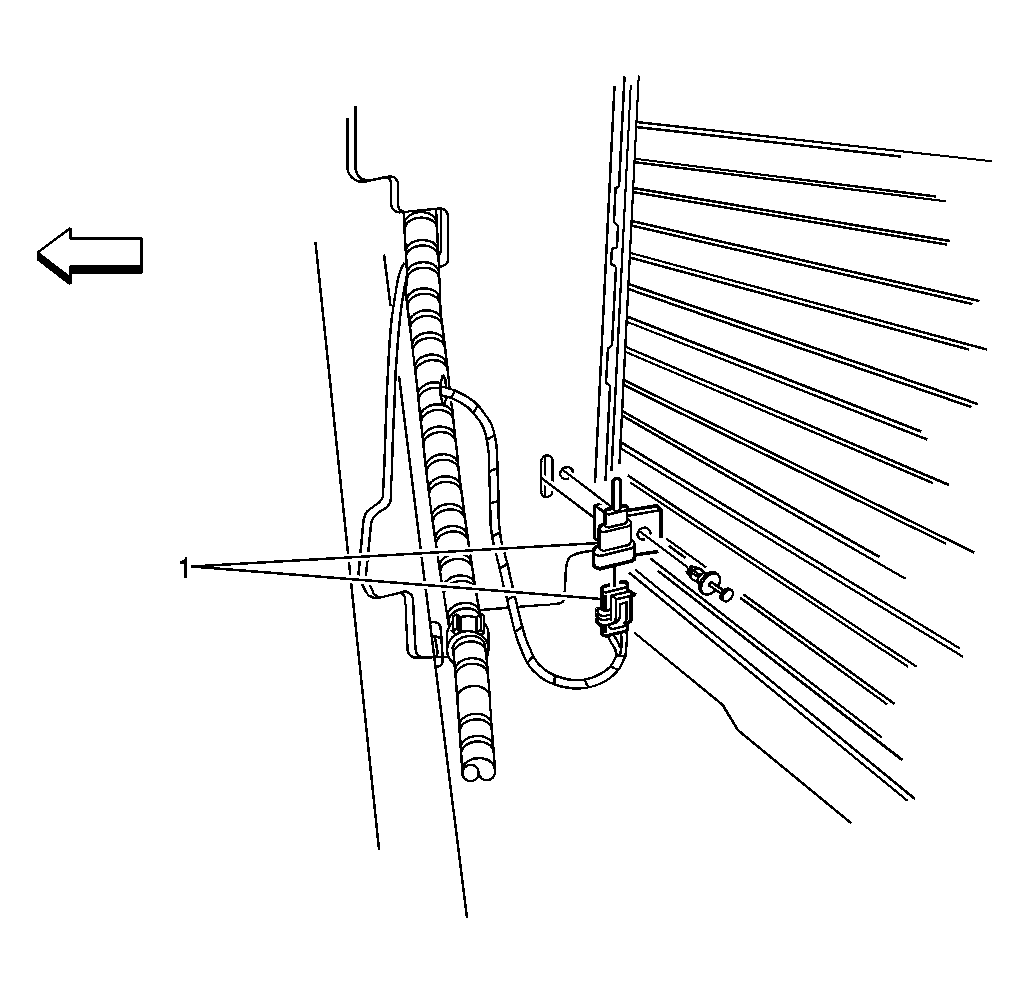

Fig 1: Right Front of Radiator Component View (CJ2)
GM1255288Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ambient Outside Air Temperature Sensor

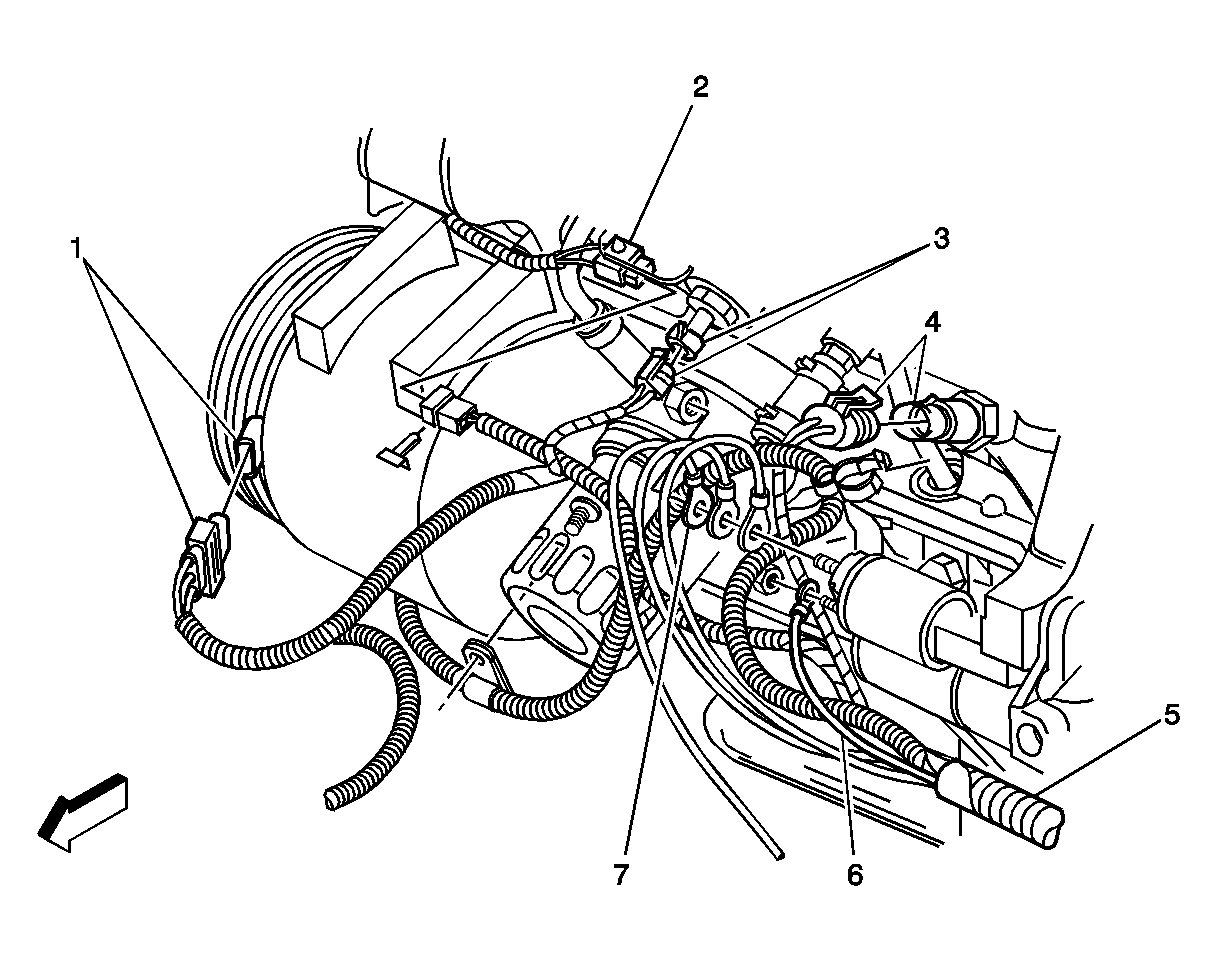

Fig 2: Lower Left Side of Engine Component View (LG8)
GM822934Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Compressor Clutch
2 Crankshaft Position (CKP) Sensor A
3 Knock Sensor (KS) 1
4 Engine Oil Pressure (EOP) Switch
5 Engine Wiring Harness
6 Starter Lead
7 Positive Battery Cable

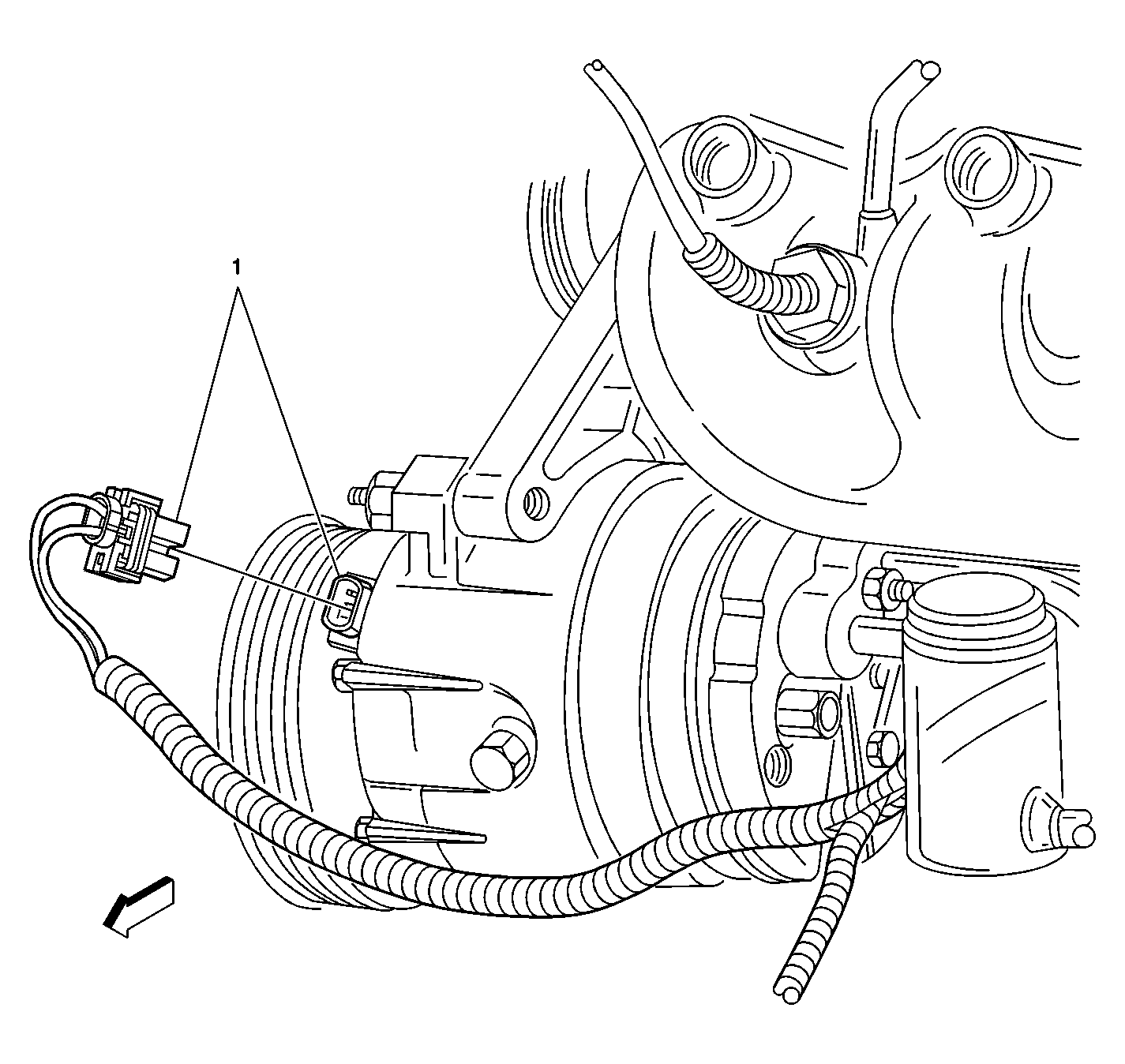

Fig 3: Lower Left Side of Engine Component View (L36/L67)
GM592170Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Compressor Clutch Coil
Fig 4: LR of the Engine Compartment Component View
GM1095521Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P103
2 I/P Wiring Harness
3 Cruise Control Module (CCM) Connector
4 Cruise Control Module (CCM) (K34)
5 Electronic Brake Control Module (EBCM) (JL9/JM4)
6 Electronic Brake Control Module (EBCM) Connector (JL9/JM4)
7 Engine Wiring Harness
8 Brake Fluid Level Switch
9 C101
10 A/C Refrigerant Pressure Sensor
11 Engine Wiring Harness
12 G171 (JL9/JM4)
Fig 5: Upper Left of Instrument Panel Component View
GM1323986Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ambient Light Sensor
2 Sun Load Sensor (CJ2)
3 G203

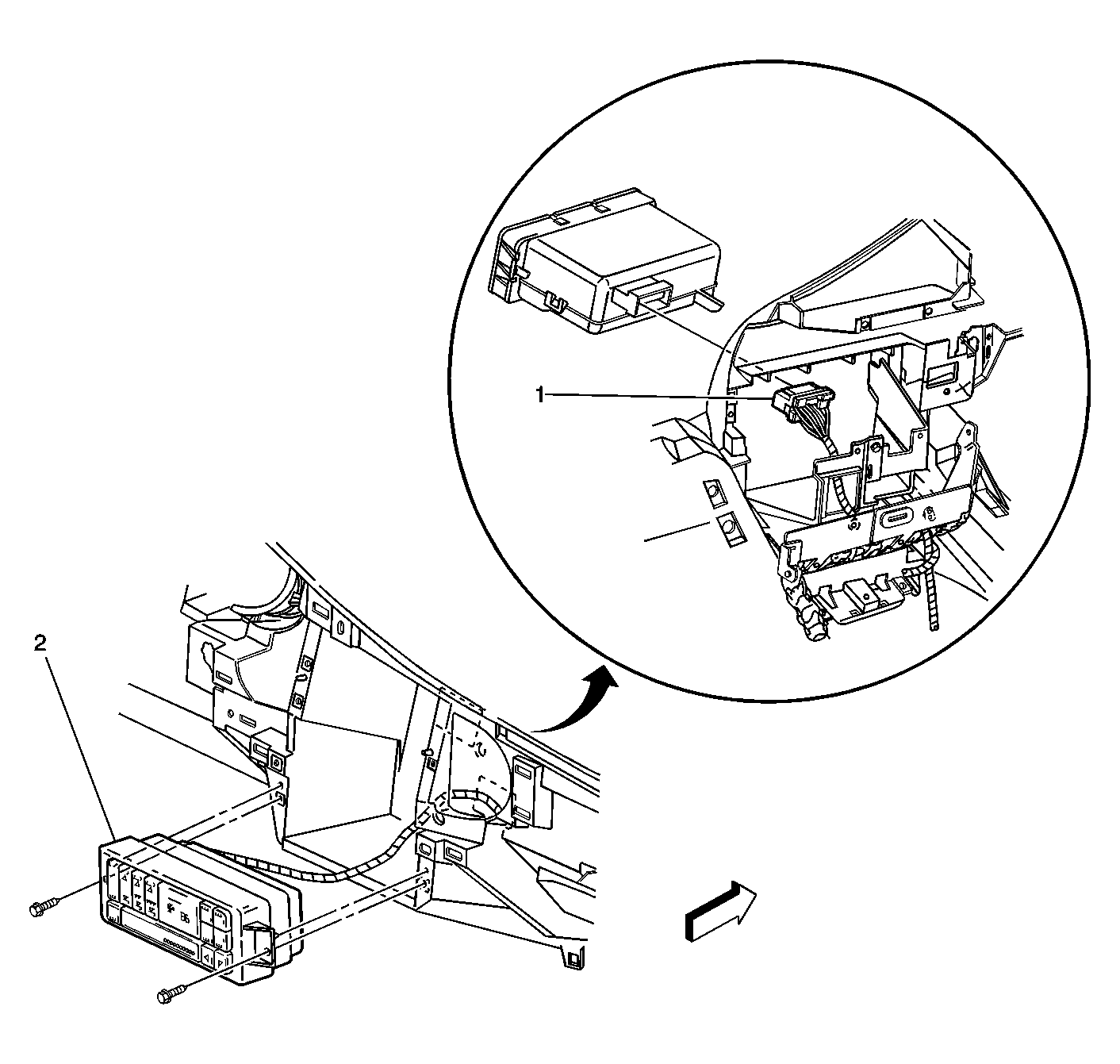

Fig 6: Lower Center of Instrument Panel Component View (CJ2)
GM592173Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 HVAC Control Module Connector
2 HVAC Control Module
Fig 7: Behind the Right Side of the I/P Component View
GM1162362Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vacuum Reservoir
2 G200
3 Fuse Block - I/P
4 C200
5 Blower Motor
6 Blower Motor Resistor Assembly (CJ3)/Blower Motor Control Processor (CJ2)
7 P100
8 Vacuum Reservoir
9 Black Vacuum Hose
10 Air Temperature Actuator - Right
11 Automatic Headlamp Relay
12 Rear Compartment Lid Release Relay
13 Rear Window Defogger Relay
14 Retained Accessory Power (RAP) Relay
15 I/P Wiring Harness
16 Air Temperature Actuator - Left

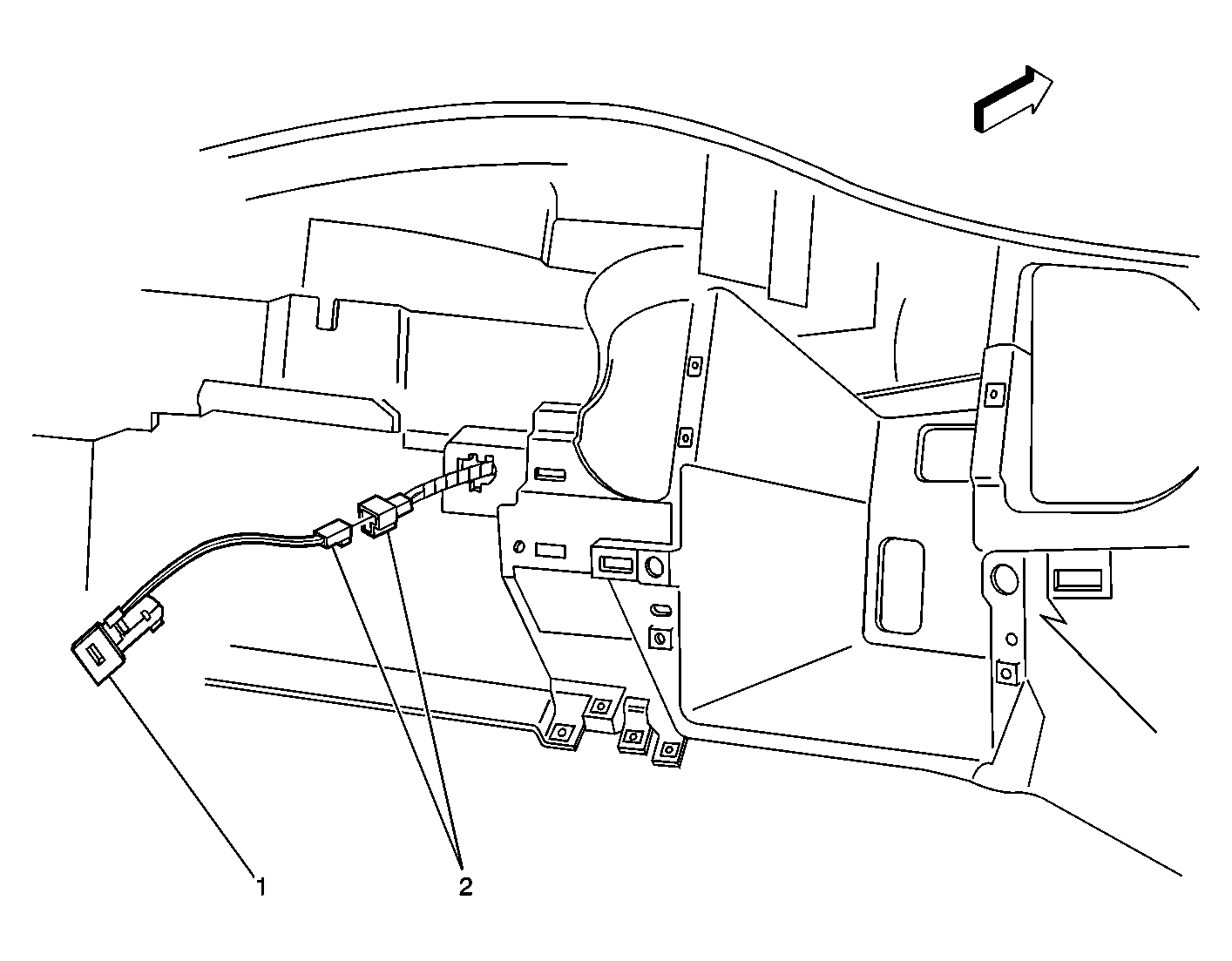

Fig 8: Behind Center of Instrument Panel Component View (CJ2)
GM592178Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Temperature Sensor-Inside
2 Air Temperature Sensor-Inside Connector
