Automatic Transmission Controls Schematics

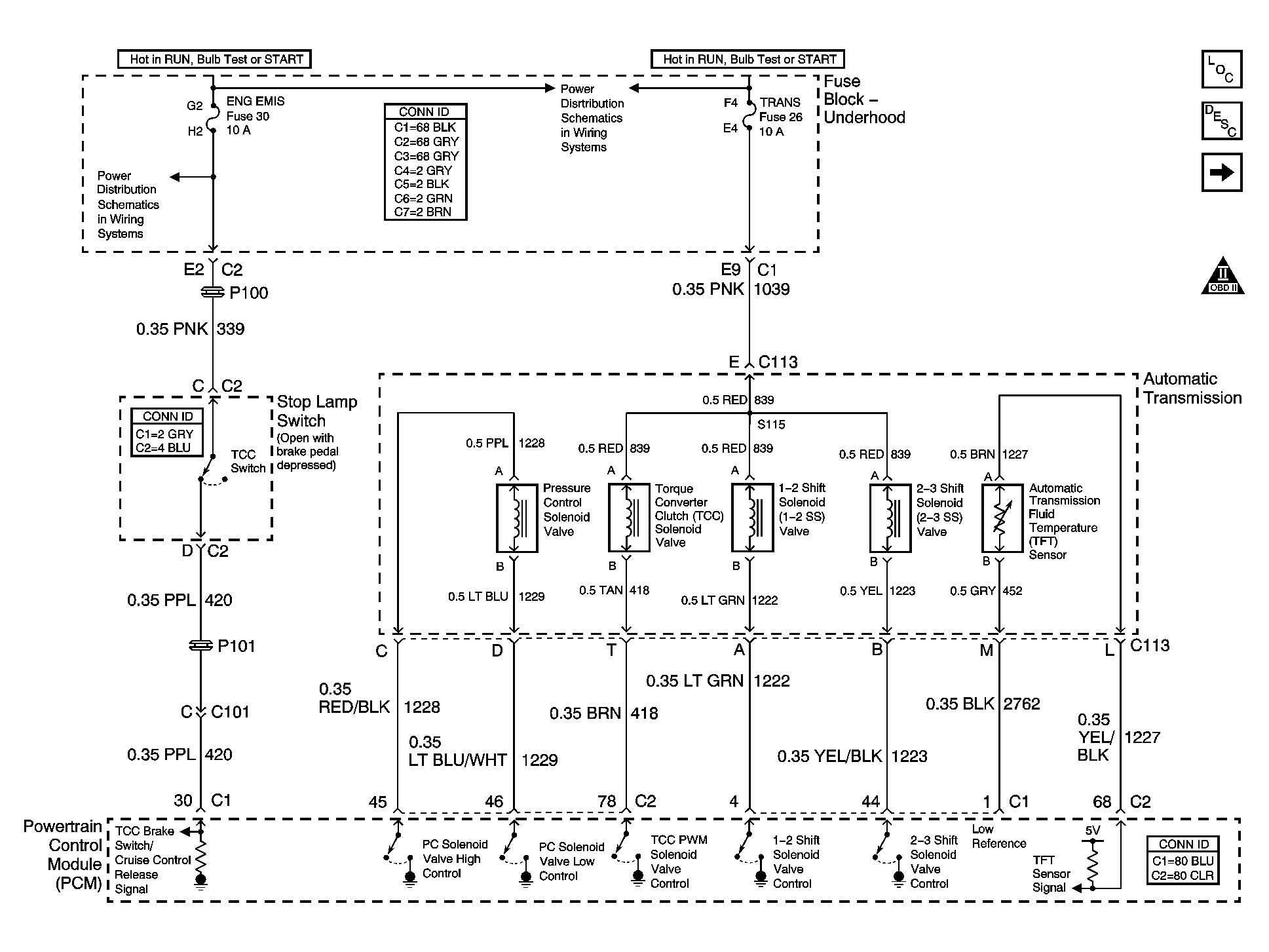

Fig 1: Solenoid Controls & TFT Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

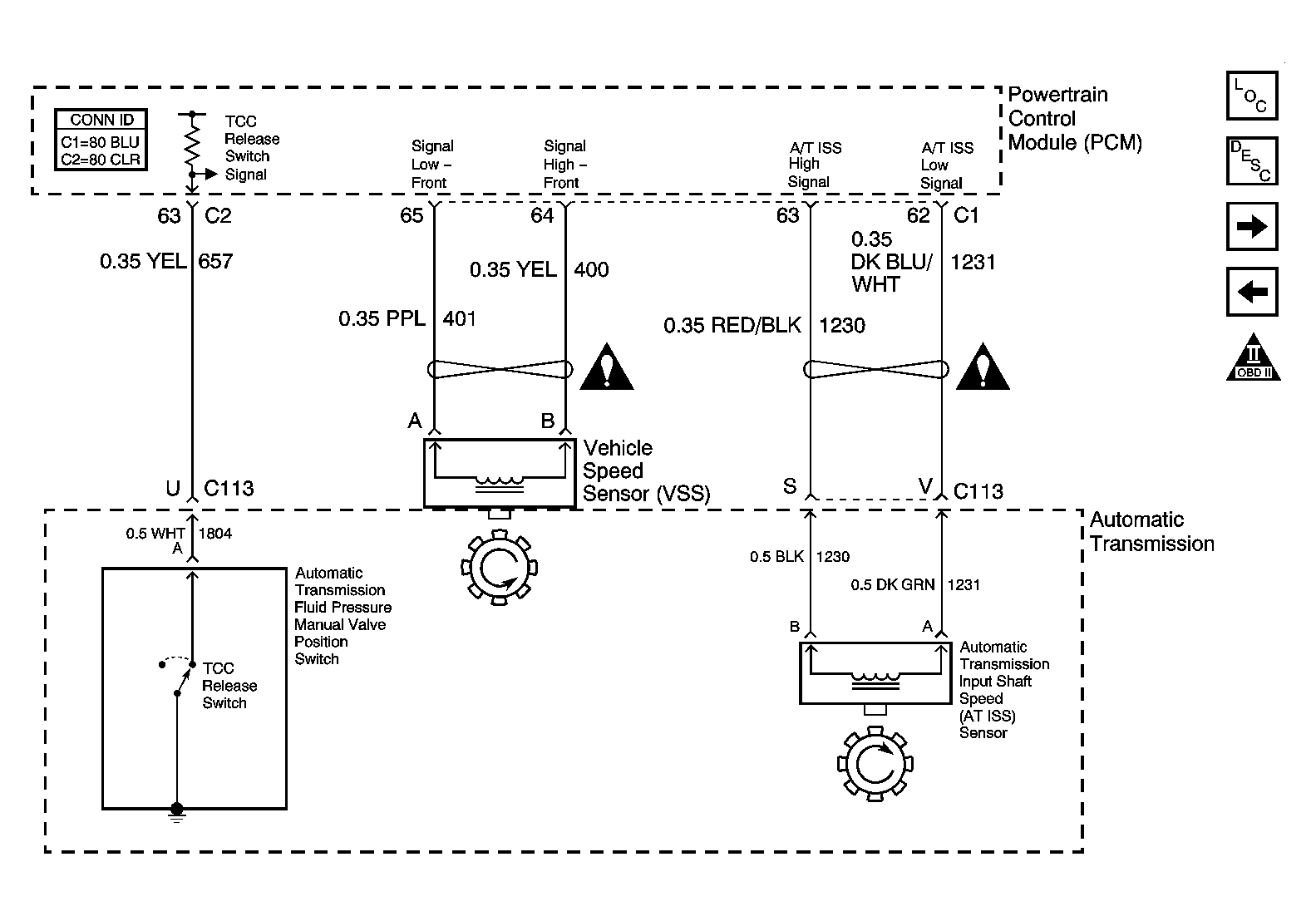

Fig 2: Fluid Pressure Manual Valve Position Switch, ISS Sensor & VSS Schematic

Courtesy of GENERAL MOTORS CORP.

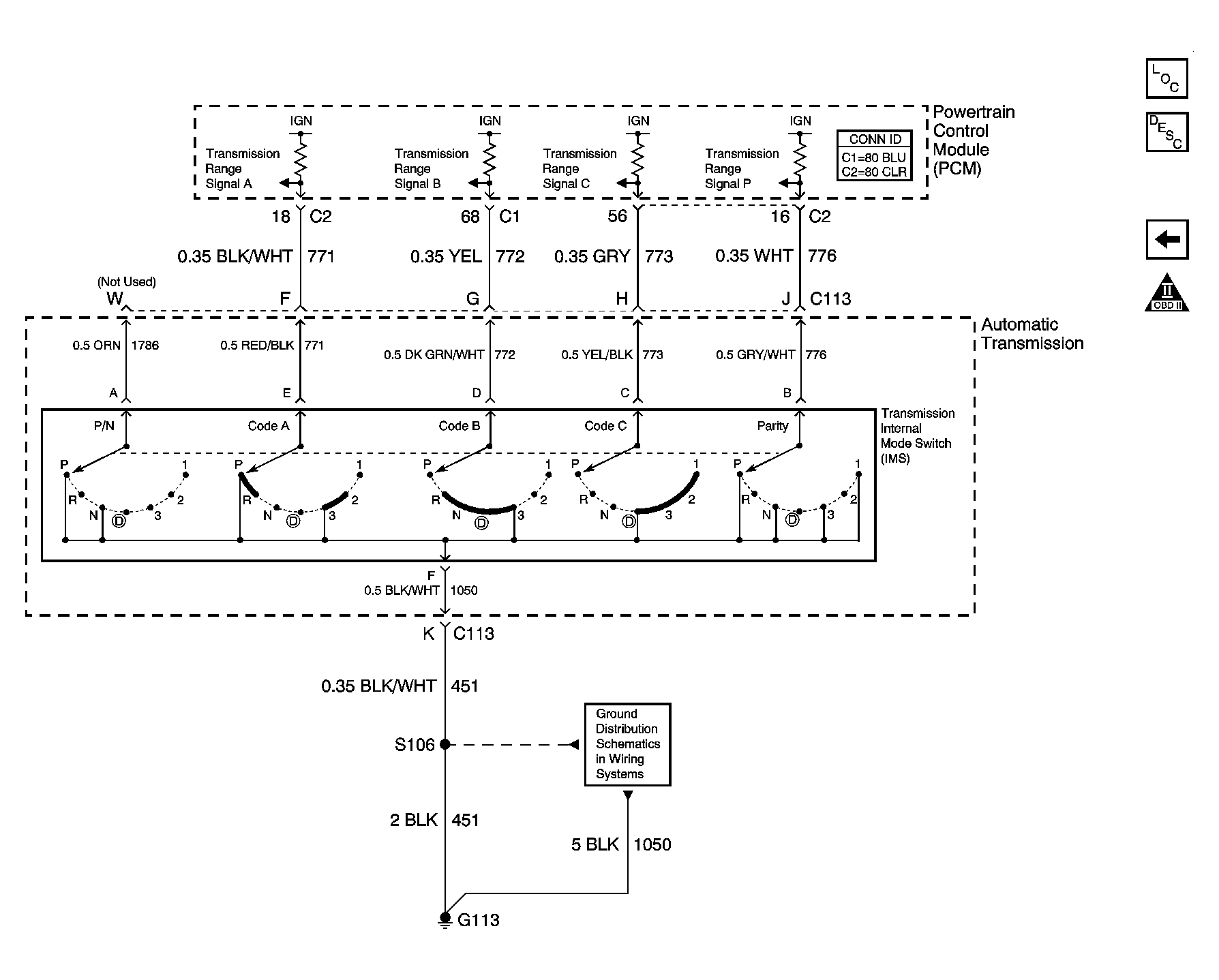

Fig 3: Internal Mode Switch (IMS) Schematic

Courtesy of GENERAL MOTORS CORP.
