Power Seat Systems Component Views

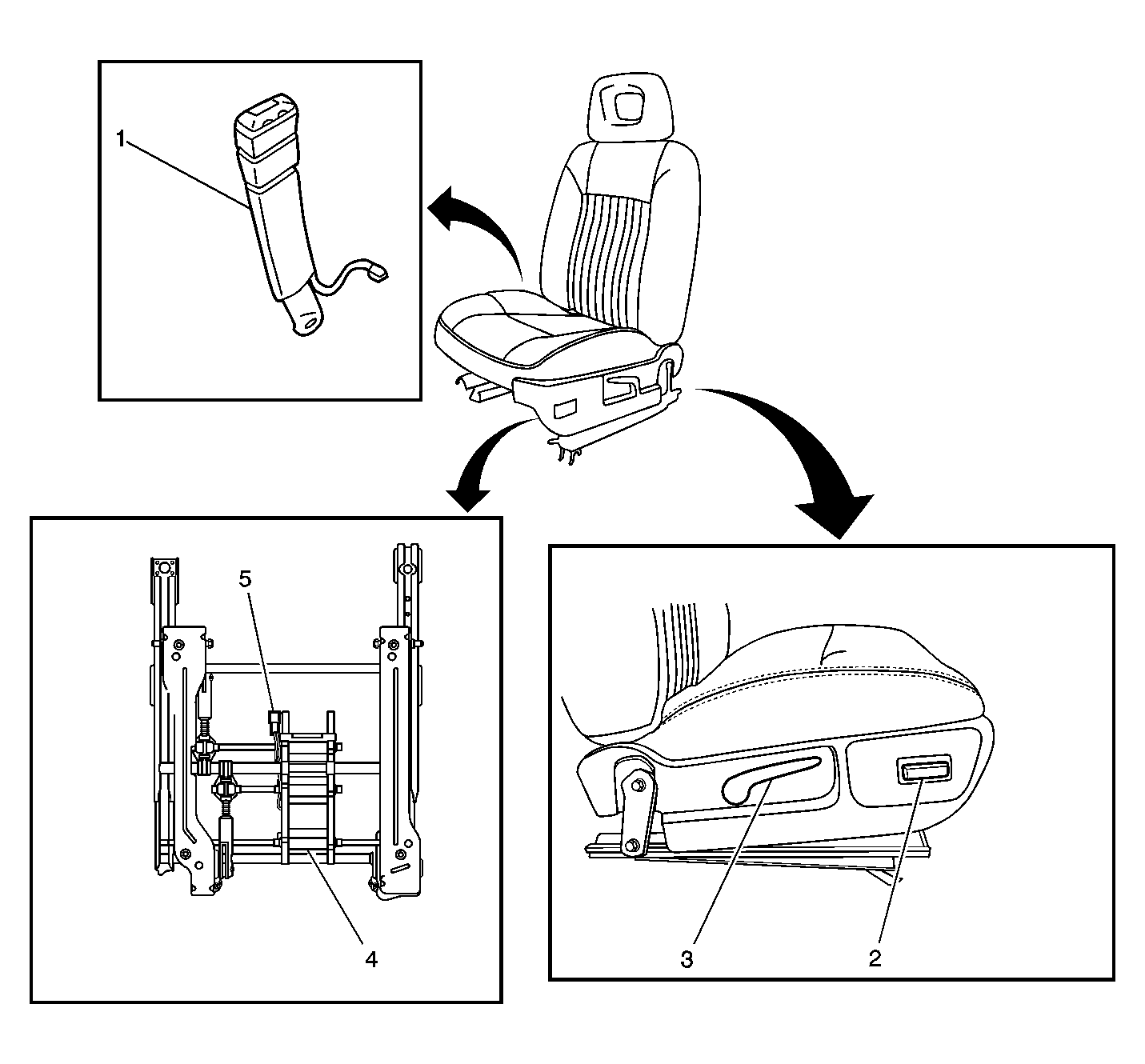

Fig 1: Power Seat Subsystem Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch
2	Seat Adjuster Switch (AG1)
3	Manual Seat Recliner Lever
4	Seat Adjuster Motor Assembly
5	C311 (AG1)
