Installation Procedure

    Fig 1: View of Intake Air Duct
    GM487939Courtesy of GENERAL MOTORS CORP.
  1. Position and insert the IAT sensor into the rear air intake duct (1).

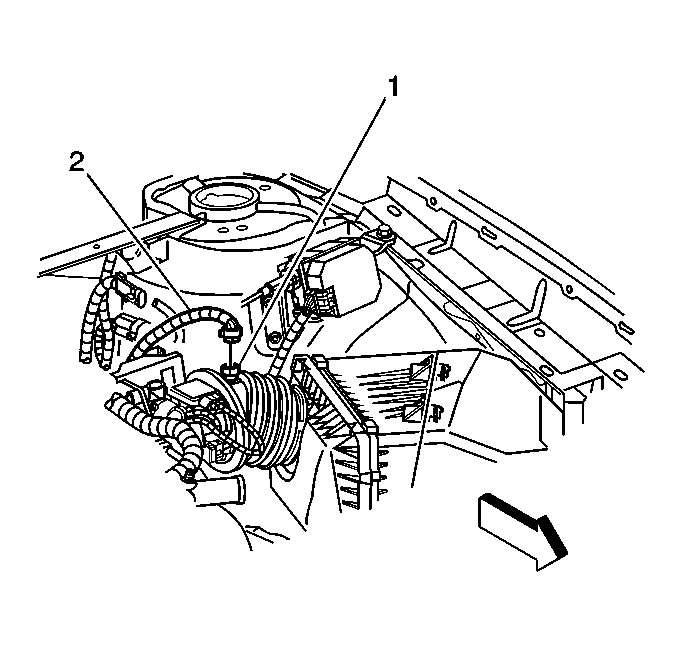

    2. Fig 2: View of Intake Air Temperature Sensor and Electrical Sensors
    GM471749Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector (2) to the IAT sensor (1).
