Installation Procedure

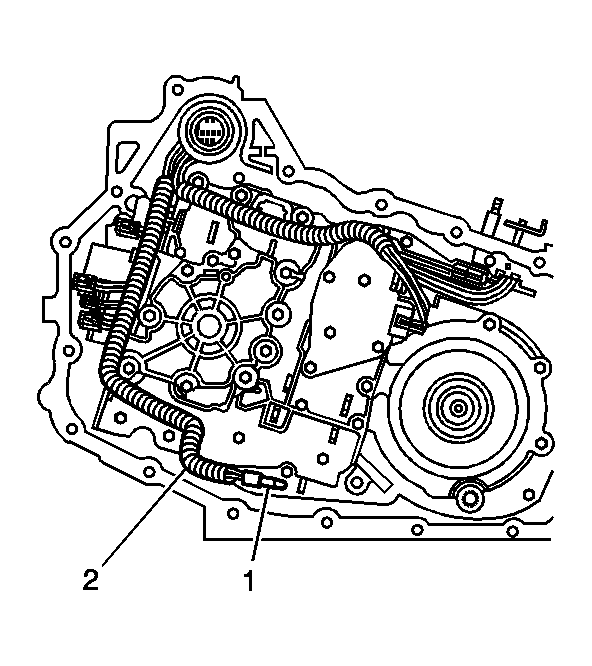

    Fig 1: Fluid Temperature Sensor
    GM773751Courtesy of GENERAL MOTORS CORP.
  1. Connect the wiring harness connector to the fluid temperature sensor (1).
  2. Install the wiring harness (2) and fluid temperature sensor (1) into the retaining clip.
  3. Install the case side cover. Refer to Case Side Cover Replacement .
  4. Fill the transaxle to the proper level. Refer to Fluid Capacity Specifications .
  5. Inspect the transaxle fluid level. Refer to Transmission Fluid Checking Procedure .
  6. Inspect for fluid leaks.
