Body Control System Schematics

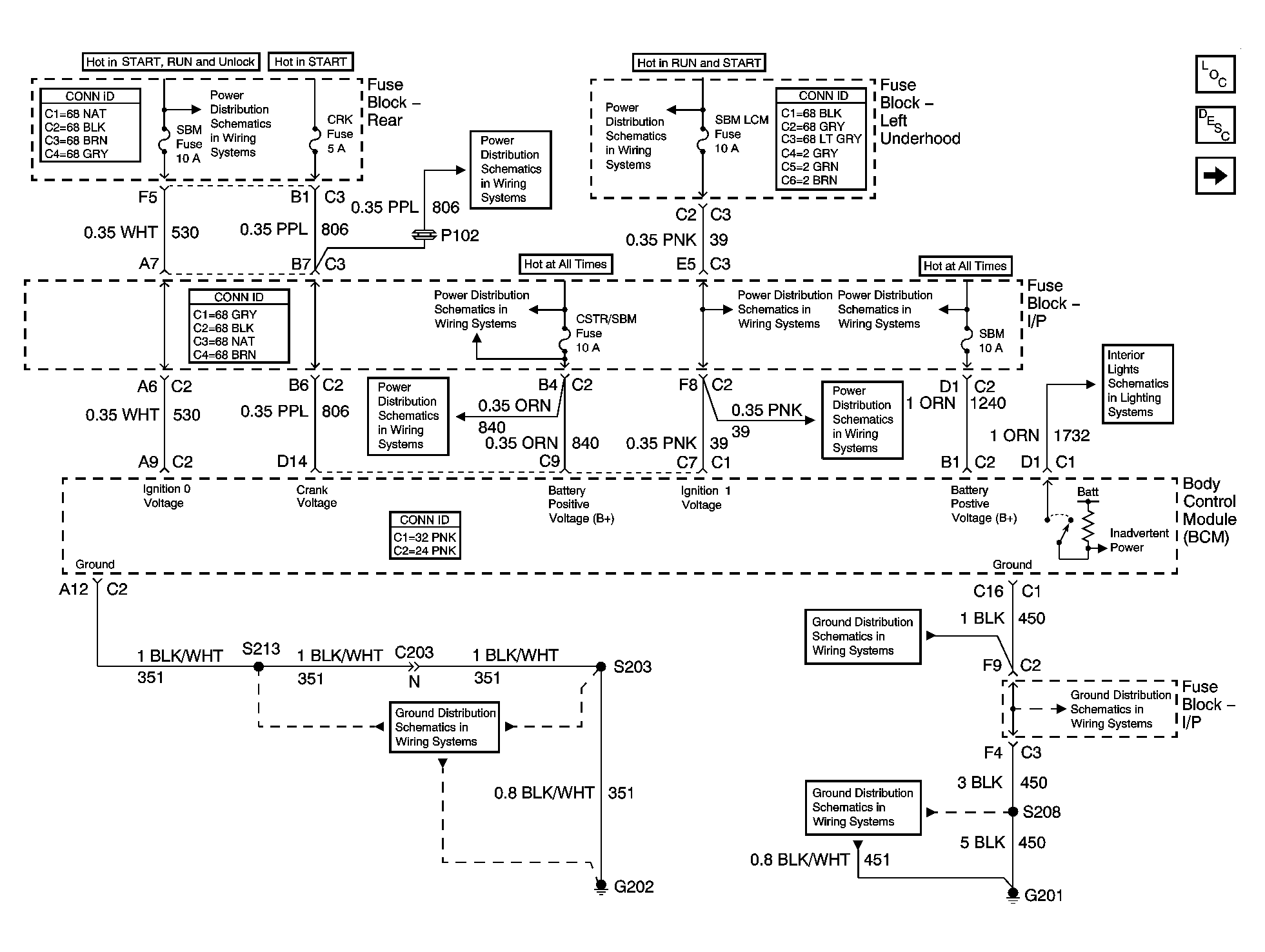

Fig 1: Power and Ground Schematics

Courtesy of GENERAL MOTORS CORP.

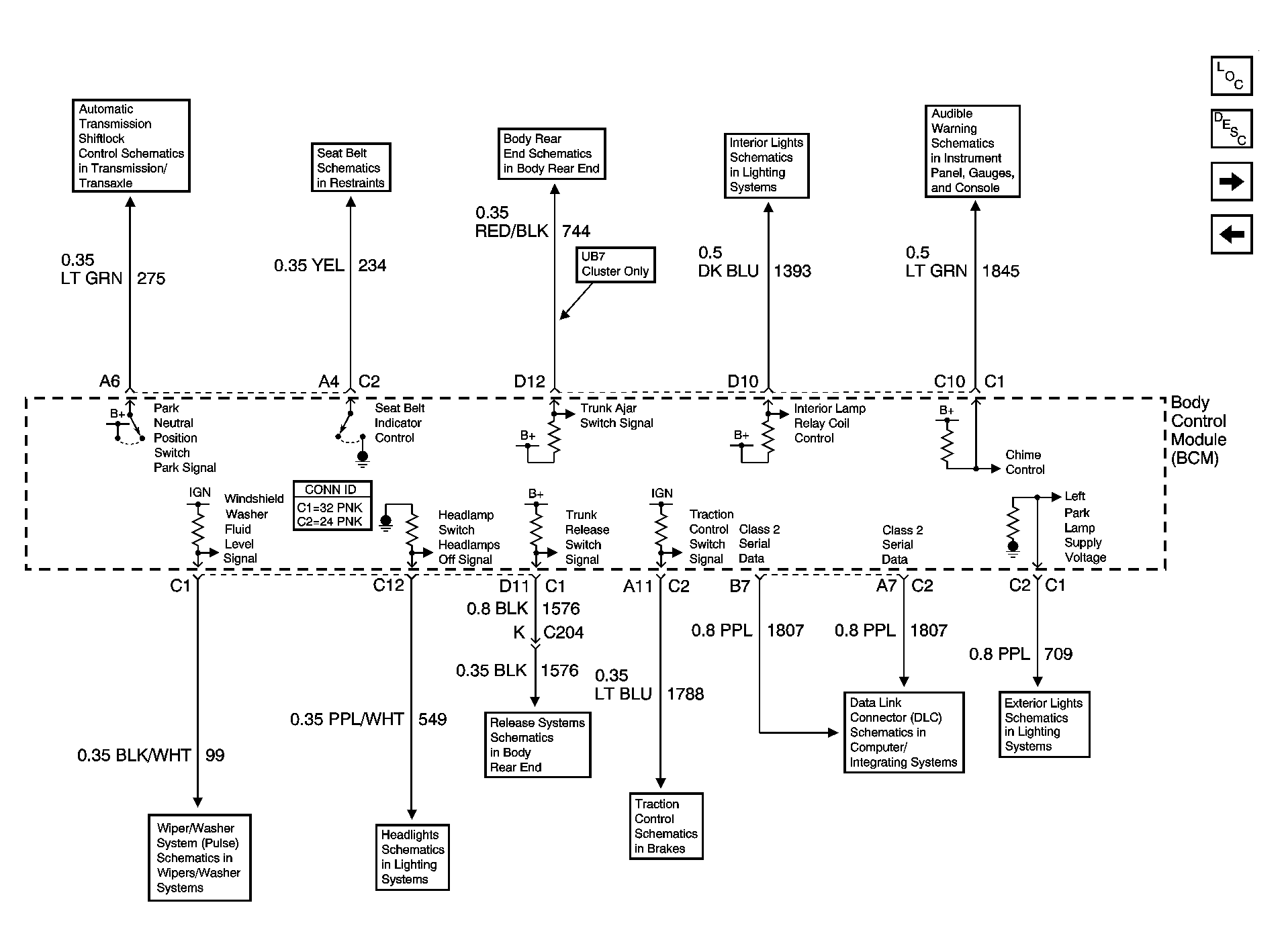

Fig 2: Inputs and Outputs Schematics - 1 of 2

Courtesy of GENERAL MOTORS CORP.

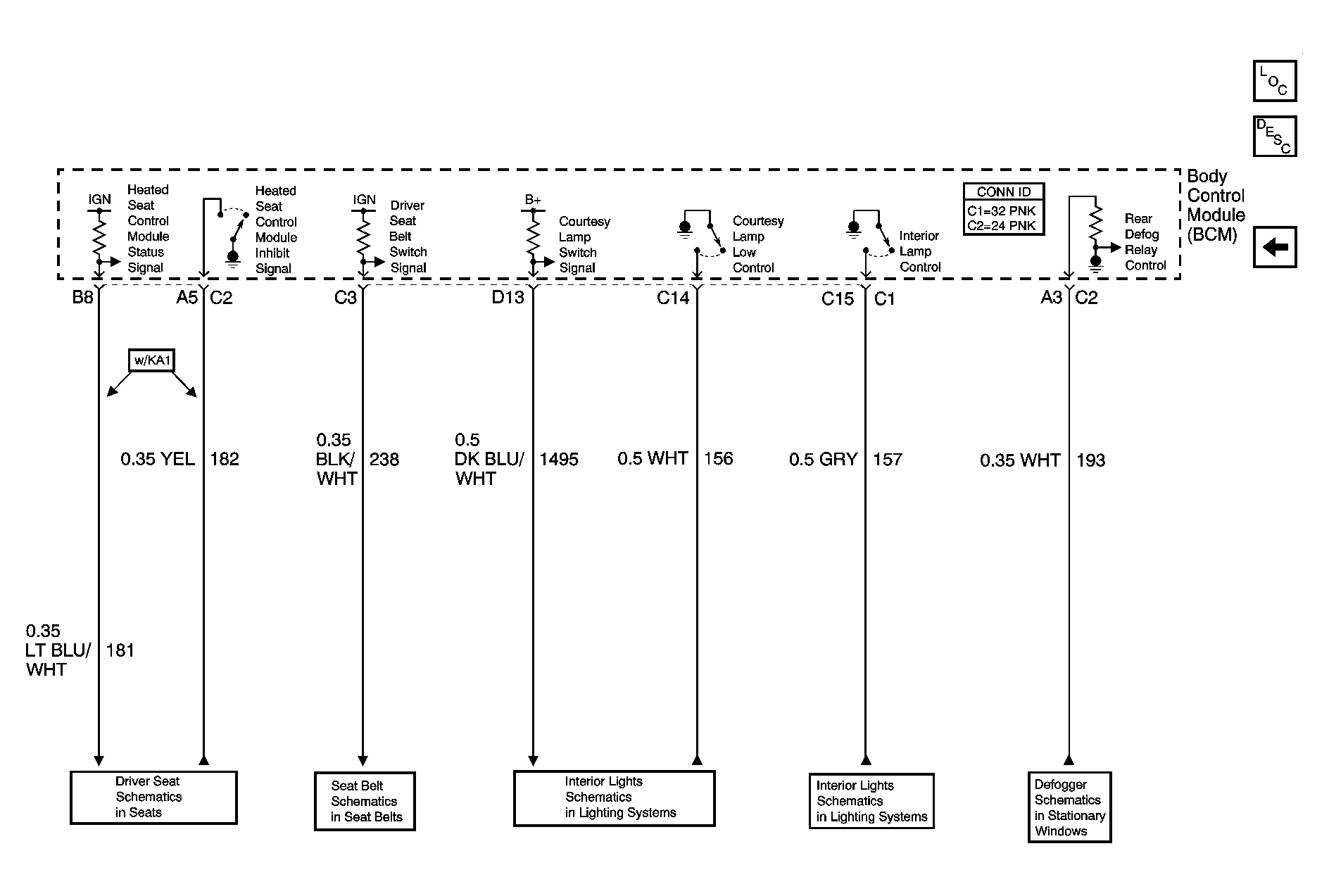

Fig 3: Inputs and Outputs Schematics - 2 of 2

Courtesy of GENERAL MOTORS CORP.
