Cruise Control Component Views

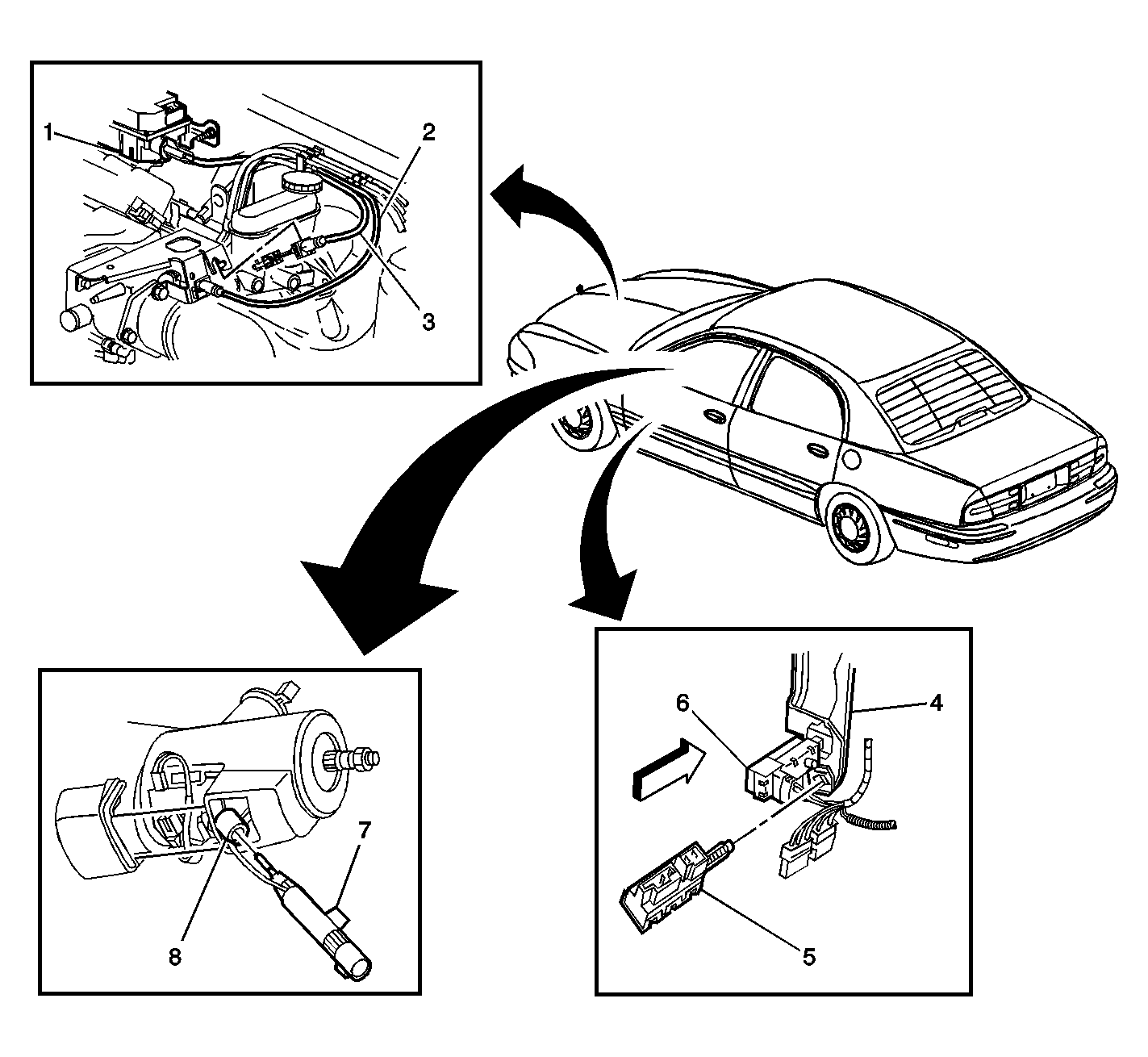

Fig 1: Identifying Cruise Control Subsystem Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cruise Control Module
2	Throttle Cable
3	Cruise Control Cable
4	Brake Pedal Support Bracket
5	Stop Lamp Switch
6	TCC/Cruise Release Switch
7	Multifunction Lever
8	Turn Signal/Multifunction Switch
