Keyless Entry Schematics

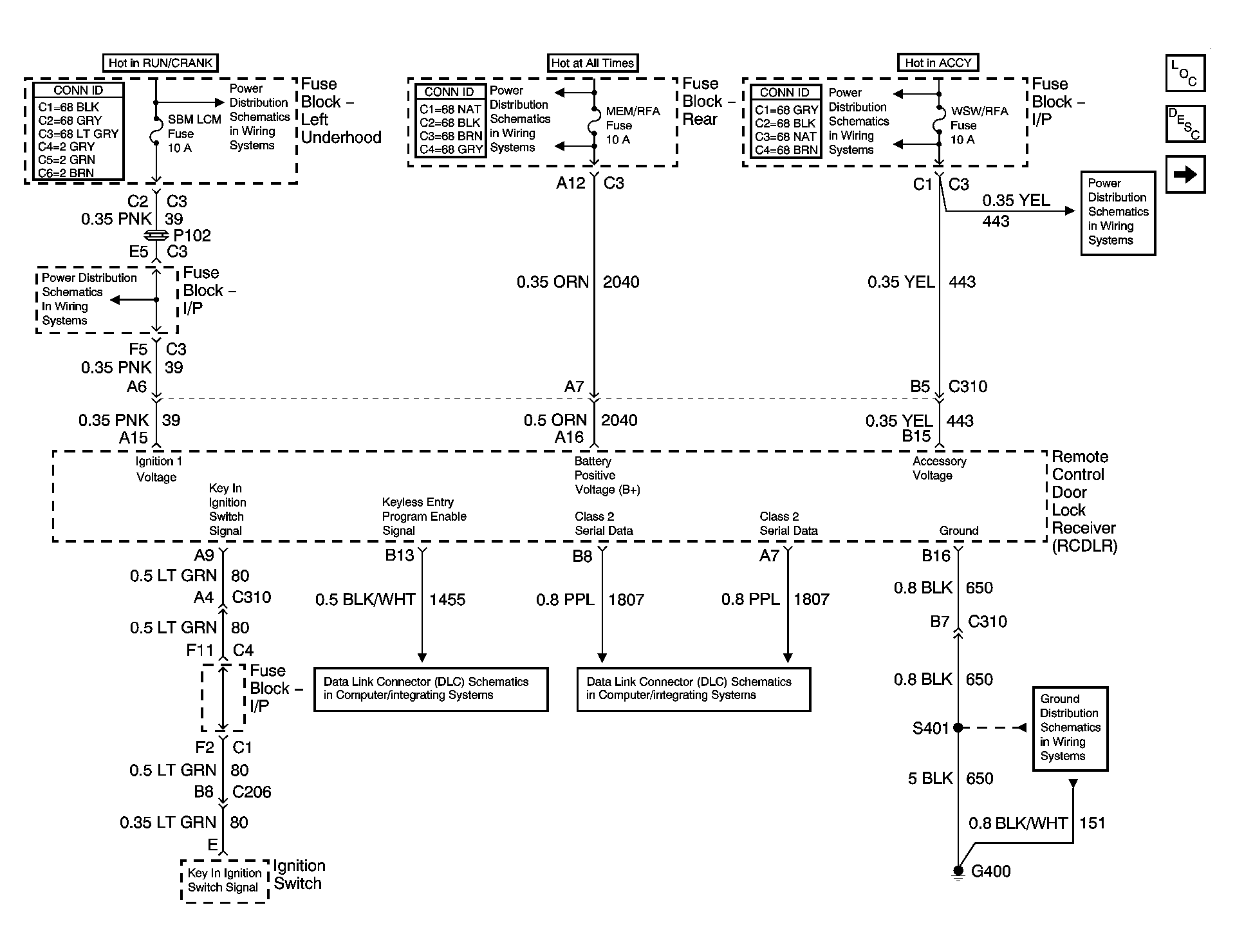

Fig 1: RCDLR Power, Ground, and DLC Schematics
GM1441819Courtesy of GENERAL MOTORS CORP.

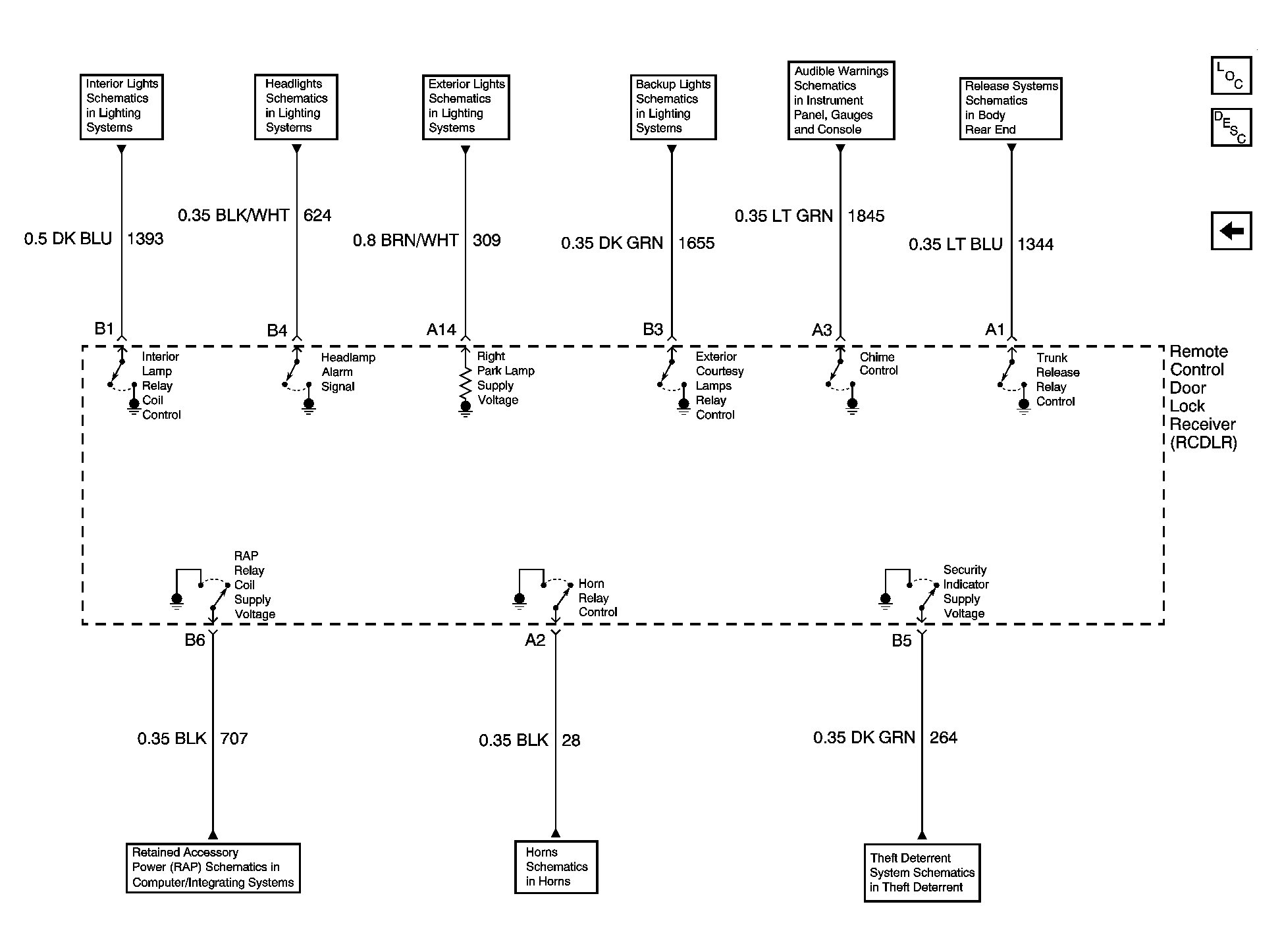

Fig 2: RCDLR Inputs and Outputs Schematics
GM1441824Courtesy of GENERAL MOTORS CORP.
