Door Control Module Schematics

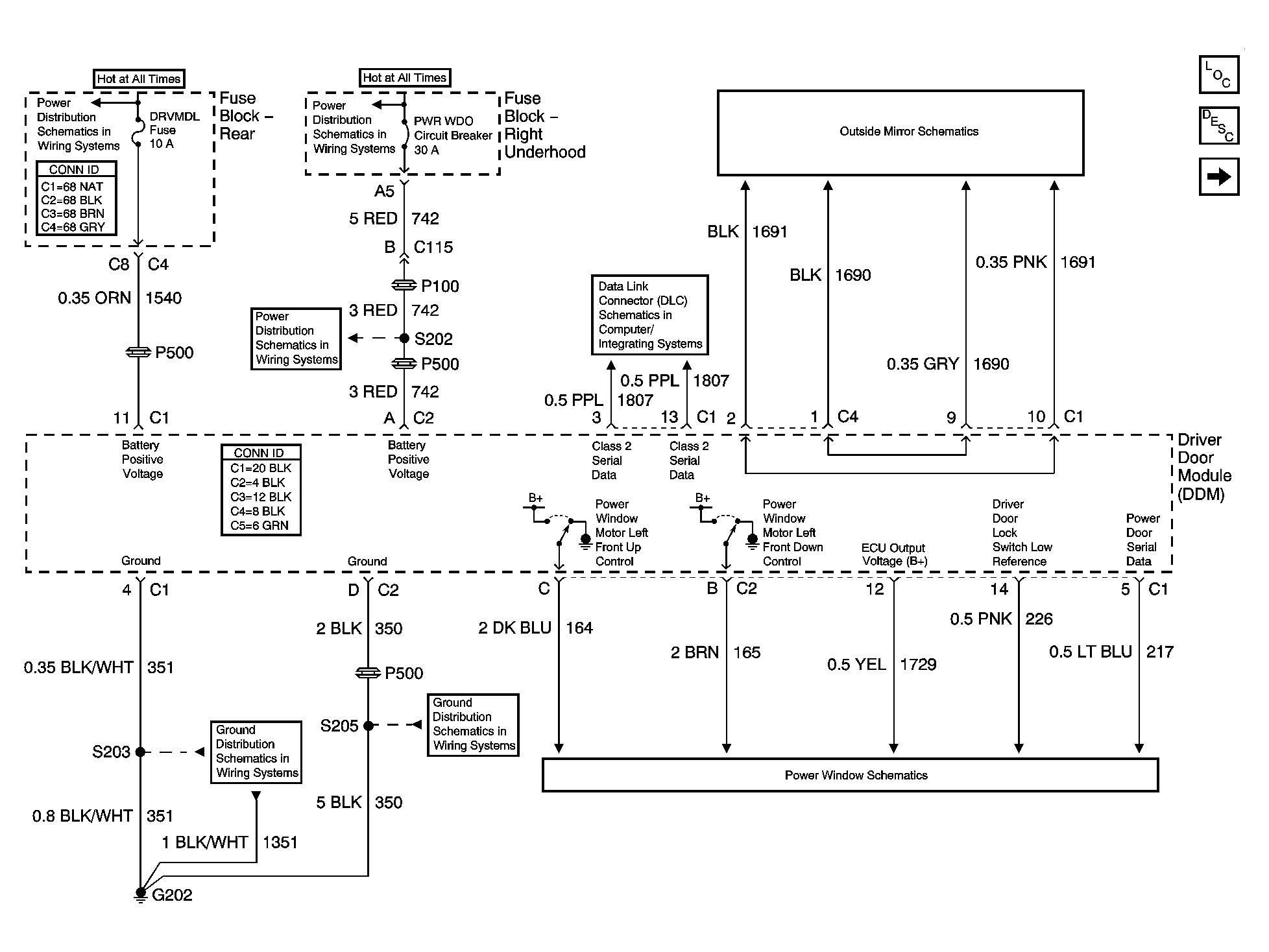

Fig 1: Driver Door Module Schematics

Courtesy of GENERAL MOTORS CORP.

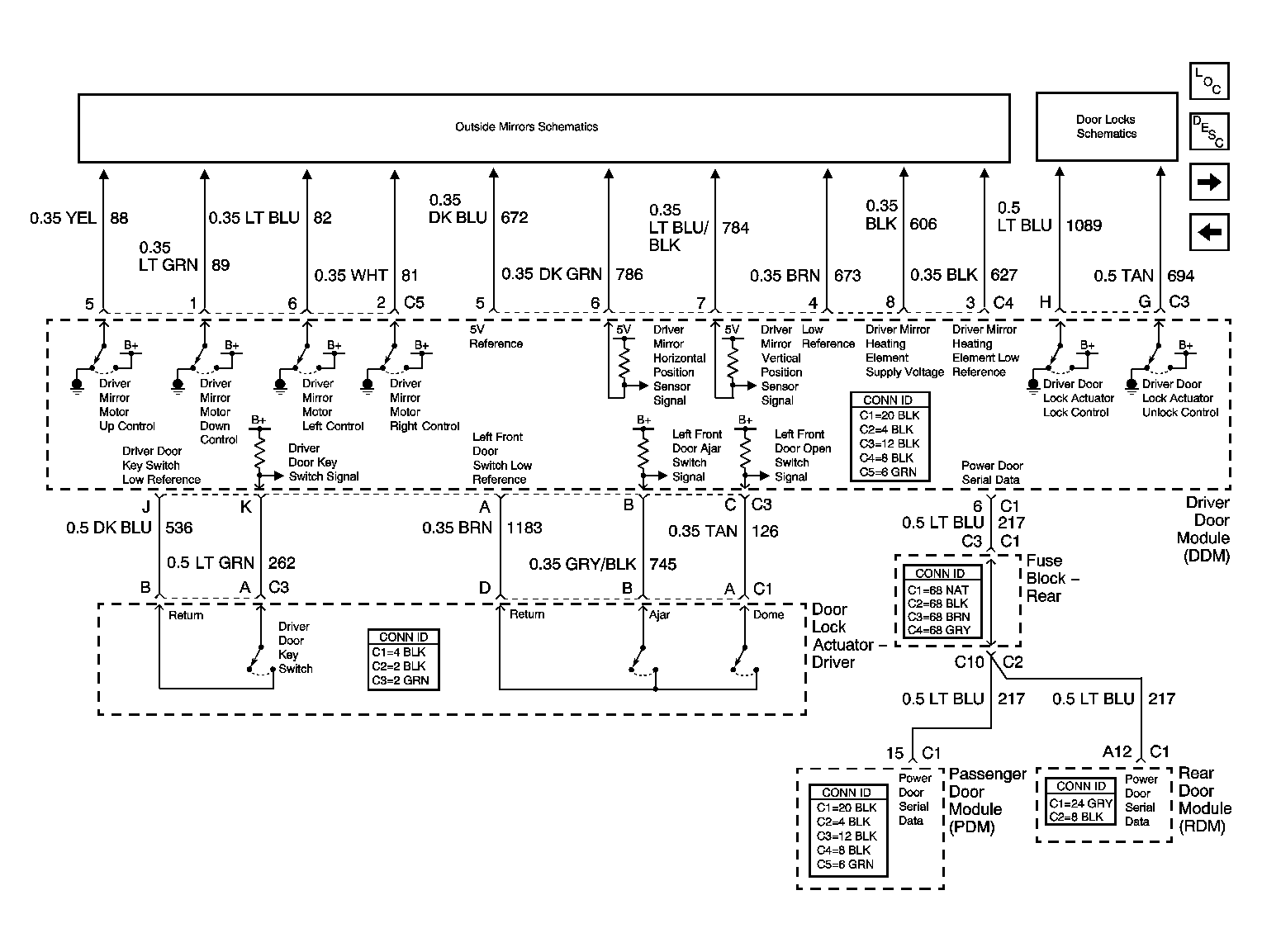

Fig 2: Driver Door Module Inputs and Outputs Schematic

Courtesy of GENERAL MOTORS CORP.

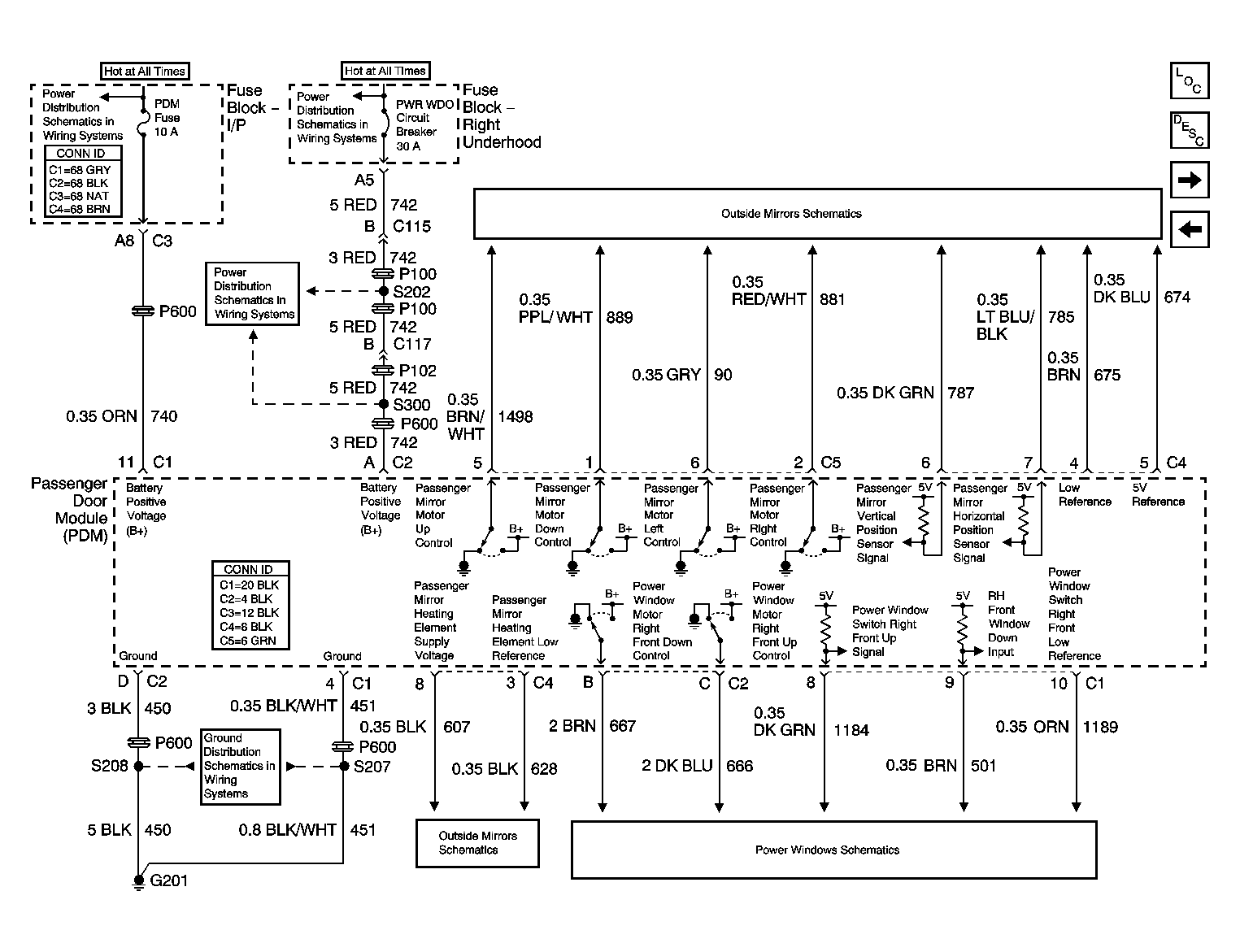

Fig 3: Passenger Door Module Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Passenger Door Module Inputs and Outputs Schematic

Courtesy of GENERAL MOTORS CORP.

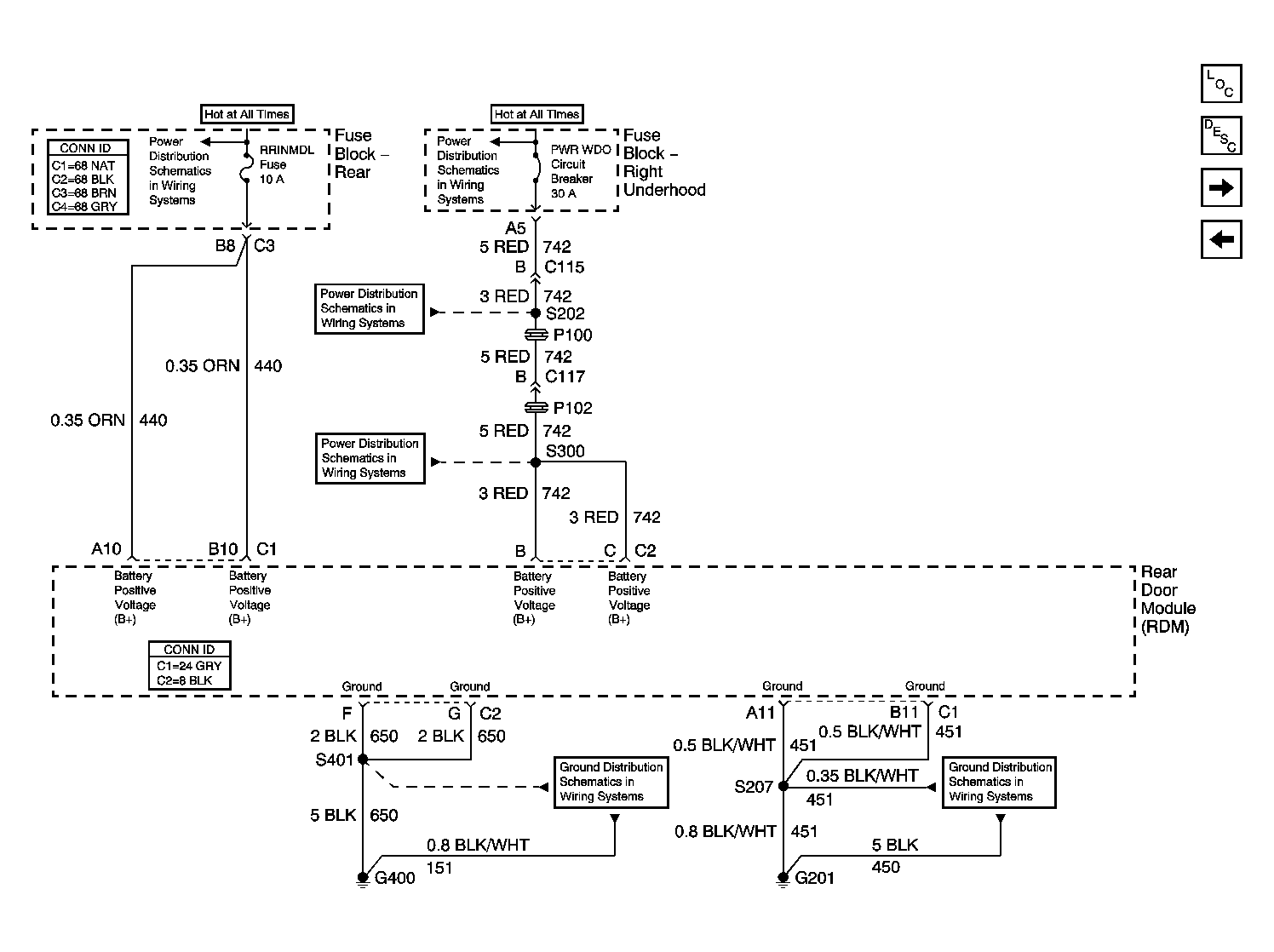

Fig 5: Rear Door Module Schematic

Courtesy of GENERAL MOTORS CORP.

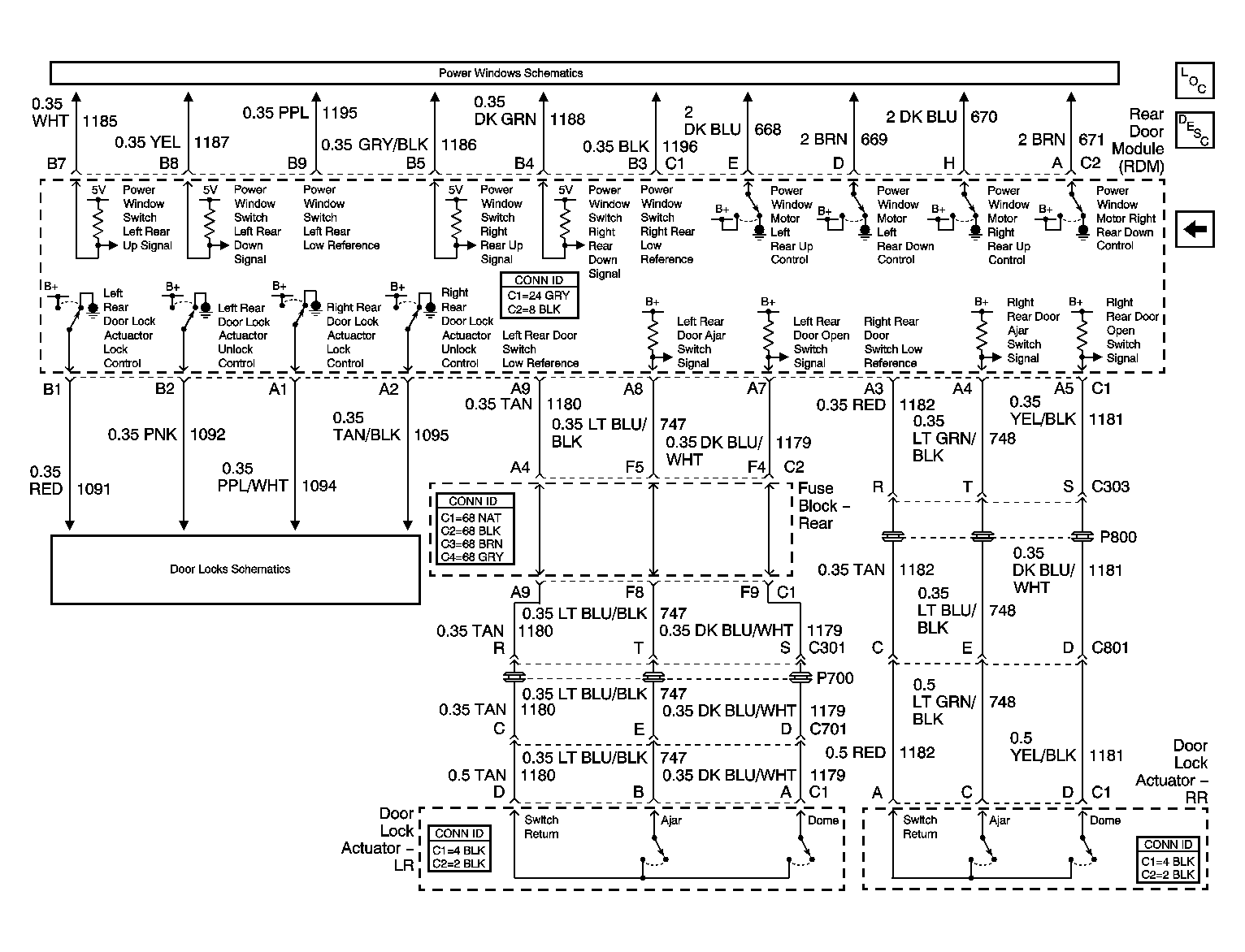

Fig 6: Rear Door Module Inputs and Outputs Schematic

Courtesy of GENERAL MOTORS CORP.
