Installation Procedure

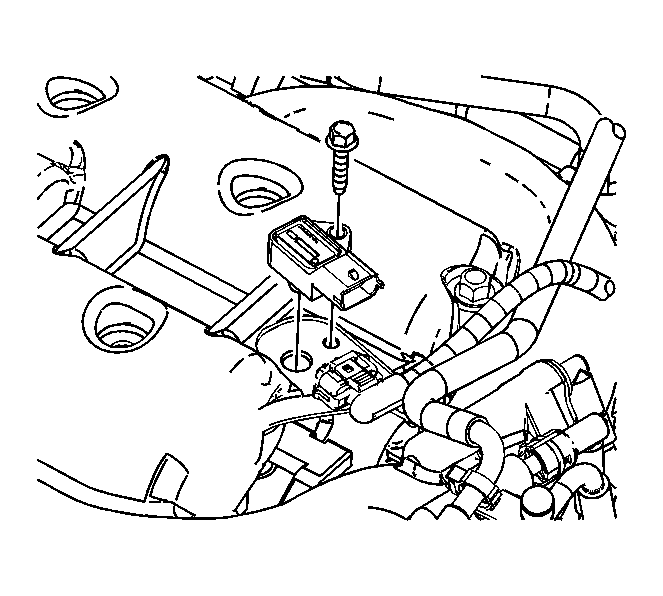

    Fig 1: Locating Barometric Pressure (BARO) Sensor & Bolt
    GM1395942Courtesy of GENERAL MOTORS CORP.
  1. Install the barometric pressure sensor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the barometric pressure sensor bolt.

    Tighten:  Tighten the barometric pressure sensor bolt to 10 N.m (89 lb in).

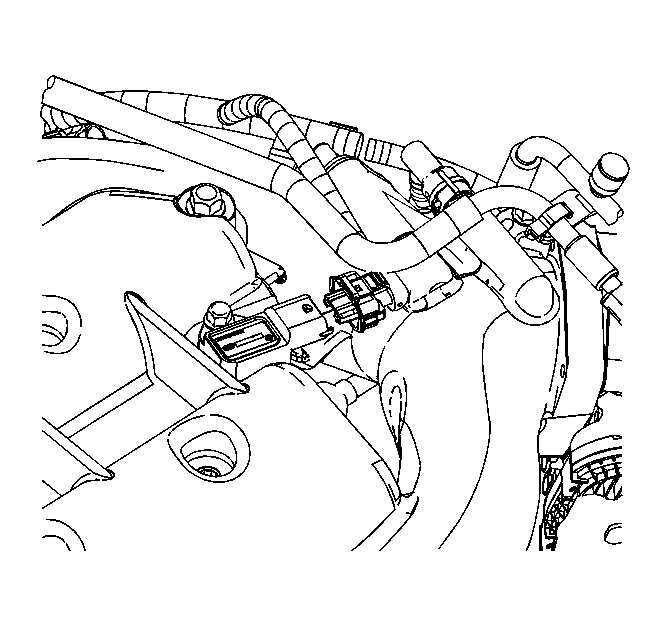

    3. Fig 2: View Of Barometric Pressure (BARO) Sensor Electrical Connector
    GM1401472Courtesy of GENERAL MOTORS CORP.
  3. Install the sensor electrical connector.
