Automatic Transmission Shift Lock Control Schematics

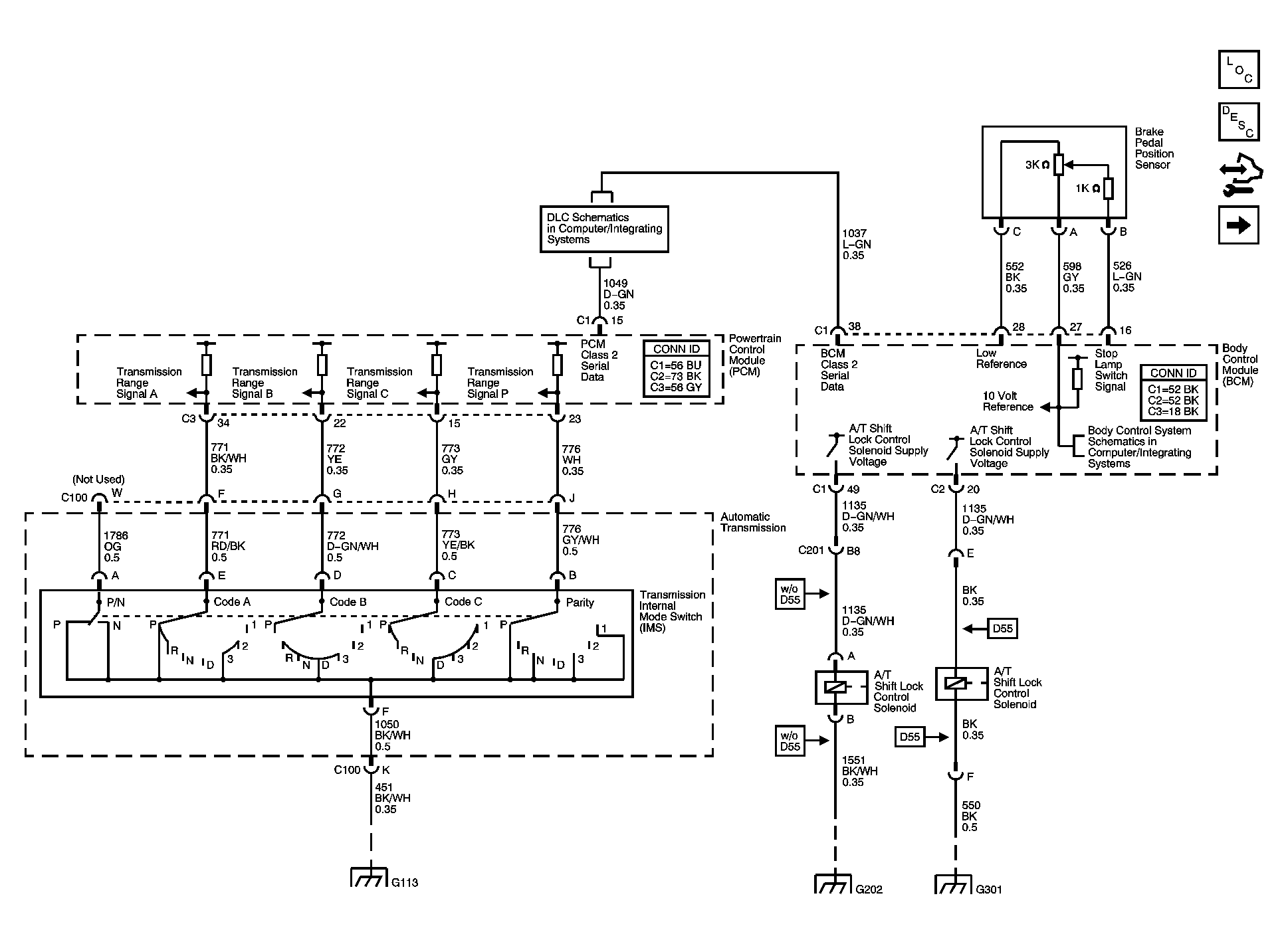

Fig 1: Shift Lock Control Schematic - L26

Courtesy of GENERAL MOTORS CORP.

Fig 2: Shift Lock Control Schematic - LY7

Courtesy of GENERAL MOTORS CORP.
