Power Door Systems Component Views

Fig 1: View Of Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Heated and Cooled Seat Switch - Driver (KA1, KB6, A45)
3	Outside Rearview Mirror - Driver
4	Speaker - LF Door
5	Driver Door Module (DDM)
6	Window Motor - Driver
7	Door Latch Assembly - Driver

Fig 2: View Of Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Door Frame
3	Door Latch Assembly - Front Passenger
4	Window Motor - Driver
5	Front Passenger Door Module (FPDM)
6	Speaker - RF Door
7	Heated and Cooled Seat Switch - Front Passenger (KA1, KB6)

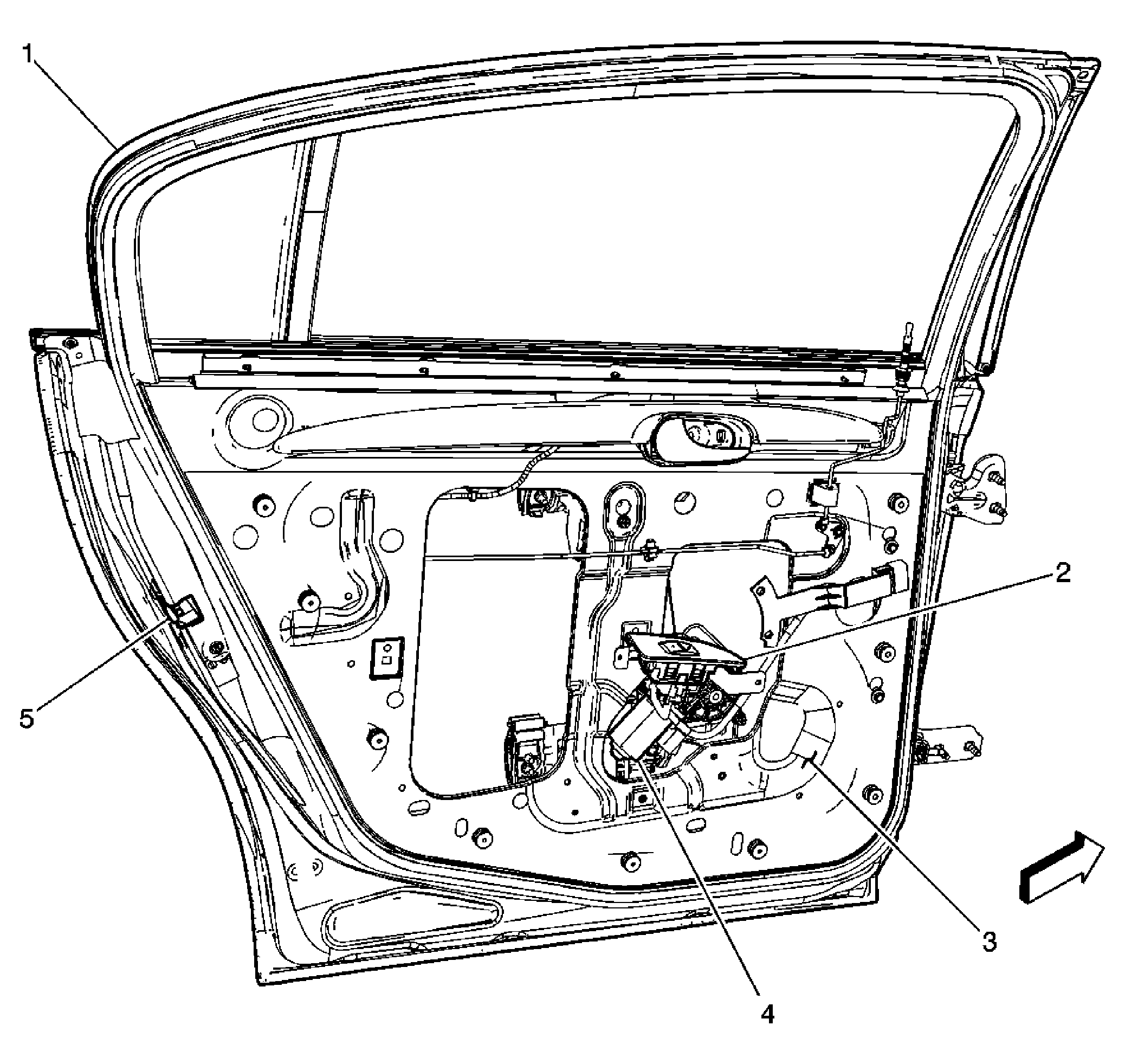

Fig 3: View Of Left Rear Door

Courtesy of GENERAL MOTORS CORP.

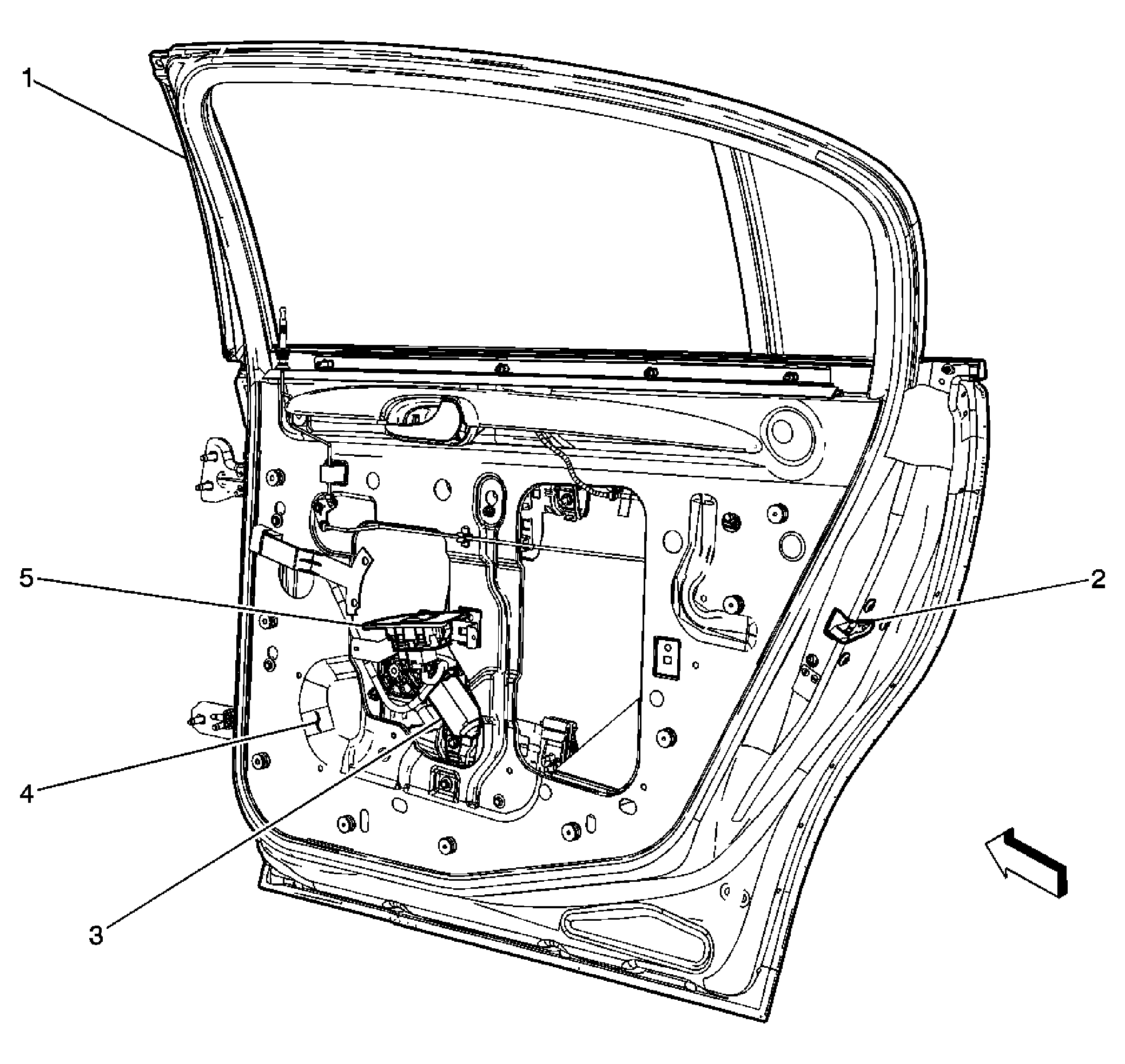

Fig 4: View Of Right Rear Door

Courtesy of GENERAL MOTORS CORP.
