Installation Procedure

IMPORTANT: Care must be taken when handling engine coolant temperature sensor. Damage to the engine coolant temperature sensor will effect proper operation of the fuel injection system.

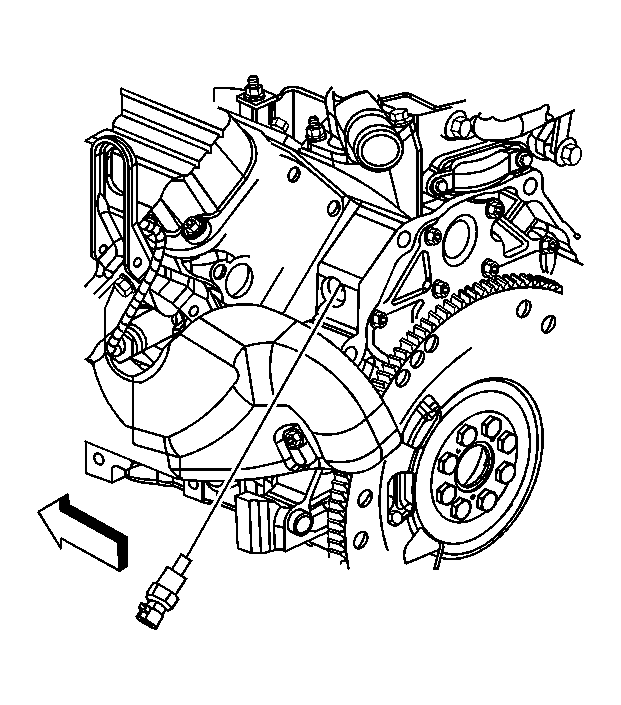

Fig 1: Identifying ECT Sensor

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Replacement components must be the correct part number for the application. Components requiring the use of thread locking compound, lubricants, corrosion inhibitors or sealants are identified in the service procedure. Some replacement components may come with these coatings already applied. DO NOT use these coatings on components unless specified. These coatings can effect the final torque, which may affect the operation of the component. Use the correct torque specifications when installing components in order to avoid damage.

Coat the threads of the sensor with sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent.

NOTE: Refer to Fastener Notice .

Install the ECT sensor.
Tighten: Tighten the sensor to 23 N.m (17 lb ft).

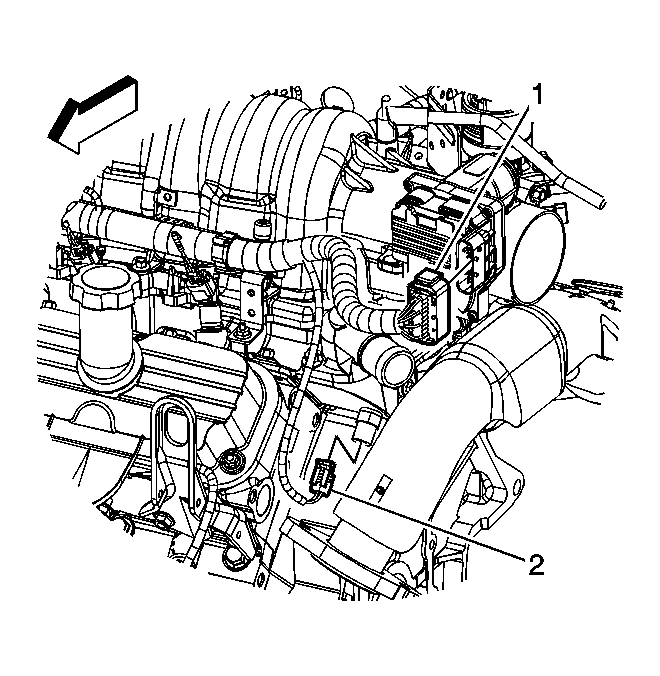

Fig 2: Identifying Throttle Actuator Harness Connector

Courtesy of GENERAL MOTORS CORP.

Connect the engine harness electrical connector (2) to the ECT sensor.
Refill the cooling system. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (Vac-N-Fill) .
Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
