Removal Procedure

  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
    2. Fig 1: Identifying Throttle Actuator Harness Connector
    GM1686287Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the engine harness electrical connector (1) from the throttle actuator.

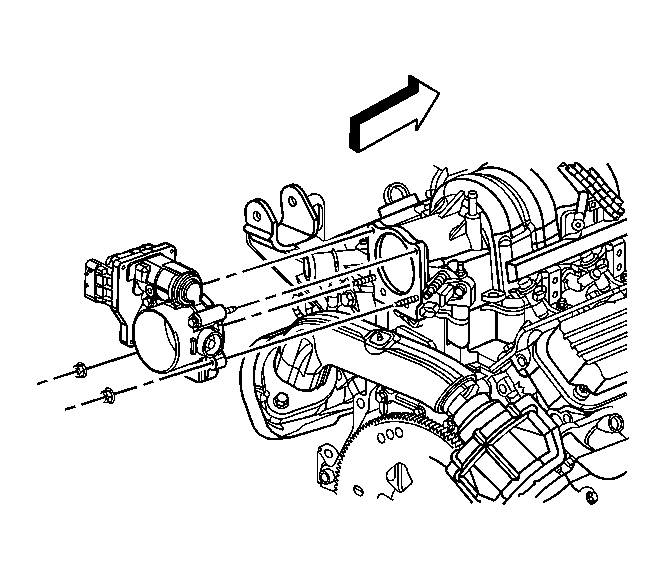

    3. Fig 2: Identifying Throttle Body Bolts
    GM1686290Courtesy of GENERAL MOTORS CORP.
  3. Loosen the throttle body bolts.
  4. Remove the throttle body nuts.
  5. Remove the throttle body and seal.
