Power and Grounding Component Views

Fig 1: View Of Right Front Of Engine Compartment

GM1707099

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G104
2	Fuse Block - Underhood
3	G111

Fig 2: View Near Rear Cylinder Head (LD8)

GM1707093

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Gas Recirculation (EGR) Valve
2	Valve Cover
3	G100
4	Engine Coolant Temperature (ECT) Sensor

Fig 3: Locating G101

GM1707103

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LF Strut Tower
2	G101

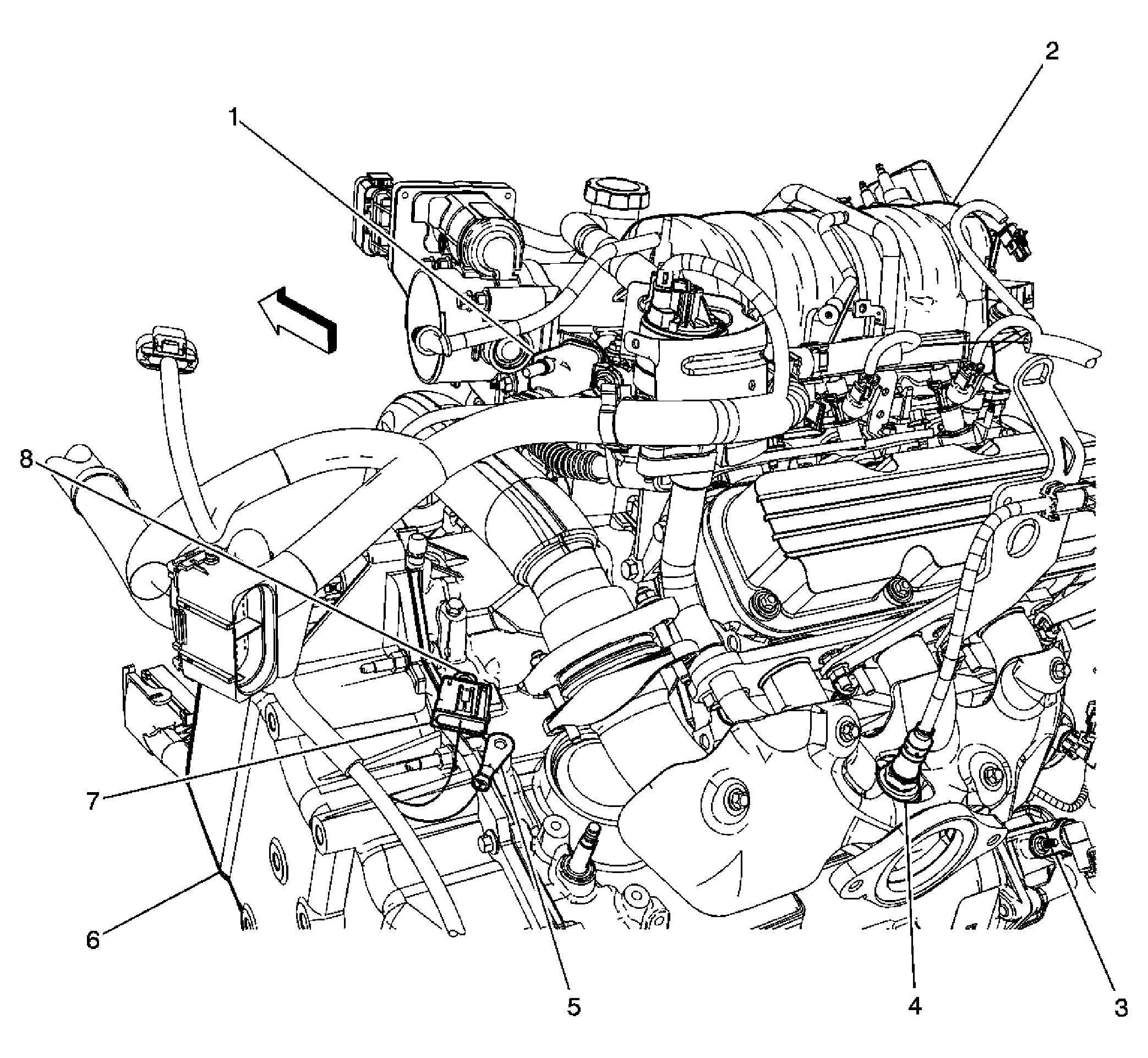

Fig 4: View Above Transmission (L26)

GM1707092

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2	Intake Manifold
3	Vehicle Speed Sensor (VSS)
4	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
5	G114
6	Transmission
7	SP100 (Early 2006)
8	G112

Fig 5: Identifying Engine Harness Routing (L26)

GM1709222

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S109
2	G114
3	C111 Engine Harness to Body Harness
4	S114
5	S113
6	G100
7	Automatic Transmission Connector
8	S106
9	S108
10	S101
11	Fuse Block-Underhood C3
12	C110 Engine Harness to Ignition Control Module Harness
13	S115
14	S116

Fig 6: Identifying G115 (L26)

GM1551331

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Intake Manifold
2	Ignition Control Module
3	G115
4	A/C Compressor Clutch

Fig 7: Identifying G112, G114 & G115 (LD8)

GM1707088

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Manifold
2	G114
3	G112
4	G115

Fig 8: View Of Left Side Of Engine (4.6L)

GM1697753

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine - 4.6L
2	Engine Oil Level Switch (06)
3	A/C Compressor
4	Generator
5	G110

Fig 9: Identifying Front Floor Panel Grounds

GM1707178

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Panel
2	G304
3	G302
4	G300
5	G305

Fig 10: View Of G306

GM1707097

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G306
2	LR C - Pillar
3	Rear Seat

Fig 11: View Of RR Of Passenger Compartment

GM1707175

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RR C-Pillar
2	G307
3	G403
4	Deck Lid

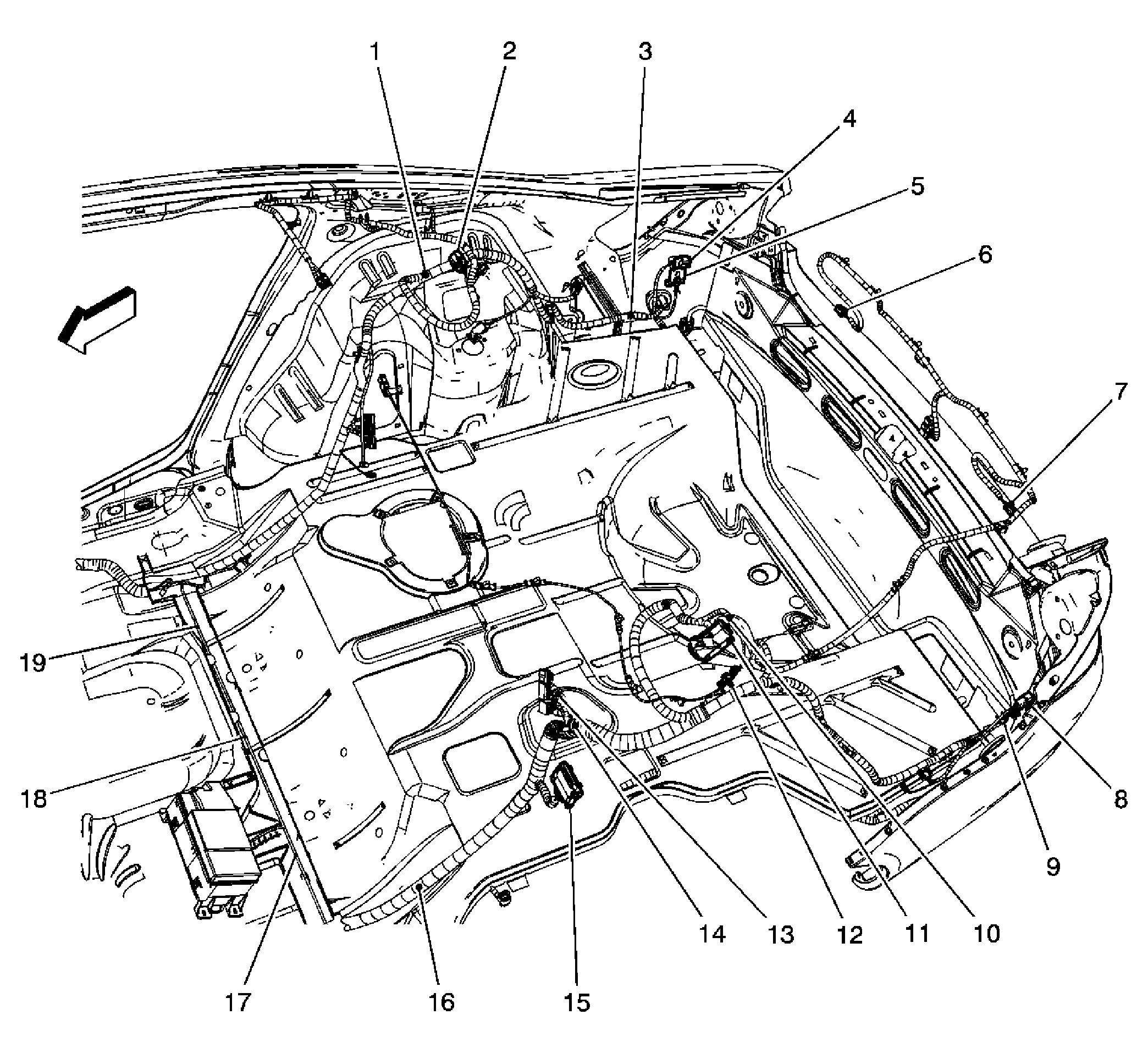

Fig 12: Identifying Body Harness - Rear Compartment

GM1703108

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S324
2	C397 (CF5)
3	S316
4	C499
5	G403
6	C492
7	C493
8	C498
9	G402
10	S385
11	C321
12	G306
13	S365
14	S366 (UQA)
15	C445
16	S372
17	S323
18	S317
19	S337

Fig 13: View Under Rear Seat

GM1707102

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SP300
2	Fuse Block - Rear
3	Battery Current Sensor
4	G303
5	Battery
6	Rear Seat
