Front Door Frame Applique Replacement
Front Door Frame Applique Replacement

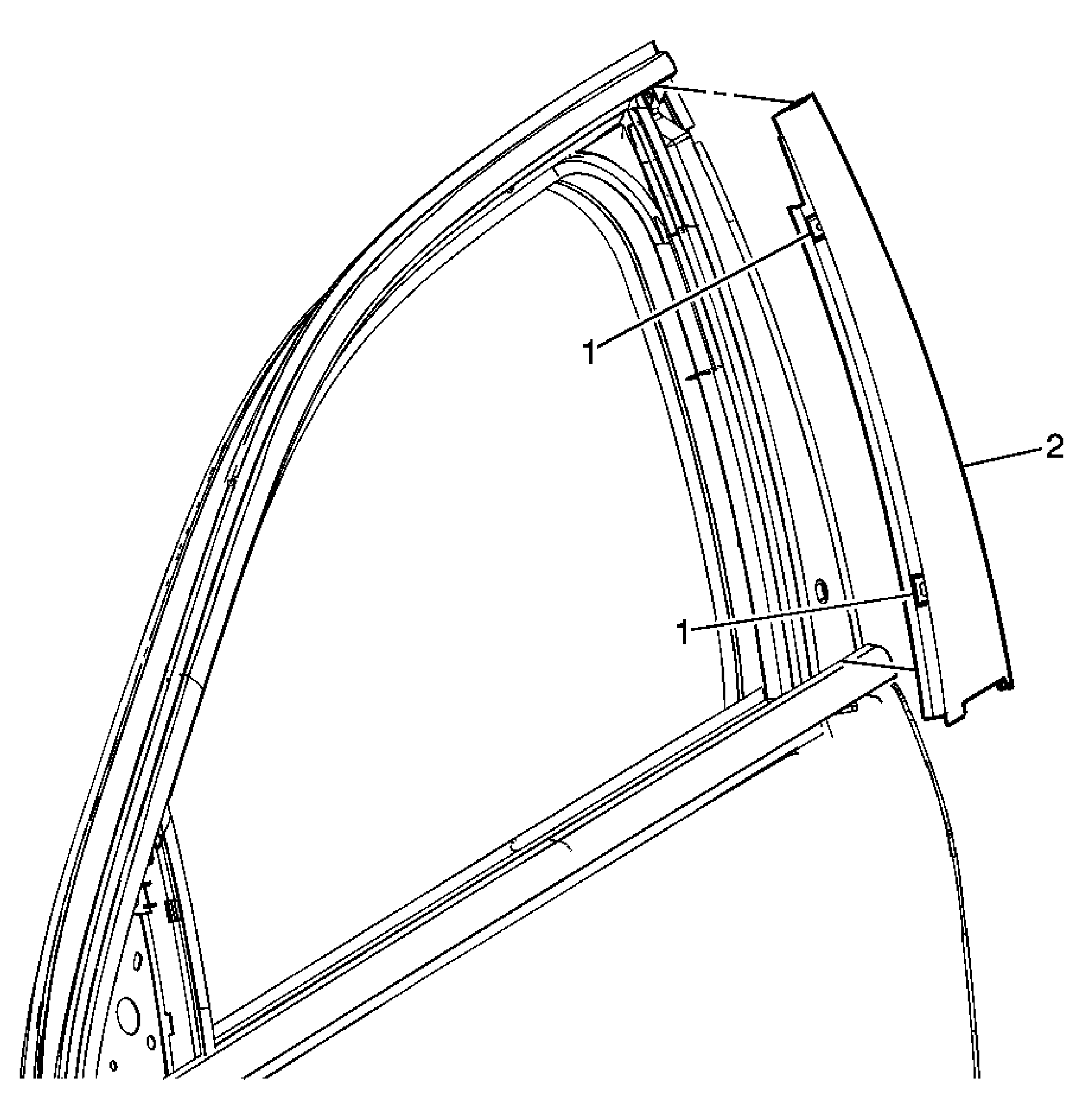

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Position the window to the full down position. |
|
| 1 | Front Door Frame Applique Rivets (Qty: 2) Tip: Disconnect upper run channel from applique to gain access to screws. |
| 2 | Front Door Frame Applique |
