Front Side Door Lock Replacement

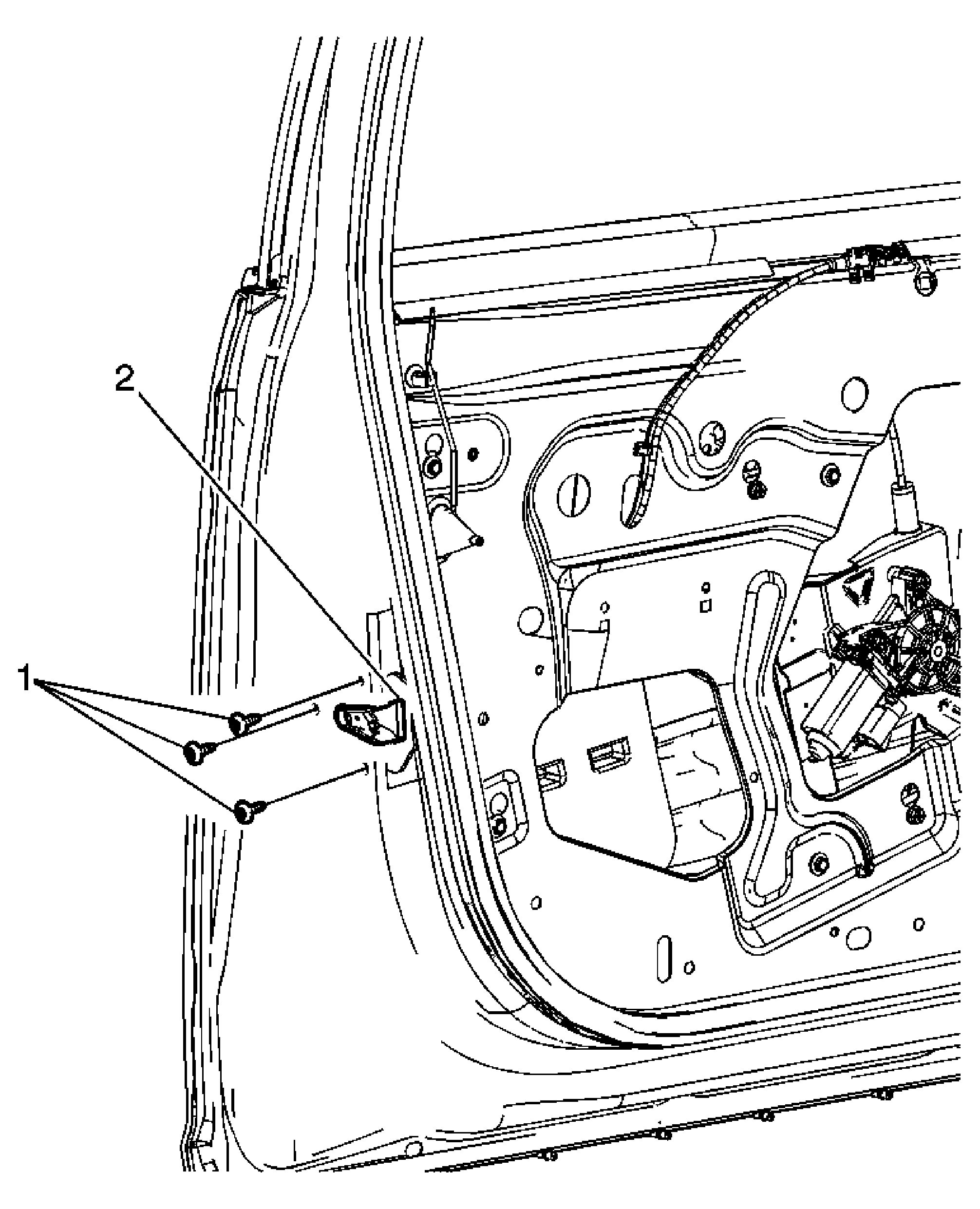

Fig 1: Removing/Installing Front Side Door Lock

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Front Door Lock Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Front Door Lock Tip: Disconnect the lock rod. Disconnect the lock cable. Disconnect the electrical connector. Disconnect the rod to handle.
