Rear Window Inside Sunshade Control Module Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Rear Window Inside Sunshade Control Module Replacement

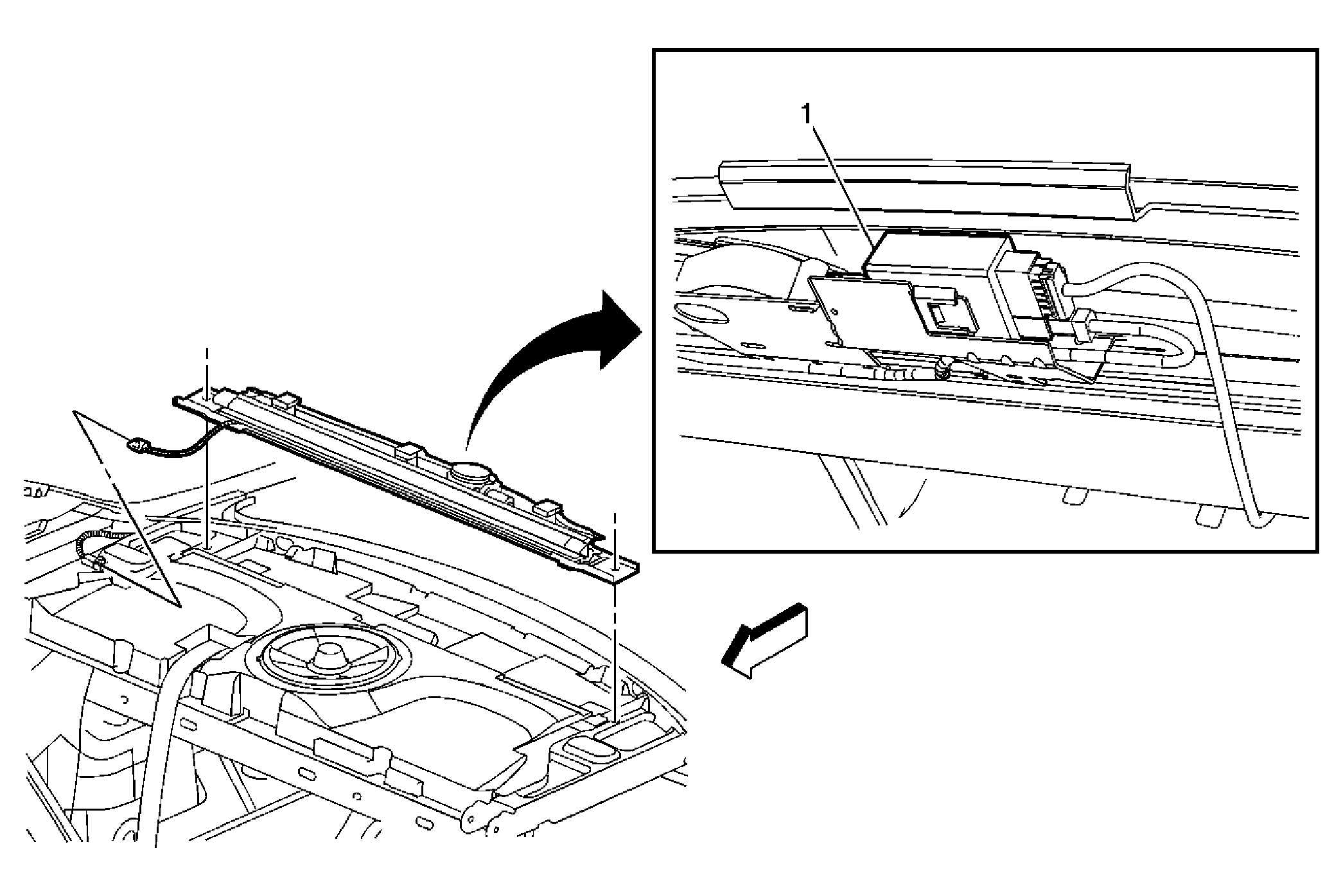

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the rear sunshade. Refer to Rear Sunshade Replacement . Refer to Control Module References for replacement and setup information. |
|
| 1 | Sunshade Control Module Rear Tip: Disconnect the electrical connector. |
