Immobilizer Schematics
Immobilizer Schematics

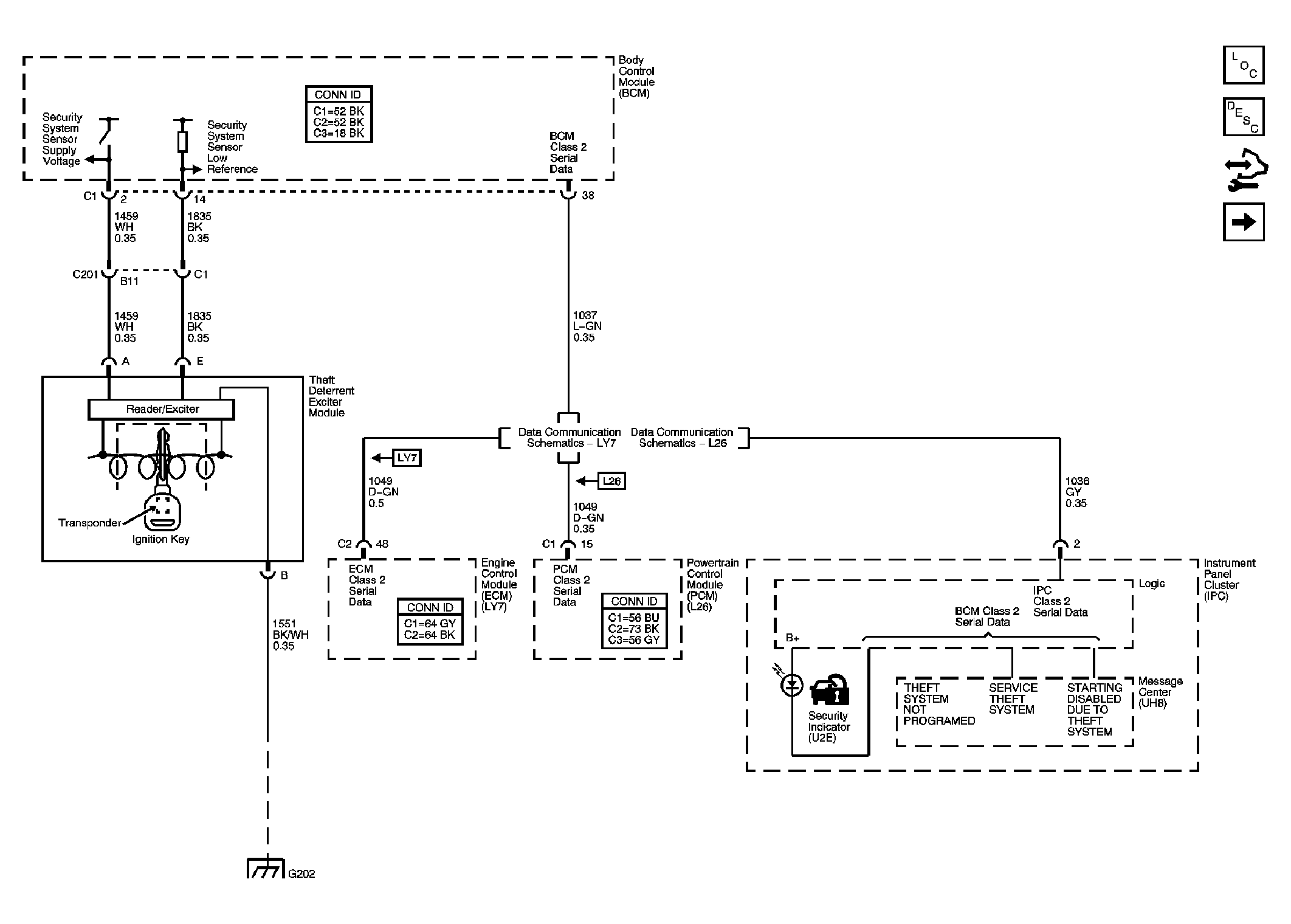

Fig 1: Vehicle Theft Deterrent (VTD) System Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
