Sunroof Switch Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

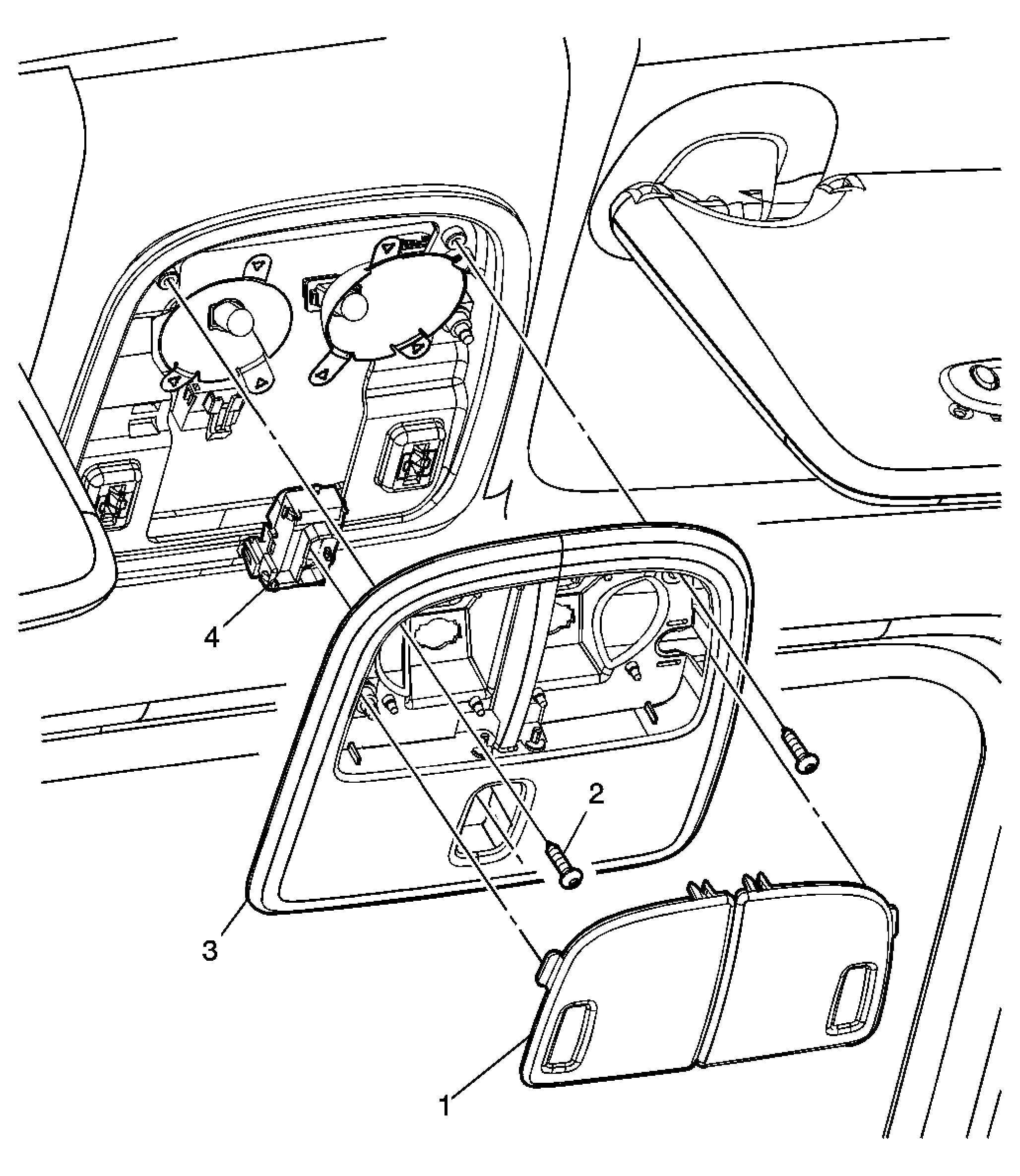

| Callout | Component Name |
|---|---|
| 1 | Overhead Console Lamp Lens |
| 2 | Overhead Console Bezel Screw (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 3 N.m (40 lb in) |
| 3 | Overhead Console Bezel |
| 4 | Sunroof Position Switch Tip: Disconnect the electrical connector. |
