Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (3.8L)  or Battery Negative Cable Disconnection and Connection (3.6L) .

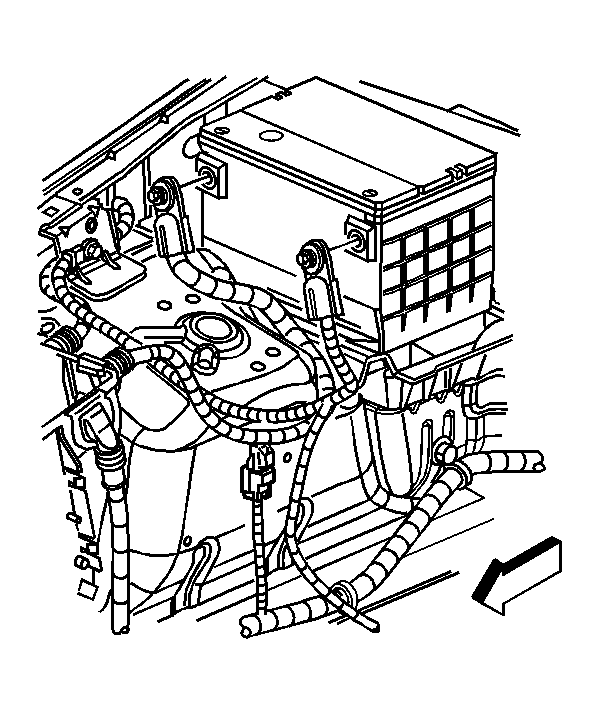

    2. Fig 1: View Of Battery Positive & Negative Cables
    GM772424Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the battery positive cable from the battery.

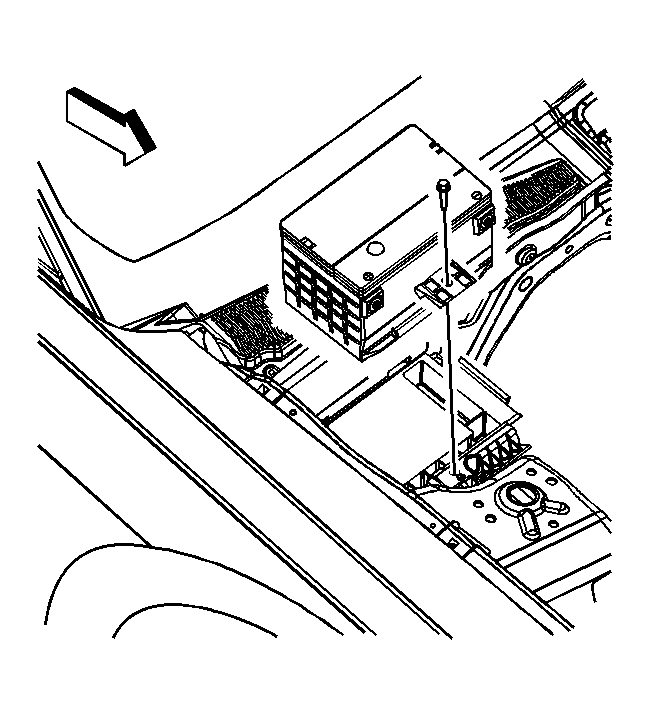

    3. Fig 2: Identifying Battery Tray & Bolt
    GM772403Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery retainer bolt and battery retainer.
  4. Remove the battery from the vehicle.
  5. Remove the battery heat shield. Refer to Battery Heat Shield Replacement (3.6L) .
