Shoulder Belt Guide Adjuster Replacement - Front
Shoulder Belt Guide Adjuster Replacement - Front

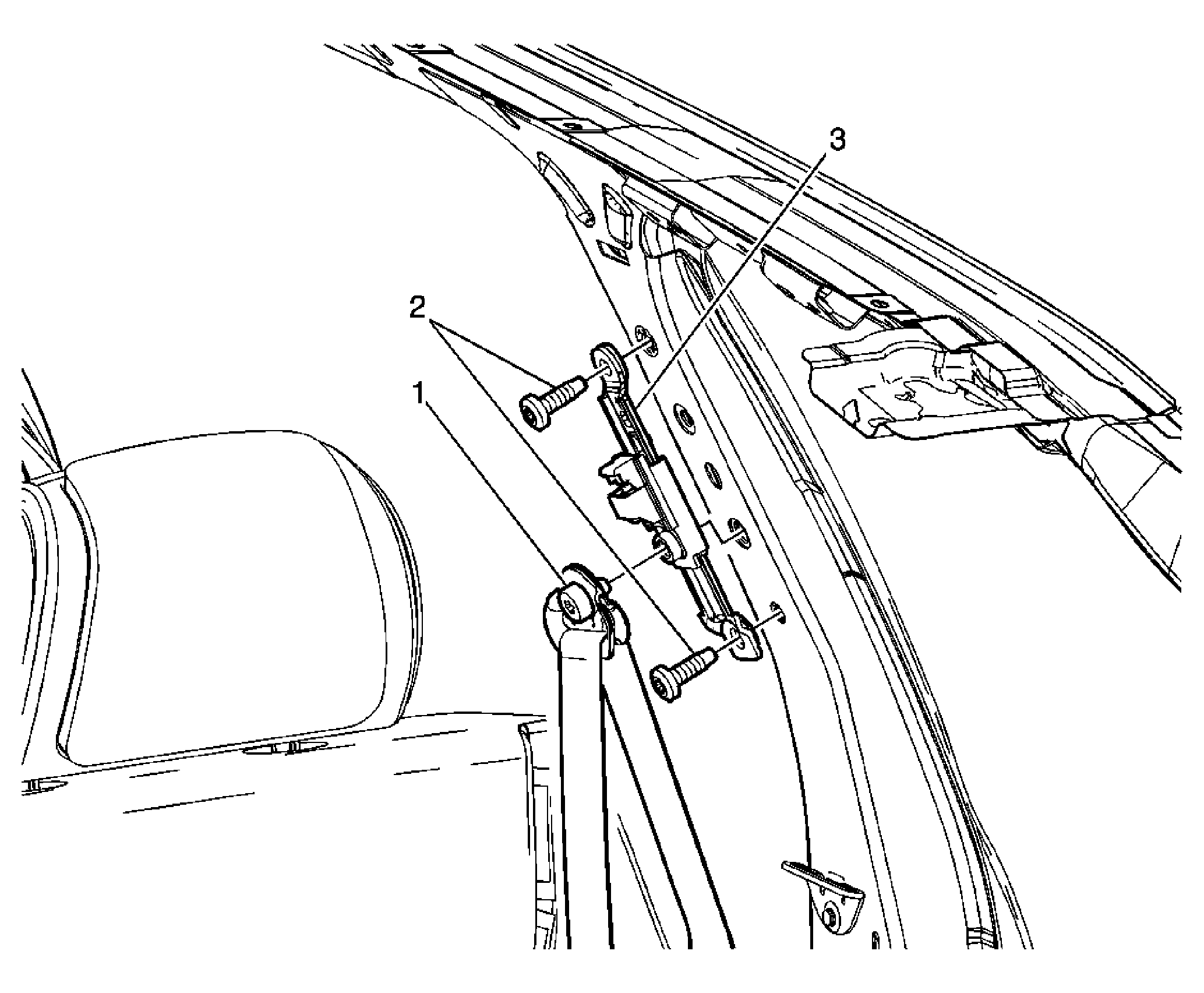

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the center pillar upper trim. Refer to Center Pillar Upper Garnish Molding Replacement
. |
|
| 1 | Shoulder Belt Guide Bolt Tighten: 47 N.m (35 lb ft) |
| 2 | Shoulder Belt Guide Adjuster Bolt Tighten: 47 N.m (35 lb ft) |
| 3 | Shoulder Belt Guide Adjuster |
