Object Detection Schematics

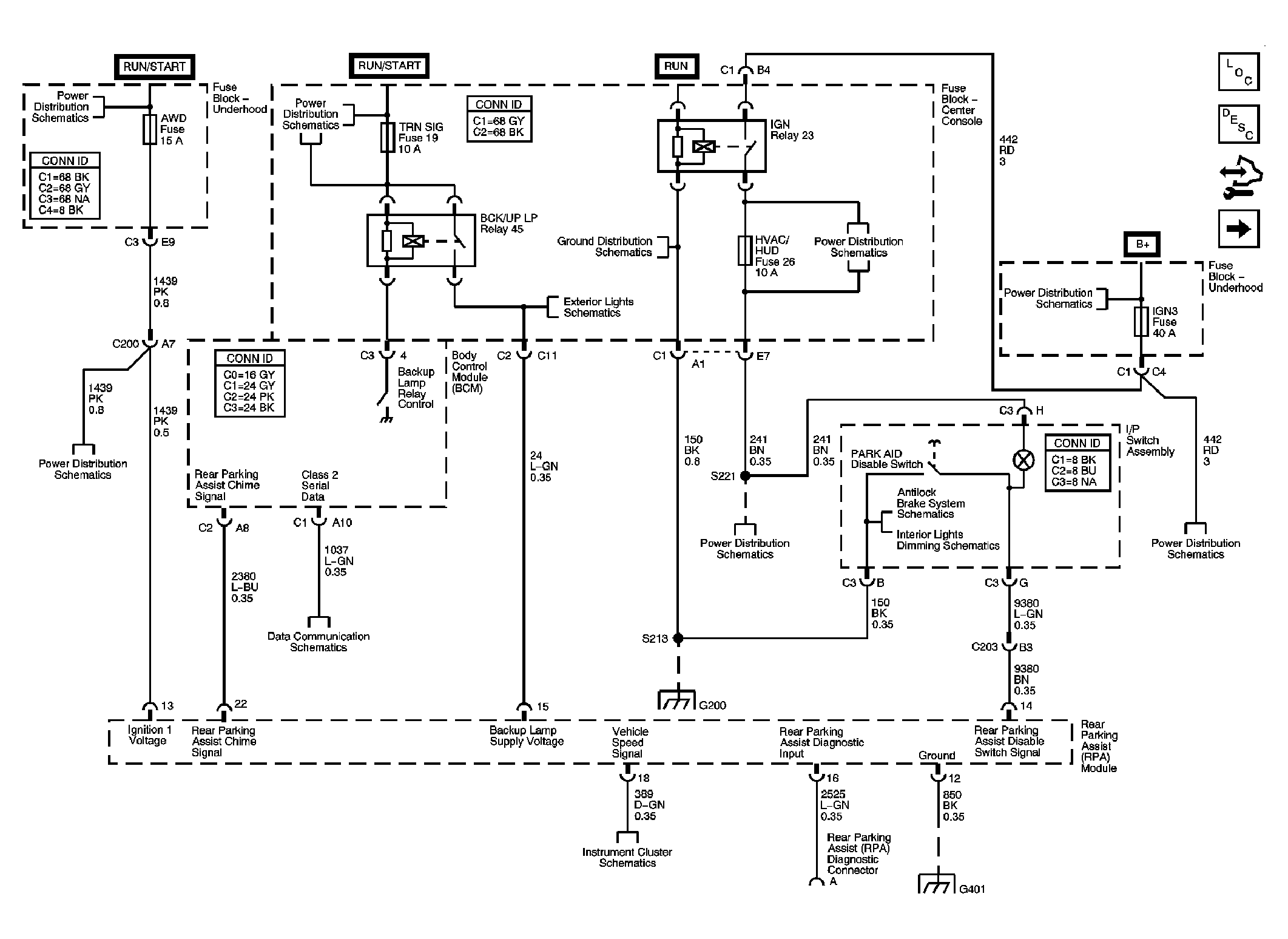

Fig 1: Object Detection Schematic (Enabling, Ground, and Power)

Courtesy of GENERAL MOTORS CORP.

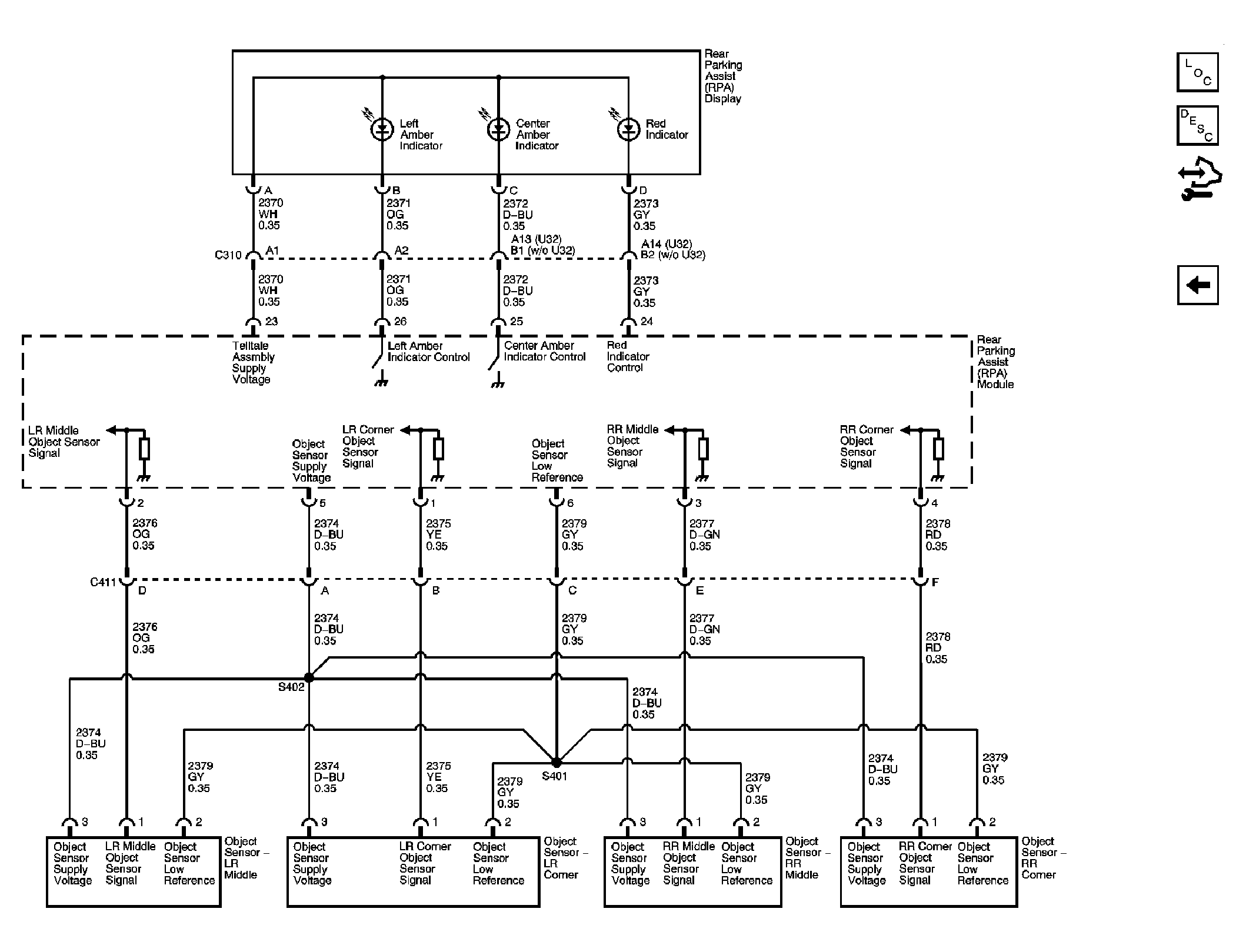

Fig 2: Object Detection Schematic (Object Sensors & Display)

Courtesy of GENERAL MOTORS CORP.
