Power Outlet Component Views

Fig 1: Under the Right Side of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor
2	Blower Motor Resistor (C60 or CJ3) or Blower Motor Control Module (CJ2)
3	Auxiliary Drop Connector

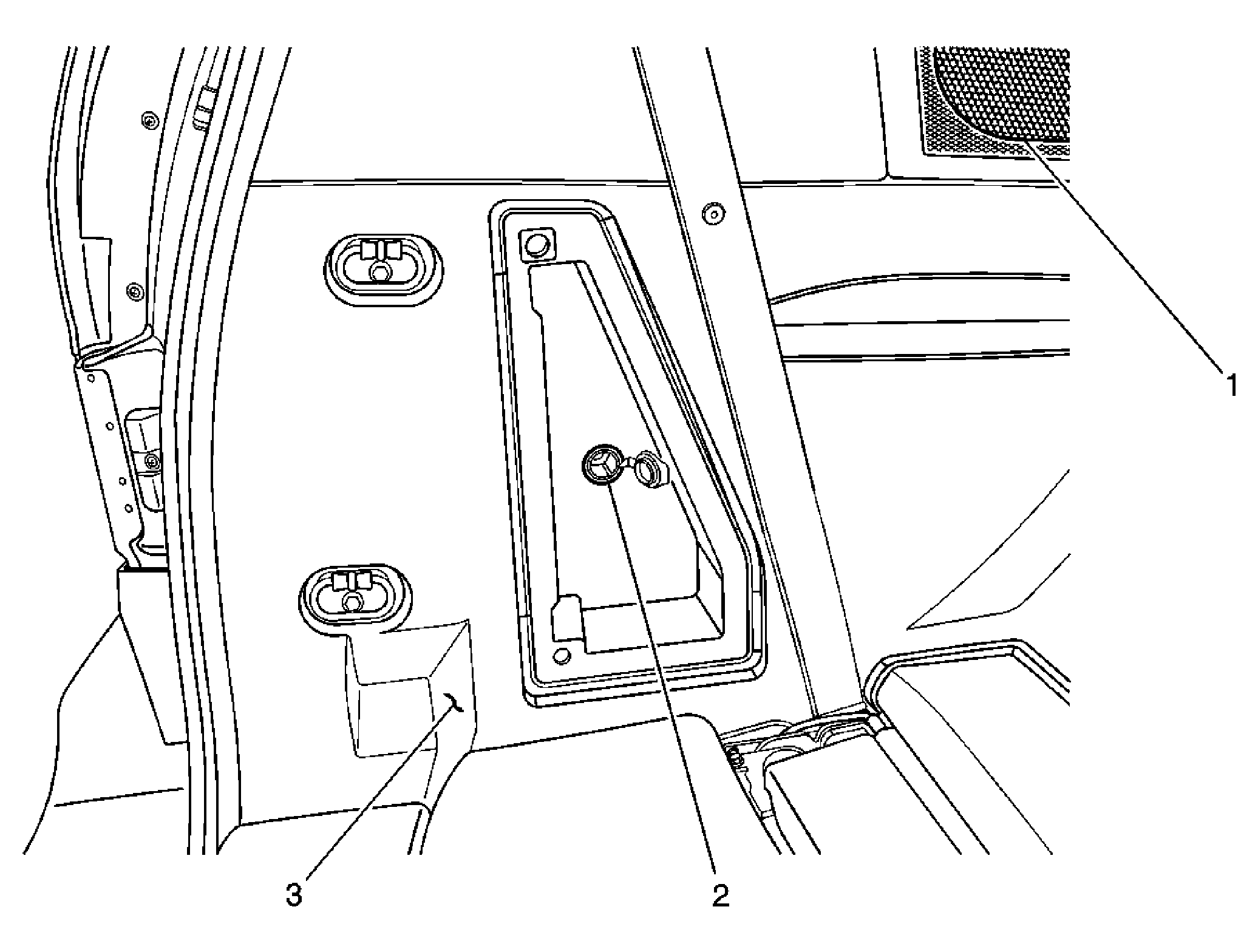

Fig 2: Left Rear of Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR Subwoofer (UQ3) (RR Similar)
2	Auxiliary Power Outlet - Rear
3	Trim Panel
