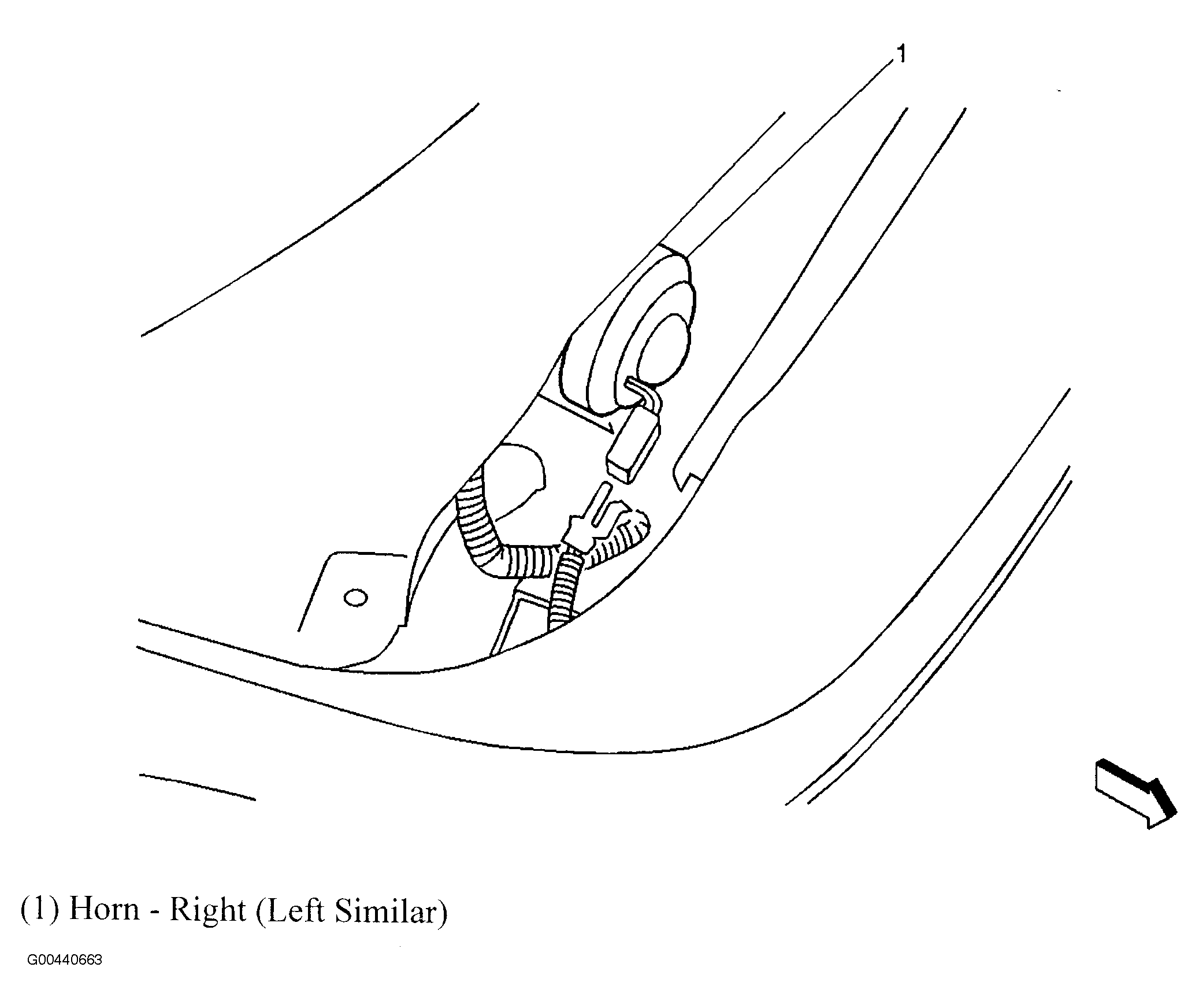

Electrical
›
Component Locations
›
Electrical Component Locator
›

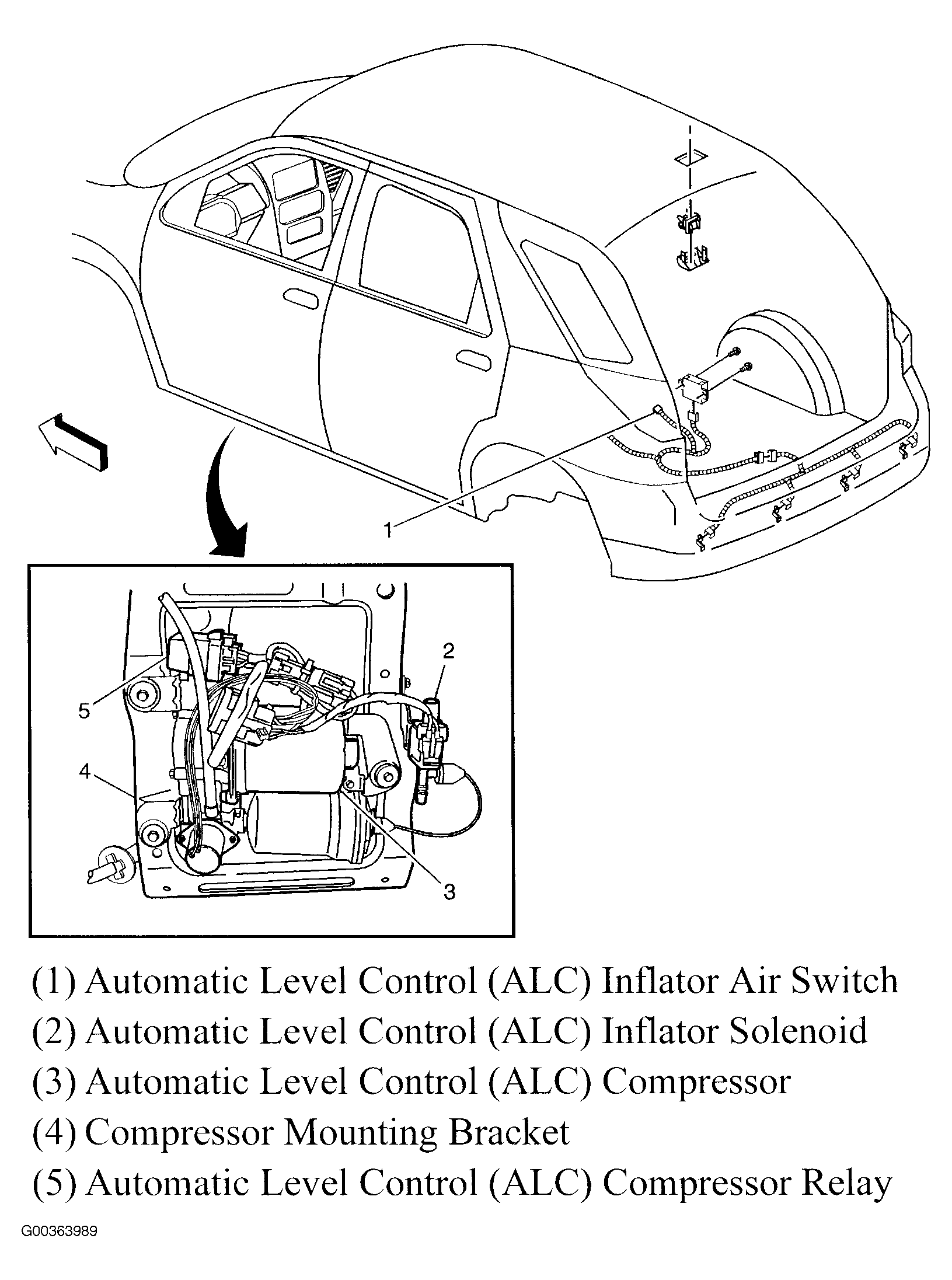

Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

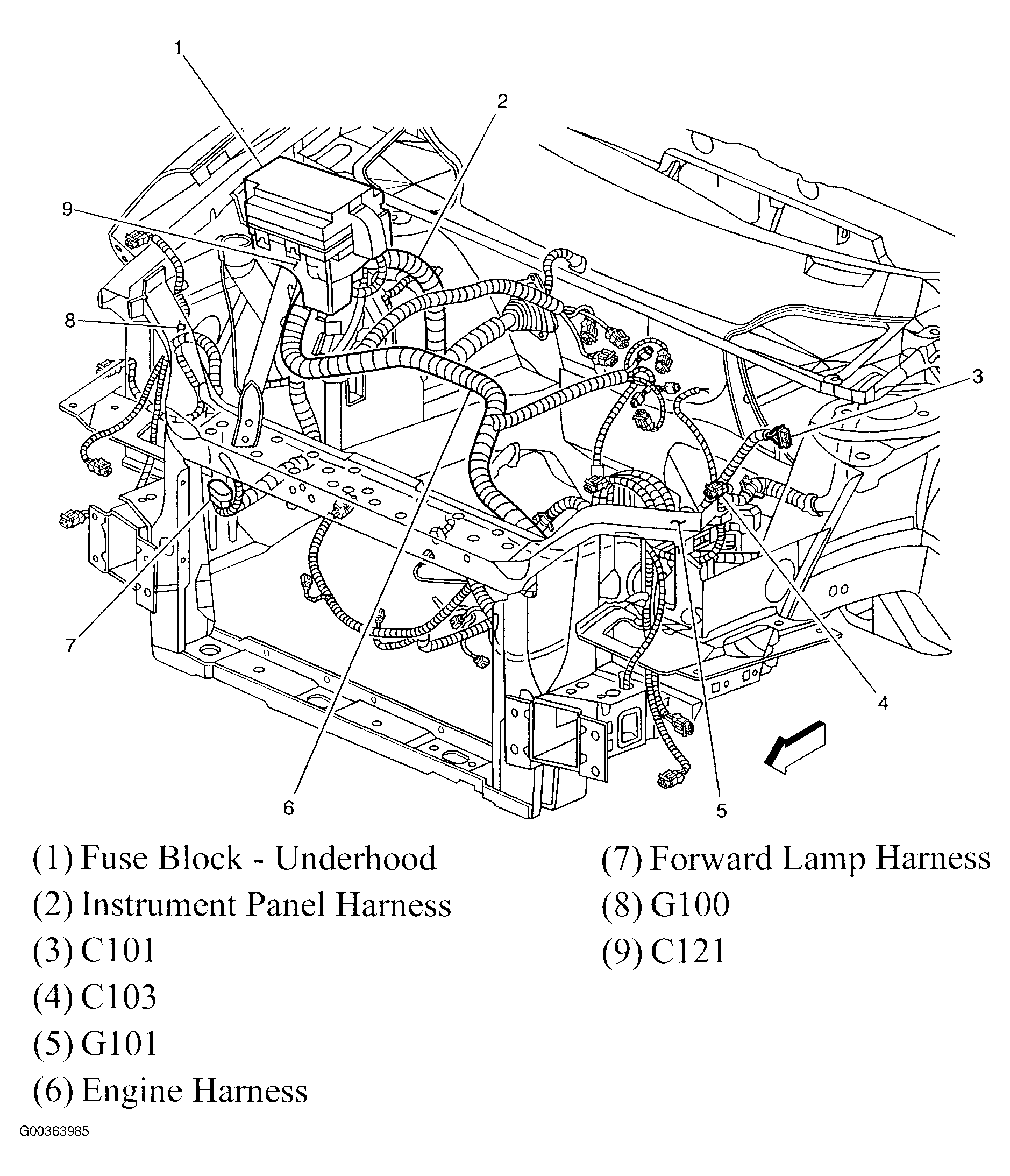

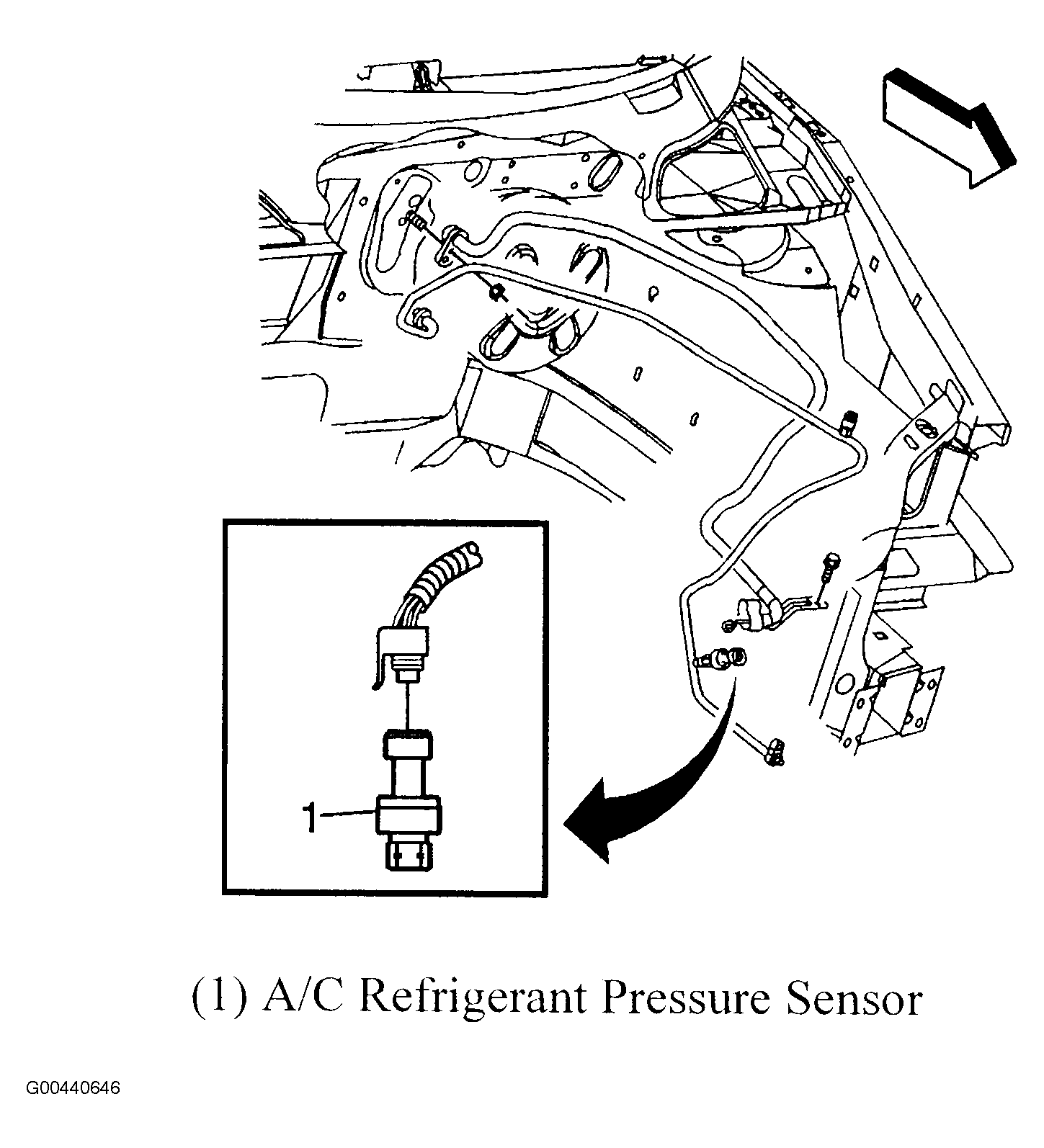

Fig 1: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 2: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

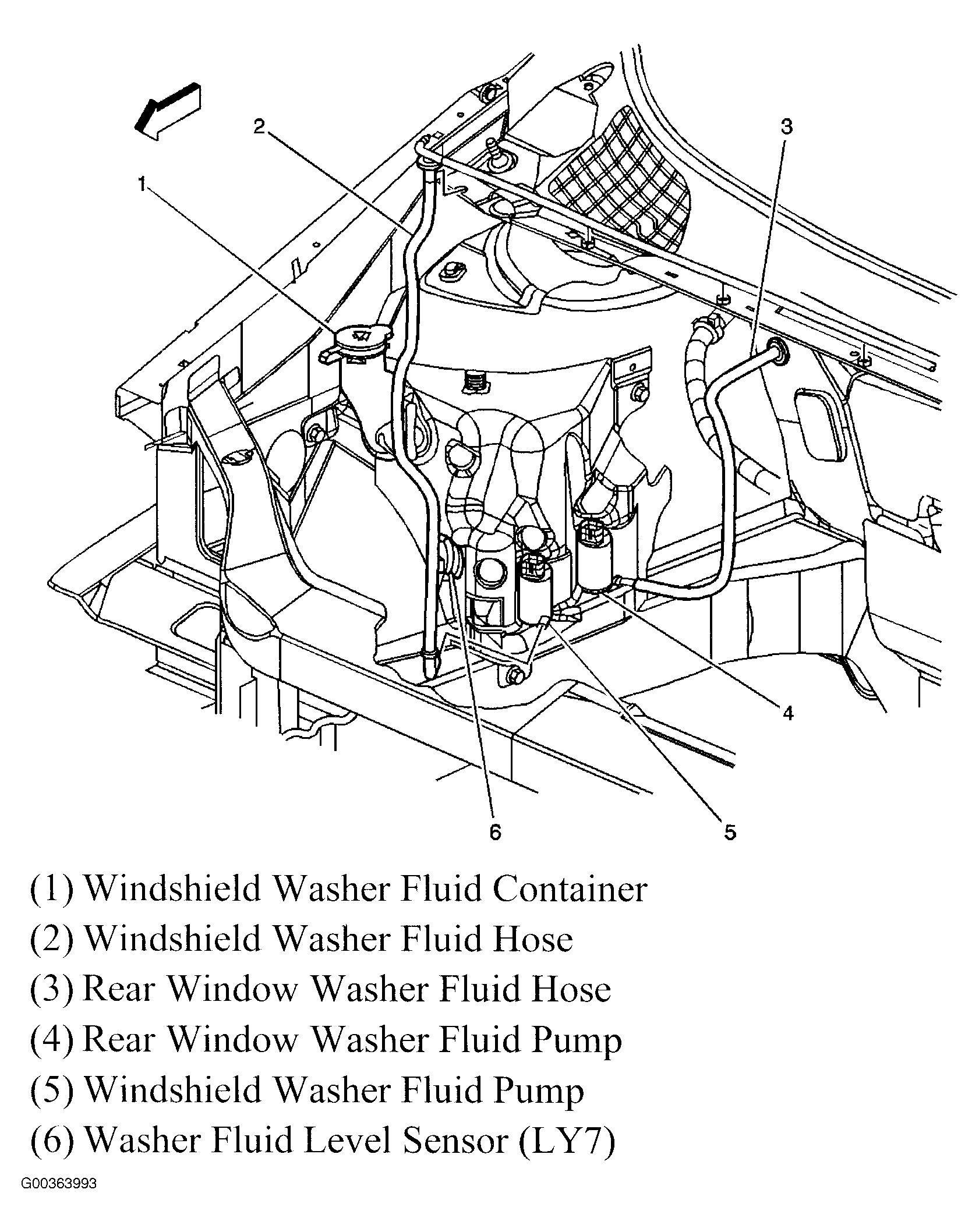

Fig 3: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

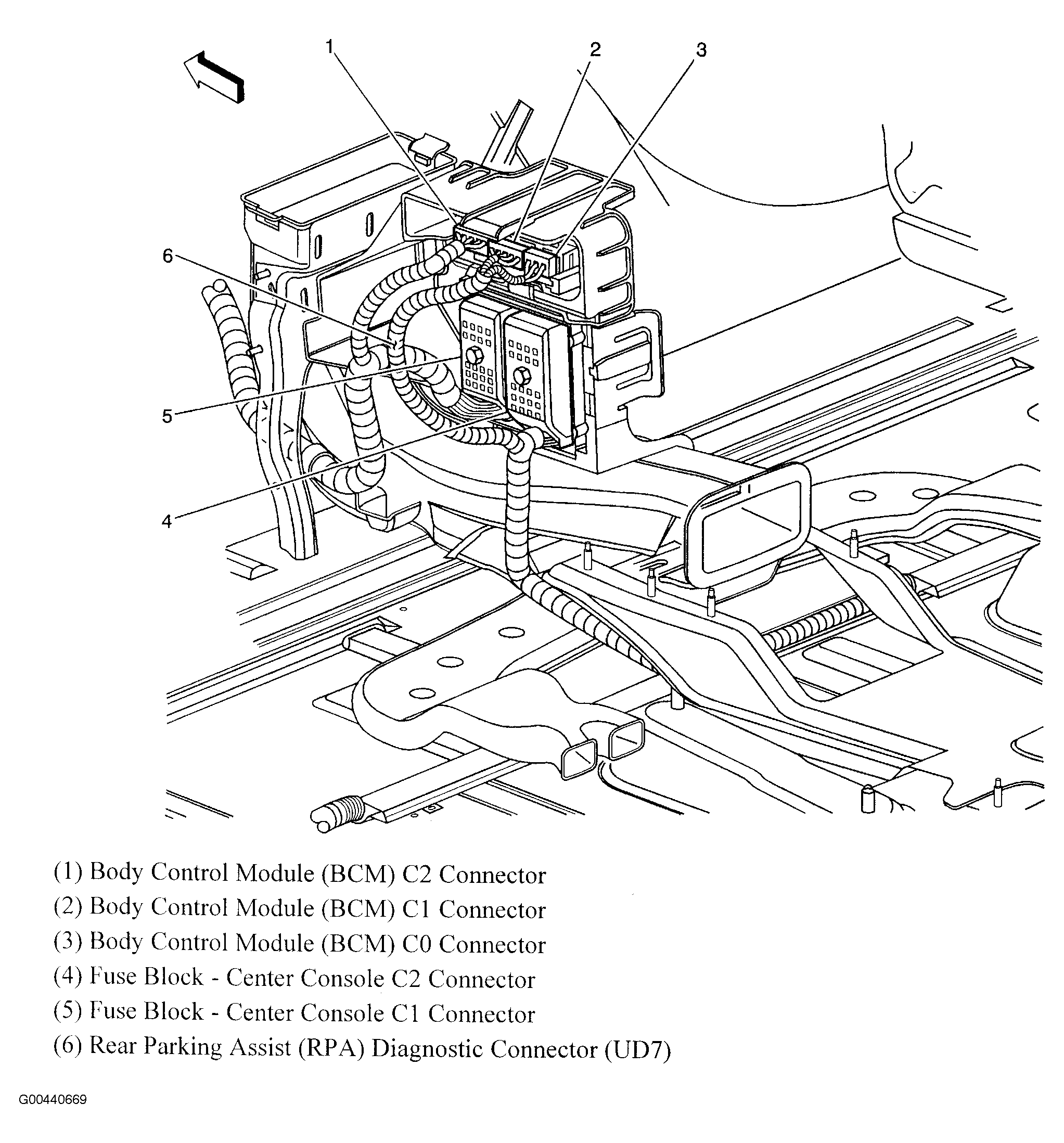

Fig 4: Front Of Center Console
Courtesy of GENERAL MOTORS CORP.

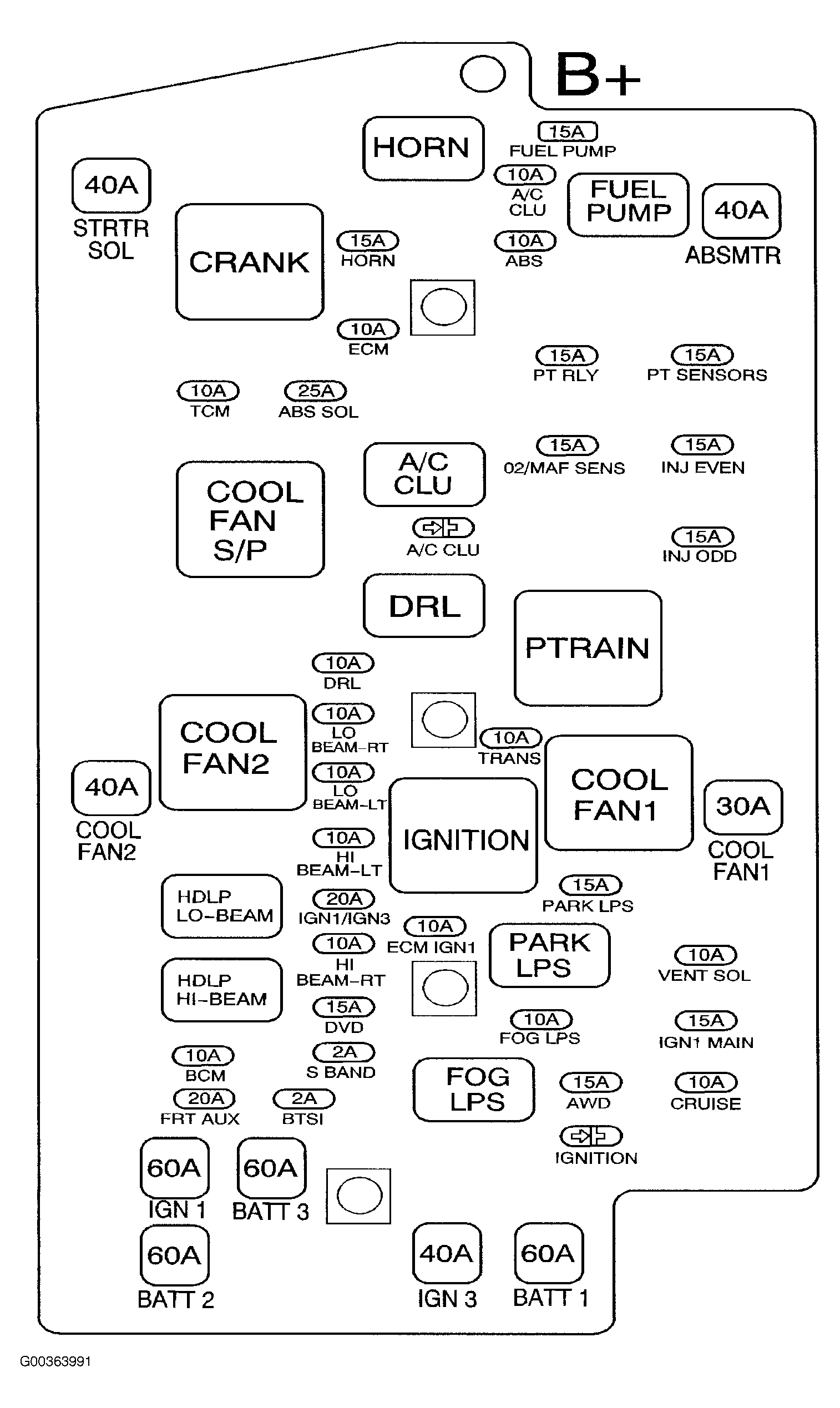

Fig 5: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

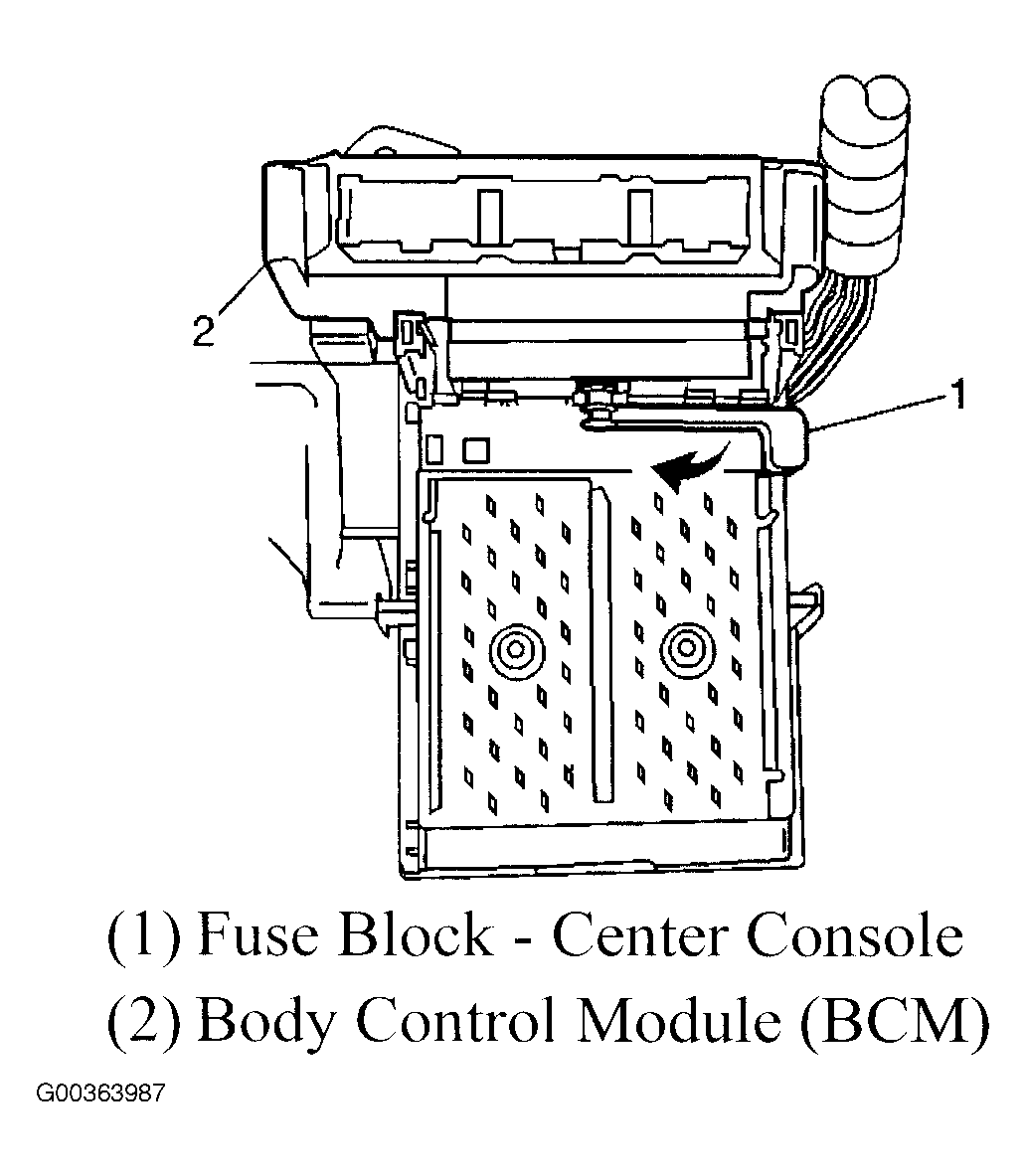

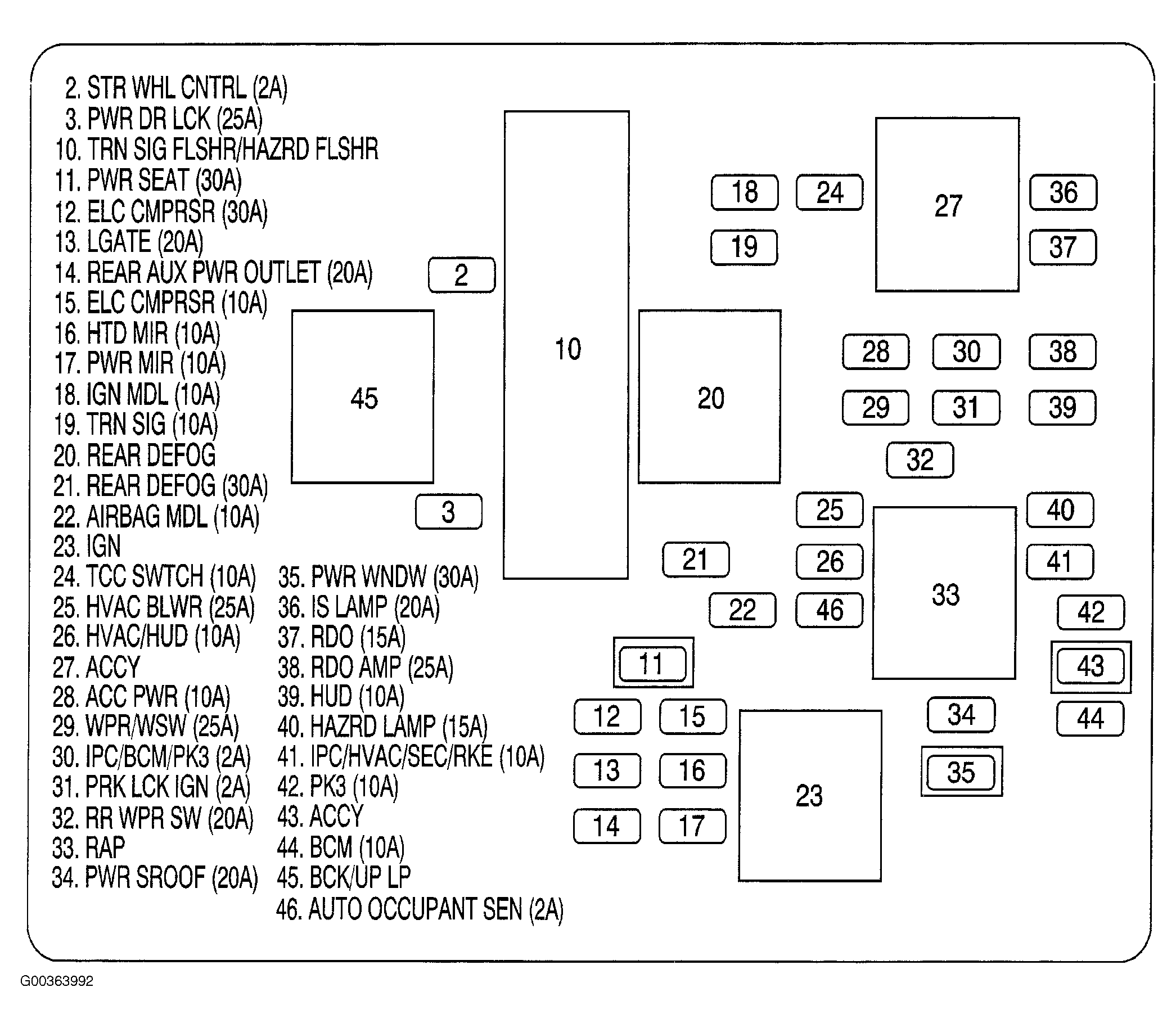

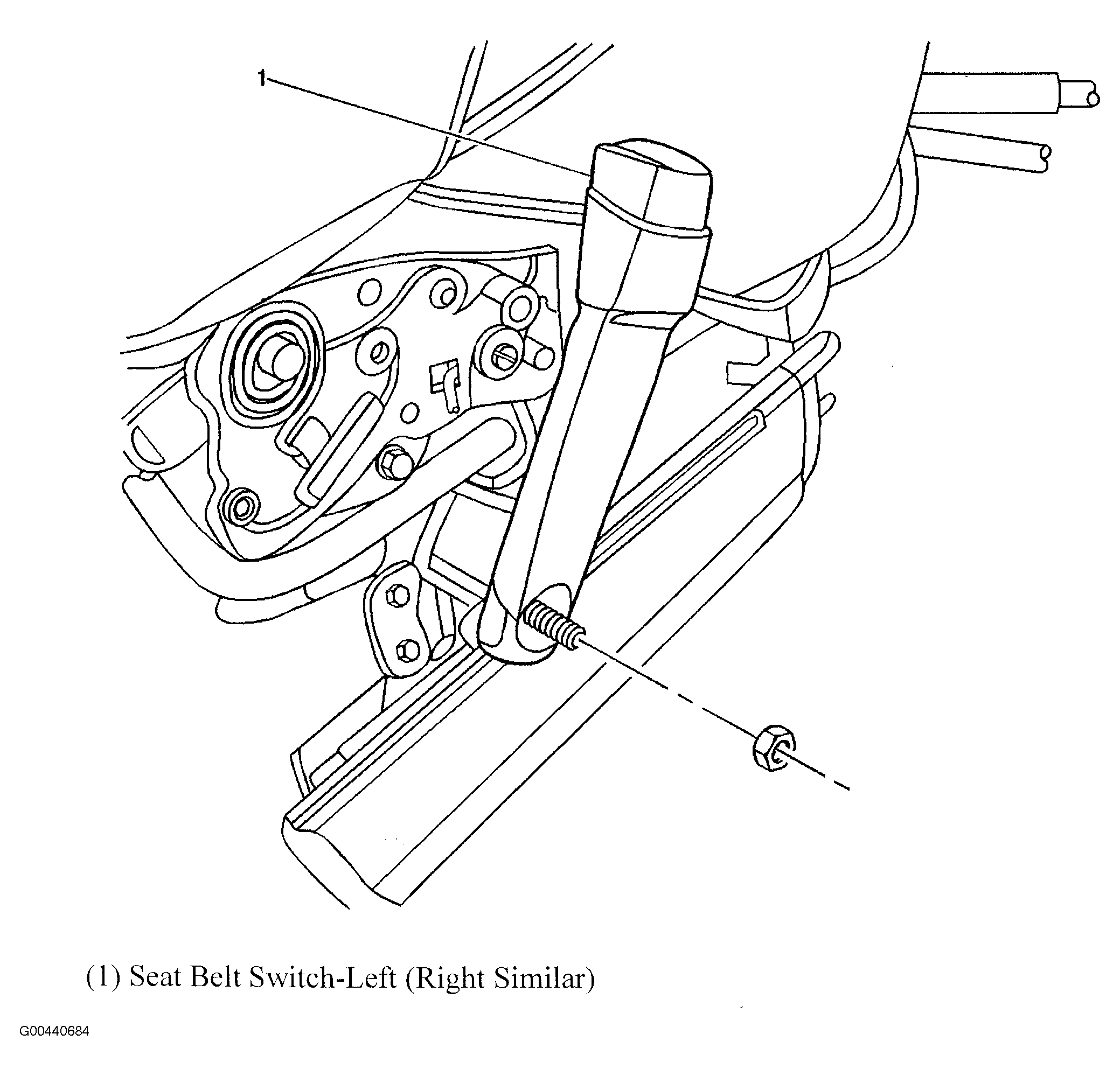

Fig 6: Center Console Fuse Box
Courtesy of GENERAL MOTORS CORP.

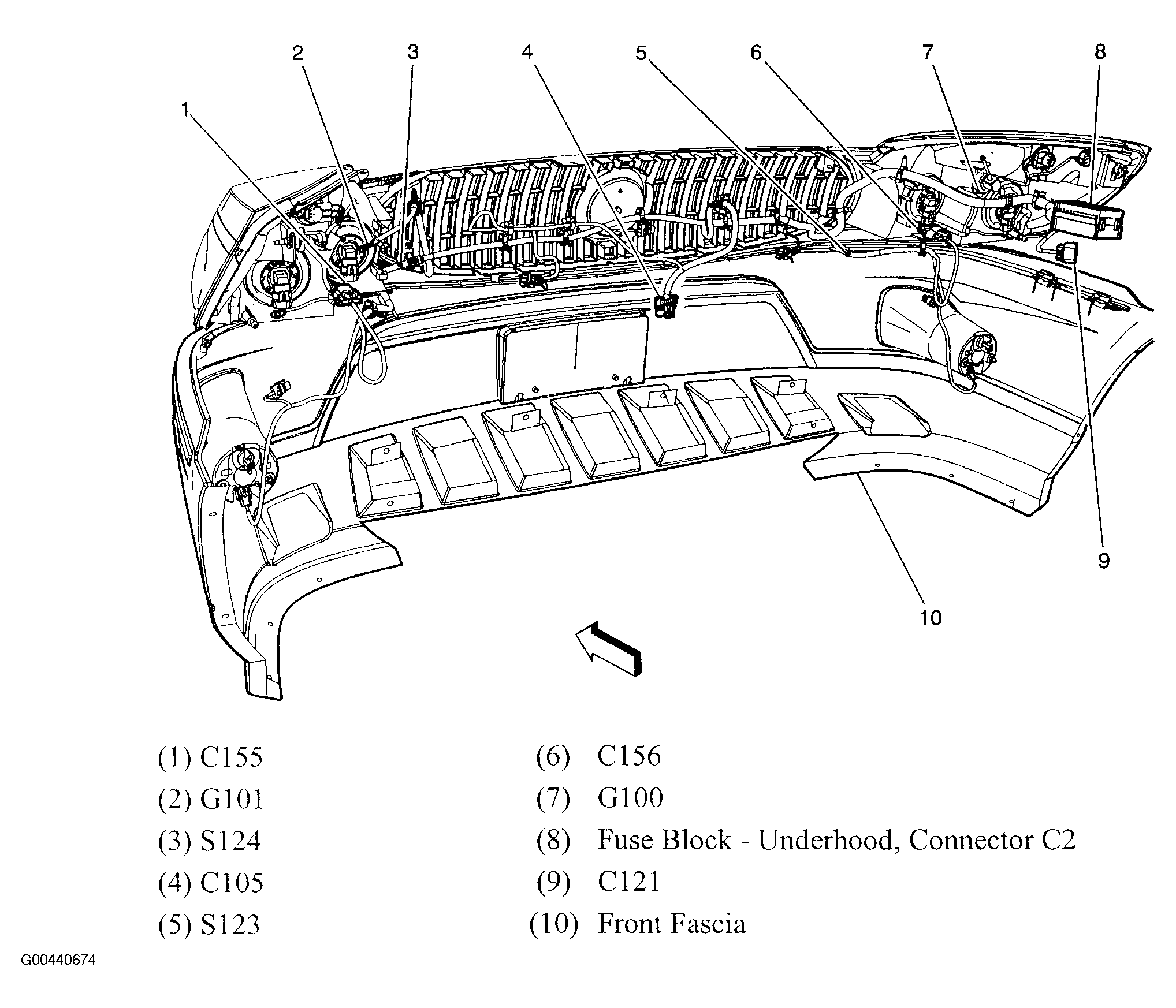

Fig 7: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 8: HVAC Air Plenum
Courtesy of GENERAL MOTORS CORP.
Fig 9: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 10: Lower Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

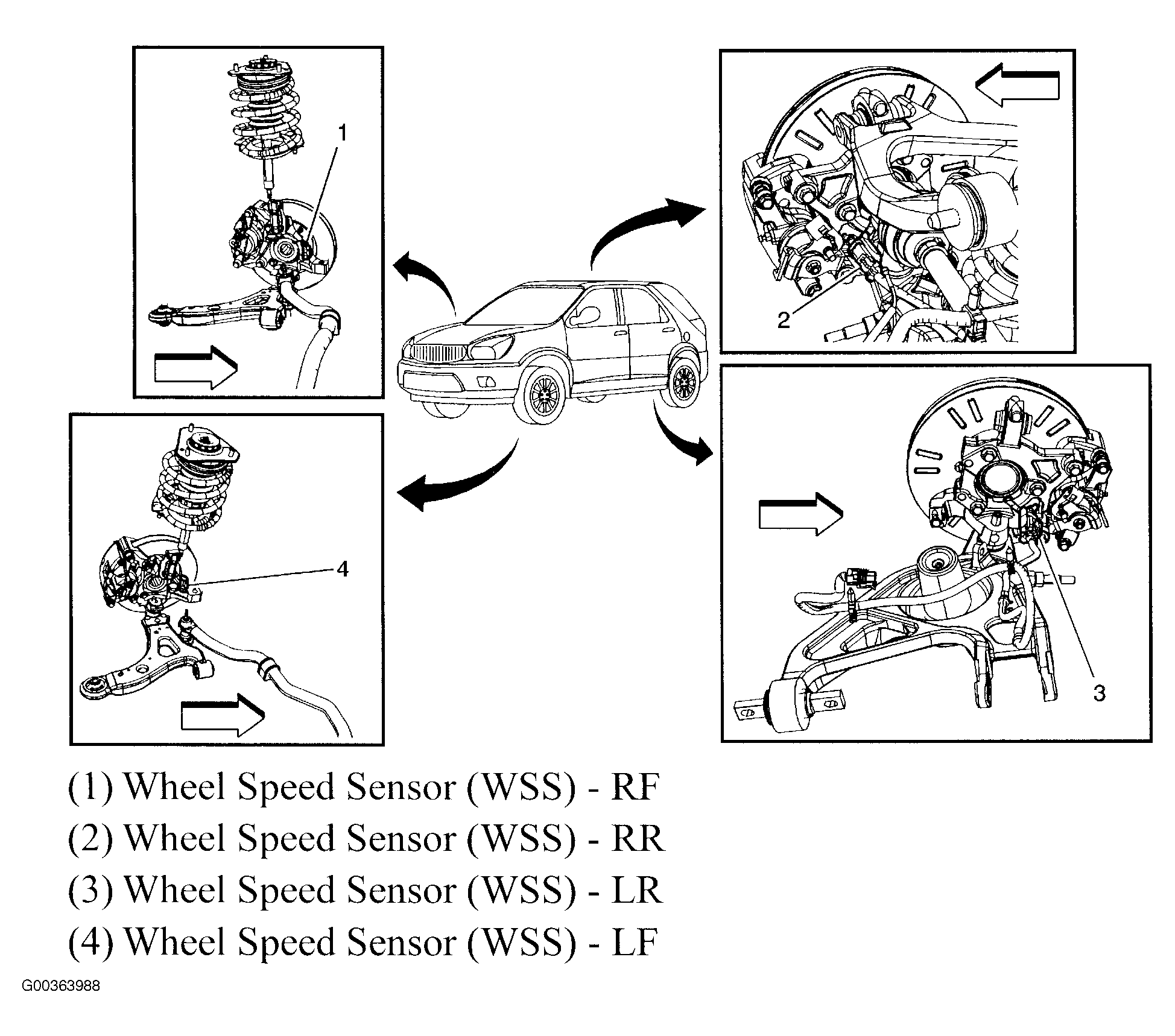

Fig 11: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

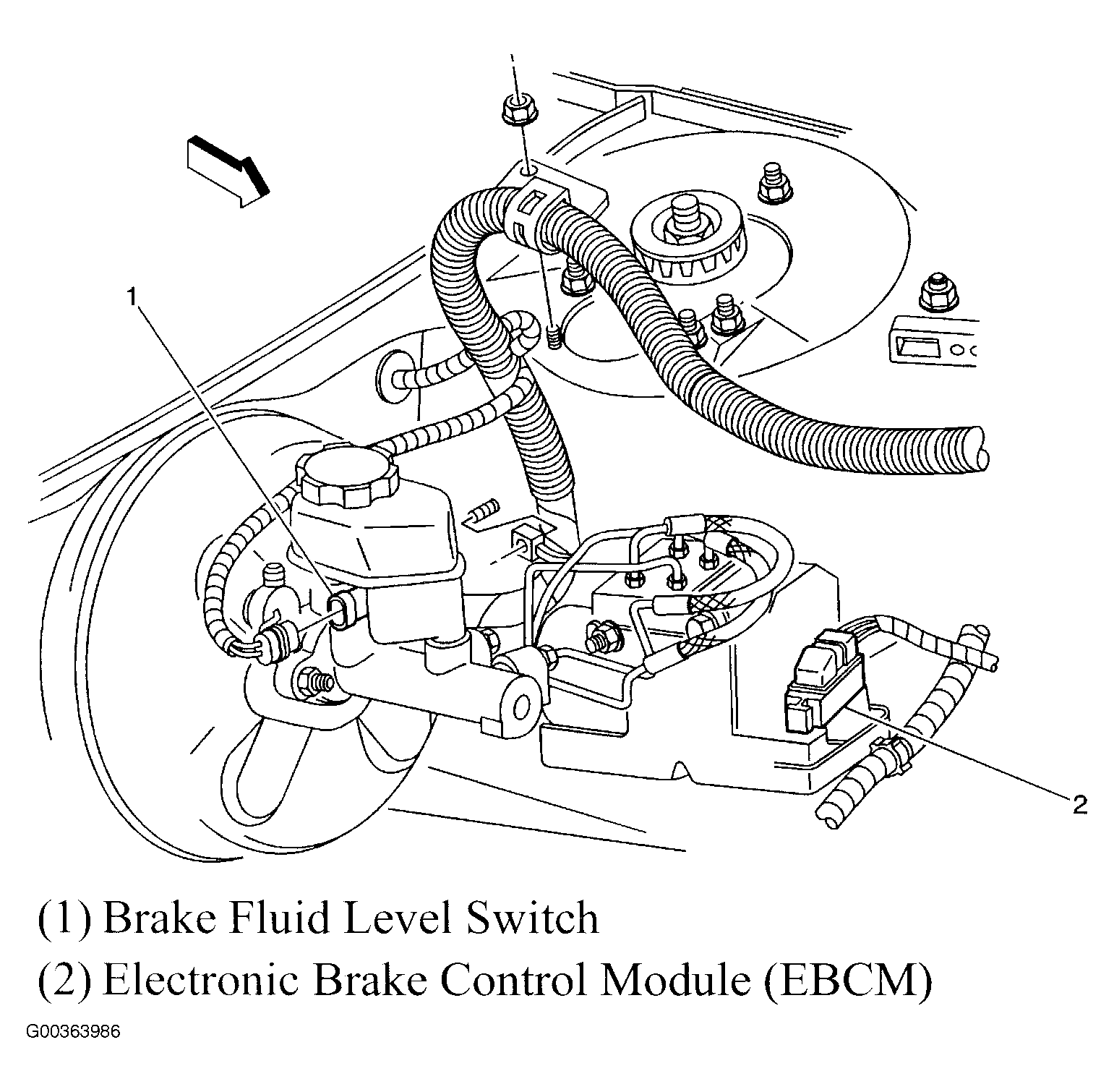

Fig 12: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 13: Cooling Fans
Courtesy of GENERAL MOTORS CORP.

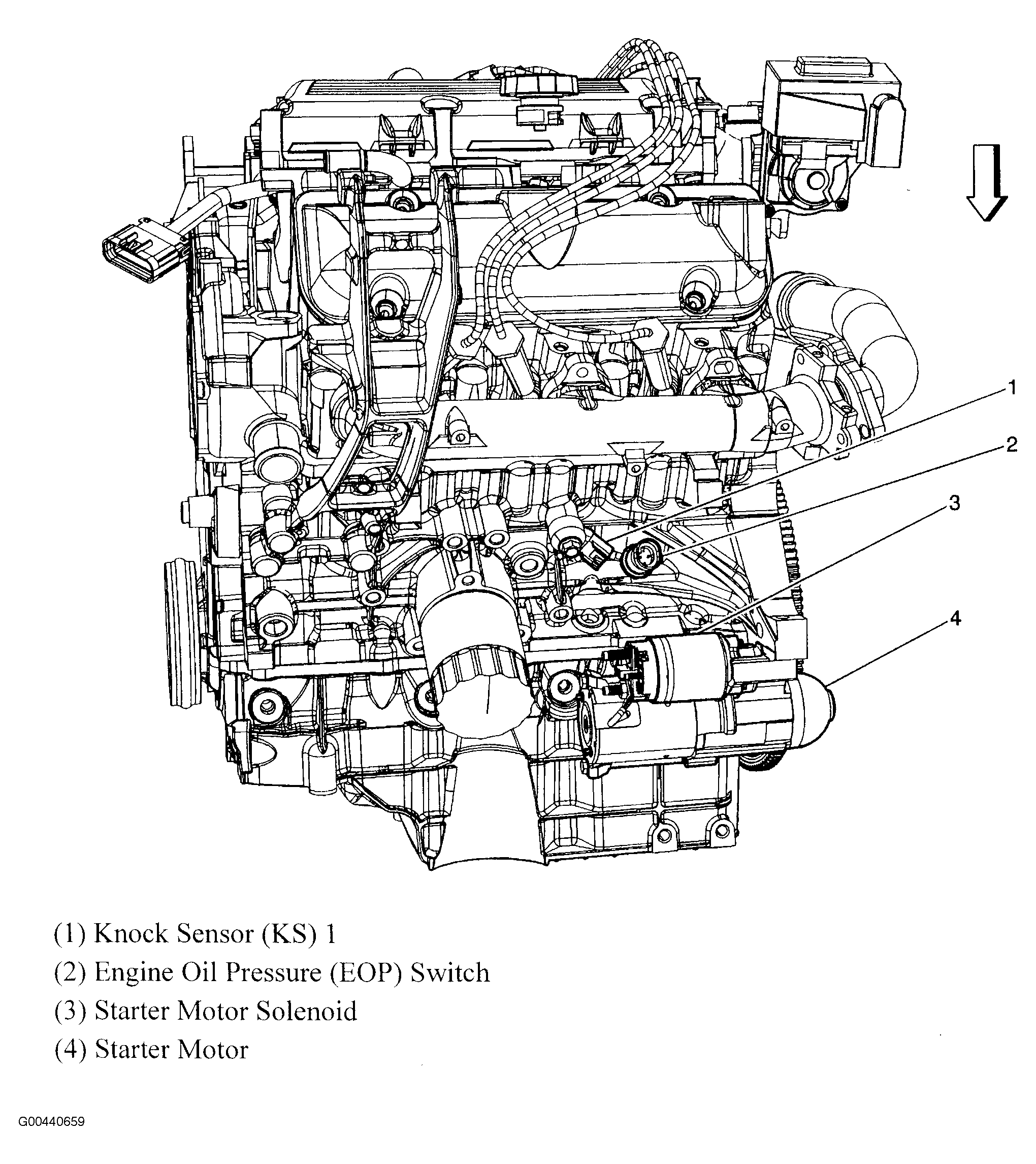

Fig 14: Lower Front Of Engine
Courtesy of GENERAL MOTORS CORP.

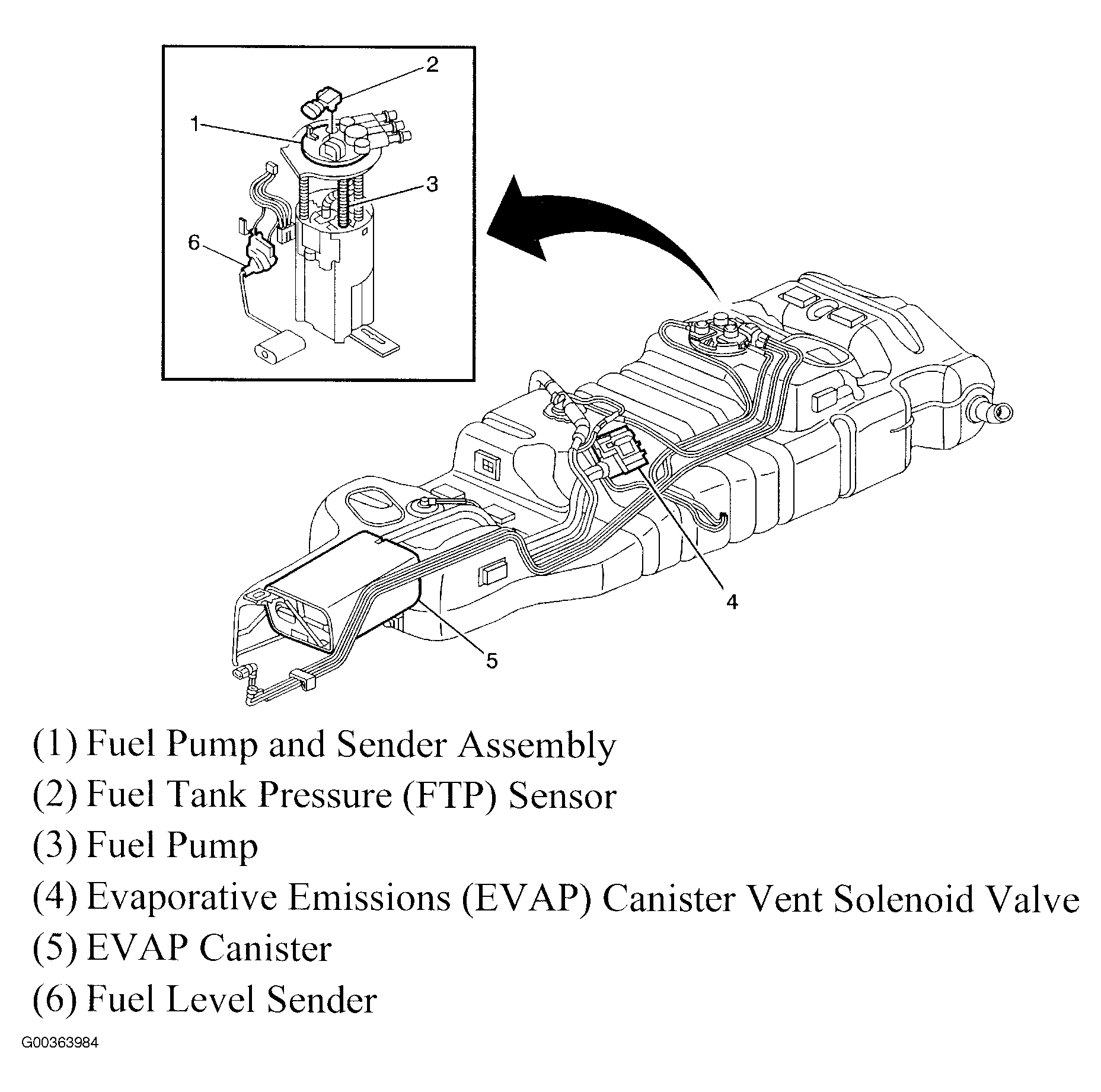

Fig 15: Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 16: Upper Dash Trim Panel
Courtesy of GENERAL MOTORS CORP.
Fig 17: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 18: Sunroof
Courtesy of GENERAL MOTORS CORP.
Fig 19: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

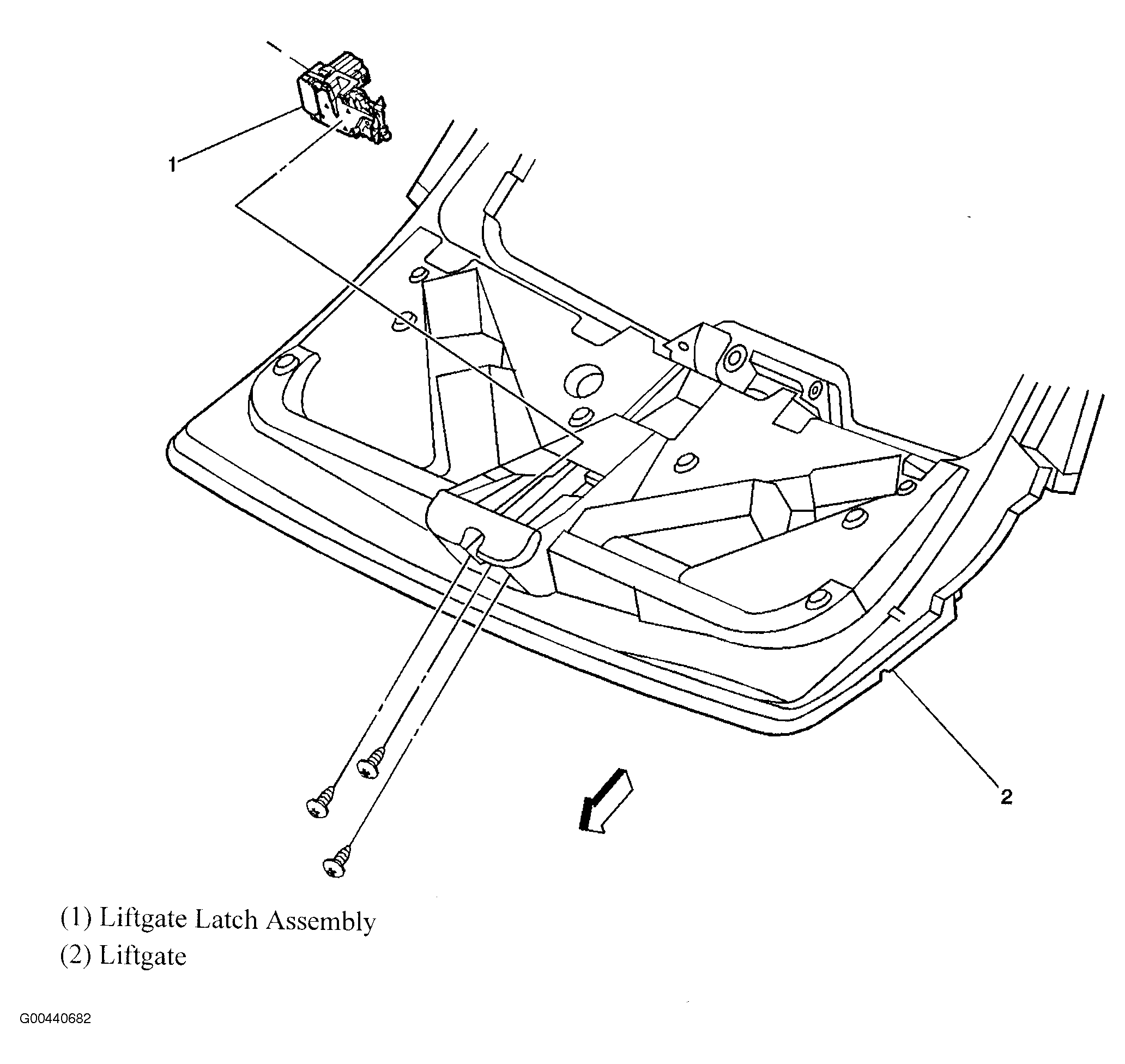

Fig 20: Liftgate
Courtesy of GENERAL MOTORS CORP.

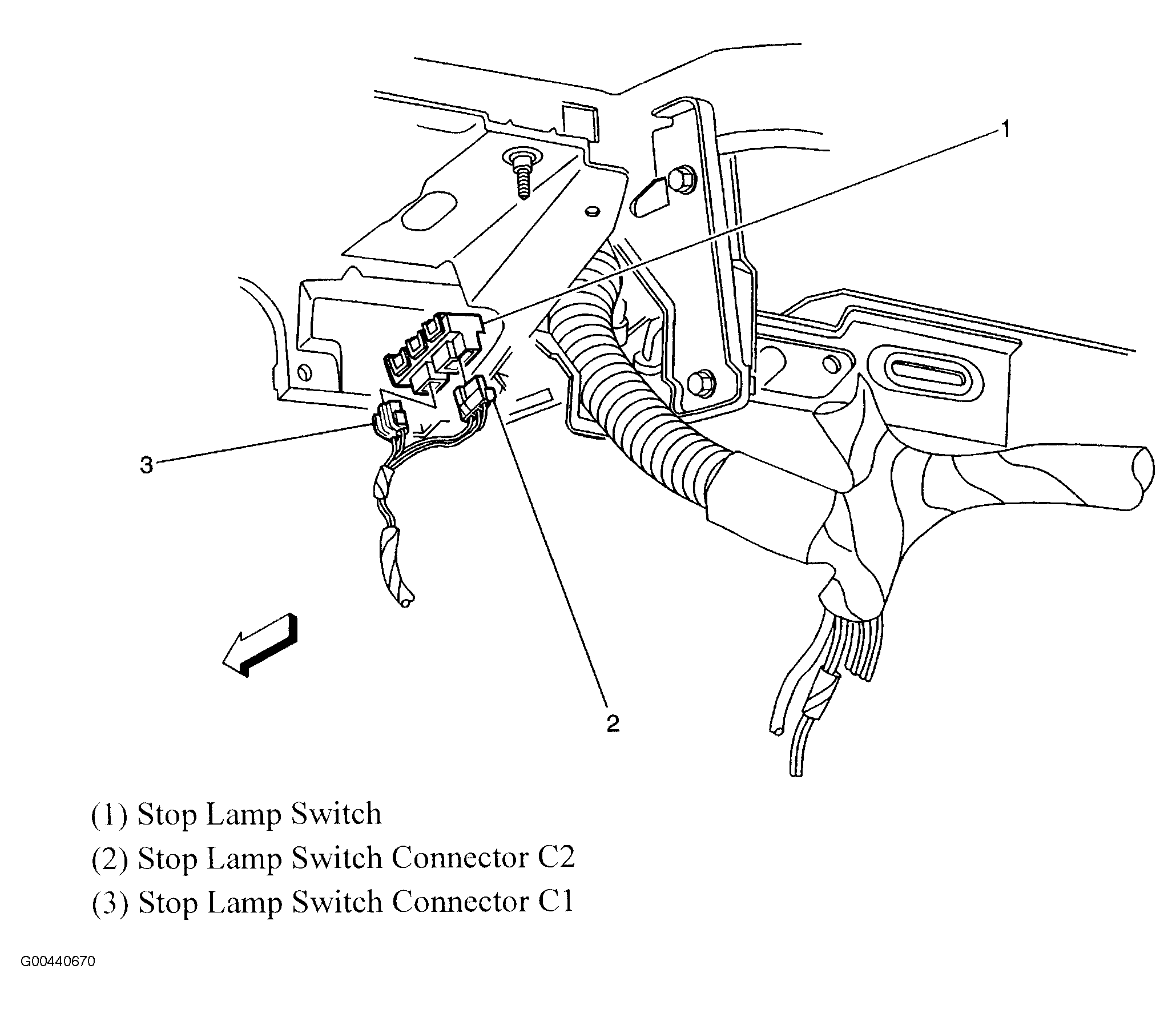

Fig 21: Above Accelerator Pedal
Courtesy of GENERAL MOTORS CORP.

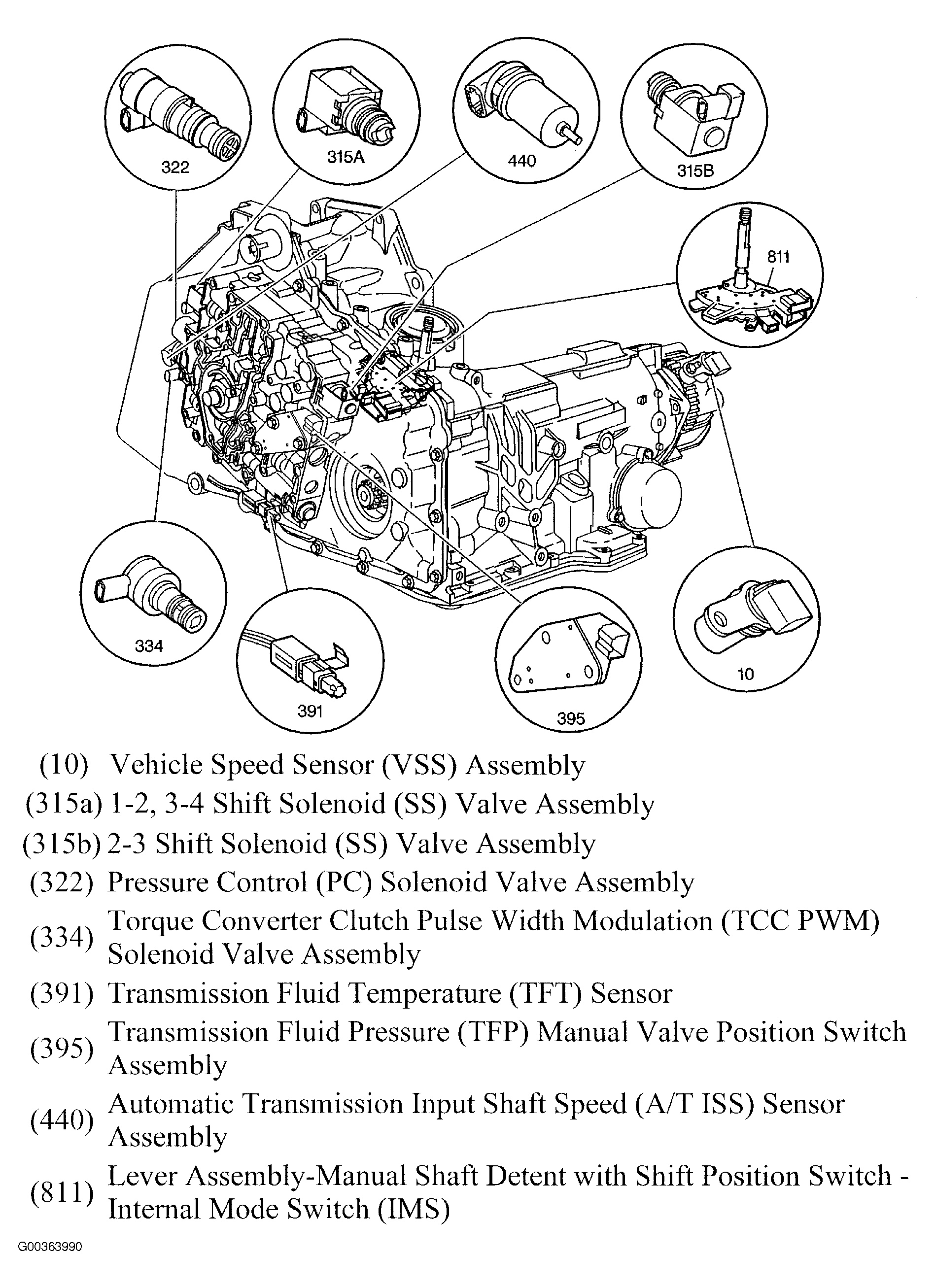

Fig 22: Transmission Assembly
Courtesy of GENERAL MOTORS CORP.

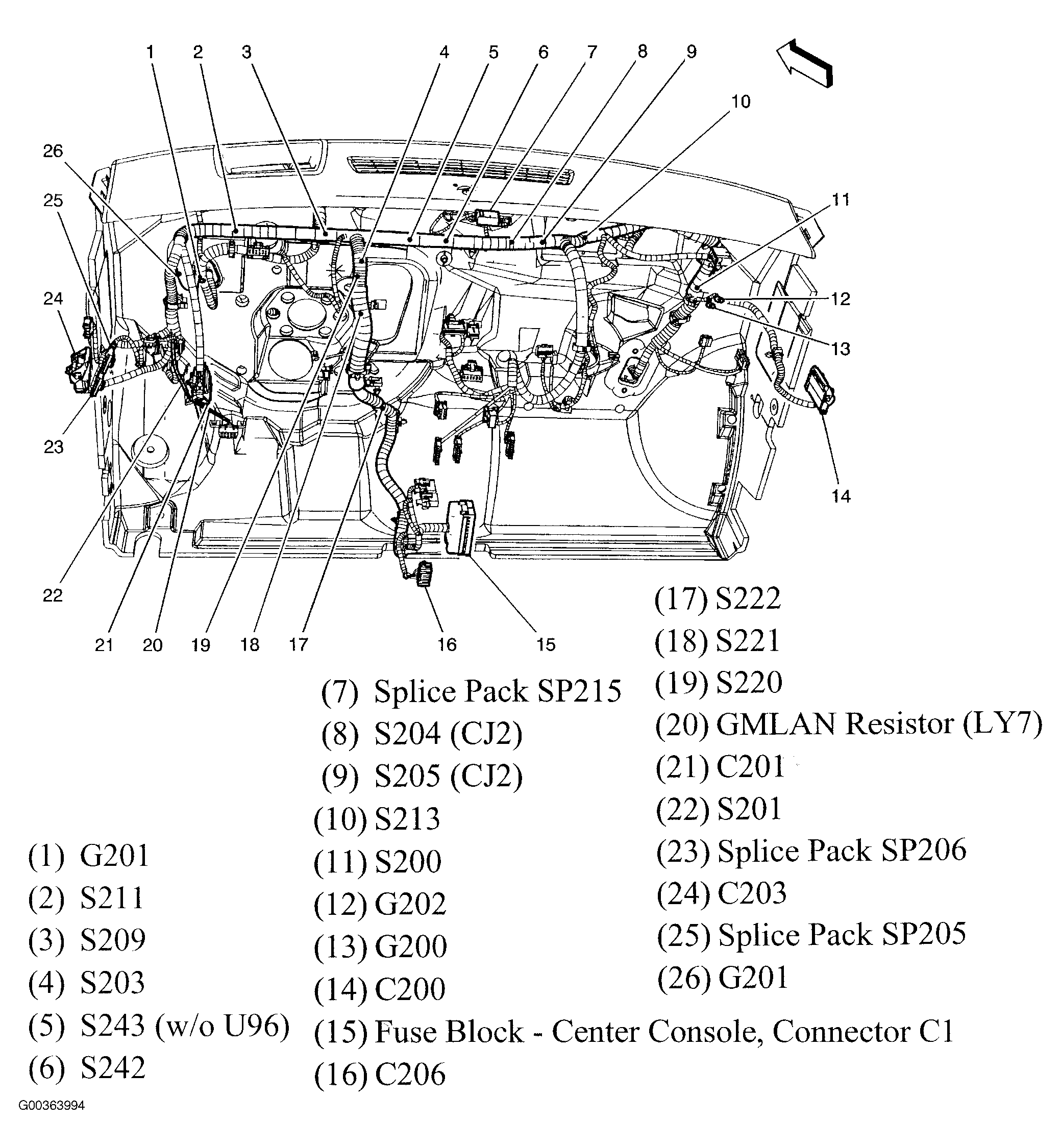

Fig 23: I/P Wire Harness
Courtesy of GENERAL MOTORS CORP.
Fig 24: Inboard Side Of Front Seat
Courtesy of GENERAL MOTORS CORP.

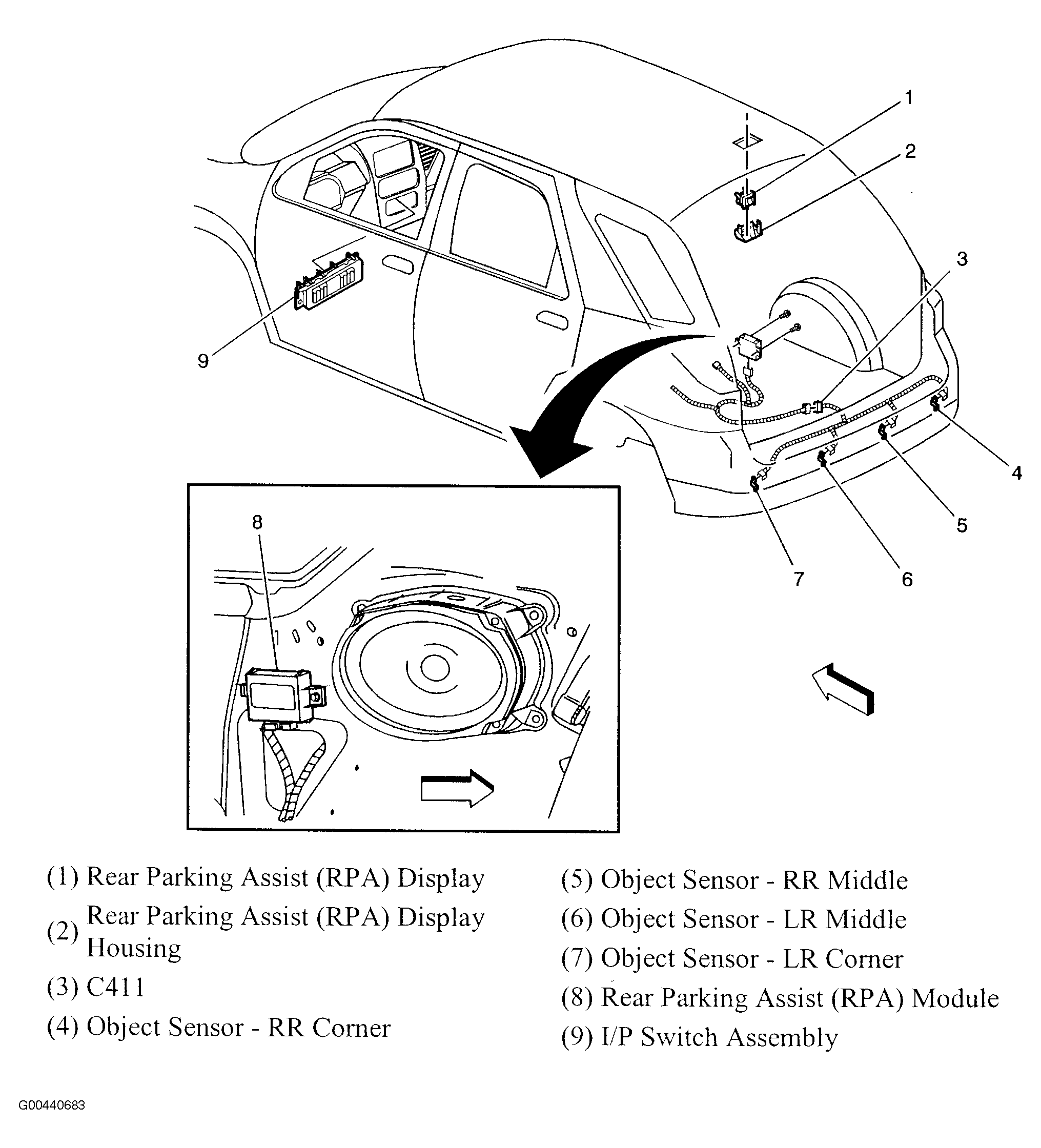

Fig 25: Rear Parking Assistant (RPA) Subsystem
Courtesy of GENERAL MOTORS CORP.
Fig 26: Liftgate
Courtesy of GENERAL MOTORS CORP.

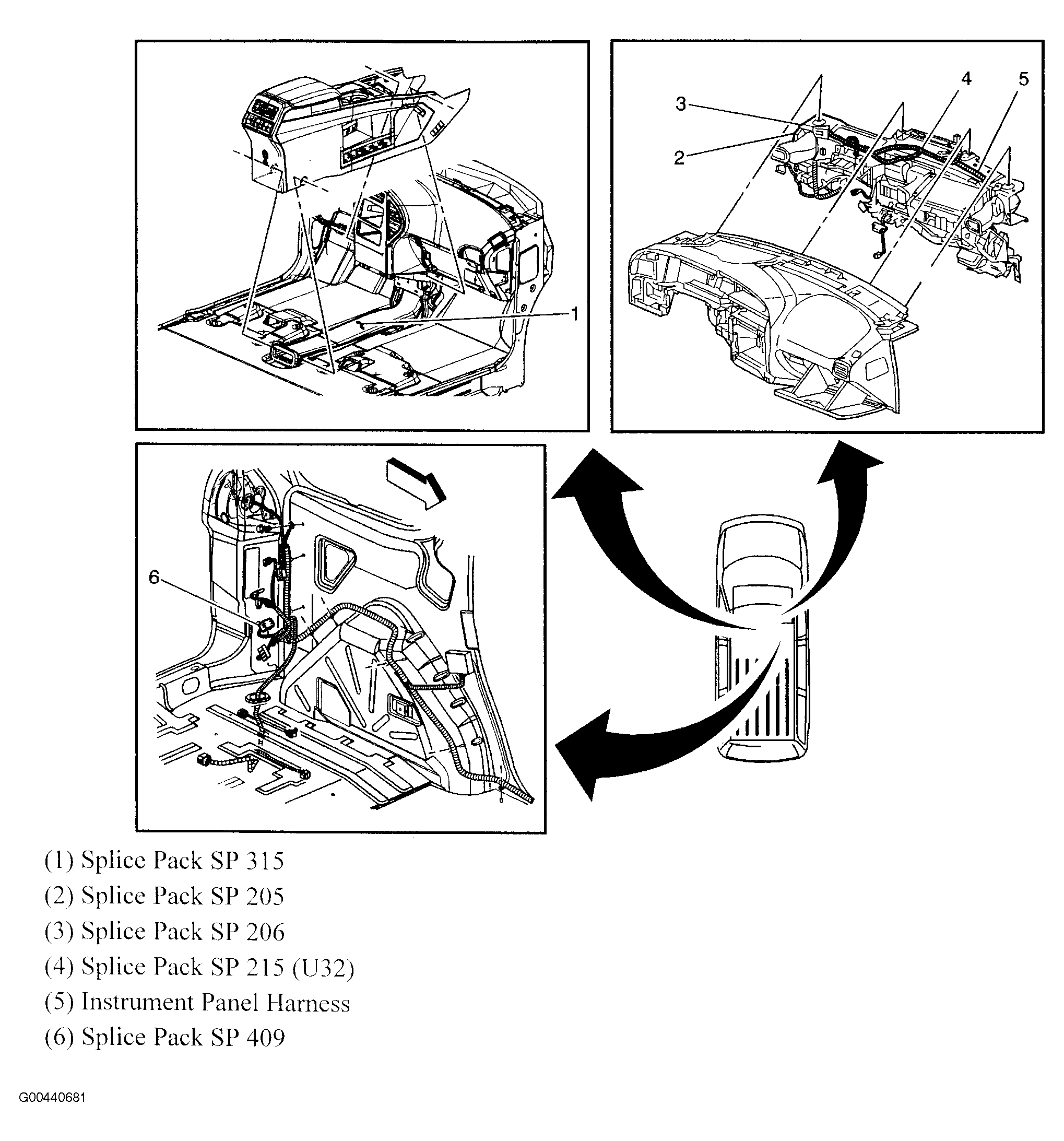

Fig 27: Splice Packs
Courtesy of GENERAL MOTORS CORP.

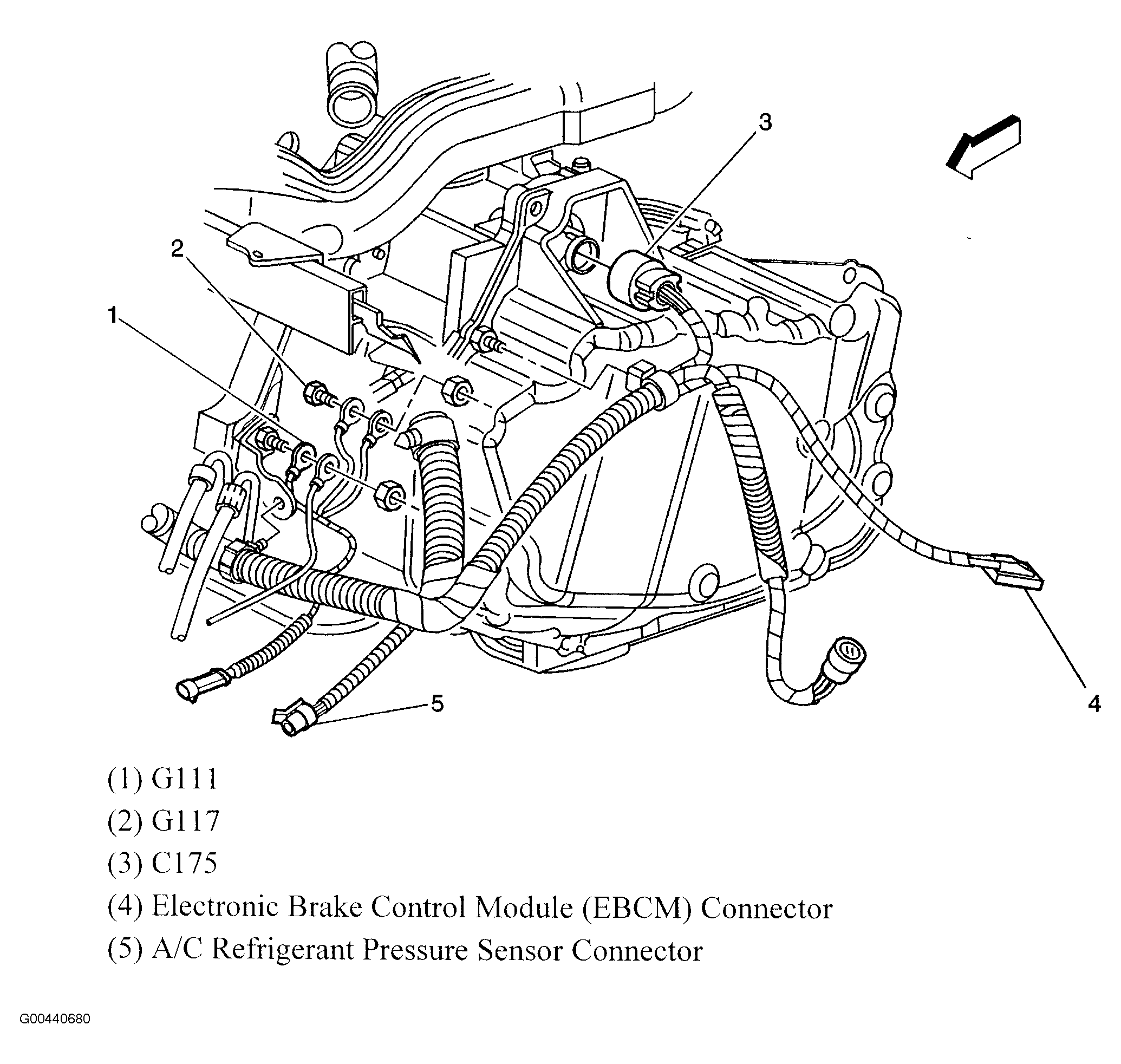

Fig 28: Grounds G111 & G117
Courtesy of GENERAL MOTORS CORP.

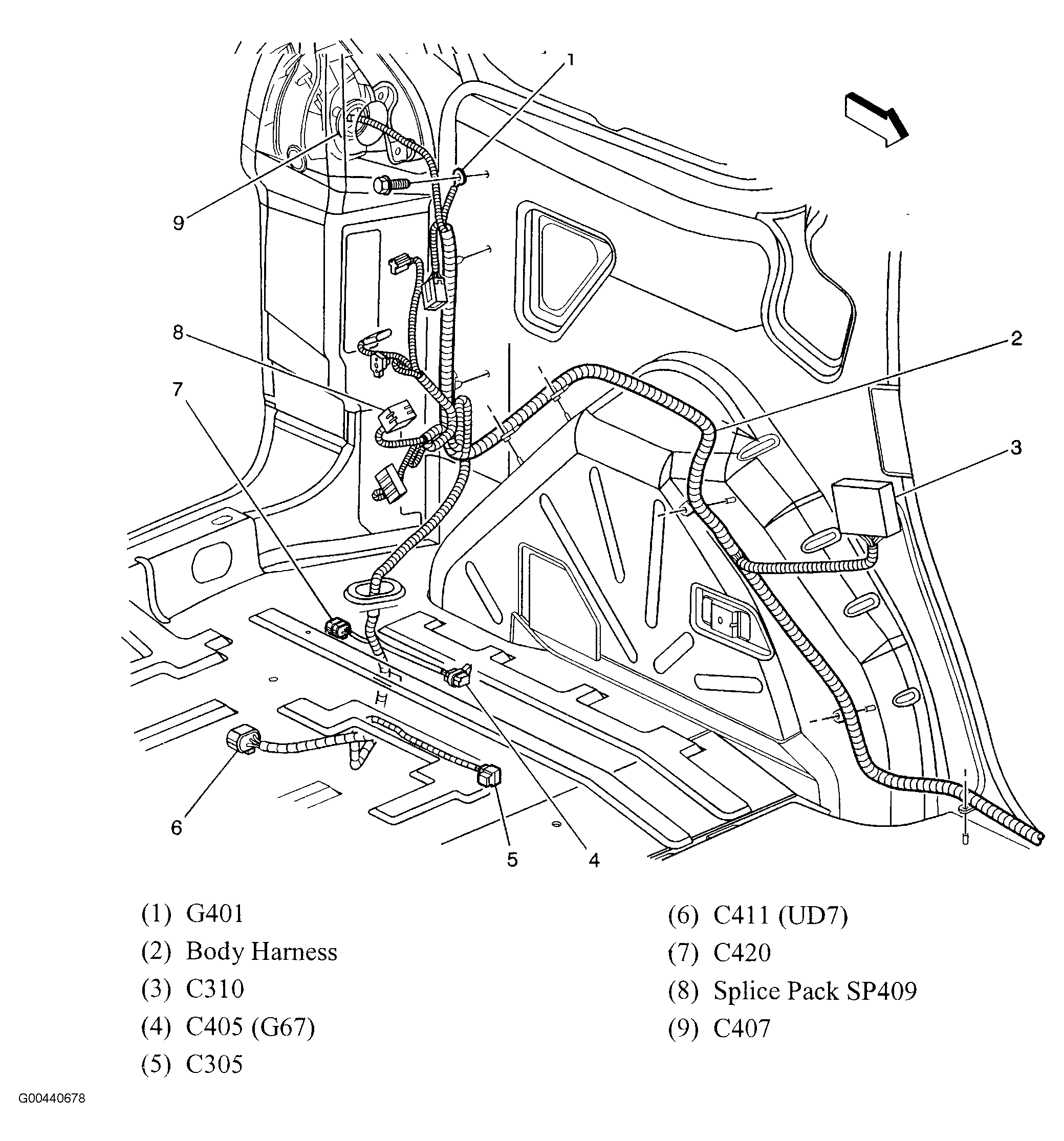

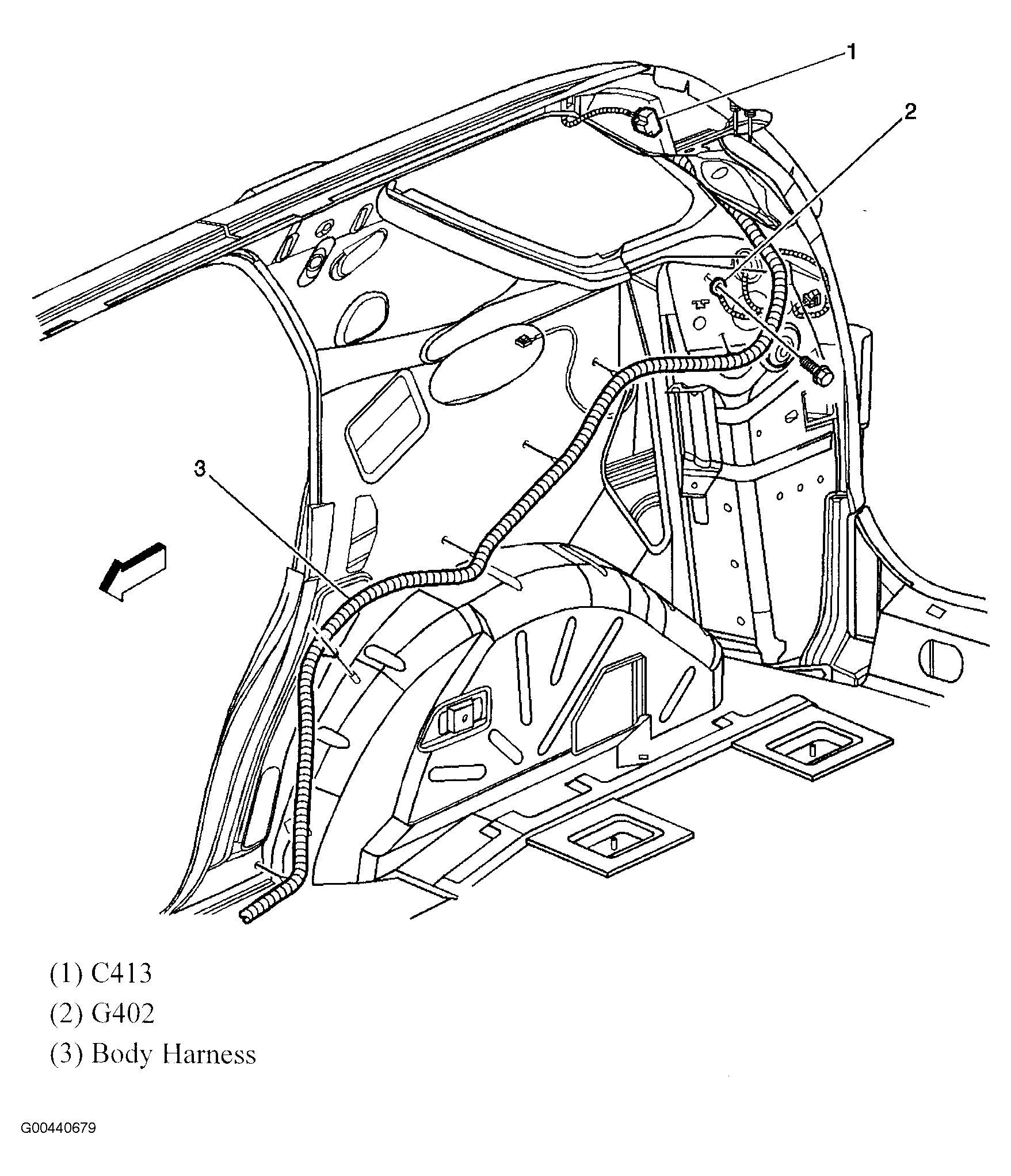

Fig 29: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 30: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

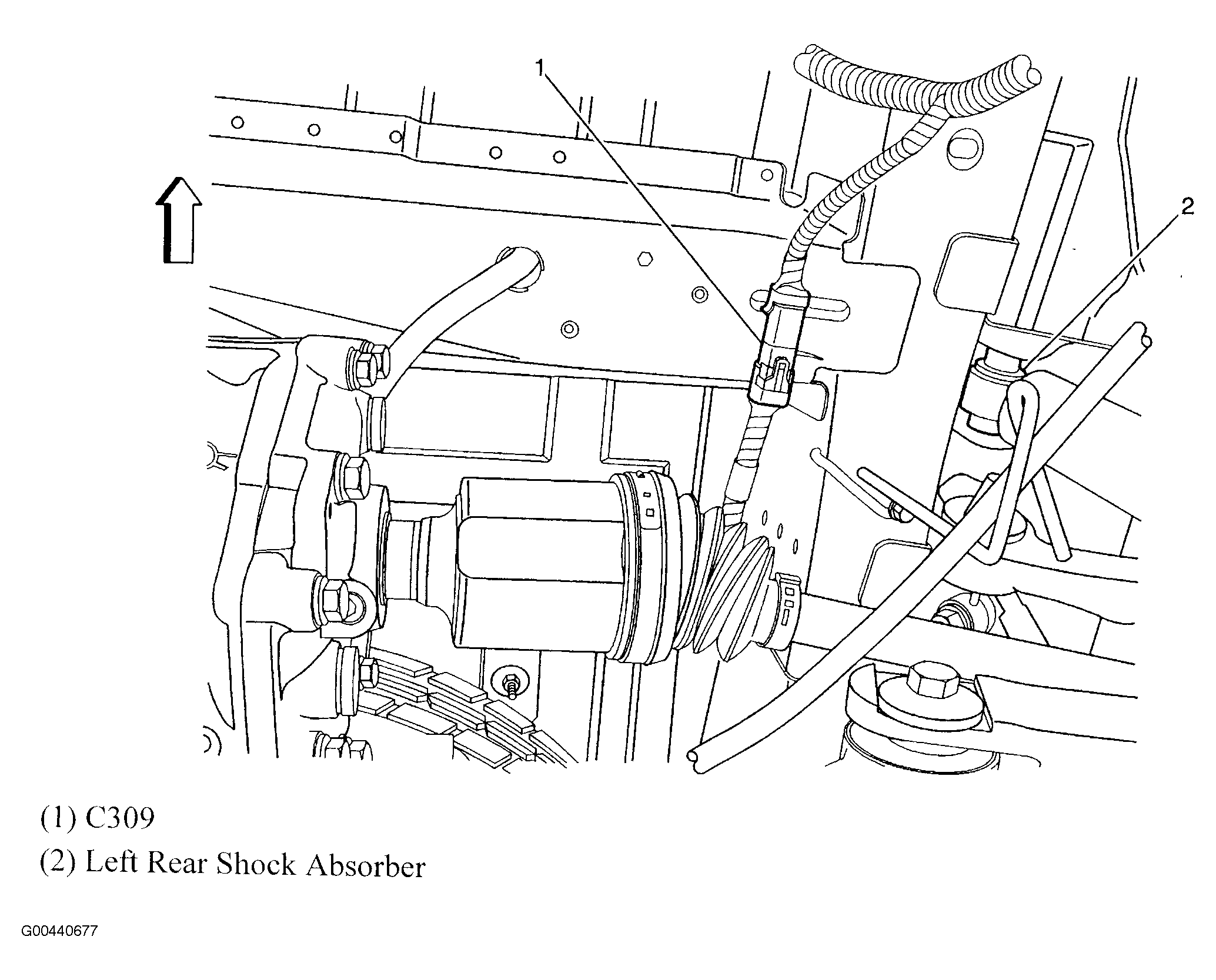

Fig 31: Under Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

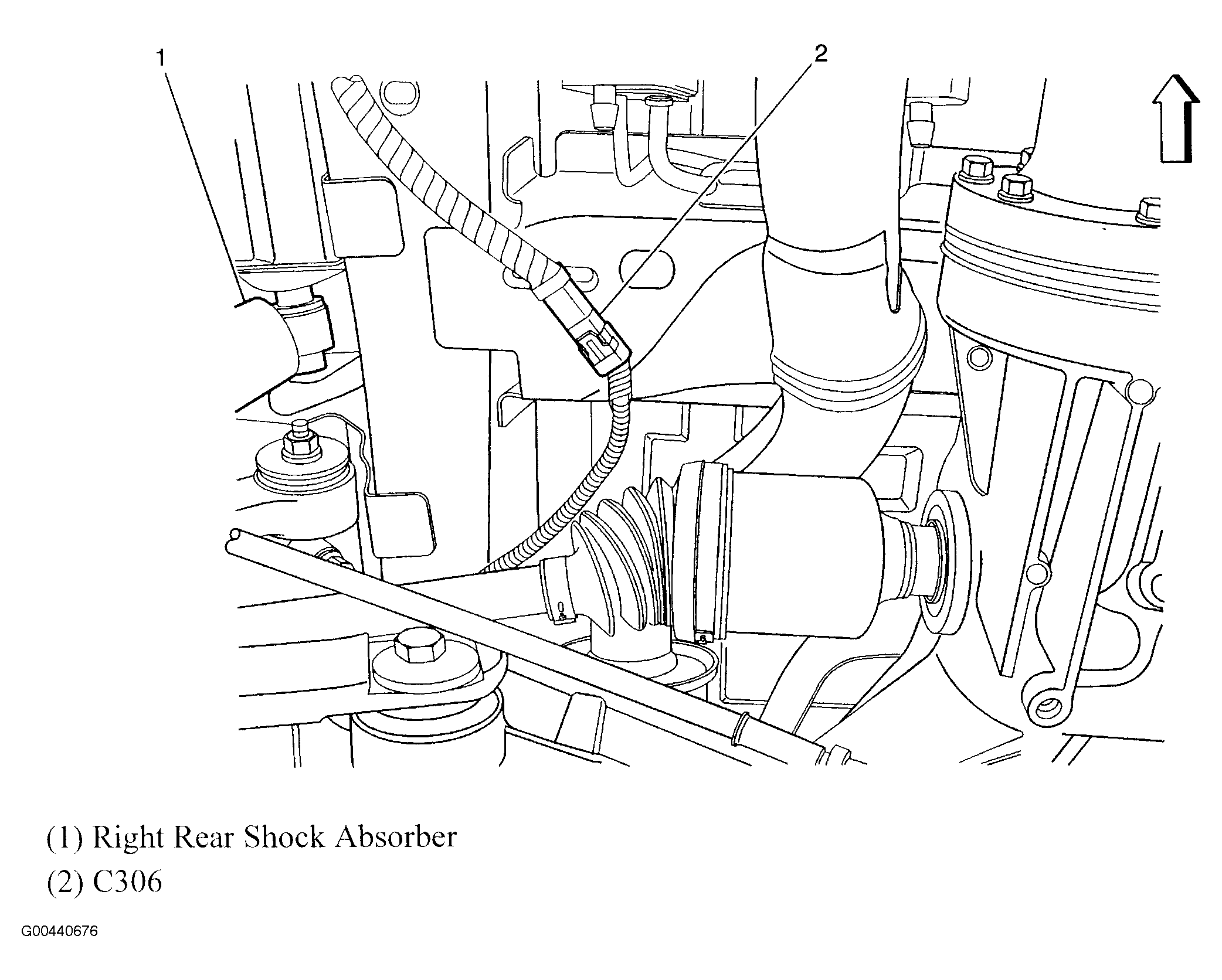

Fig 32: Under Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

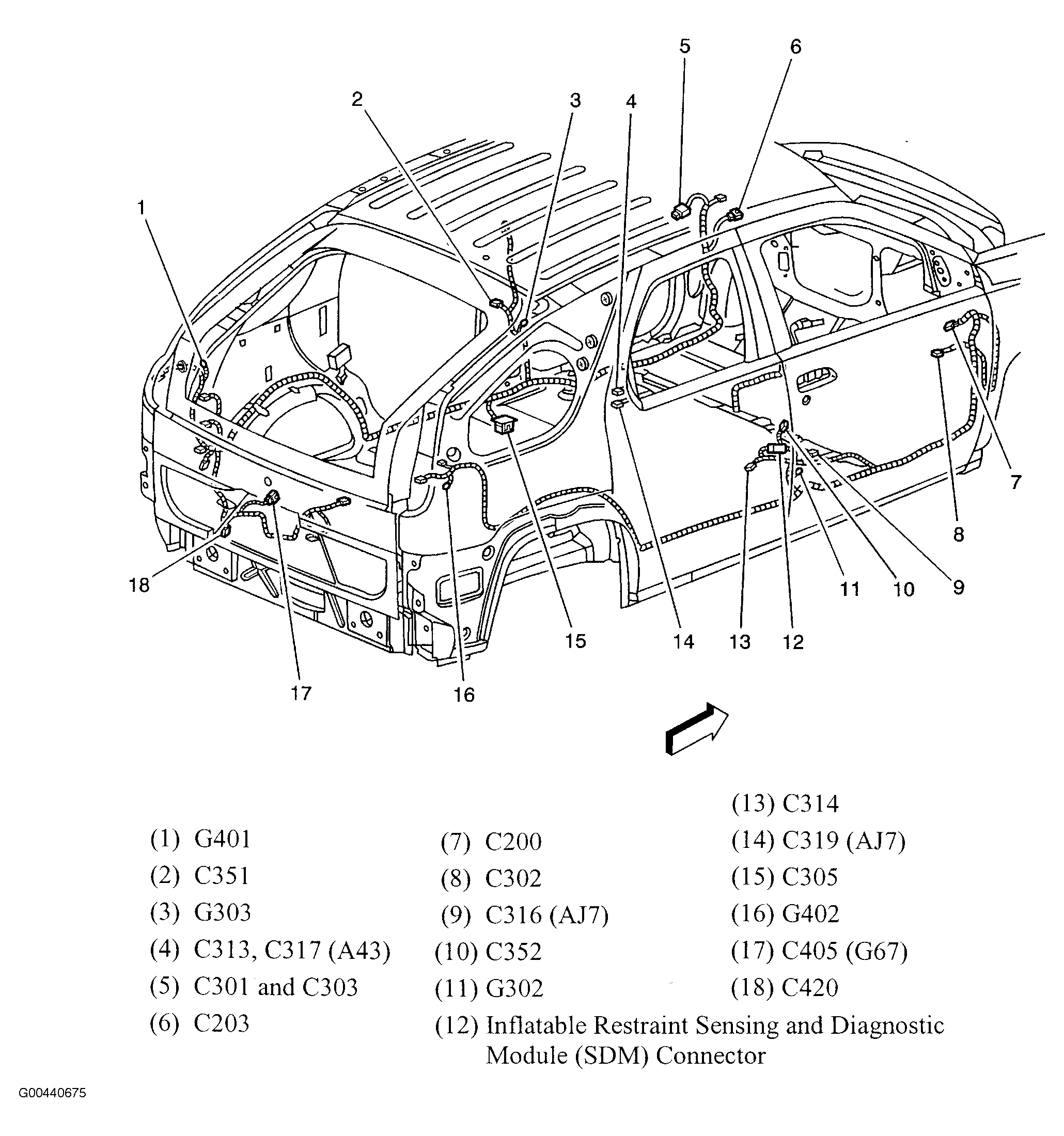

Fig 33: Body Harness
Courtesy of GENERAL MOTORS CORP.
Fig 34: Forward Lamp Harness
Courtesy of GENERAL MOTORS CORP.

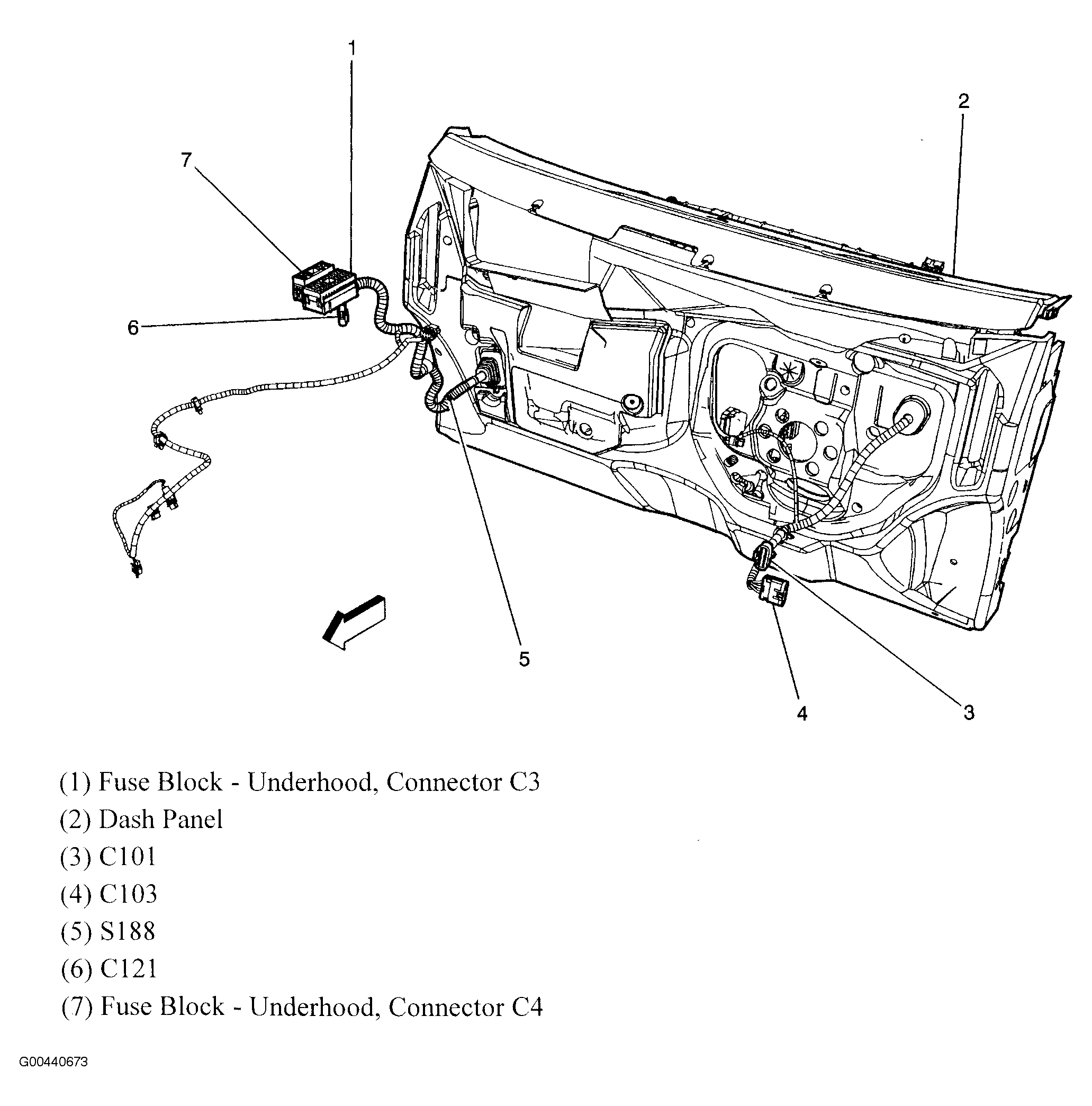

Fig 35: Instrument Panel Harness In Engine Compartment
Courtesy of GENERAL MOTORS CORP.

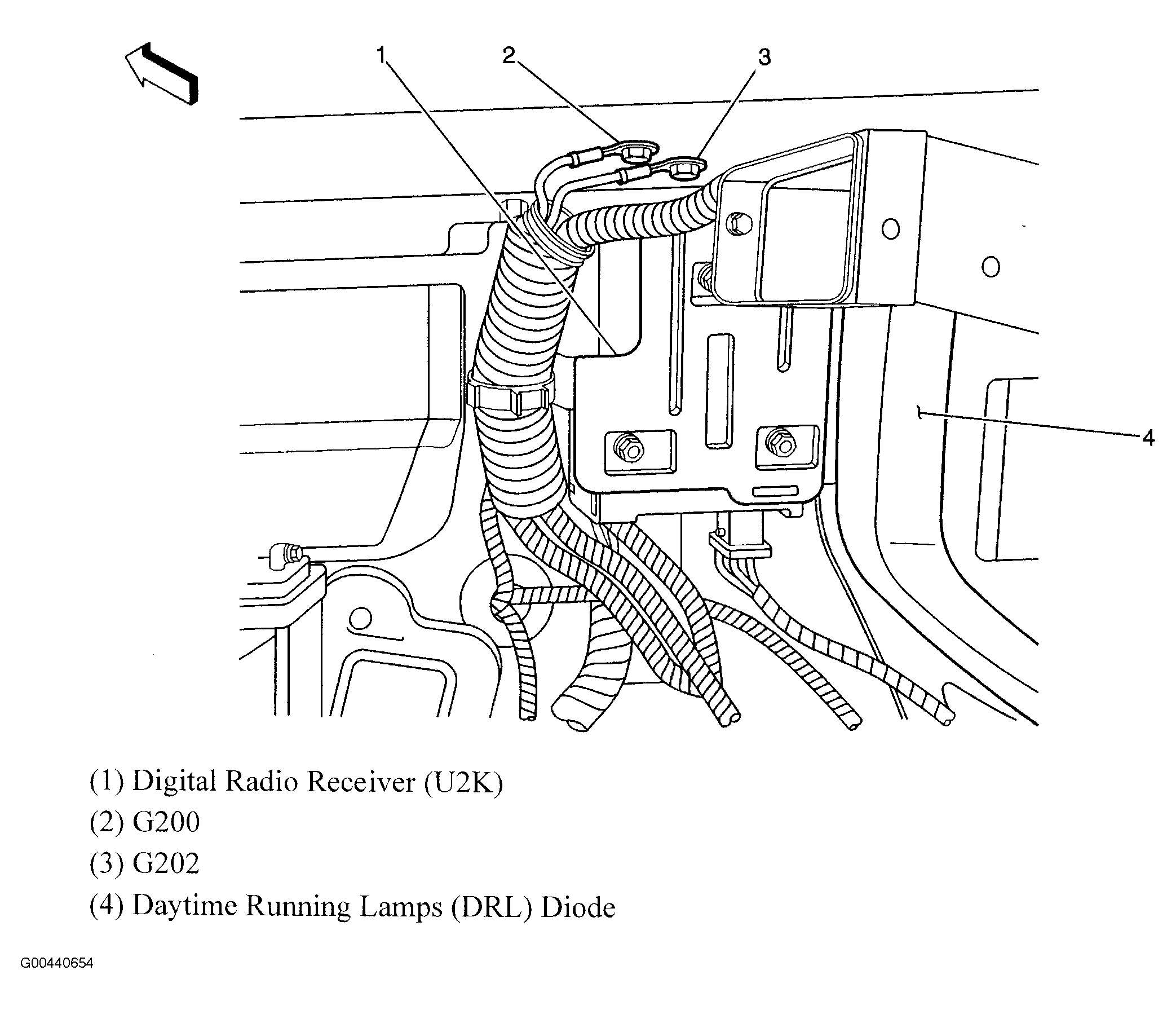

Fig 36: Behind Right Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

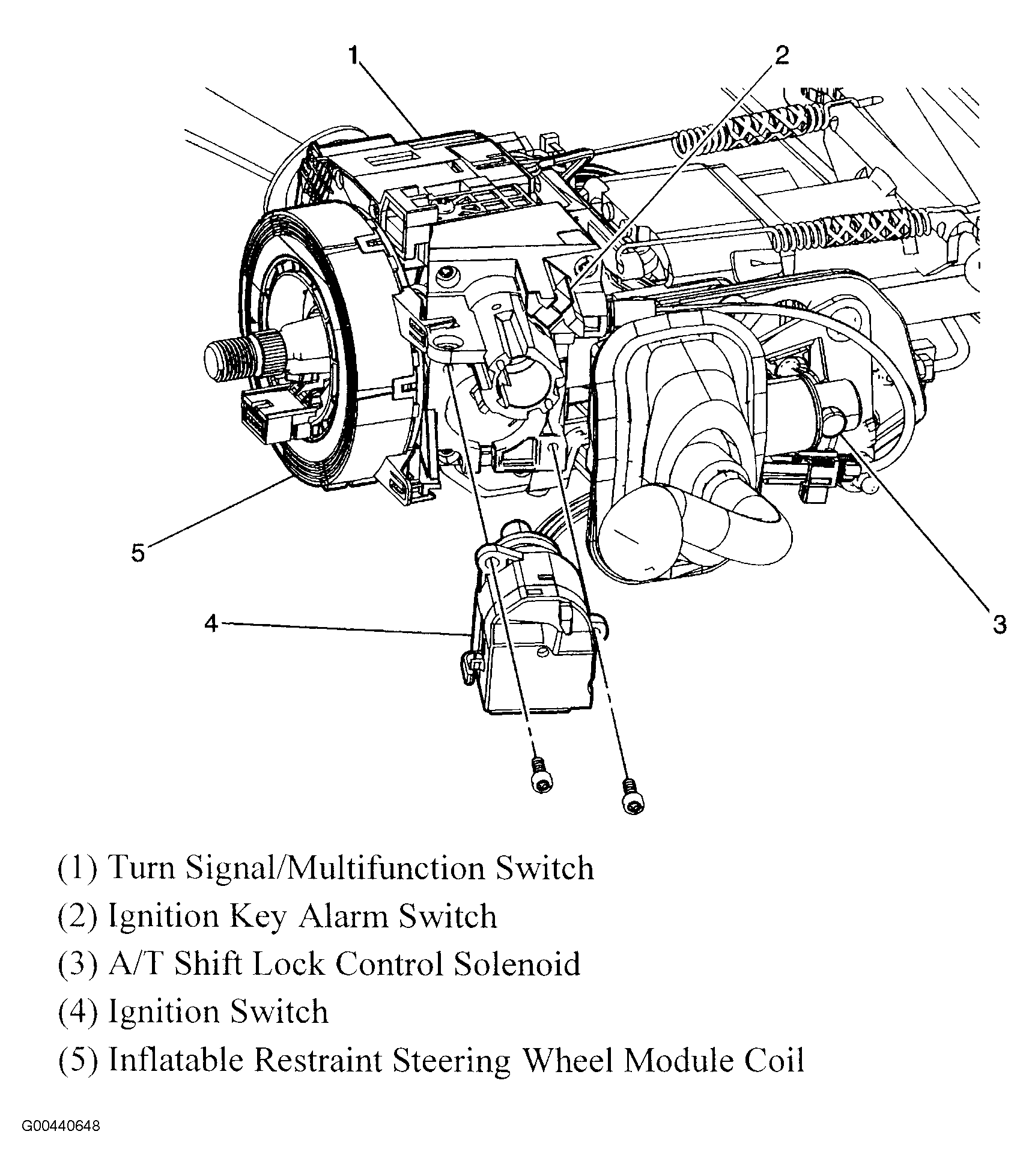

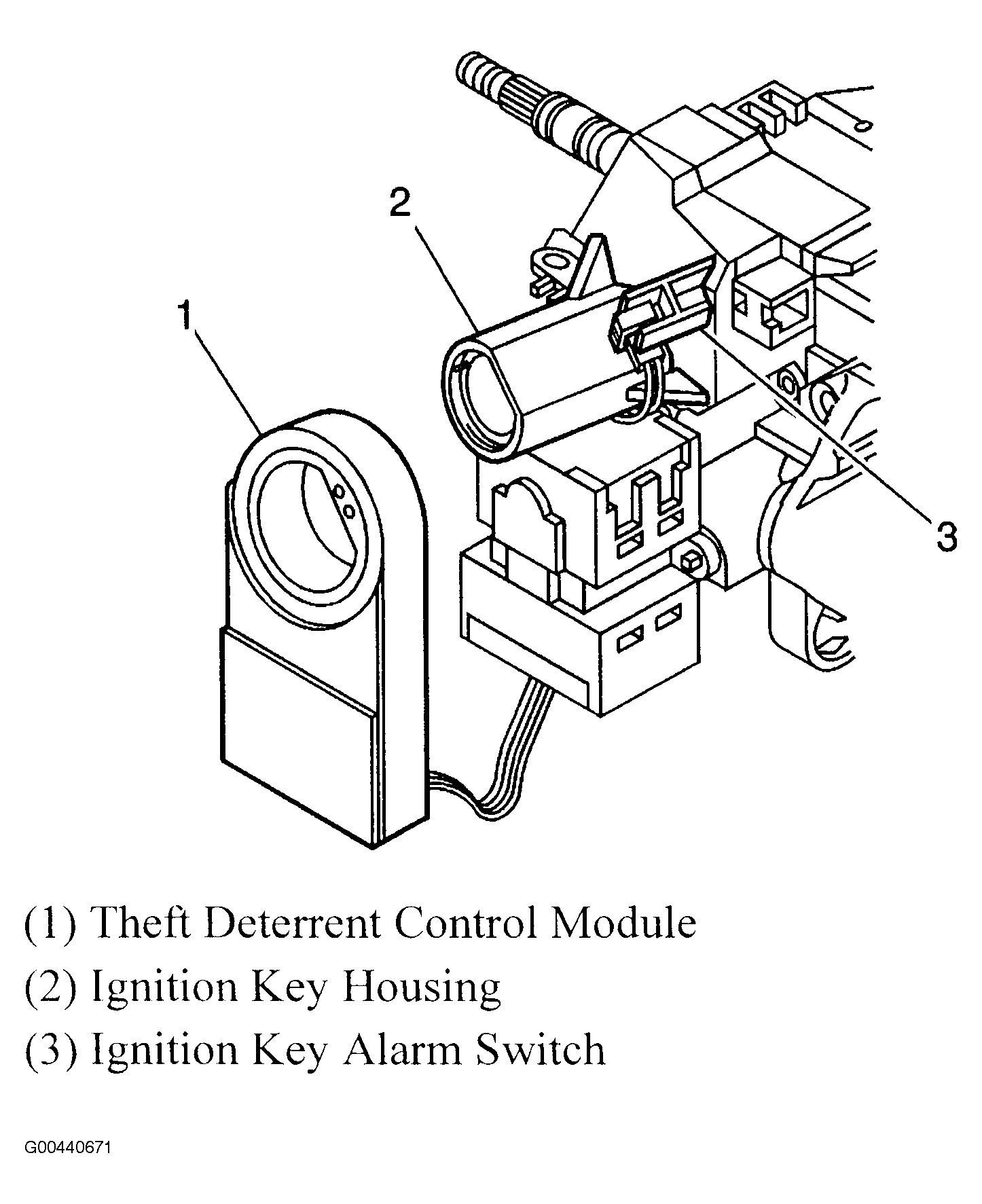

Fig 37: Top Right Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 38: Behind Brake Pedal Bracket
Courtesy of GENERAL MOTORS CORP.
Fig 39: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 40: Lower Left Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

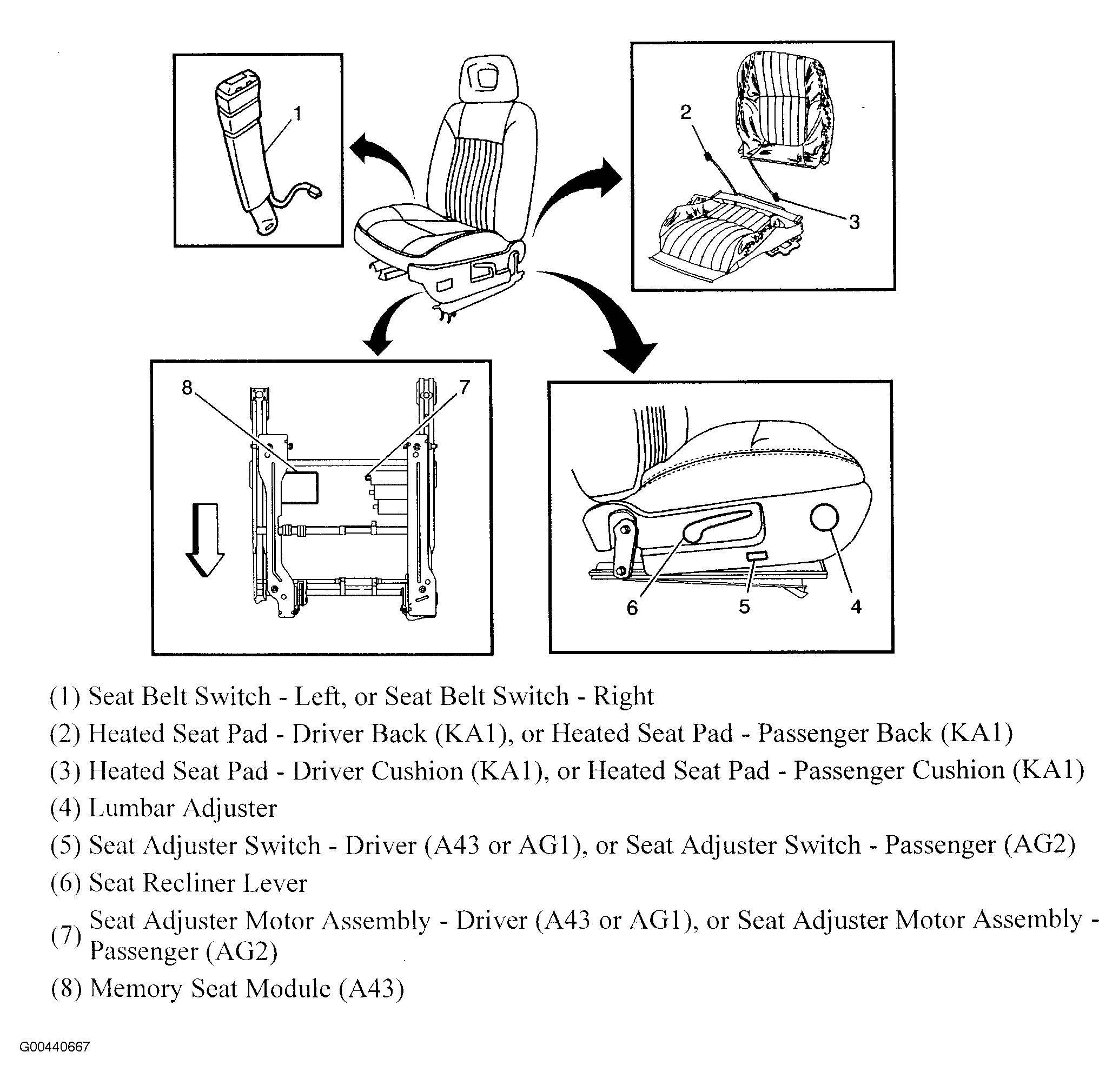

Fig 41: Power Seat Subsystem
Courtesy of GENERAL MOTORS CORP.

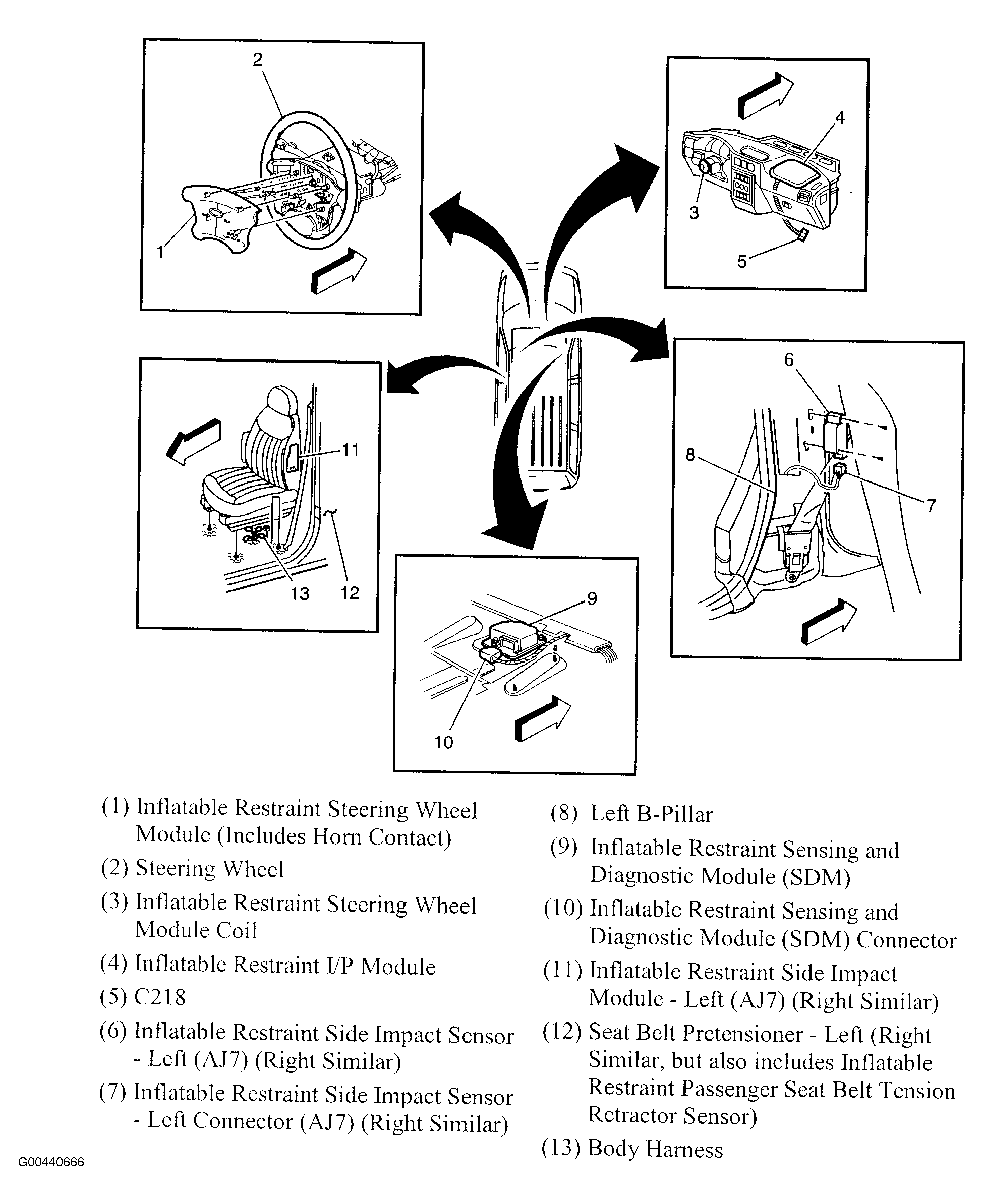

Fig 42: Inflatable Restraint Components
Courtesy of GENERAL MOTORS CORP.

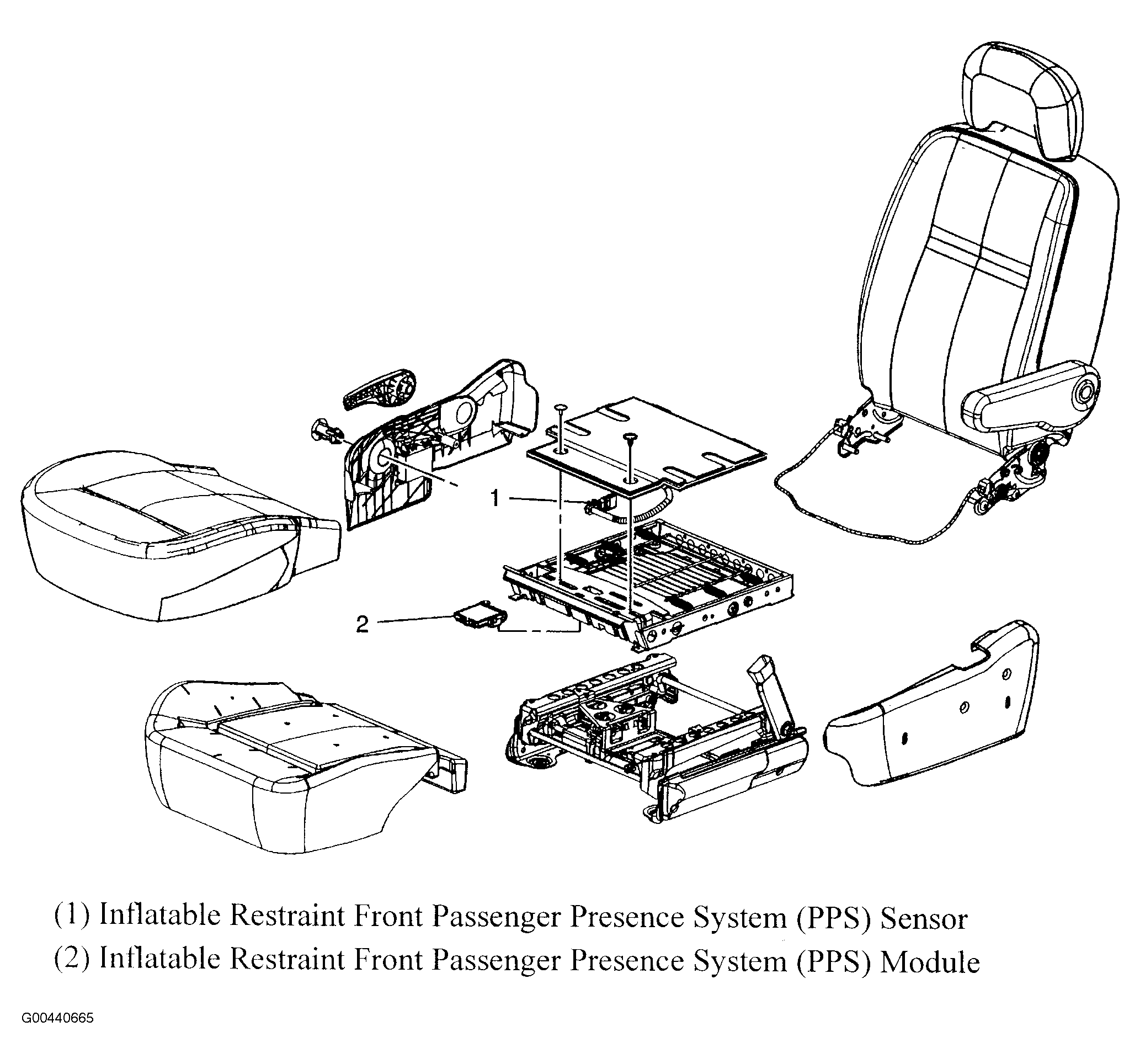

Fig 43: Passenger Seat
Courtesy of GENERAL MOTORS CORP.

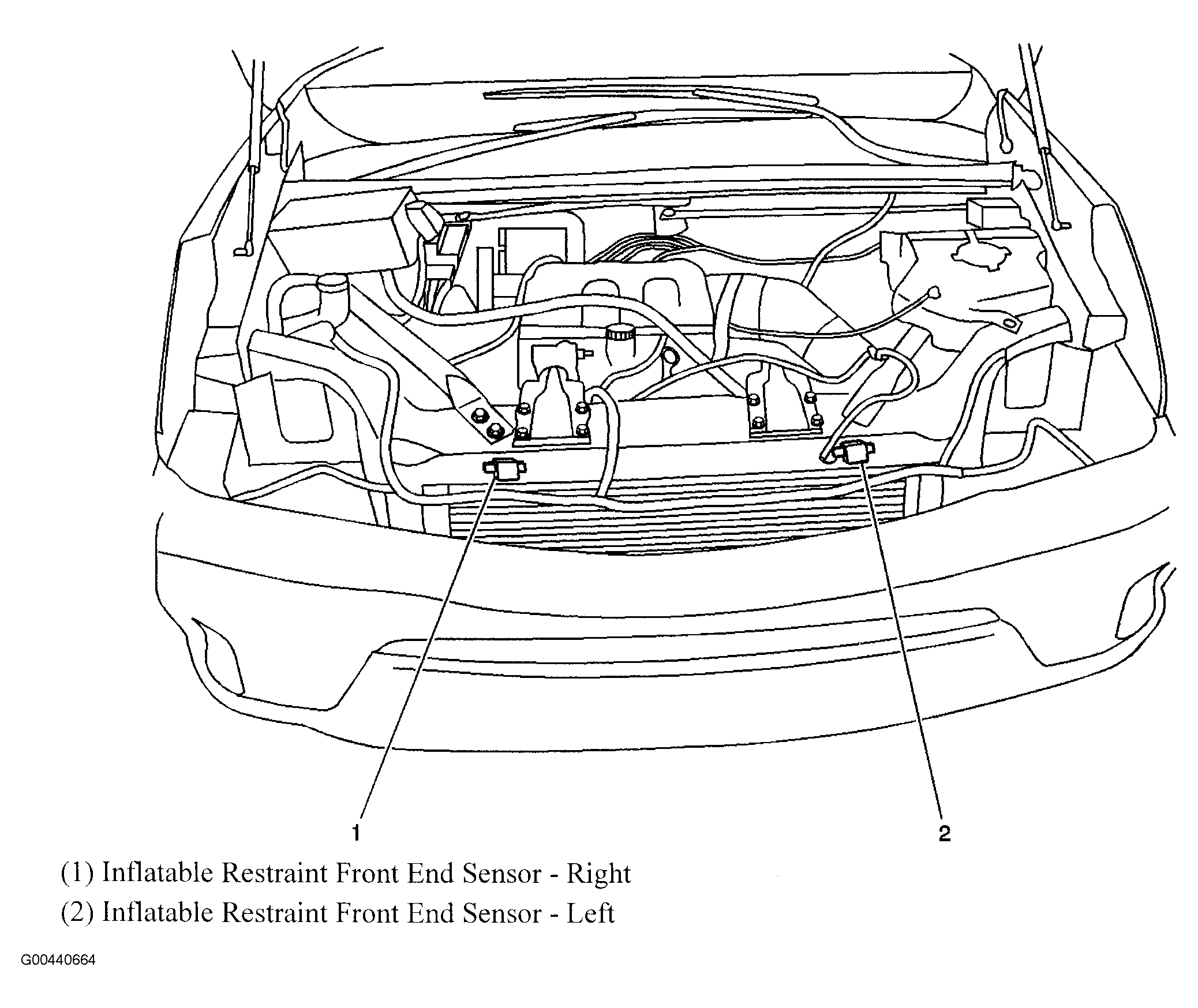

Fig 44: Front End Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 45: Behind Headlamps
Courtesy of GENERAL MOTORS CORP.

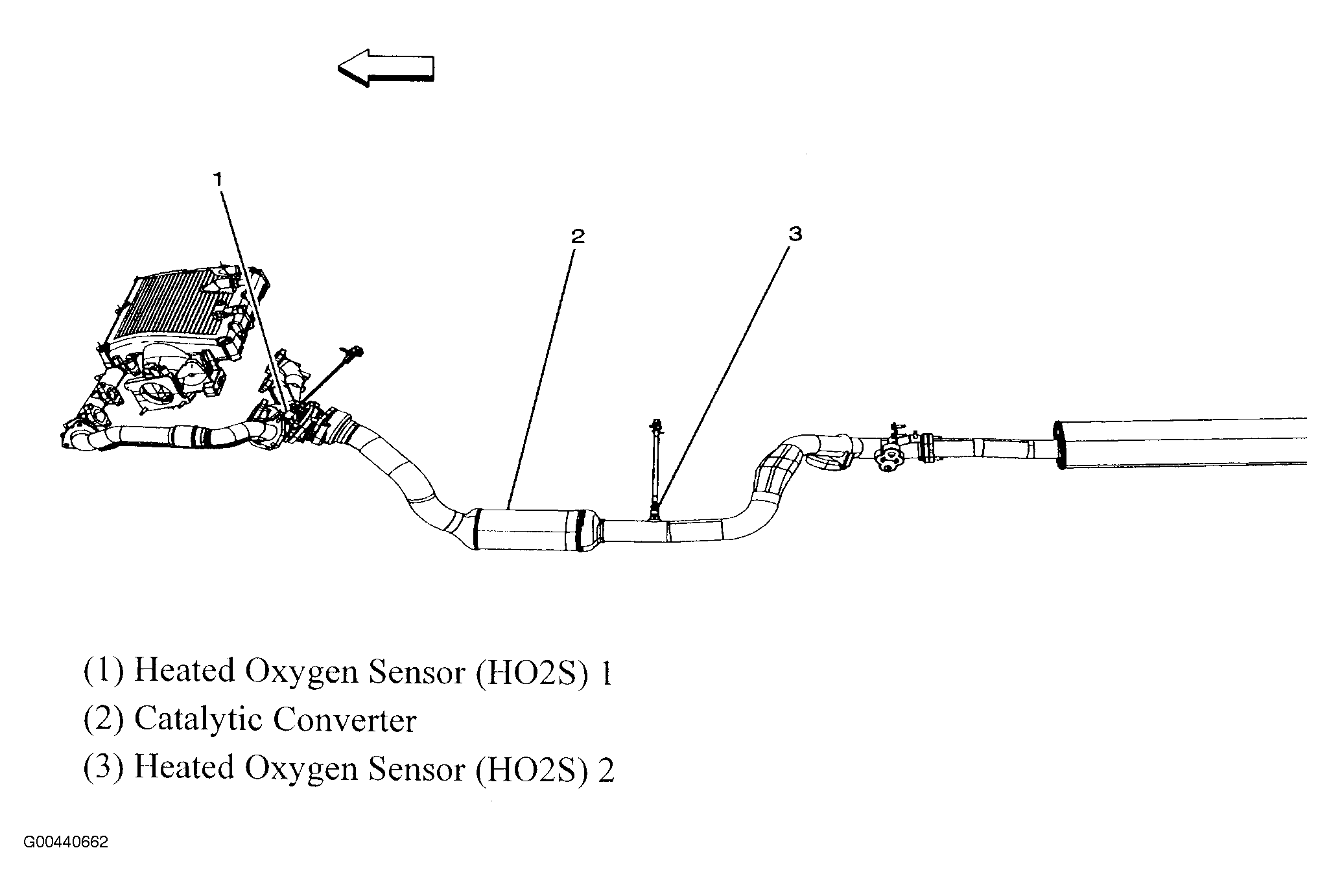

Fig 46: Heated Oxygen Sensors
Courtesy of GENERAL MOTORS CORP.

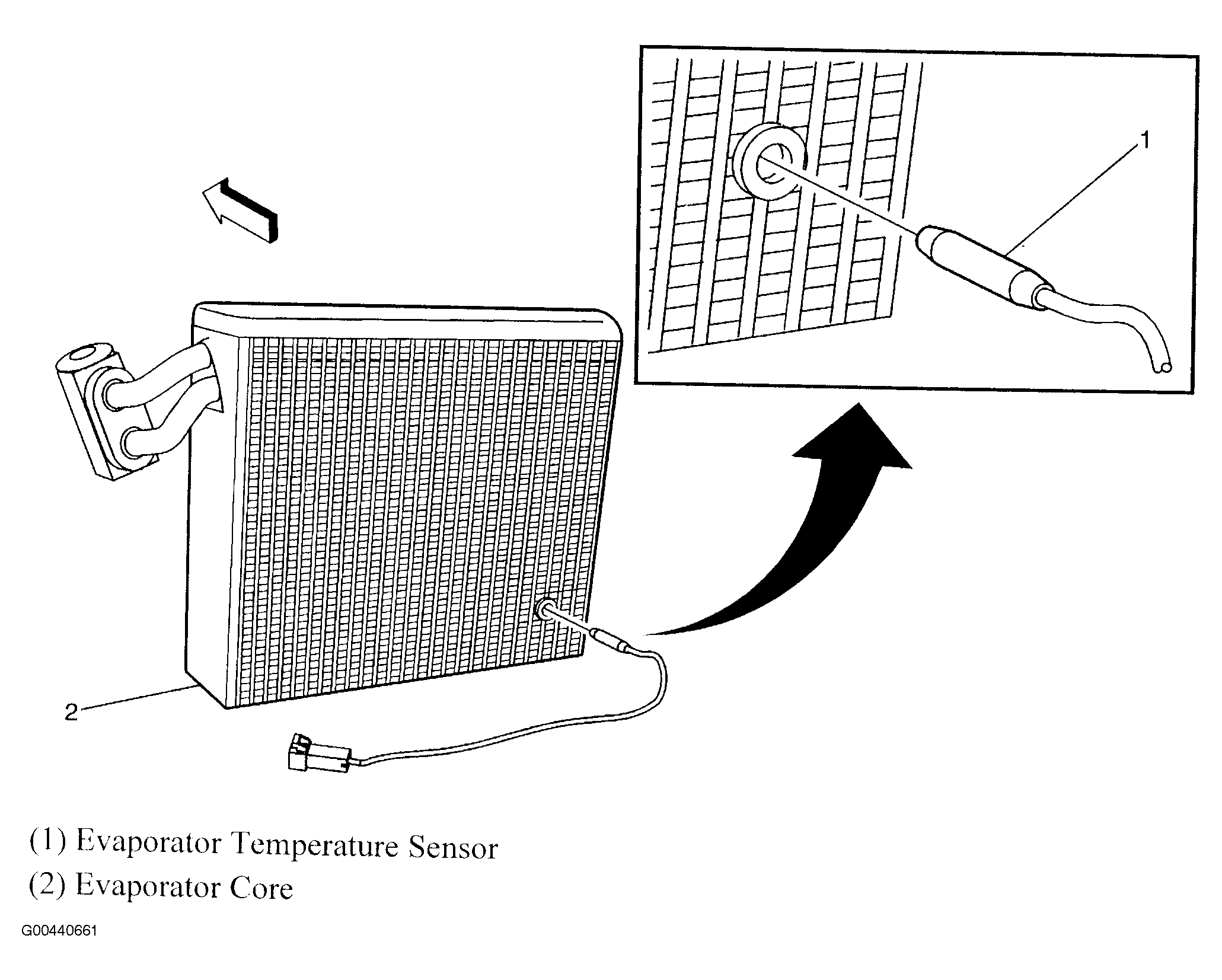

Fig 47: Evaporator Core
Courtesy of GENERAL MOTORS CORP.

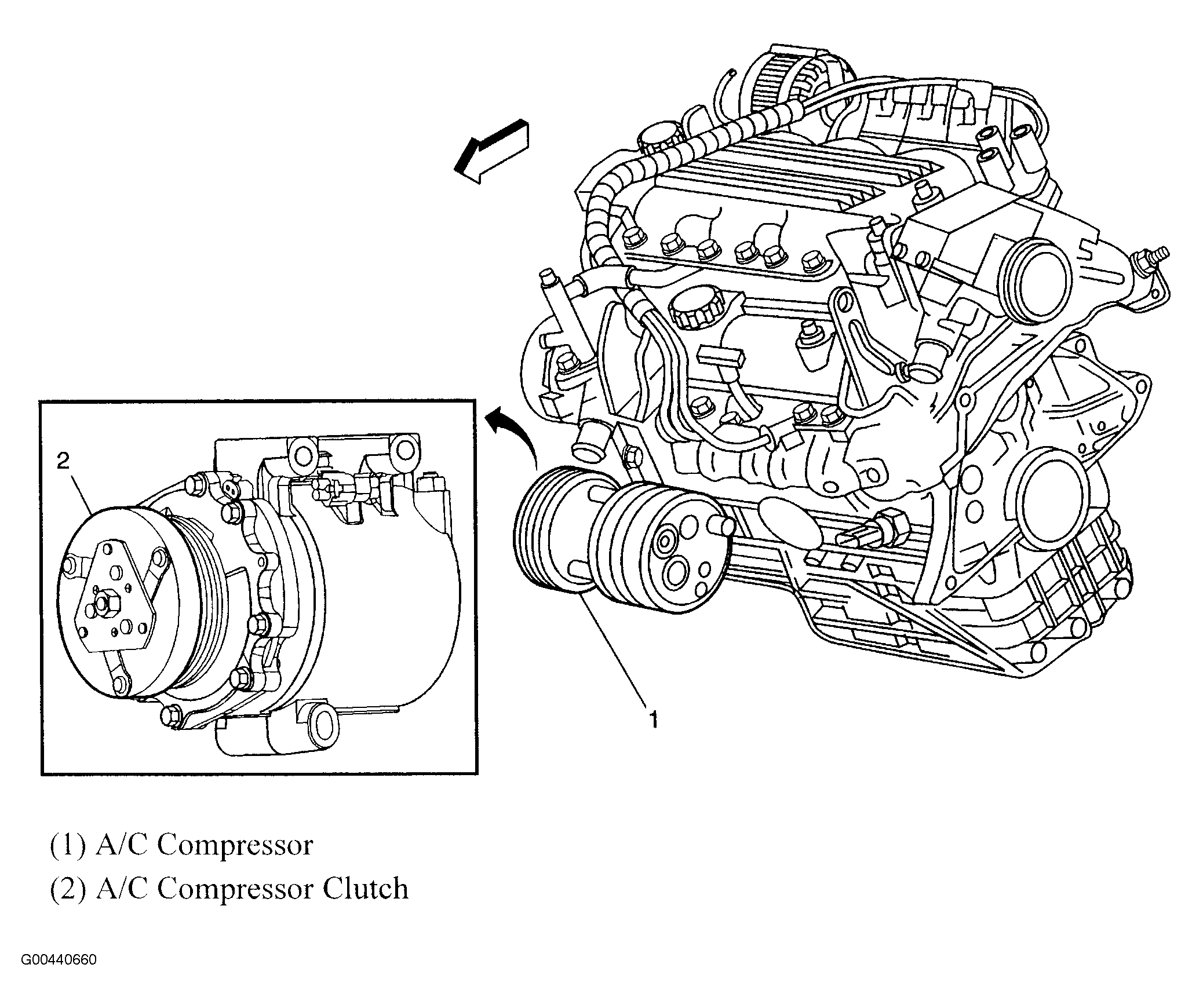

Fig 48: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

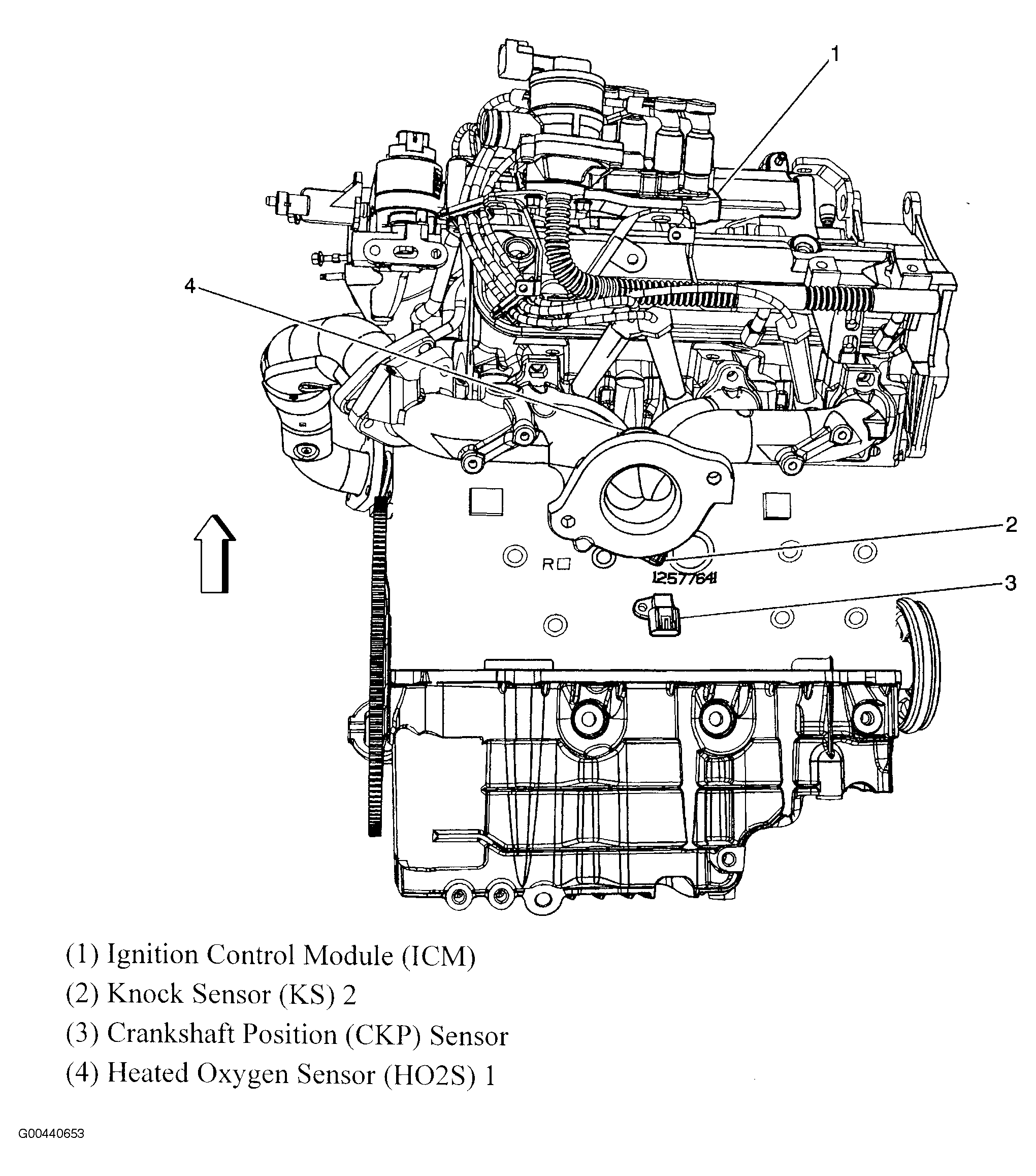

Fig 49: Front Of Engine Components
Courtesy of GENERAL MOTORS CORP.
Fig 50: Top Rear Engine Components
Courtesy of GENERAL MOTORS CORP.

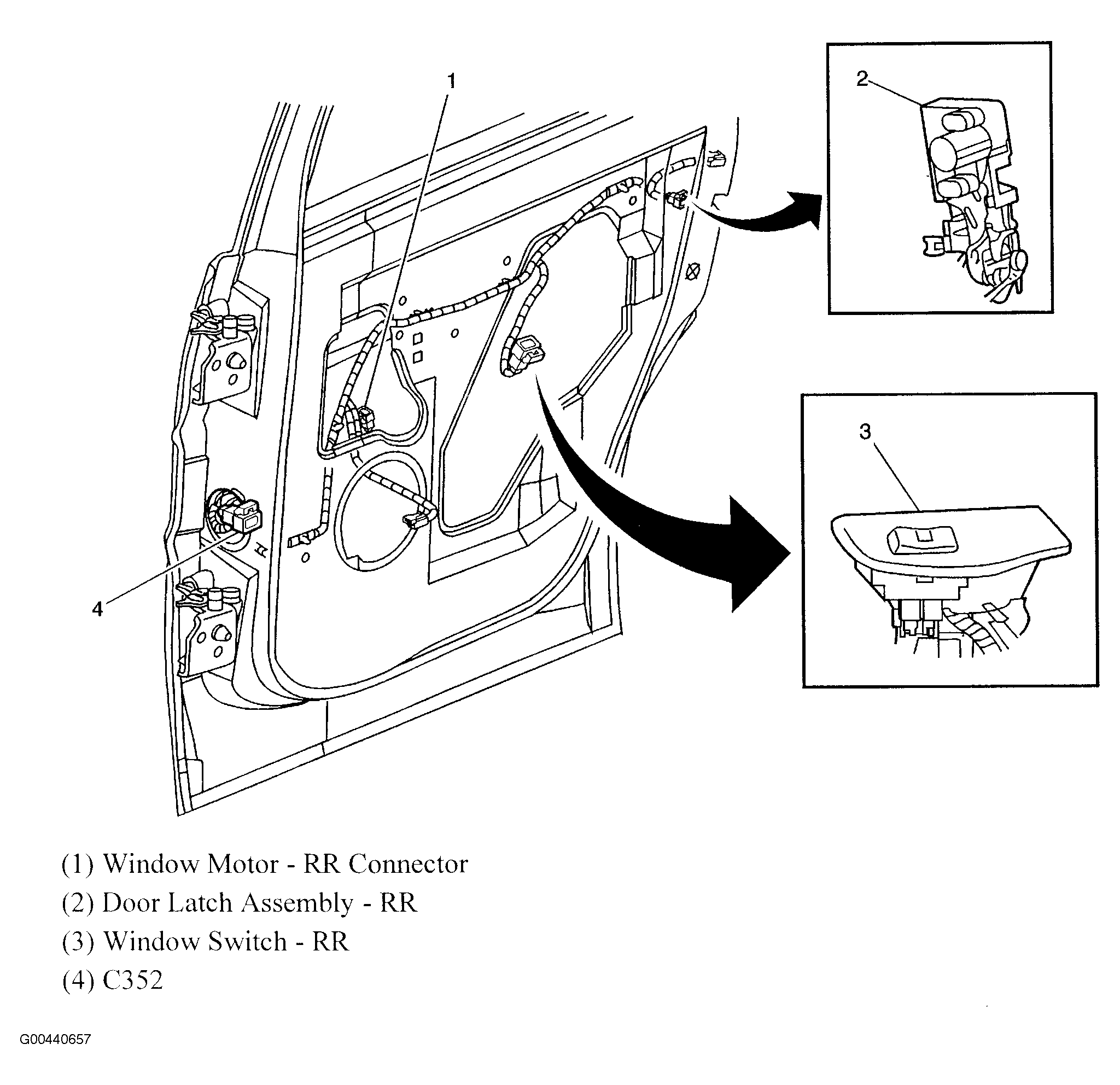

Fig 51: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

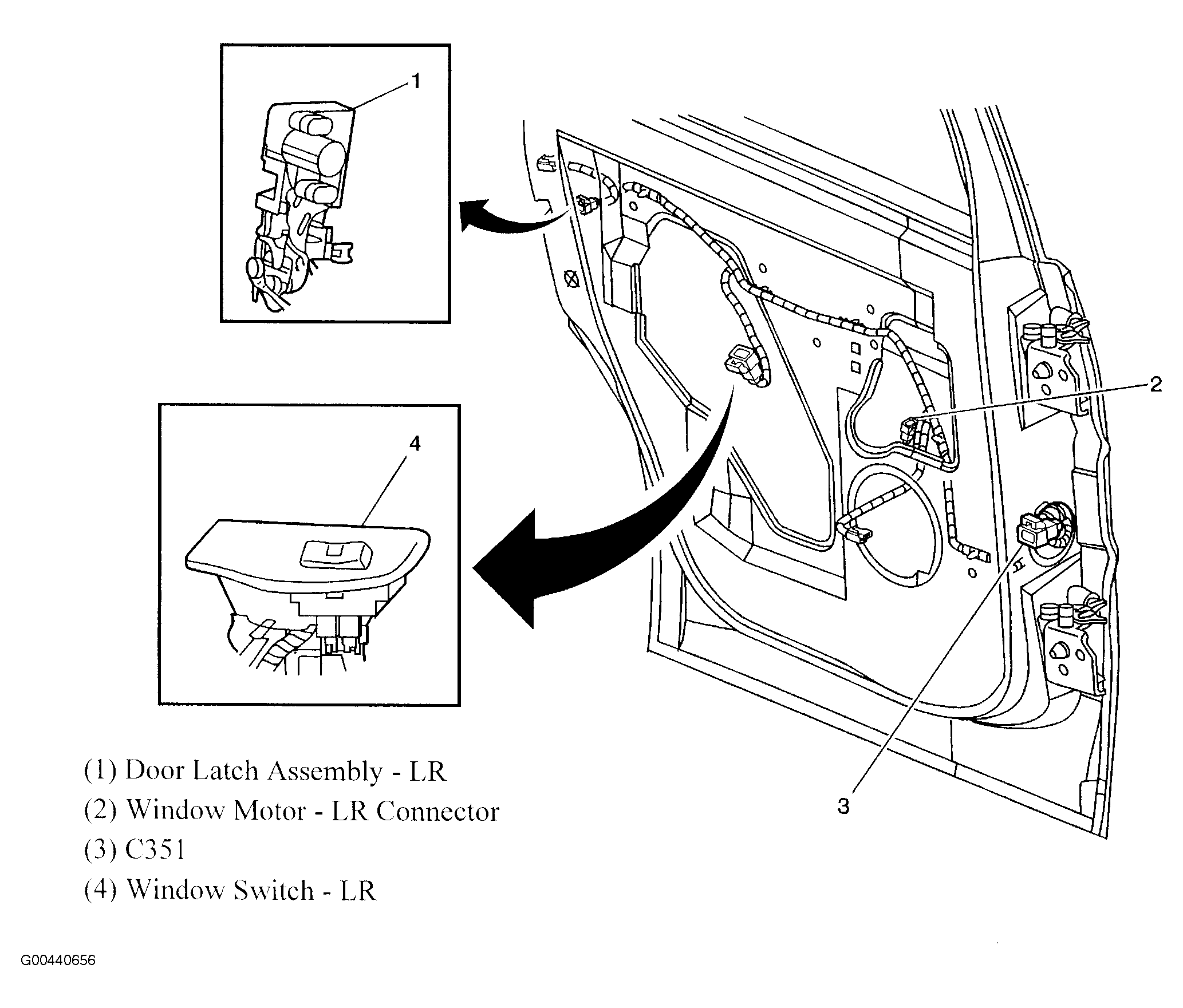

Fig 52: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

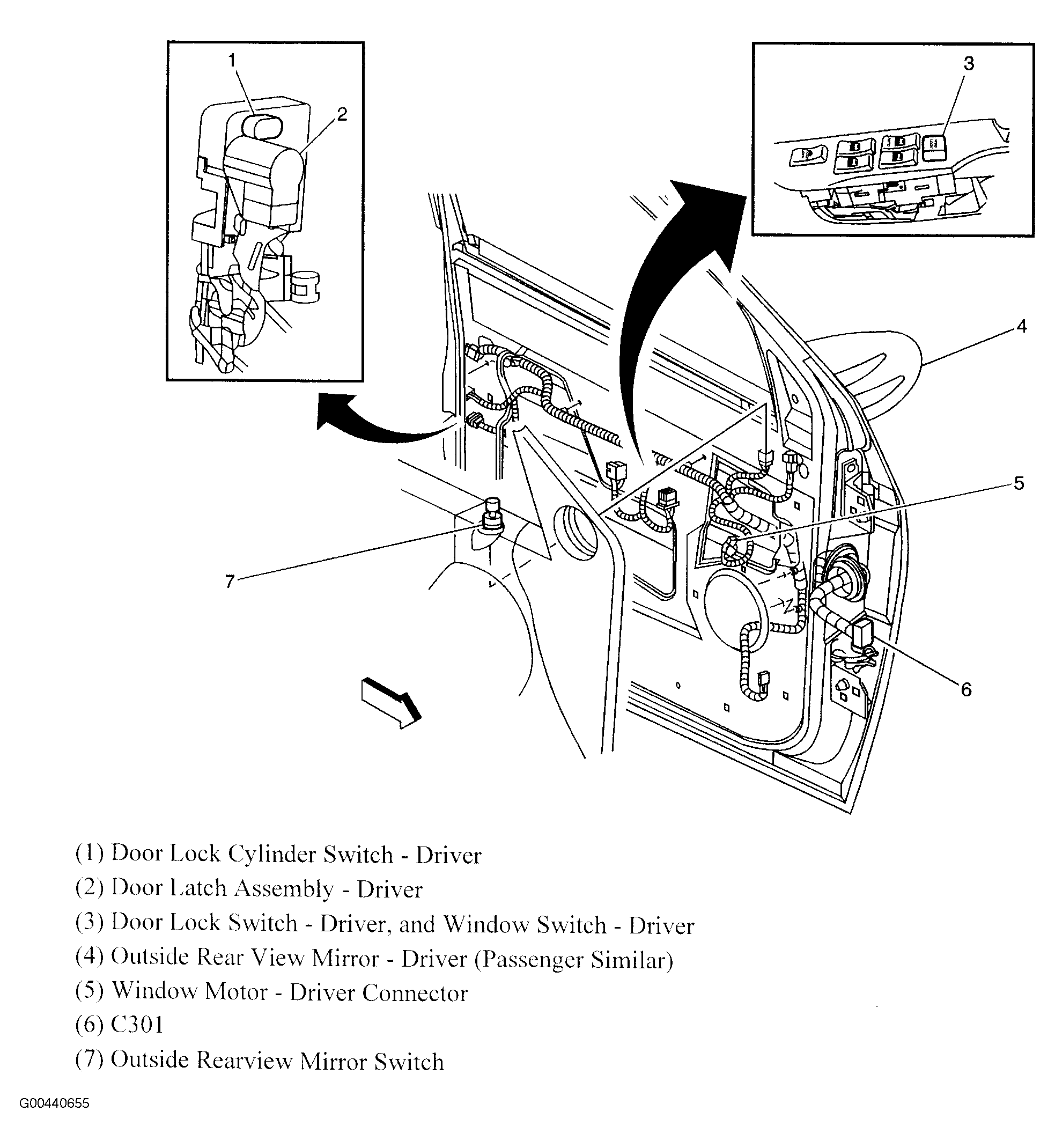

Fig 53: Driver Door
Courtesy of GENERAL MOTORS CORP.

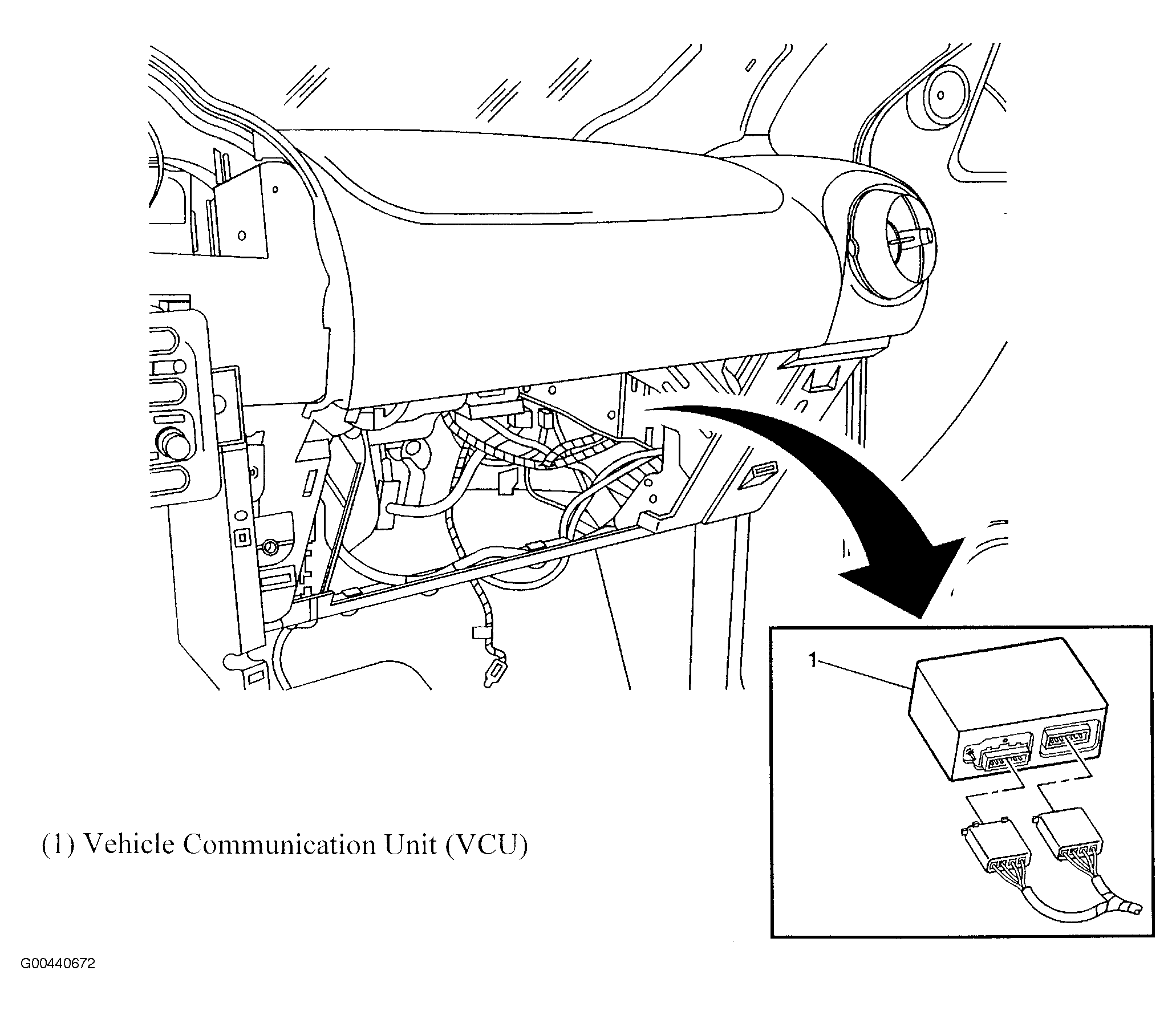

Fig 54: Behind Instrument Panel Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 55: Rear Engine Components
Courtesy of GENERAL MOTORS CORP.

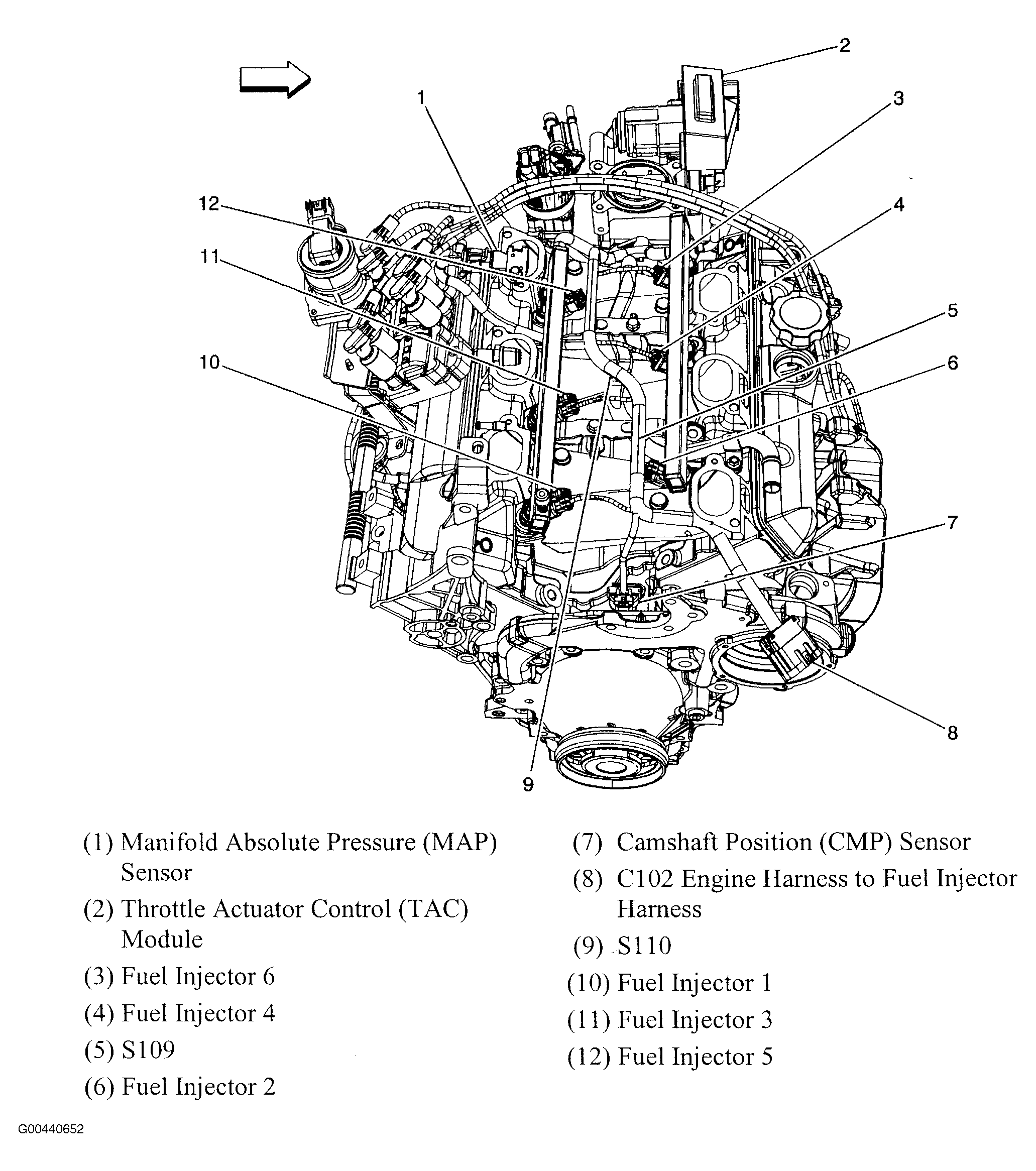

Fig 56: Top Of Engine Components
Courtesy of GENERAL MOTORS CORP.

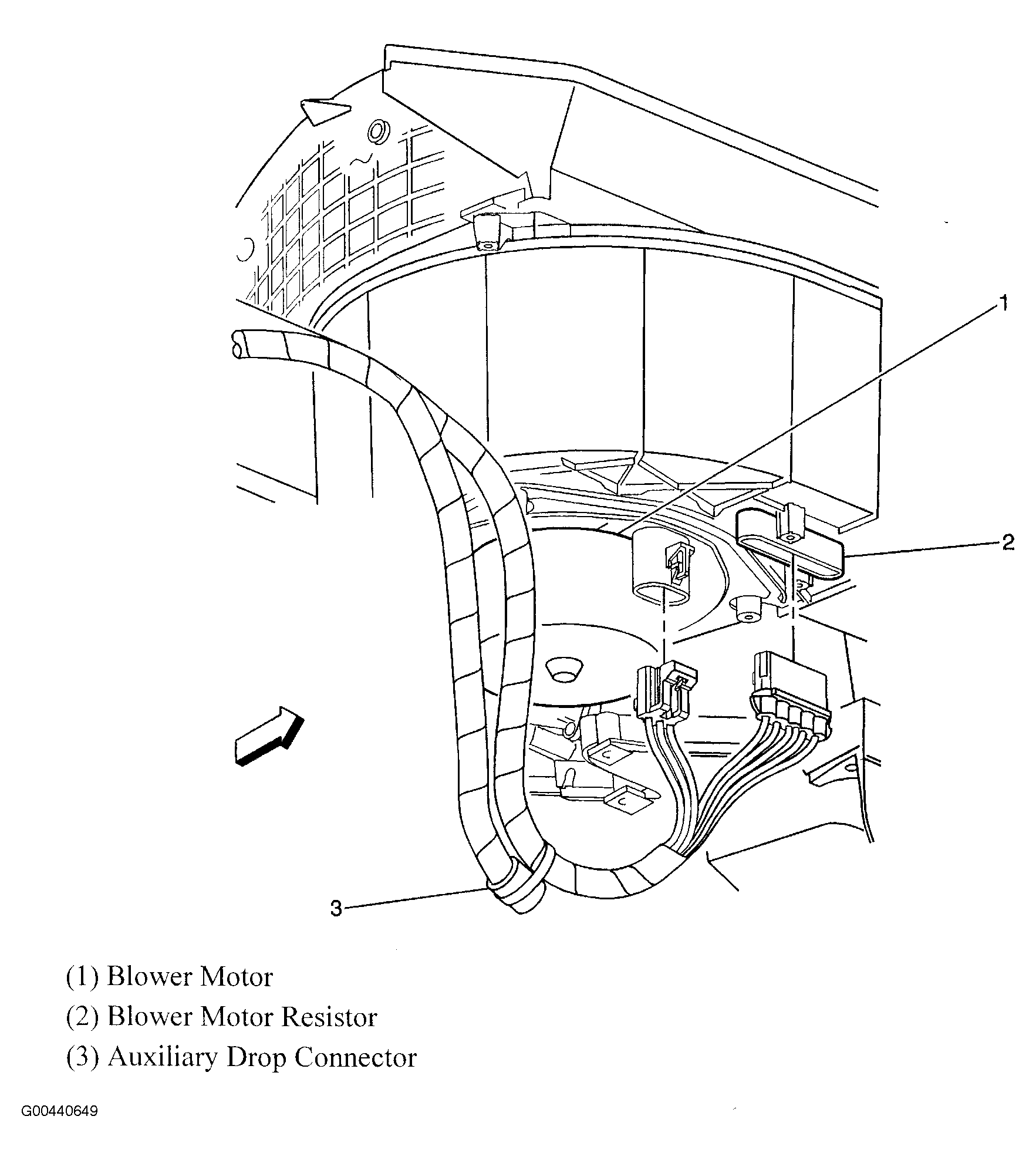

Fig 57: Under Right Side Of Instrument Panel (Automatic HVAC)
Courtesy of GENERAL MOTORS CORP.

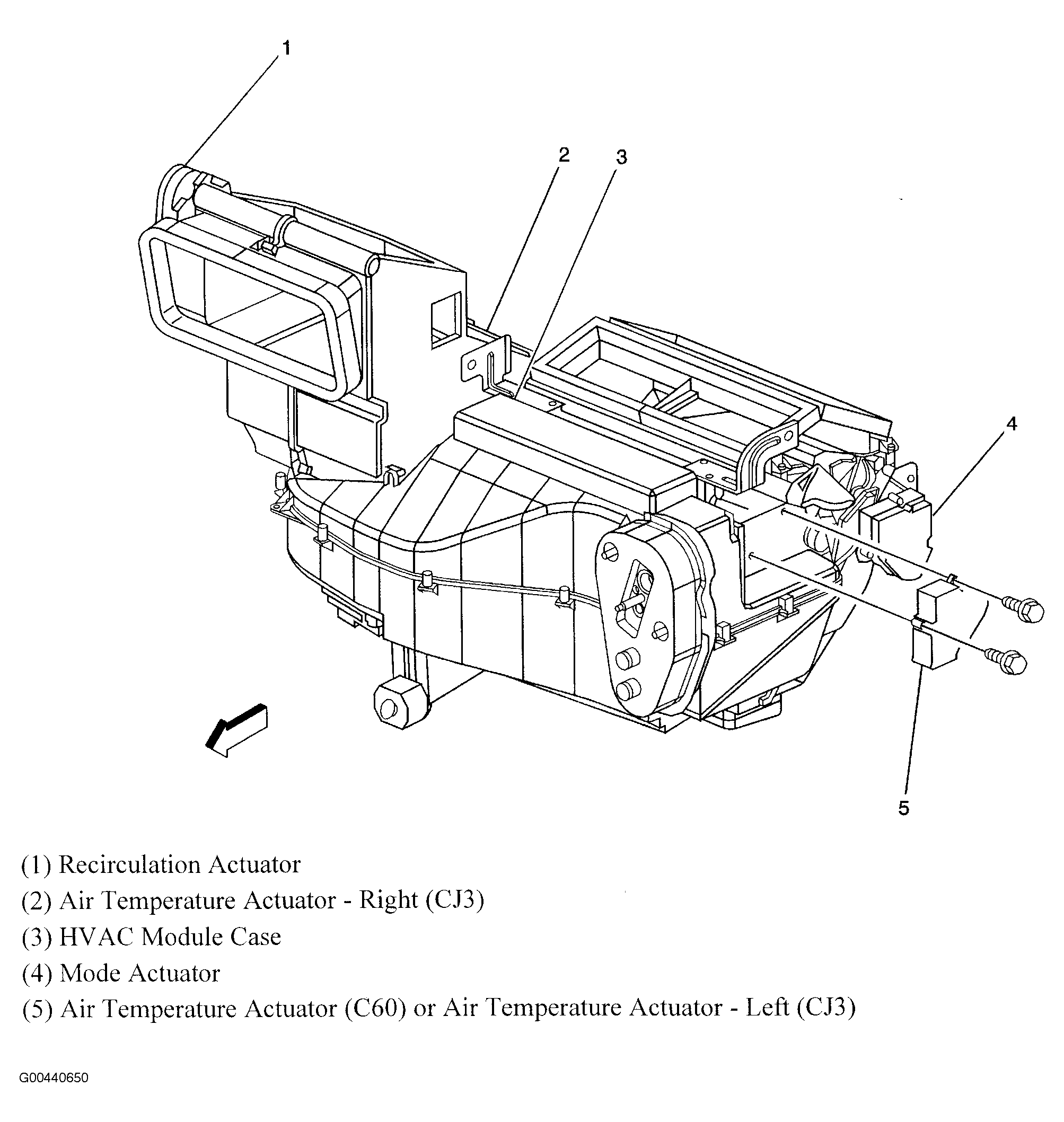

Fig 58: HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 59: Under Right Side Of Instrument Panel (Manual HVAC)
Courtesy of GENERAL MOTORS CORP.
Fig 60: Top Right Of Steering Column
Courtesy of GENERAL MOTORS CORP.

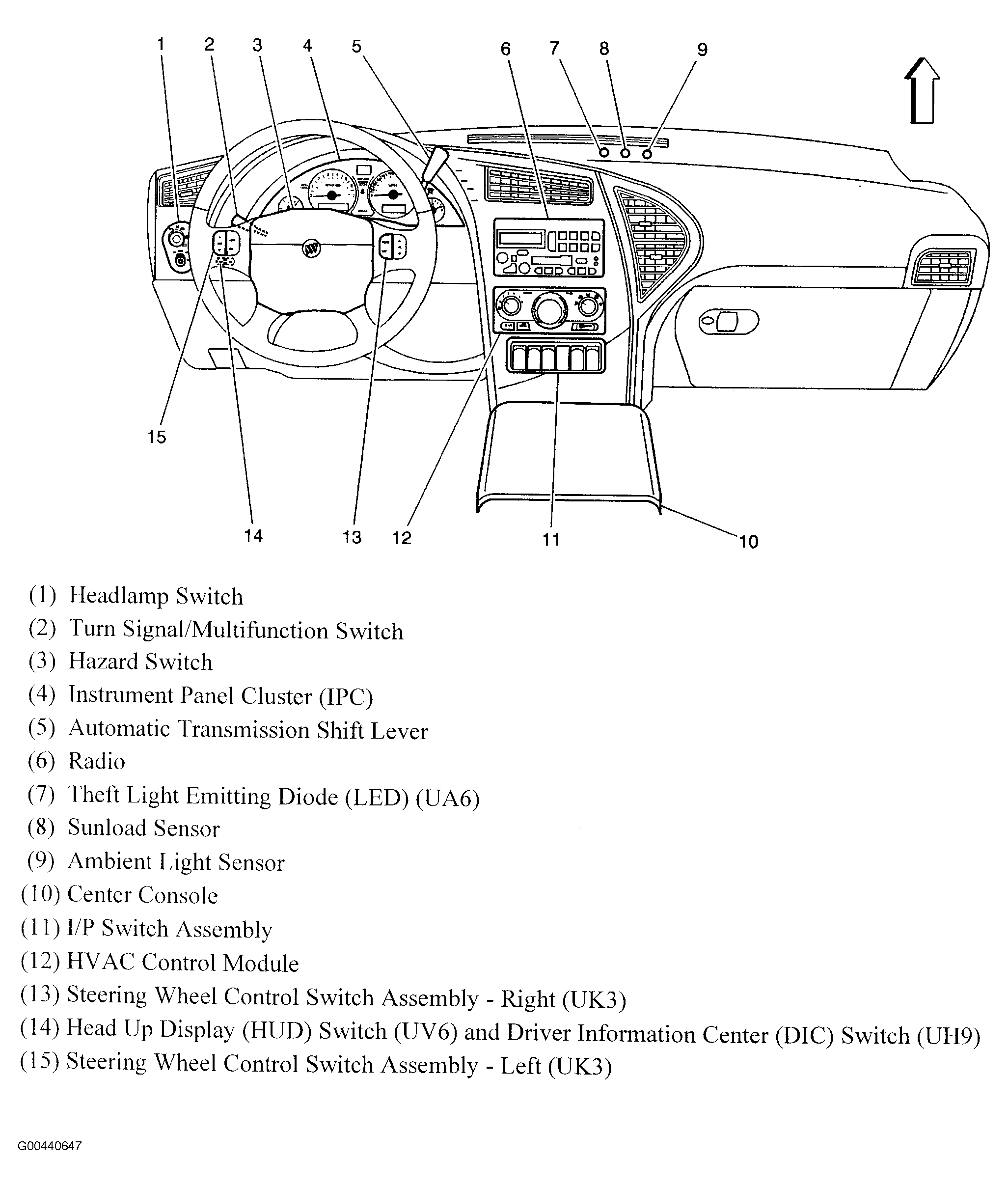

Fig 61: Instrument Panel
Courtesy of GENERAL MOTORS CORP.

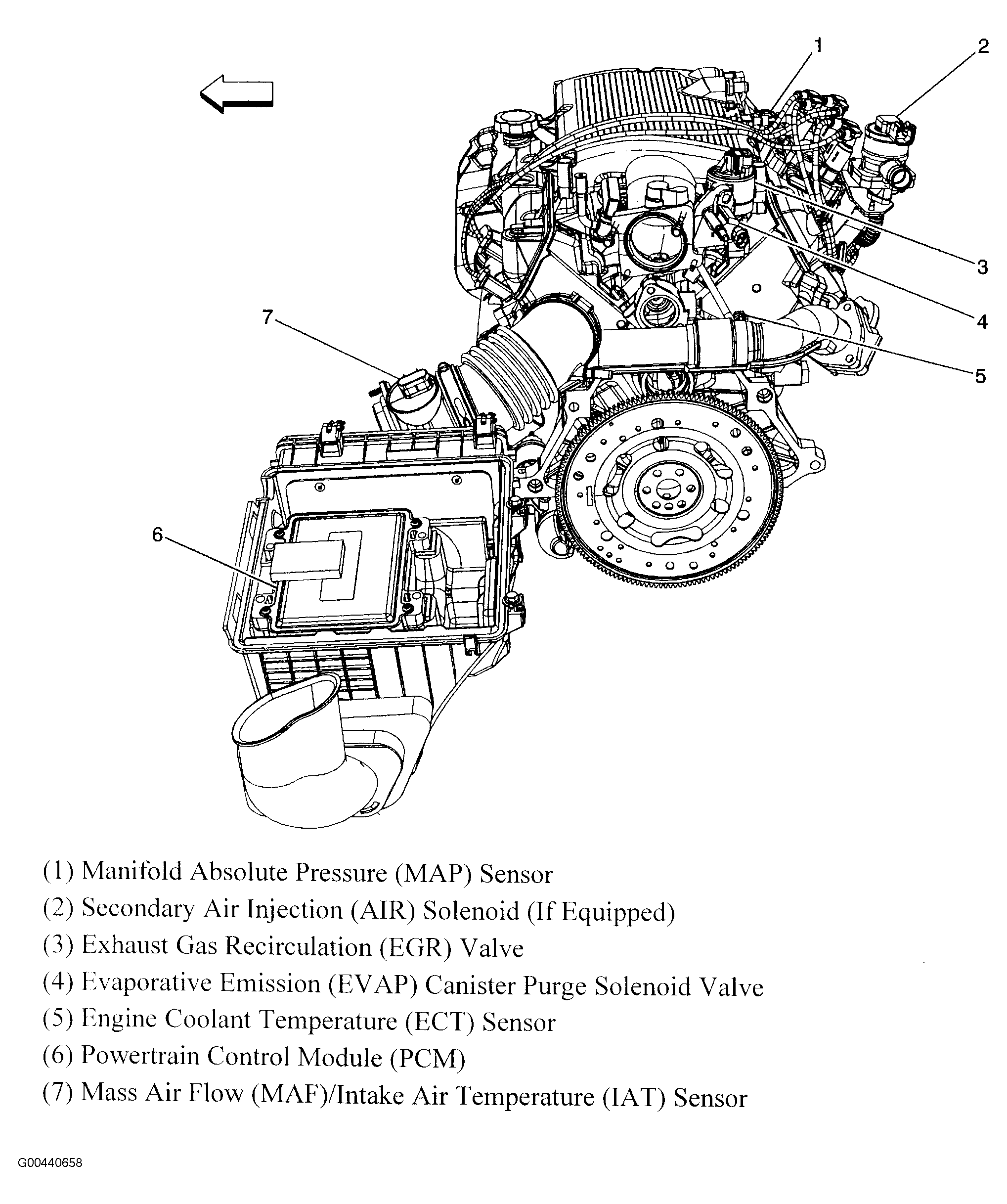

Fig 62: Under Air Cleaner Housing
Courtesy of GENERAL MOTORS CORP.
