Shift Lock Control Component Views

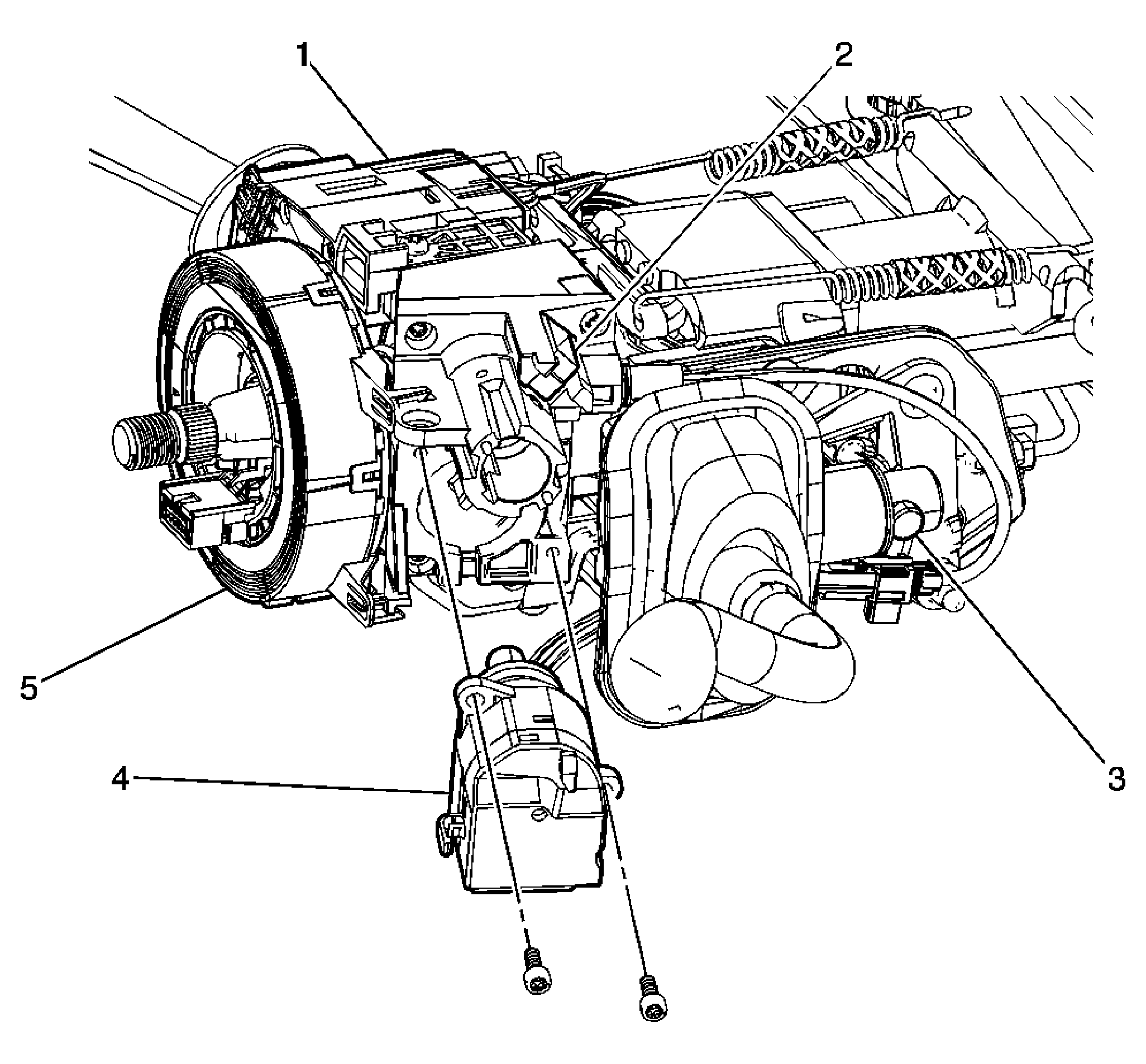

Fig 1: Top Right of Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Ignition Key Alarm Switch
3	A/T Shift Lock Control Solenoid
4	Ignition Switch
5	Inflatable Restraint Steering Wheel Module Coil
