Antilock Brake System Component Views

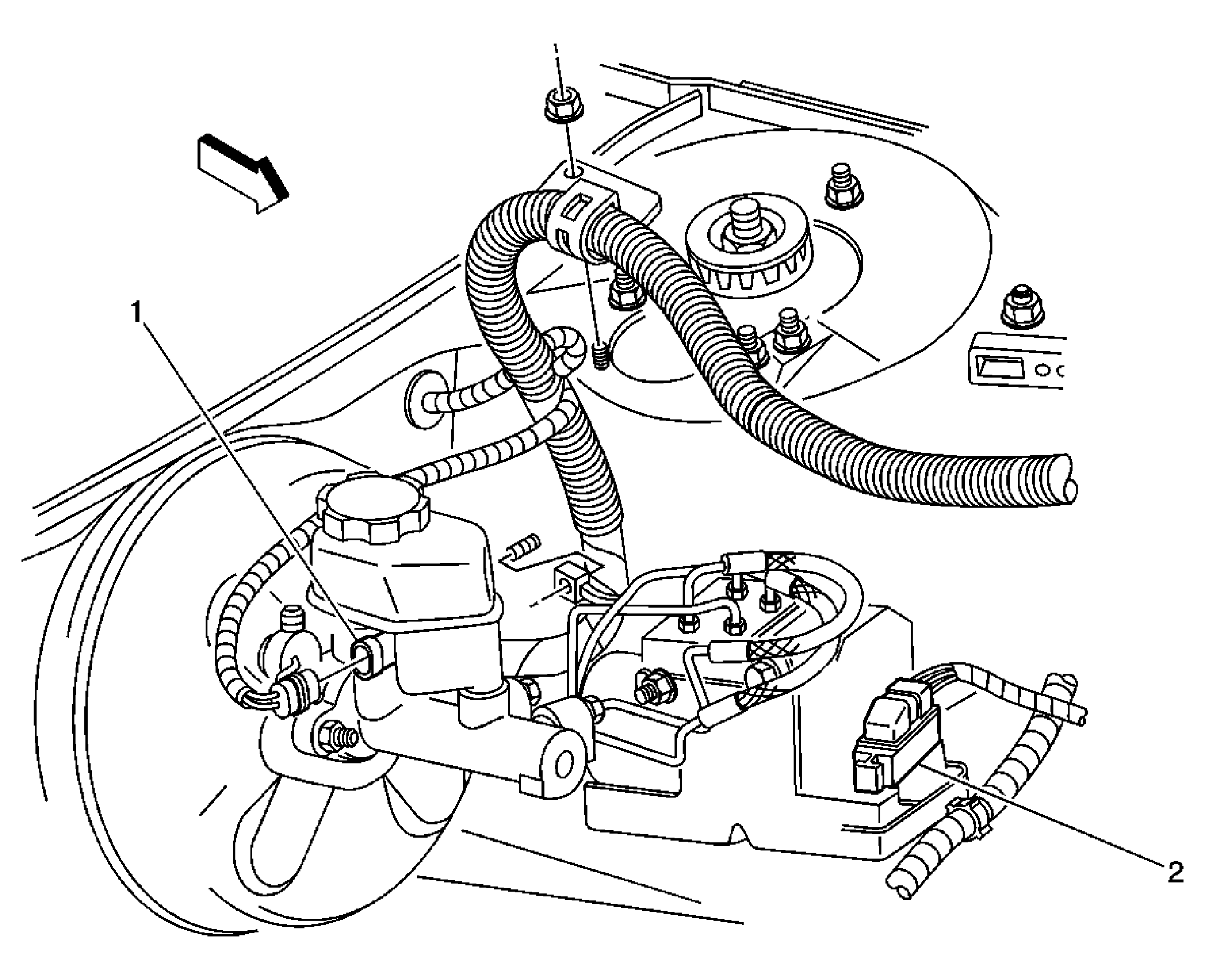

Fig 1: ABS System Components (Left Rear of Engine Compartment)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Electronic Brake Control Module (EBCM)

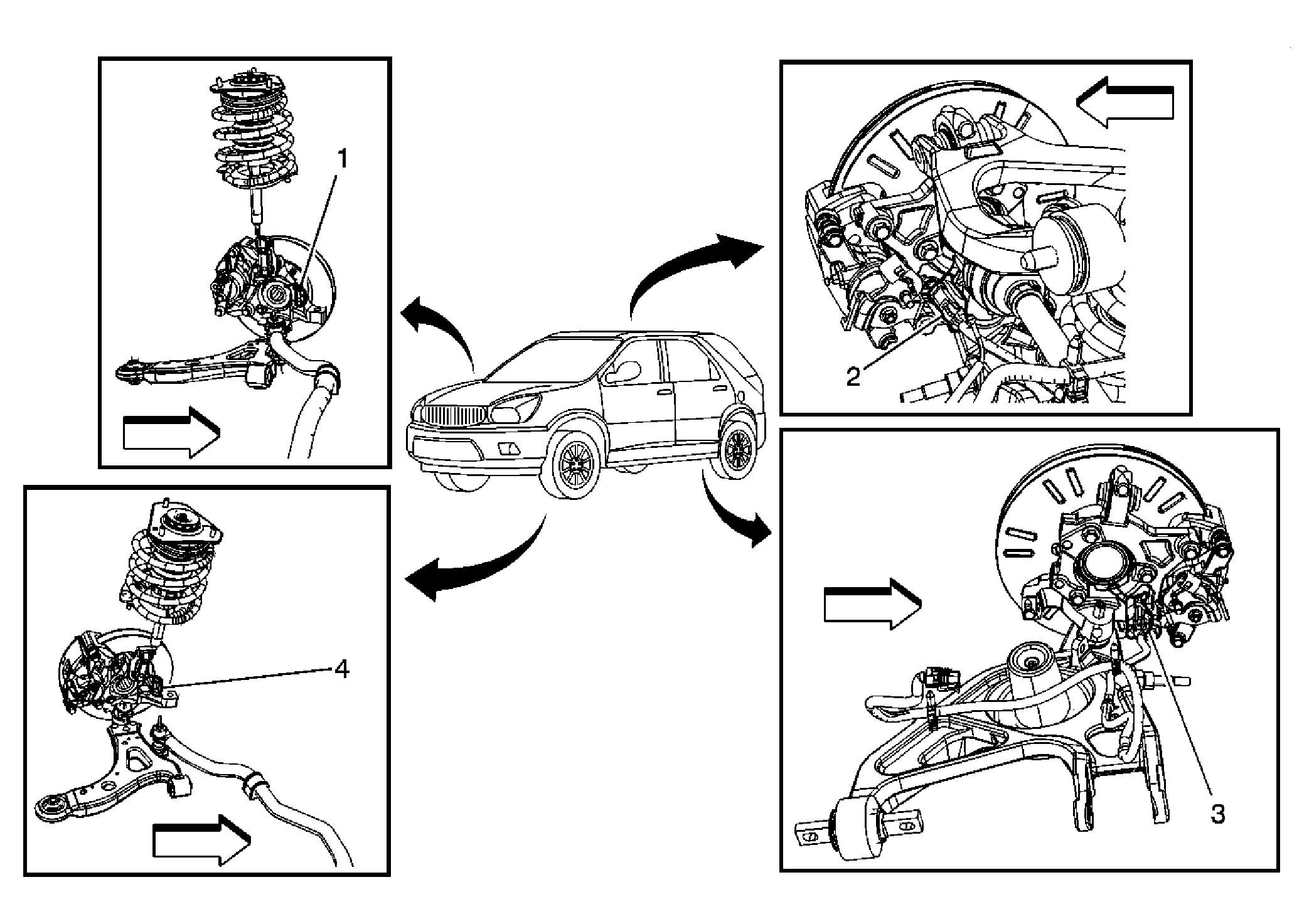

Fig 2: ABS System Components (Wheel Speed Sensors)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - RF
2	Wheel Speed Sensor (WSS) - RR
3	Wheel Speed Sensor (WSS) - LR
4	Wheel Speed Sensor (WSS) - LF
