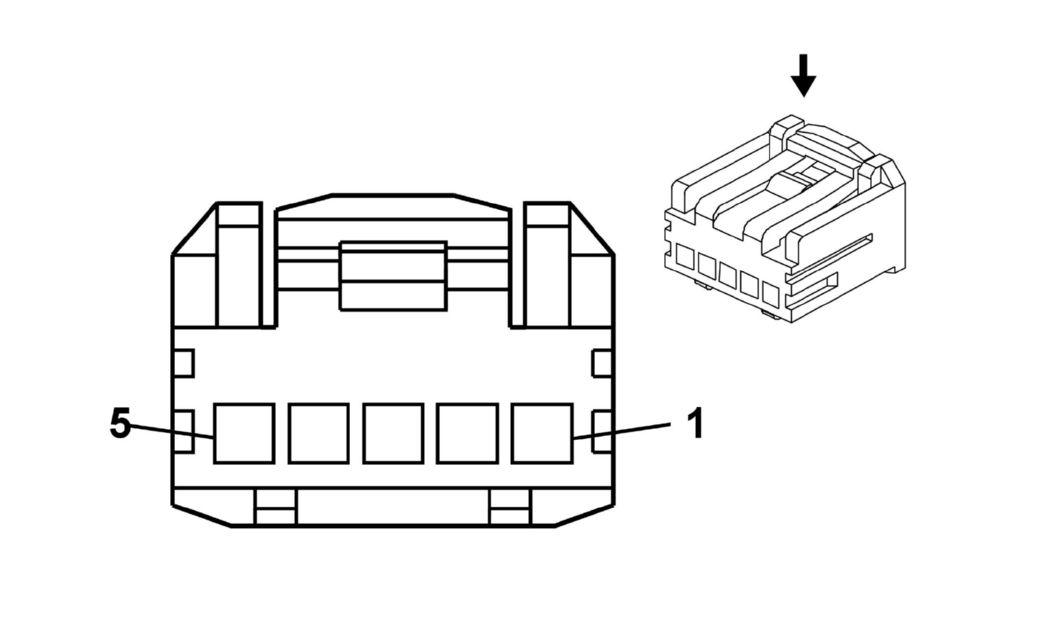

Driver Information Display Switch
Courtesy of GENERAL MOTORS CORP. Driver Information Display Switch
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 D-GN/WH |
1358 |
Driver Information Center Switch Signal |
| 2 |
0.35 BN |
897 |
Driver Information Center Switch Low Reference |
| 3 |
0.35 PK |
893 |
Driver Information Center Select Menu Switch Signal |
| 4 |
0.35 YE |
1491 |
Backlight Lamp Control |
| 5 |
0.35 BK |
350 |
Ground |
Connector Part Information
- OEM: HCMPB-05-K
- Service: 88988747
- Description: 5-Way F HCM 5PA Series (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
