Passenger Compartment/Roof Component Views

Fig 1: Locating Air Bags

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left (AY0)
2	Inflatable Restraint I/P Module
3	Inflatable Restraint Roof Rail Module - Right (AY0)
4	Inflatable Restraint Steering Wheel Module

Fig 2: Identifying Headliner Components w/CF5

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Control Module (CF5)
2	Sunroof Motor (CF5)
3	Sunroof Harness (CF5)
4	Headliner Harness

Fig 3: View Of Headliner Lighting Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy Lamp - Right Rear
2	Sunshade - Right Front (DH6)
3	Overhead Console Lamp - Right
4	Overhead Console Lamp - Left
5	Sunshade - Left Front (DH6)
6	Courtesy Lamp - Left Rear

Fig 4: Identifying Overhead Console & Inside Rearview Mirror Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch - Open/Close (CF5)
2	Cellular Microphone (UE1, U3U)
3	Garage Door Opener Buttons (UG1)
4	Cellular Microphone (UE1, U3U)
5	Sunroof Switch - Vent (CF5)
6	Courtesy Lamp - Overhead Console - Right
7	Inside Rearview Mirror
8	Courtesy Lamp Switch - Right
9	Cellular Microphone (UE1, U3U)
10	Garage Door Opener Transmitter (UG1)
11	Cellular Microphone (UE1, U3U)
12	Courtesy Lamp Switch - Left
13	Onstar Button Assembly
14	Inflatable Restraint I/P Module Indicator
15	Courtesy Lamp Overhead Console - Left

Fig 5: Driver Seat Belt Buckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Buckle
2	Seat Belt Switch Connector

Fig 6: Upper Center Of Windshield Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Moisture Sensor (CE1)

Fig 7: View Of Footwell Courtesy Lamps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy Lamp -Right Footwell
2	Courtesy Lamp - Left Footwell

Fig 8: View Of A-Pillar Speakers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Left Front Tweeter
2	Speaker - Right Front Tweeter

Fig 9: View Of Right Rear Wheel Well

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Antenna
2	Radio Antenna Module

Fig 10: Identifying Components Underneath Drivers Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Console
2	Driver Seat Back Cushion
3	Yaw and Lateral Acceleration Sensor (JL4)

Fig 11: View Of Lower Left Side Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Brake Pedal Position Sensor
3	Accelerator Pedal Position (APP) Sensor

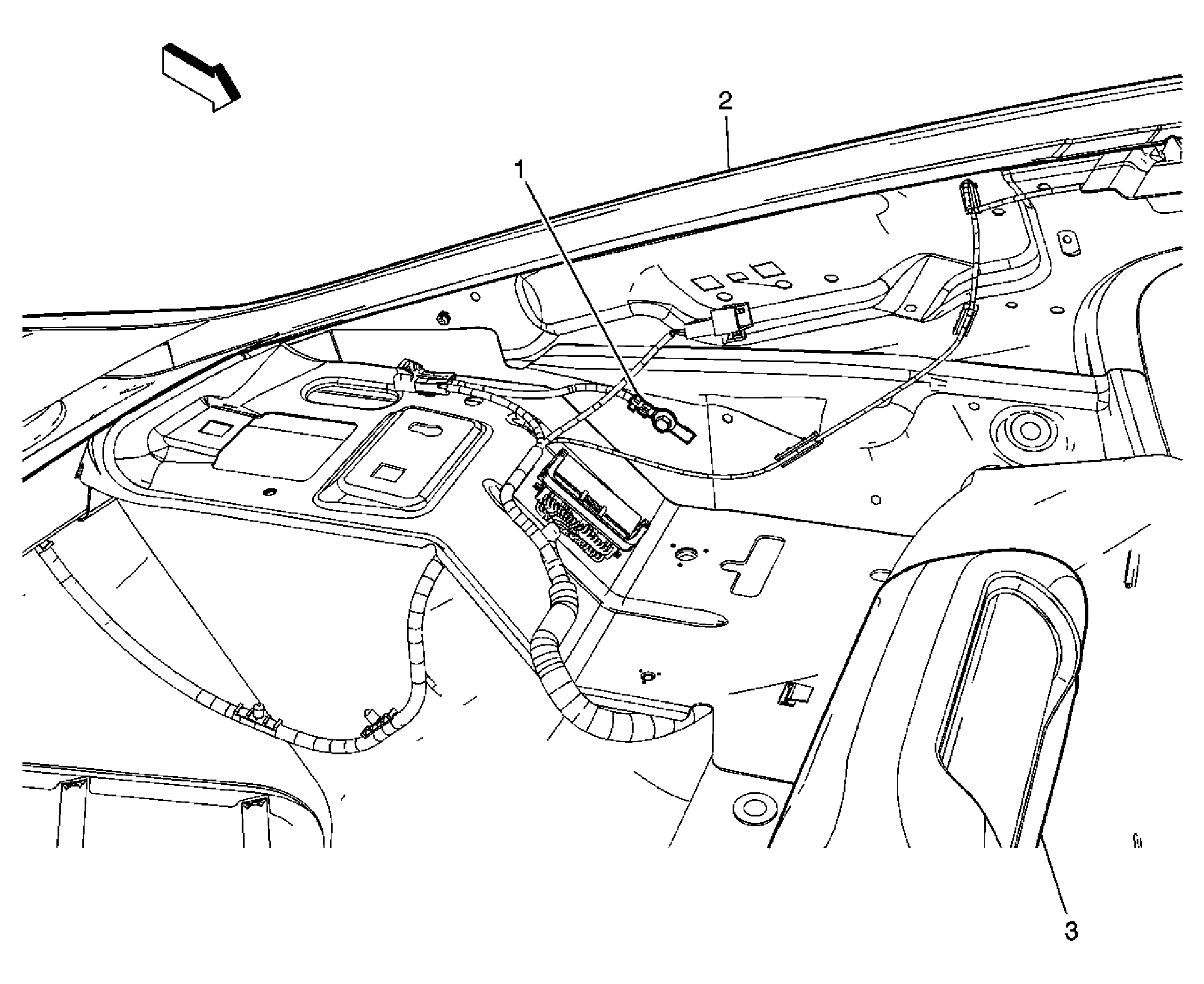

Fig 12: View Of G306

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G306
2	Left Rear C - Pillar
3	Rear Seat

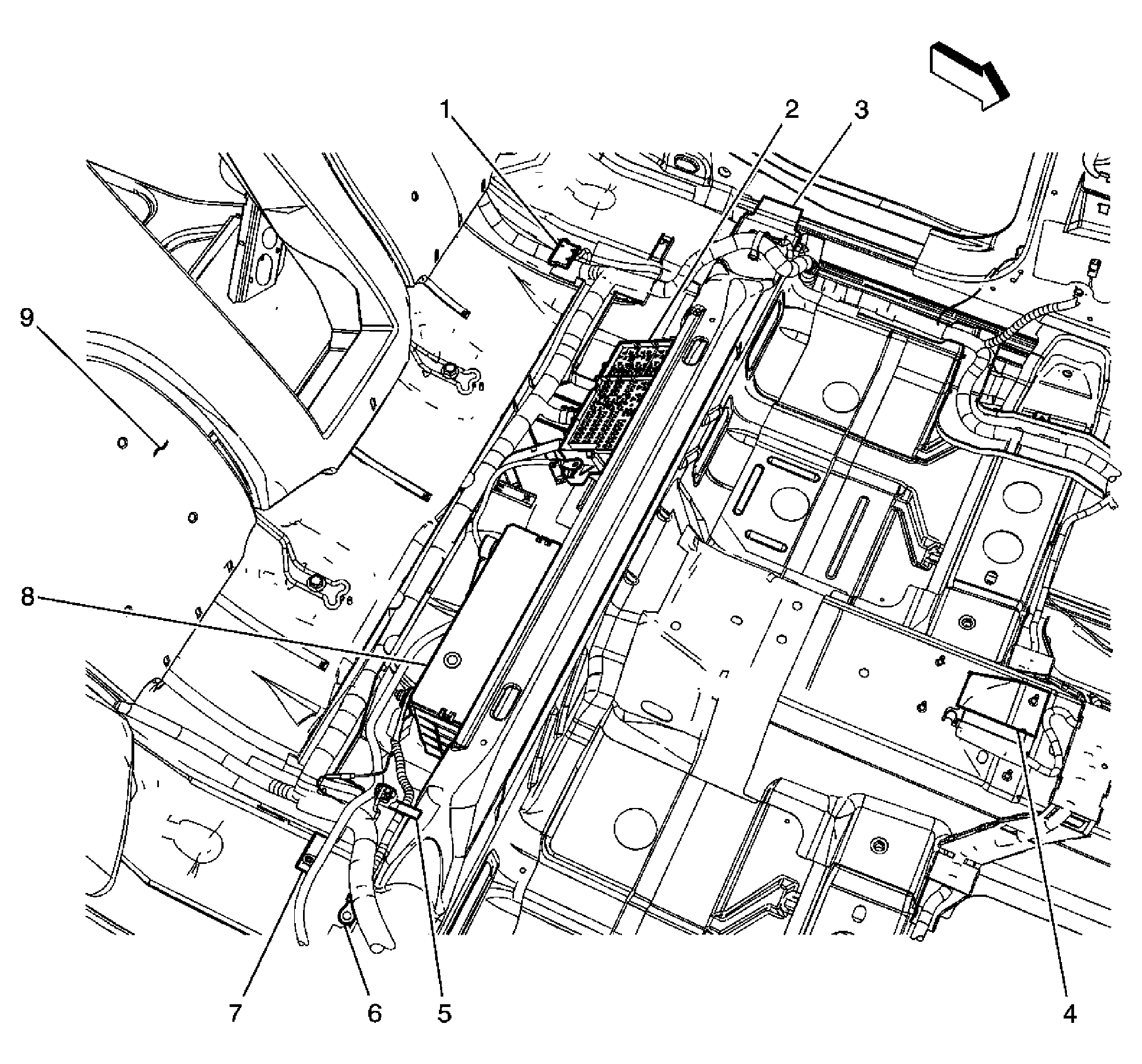

Fig 13: Identifying Rear Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	JX300
2	Fuse Block - Rear
3	G301
4	Inflatable Restraint Sensing and Diagnostic Module (SDM)
5	Battery Current Sensor
6	G303
7	X335
8	Battery
9	Rear Seat

Fig 14: Identifying Driver Seat Components (KB6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Back Ventilation Heat and Cool Module - Driver (KB6)
2	Inflatable Restraint Side Impact Module - Left
3	Seat Lumbar Massage Motor - Driver (AM3)
4	Lumbar Adjuster Switch - Driver (AE8, A45)
5	Seat Adjuster Switch - Driver (AE8, A45)
6	Seat Adjuster Motor Assembly - Driver (AE8, A45)
7	Memory Seat Module (MSM) (A45)
8	Auxiliary Power Outlet (A51)
9	Seat Cushion Ventilation Heat and Cool Module - Driver (KB6)
10	Seat Recline Motor - Driver (AE8, A45)
11	Seat Lumbar Motor - Driver (AE8)

Fig 15: View Of Bottom Of B-Pillars

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Sensor - Right
2	Rear Seat
3	Inflatable Restraint Side Impact Sensor - Left
4	Seat Belt Pretensioner - Left Front
5	Seat Belt Pretensioner - Right Front

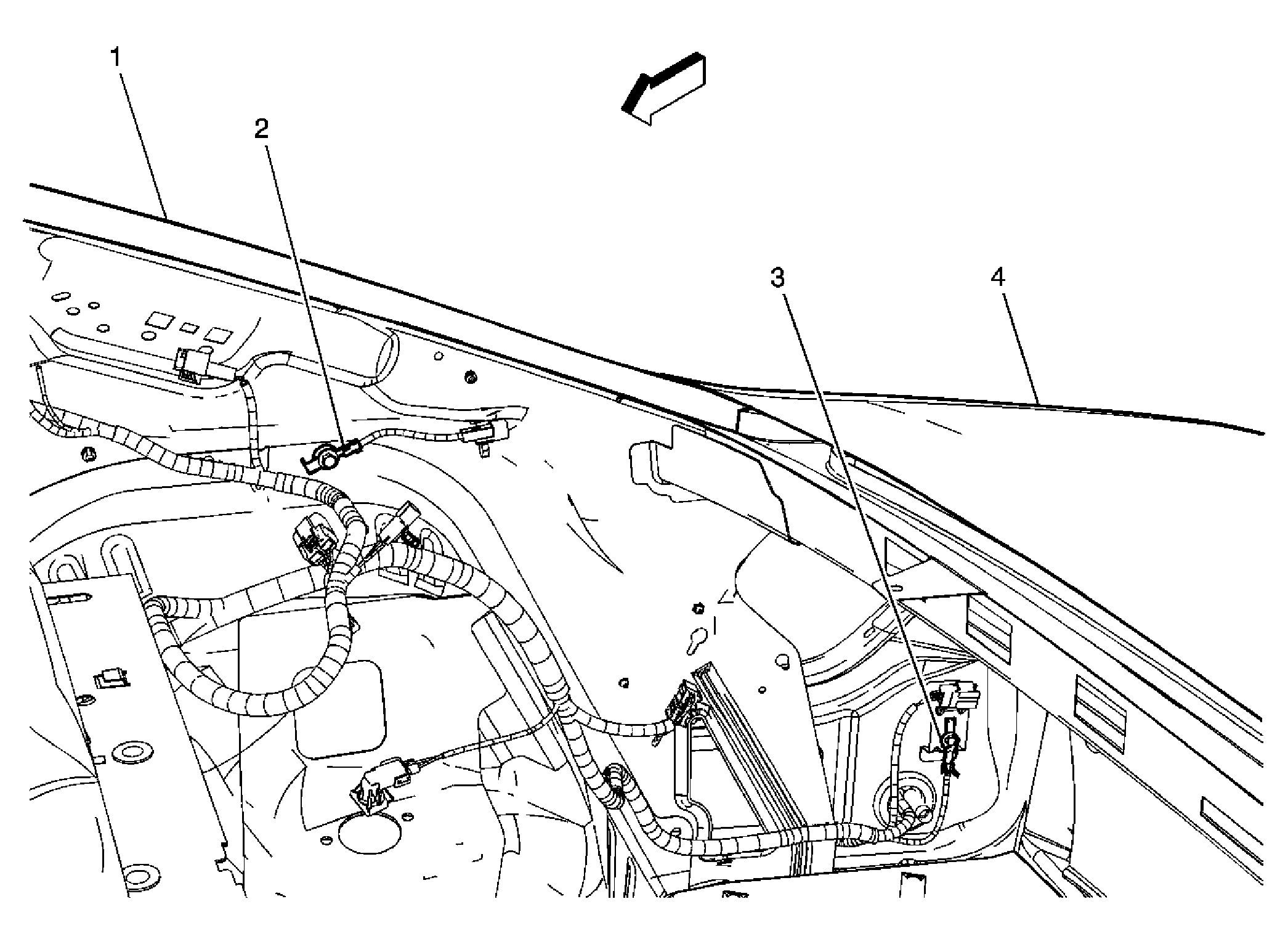

Fig 16: View Of RR Of Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Rear C-Pillar
2	G307
3	G403
4	Deck Lid

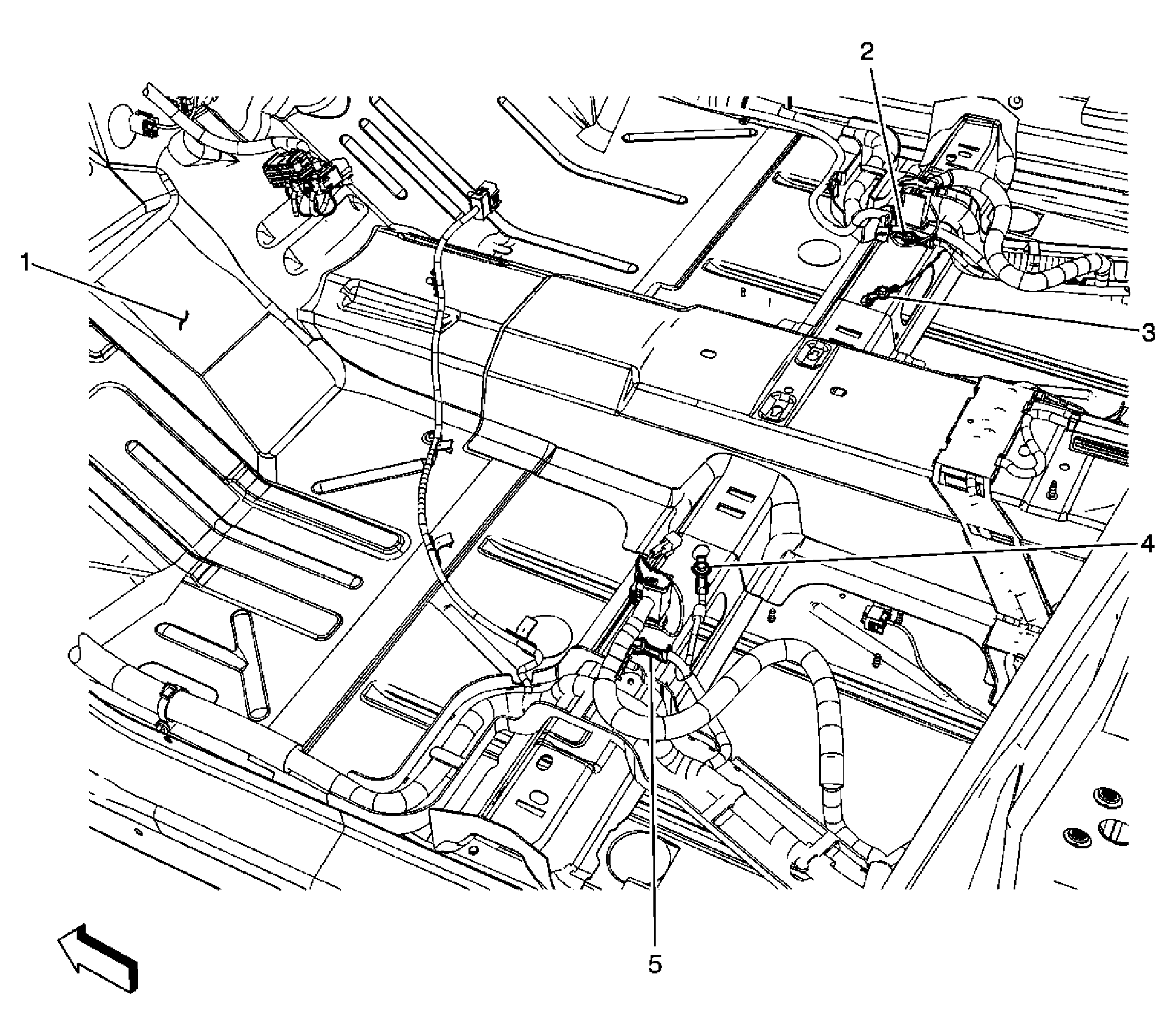

Fig 17: Identifying Front Floor Panel Grounds

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Panel
2	G304
3	G302
4	G300
5	G305

Fig 18: Identifying Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Right
2	Inflatable Restraint Passenger Presence System (PPS) Module
3	Inflatable Restraint Seat Position Sensor (SPS) - Right
4	Seat Adjuster Motor Assembly - Front Passenger (AH8/AG2)
5	Inflatable Restraint Passenger Presence System (PPS) Sensor
6	Seat Adjuster Switch - Passenger (AG2, AH8)
7	Lumbar Adjuster Switch - Passenger (AH8)

Fig 19: View Of Left Side Of Front Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Passenger Seat
2	Seat Belt Switch
3	Inflatable Restraint Front Passenger Seat Belt Tension Sensor (Part of Seat Buckle Assembly)
