Moveable Window Schematics

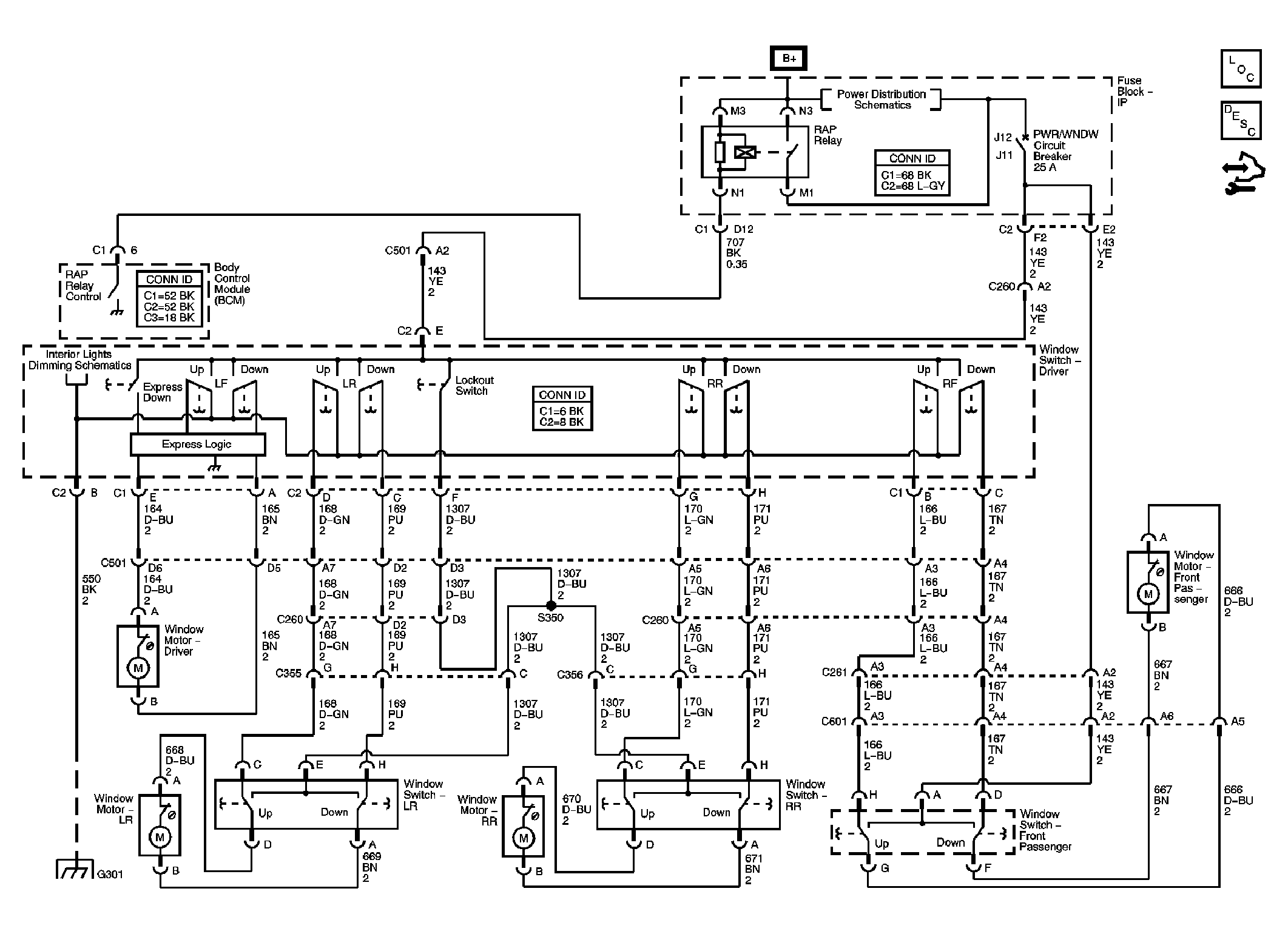

Fig 1: Moveable Windows Schematic
GM1888767Courtesy of GENERAL MOTORS CORP.
