Installation Procedure

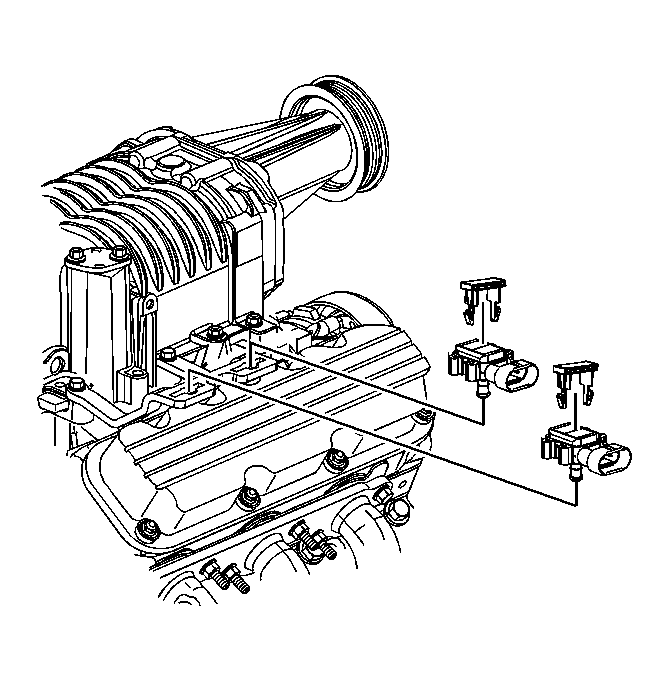

    Fig 1: Removing/Installing MAP & BARO Sensors Retaining Clips
    GM1210599Courtesy of GENERAL MOTORS CORP.
  1. Install the BARO sensor.
  2. Install the BARO sensor retainer.
  3. Connect the BARO sensor electrical connector.
  4. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
