Data Communication Schematics

Fig 1: Data Communication Schematic L26
GM2081733Courtesy of GENERAL MOTORS CORP.

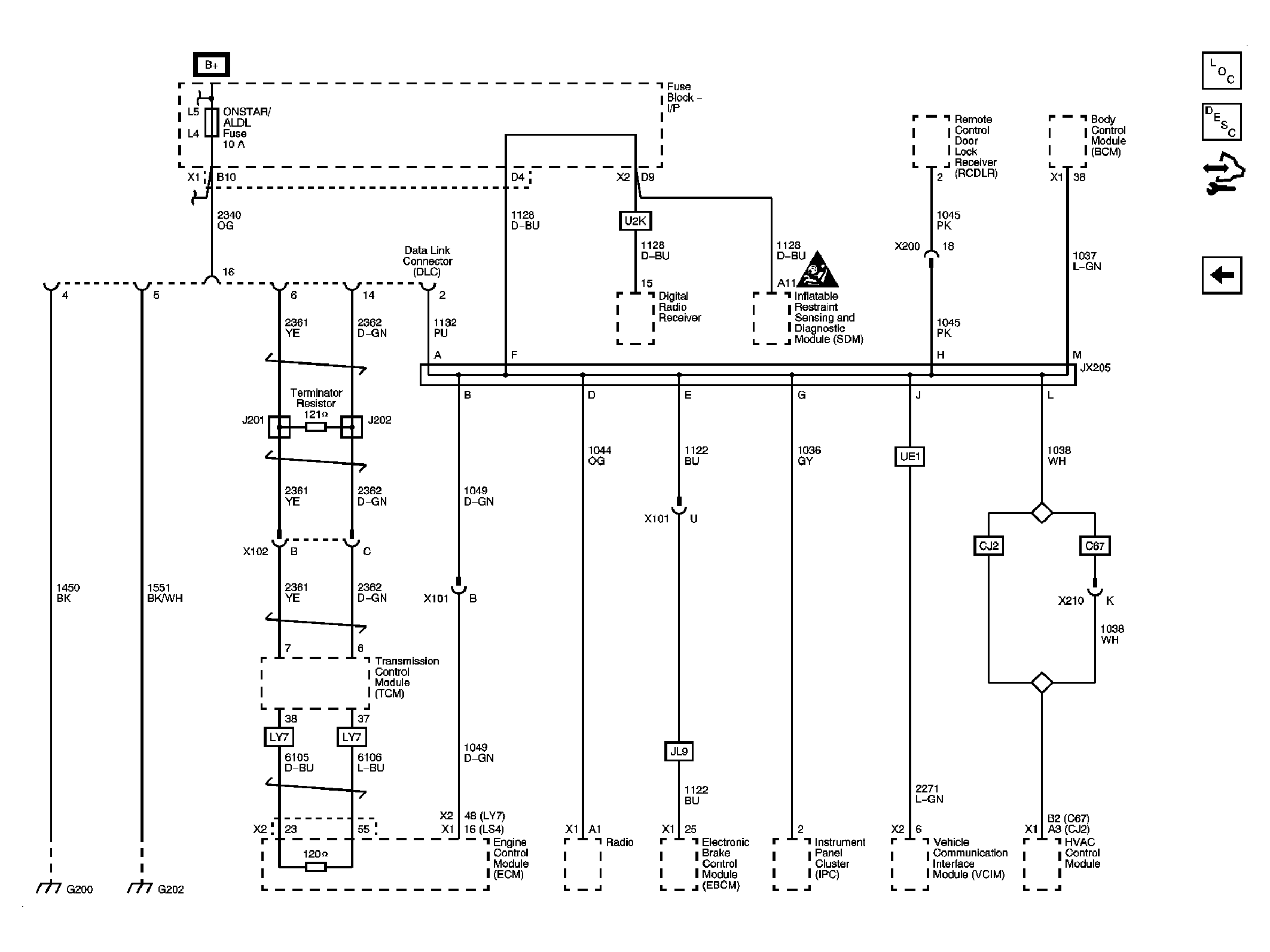

Fig 2: Data Communication Schematic LY7/LS4
GM2081736Courtesy of GENERAL MOTORS CORP.
