Fuel Hose/Pipes Routing Diagram

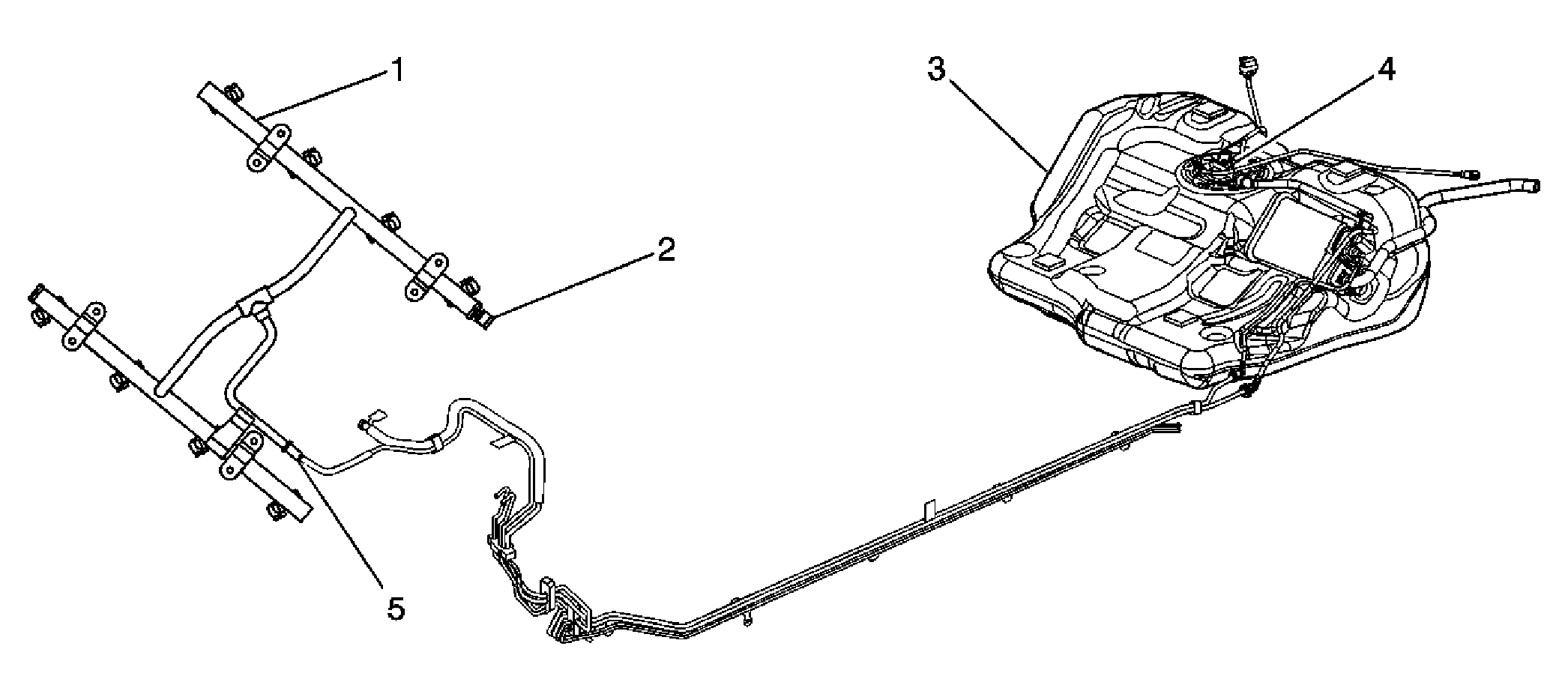

Fig 1: Fuel Hose/Pipes Routing Diagram

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Rail
2	Fuel Pressure Service Port
3	Fuel Tank
4	Fuel Pump
5	Fuel Inlet Pipe
