Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Left Rear Of Engine Compartment

G00364175

Courtesy of GENERAL MOTORS CORP.

Fig 2: Vehicle Overview

G00364176

Courtesy of GENERAL MOTORS CORP.

Fig 3: Steering Column

G00457312

Courtesy of GENERAL MOTORS CORP.

Fig 4: Center Console Support

G00364178

Courtesy of GENERAL MOTORS CORP.

Fig 5: Automatic Transmission Assembly

G00364179

Courtesy of GENERAL MOTORS CORP.

Fig 6: Dash

G00364182

Courtesy of GENERAL MOTORS CORP.

Fig 7: Rear Package Shelf

G00364183

Courtesy of GENERAL MOTORS CORP.

Fig 8: Driver's Door

G00364187

Courtesy of GENERAL MOTORS CORP.

Fig 9: Right Front Door

G00364188

Courtesy of GENERAL MOTORS CORP.

Fig 10: Left Rear Door

G00364189

Courtesy of GENERAL MOTORS CORP.

Fig 11: Right Rear Passenger's Door

G00364190

Courtesy of GENERAL MOTORS CORP.

Fig 12: Fuel Tank

G00364194

Courtesy of GENERAL MOTORS CORP.

Fig 13: Top Of Engine (3.8L)

G00364198

Courtesy of GENERAL MOTORS CORP.

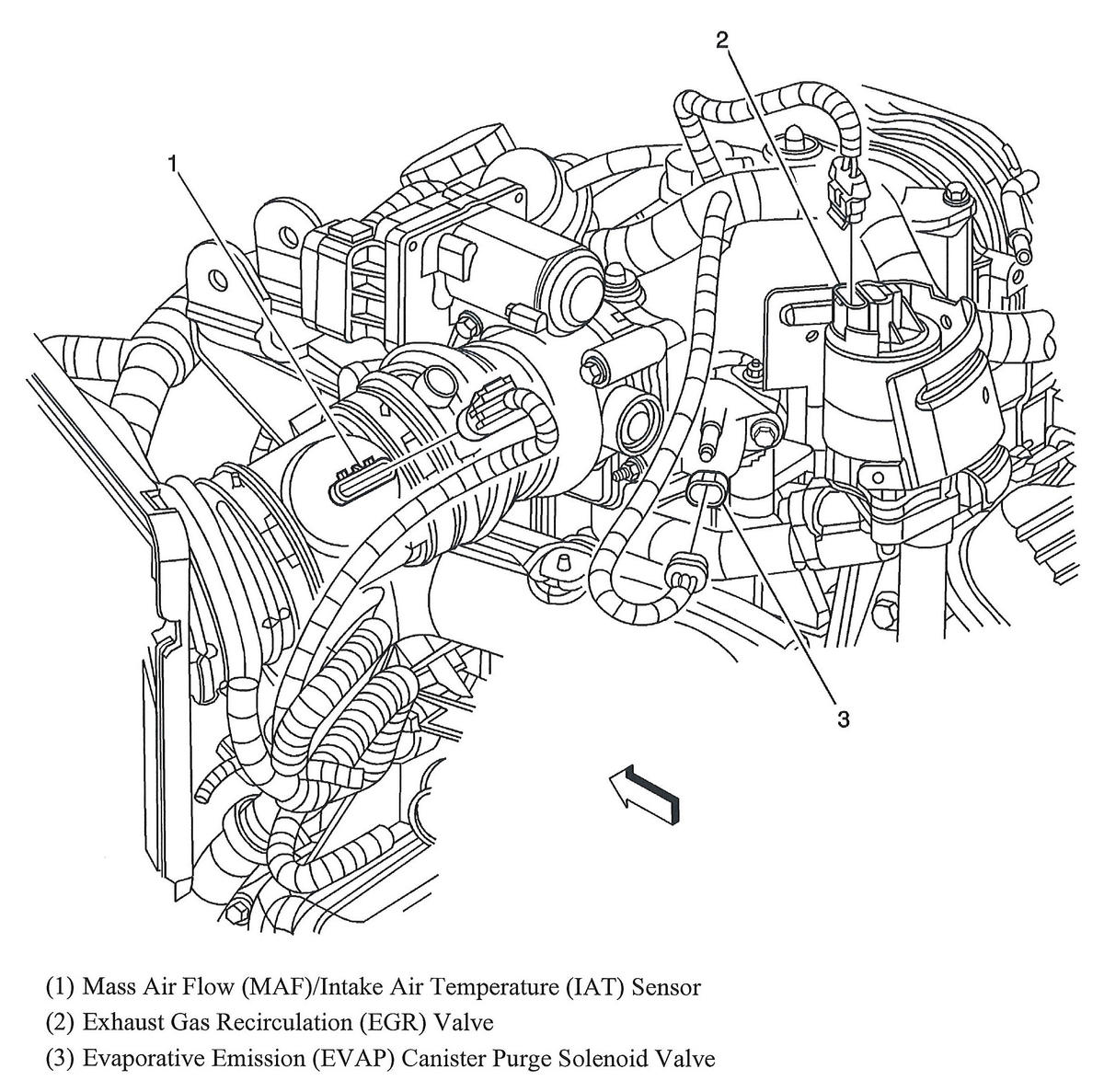

Fig 14: Rear Of Engine (3.8L)

G00470255

Courtesy of GENERAL MOTORS CORP.

Fig 15: Left Rear Of Engine (3.8L)

G00418484

Courtesy of GENERAL MOTORS CORP.

Fig 16: Upper Rear Of Engine (3.8L)

G00364201

Courtesy of GENERAL MOTORS CORP.

Fig 17: Left Rear Of Engine (3.8L)

G00364203

Courtesy of GENERAL MOTORS CORP.

Fig 18: Right Side Of Engine (3.8L)

G00364205

Courtesy of GENERAL MOTORS CORP.

Fig 19: Front Of Engine (3.8L)

G00364206

Courtesy of GENERAL MOTORS CORP.

Fig 20: Radiator Assembly

G00364207

Courtesy of GENERAL MOTORS CORP.

Fig 21: Left Side Of Trunk

G00364212

Courtesy of GENERAL MOTORS CORP.

Fig 22: Above Rear Window

G00364213

Courtesy of GENERAL MOTORS CORP.

Fig 23: A/C Components

G00364218

Courtesy of GENERAL MOTORS CORP.

Fig 24: Interior HVAC Components

G00364217

Courtesy of GENERAL MOTORS CORP.

Fig 25: Dash

G00364215

Courtesy of GENERAL MOTORS CORP.

Fig 26: Right Front Of Vehicle

G00364221

Courtesy of GENERAL MOTORS CORP.

Fig 27: Park Brake Switch

G00364222

Courtesy of GENERAL MOTORS CORP.

Fig 28: Front Radiator Grille

G00364223

Courtesy of GENERAL MOTORS CORP.

Fig 29: Rear Of Vehicle

G00364227

Courtesy of GENERAL MOTORS CORP.

Fig 30: Right Side Of Dash

G00364229

Courtesy of GENERAL MOTORS CORP.

Fig 31: Left Side Of Trunk

G00364232

Courtesy of GENERAL MOTORS CORP.

Fig 32: Power Roof Components

G00457347

Courtesy of GENERAL MOTORS CORP.

Fig 33: Front Of Engine Compartment

G00364234

Courtesy of GENERAL MOTORS CORP.

Fig 34: Vehicle Overview

G00364235

Courtesy of GENERAL MOTORS CORP.

Fig 35: Under Front Passenger's Seat

G00364236

Courtesy of GENERAL MOTORS CORP.

Fig 36: Left Front Seat Assembly

G00418487

Courtesy of GENERAL MOTORS CORP.

Fig 37: Right Front Seat Assembly

G00418488

Courtesy of GENERAL MOTORS CORP.

Fig 38: Driver's Seat

G00364239

Courtesy of GENERAL MOTORS CORP.

Fig 39: Center Console

G00457345

Courtesy of GENERAL MOTORS CORP.

Fig 40: Top Of Steering Column

G00418489

Courtesy of GENERAL MOTORS CORP.

Fig 41: Power Steering Assembly

G00364244

Courtesy of GENERAL MOTORS CORP.

Fig 42: Wiper/Washer System Component Views

G00364245

Courtesy of GENERAL MOTORS CORP.

Fig 43: Right Side Of Engine Compartment

G00364246

Courtesy of GENERAL MOTORS CORP.

Fig 44: Engine/Transmission Assembly

G00364249

Courtesy of GENERAL MOTORS CORP.

Fig 45: Front Of Engine (3.8L)

G00364251

Courtesy of GENERAL MOTORS CORP.

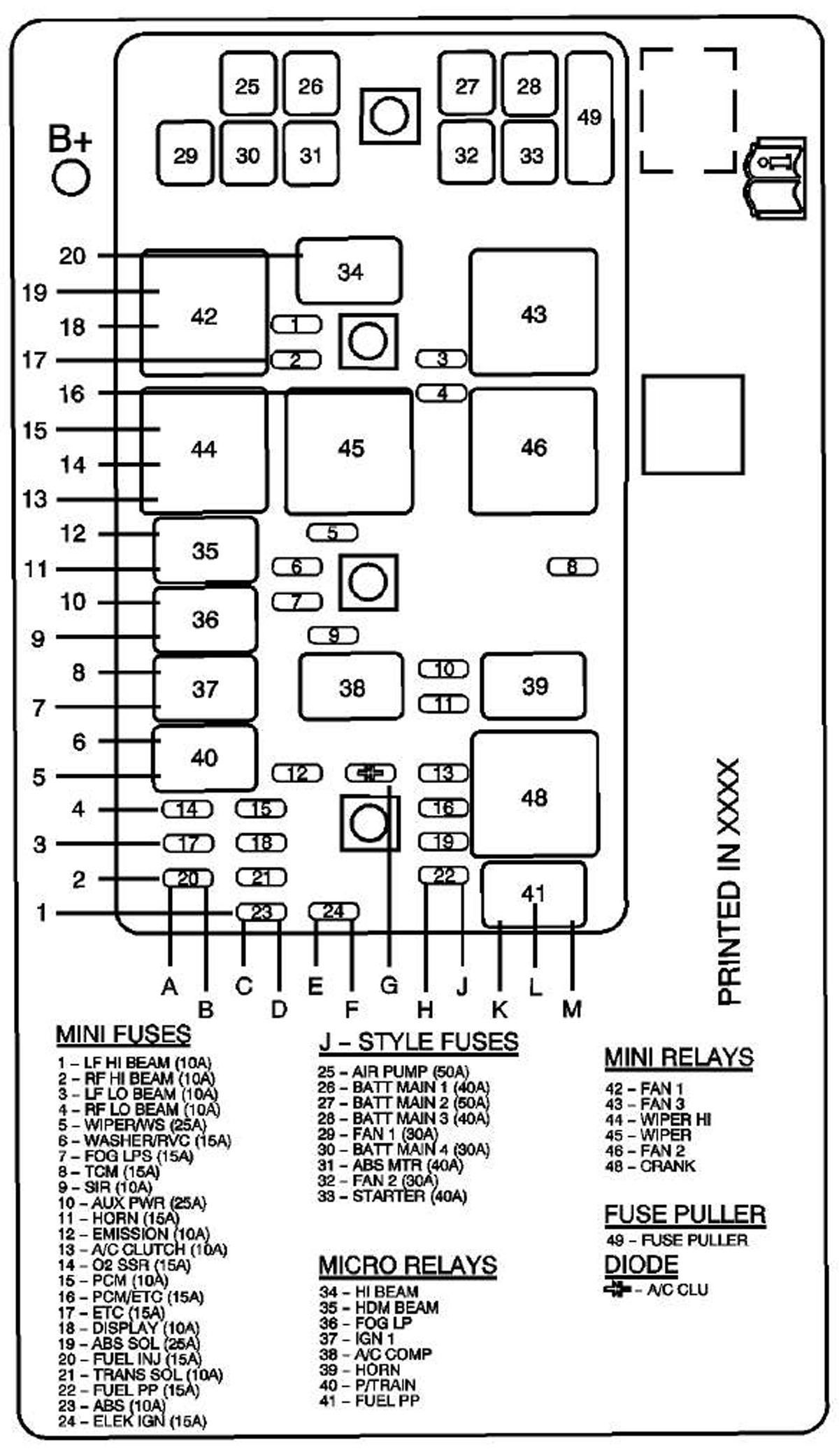

Fig 46: Underhood Fuse Block (3.8L)

G00470247

Courtesy of GENERAL MOTORS CORP.

Fig 47: I/P Fuse Block

G00364253

Courtesy of GENERAL MOTORS CORP.

Fig 48: Left Kick Panel

G00364255

Courtesy of GENERAL MOTORS CORP.

Fig 49: Front Of Vehicle

G00457304

Courtesy of GENERAL MOTORS CORP.

Fig 50: Rear Of Engine (3.8L)

G00457306

Courtesy of GENERAL MOTORS CORP.

Fig 51: Headliner Assembly

G00457313

Courtesy of GENERAL MOTORS CORP.

Fig 52: Driver's Door

G00457314

Courtesy of GENERAL MOTORS CORP.

Fig 53: Front Passenger's Door

G00457315

Courtesy of GENERAL MOTORS CORP.

Fig 54: Driver's Seat

G00457316

Courtesy of GENERAL MOTORS CORP.

Fig 55: Right Rear Door

G00457319

Courtesy of GENERAL MOTORS CORP.

Fig 56: Rear Bumper

G00457320

Courtesy of GENERAL MOTORS CORP.

Fig 57: Interior HVAC Components

G00441169

Courtesy of GENERAL MOTORS CORP.

Fig 58: Right Front Of Engine Compartment

G00441170

Courtesy of GENERAL MOTORS CORP.

Fig 59: Left Side Of Engine (3.8L)

G00441171

Courtesy of GENERAL MOTORS CORP.

Fig 60: Fuel Injectors

G00441172

Courtesy of GENERAL MOTORS CORP.

Fig 61: Passenger Seat

G00441173

Courtesy of GENERAL MOTORS CORP.

Fig 62: Upper Rear Of Engine

G00441174

Courtesy of GENERAL MOTORS CORP.

Fig 63: Tire Pressure Monitor Sensor

G00441176

Courtesy of GENERAL MOTORS CORP.

Fig 64: Front Body Harness

G00457309

Courtesy of GENERAL MOTORS CORP.

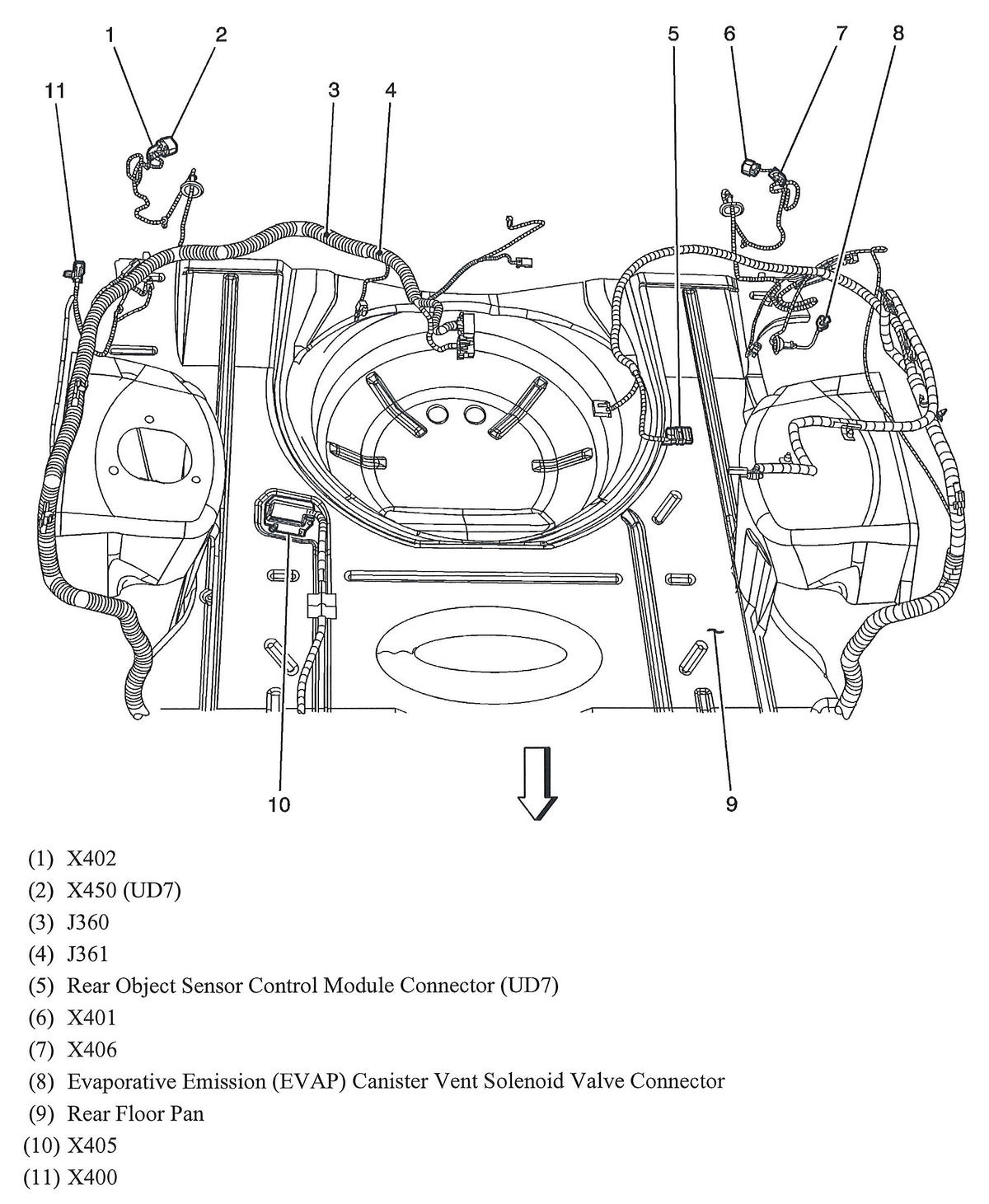

Fig 65: Rear Body Harness

G00470253

Courtesy of GENERAL MOTORS CORP.

Fig 66: Passenger Seat

G00457317

Courtesy of GENERAL MOTORS CORP.

Fig 67: Left Front Frame Rail

G00441181

Courtesy of GENERAL MOTORS CORP.

Fig 68: Left Side Of Engine (5.3L)

G00457321

Courtesy of GENERAL MOTORS CORP.

Fig 69: Left Front Of Engine Compartment (5.3L)

G00457340

Courtesy of GENERAL MOTORS CORP.

Fig 70: Top Rear Of Engine (5.3L)

G00457341

Courtesy of GENERAL MOTORS CORP.

Fig 71: Top Of Engine (5.3L)

G00457342

Courtesy of GENERAL MOTORS CORP.

Fig 72: Rear Of Engine (5.3L)

G00457343

Courtesy of GENERAL MOTORS CORP.

Fig 73: Left Rear Of Engine Compartment (5.3L)

G00457344

Courtesy of GENERAL MOTORS CORP.

Fig 74: Under Left Side Of Dash

G00457346

Courtesy of GENERAL MOTORS CORP.

Fig 75: Underhood Fuse Block (5.3L)

G00457348

Courtesy of GENERAL MOTORS CORP.

Fig 76: Engine (3.8L)

G00457305

Courtesy of GENERAL MOTORS CORP.

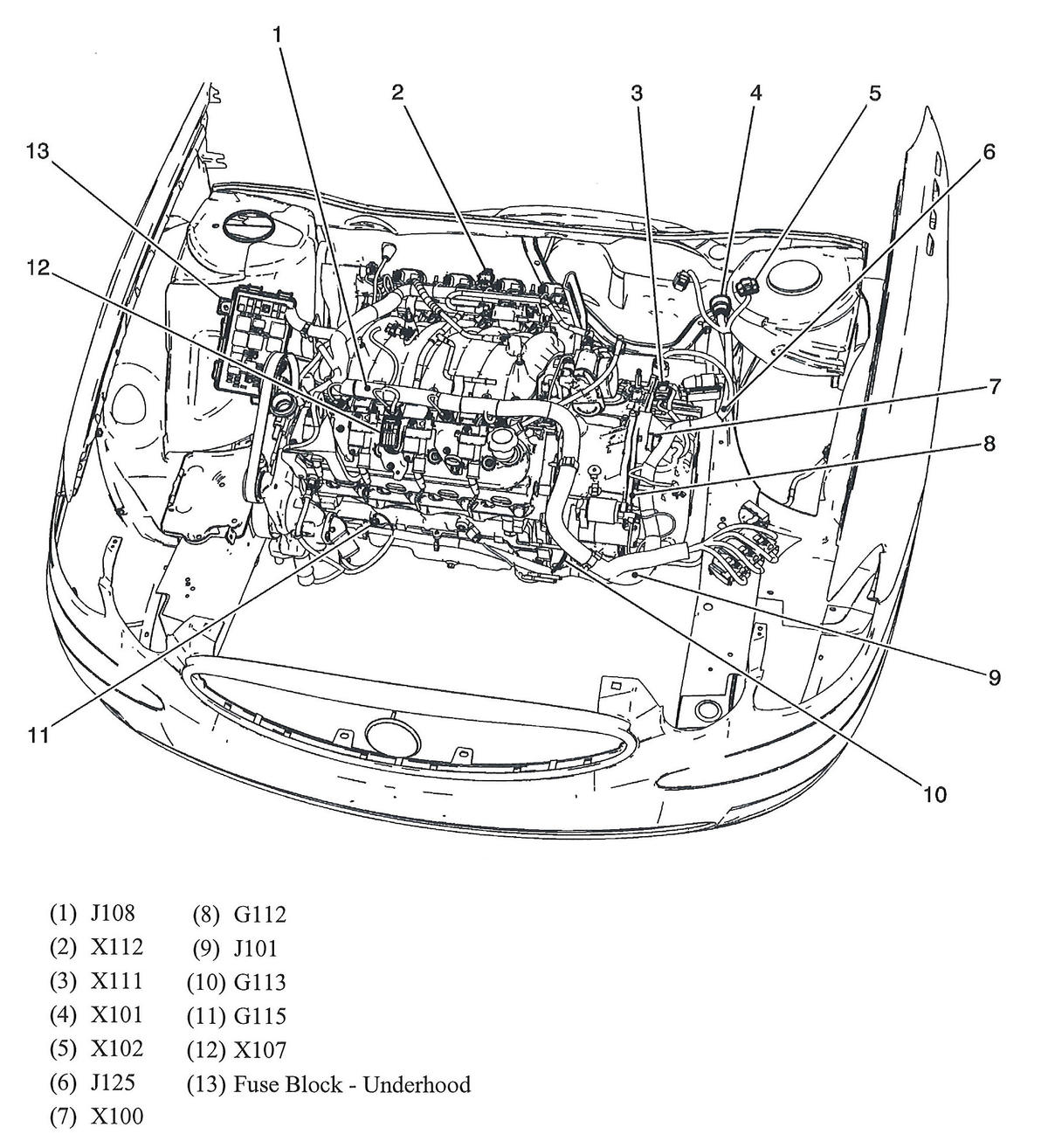

Fig 77: Engine Harness (5.3L)

G00470248

Courtesy of GENERAL MOTORS CORP.

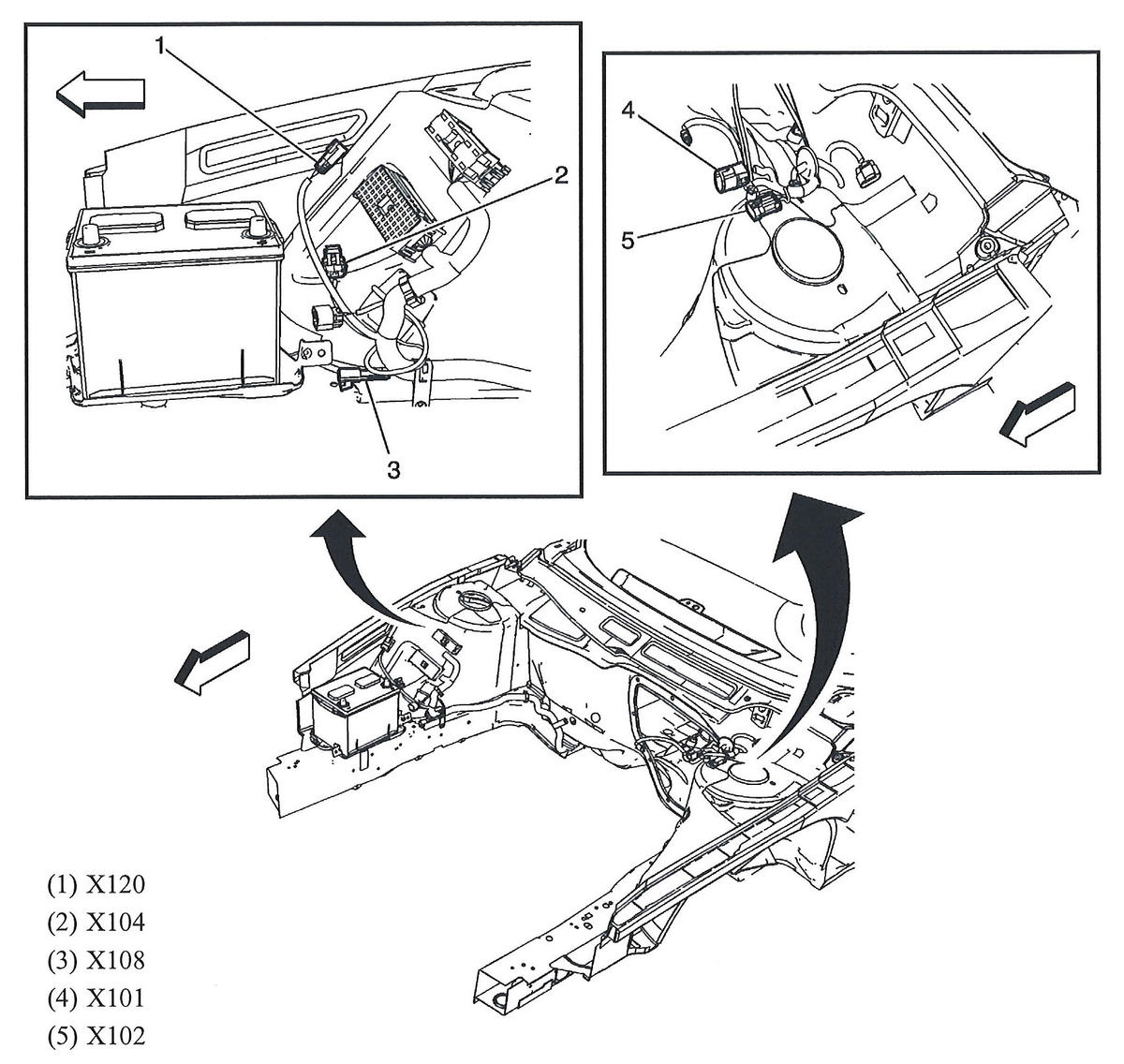

Fig 78: Engine Compartment (3.8L)

G00470249

Courtesy of GENERAL MOTORS CORP.

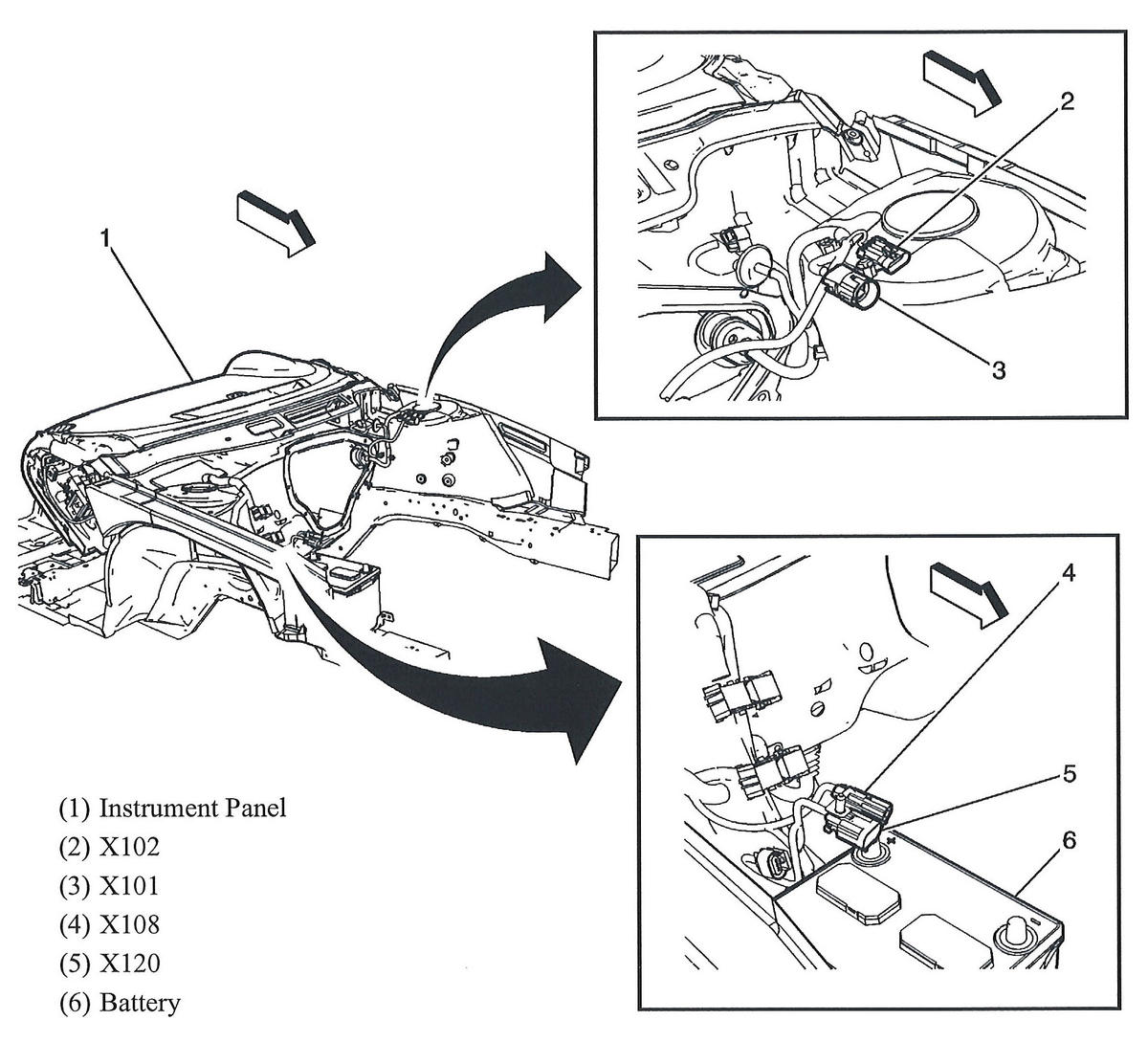

Fig 79: Engine Compartment (5.3L)

G00470250

Courtesy of GENERAL MOTORS CORP.

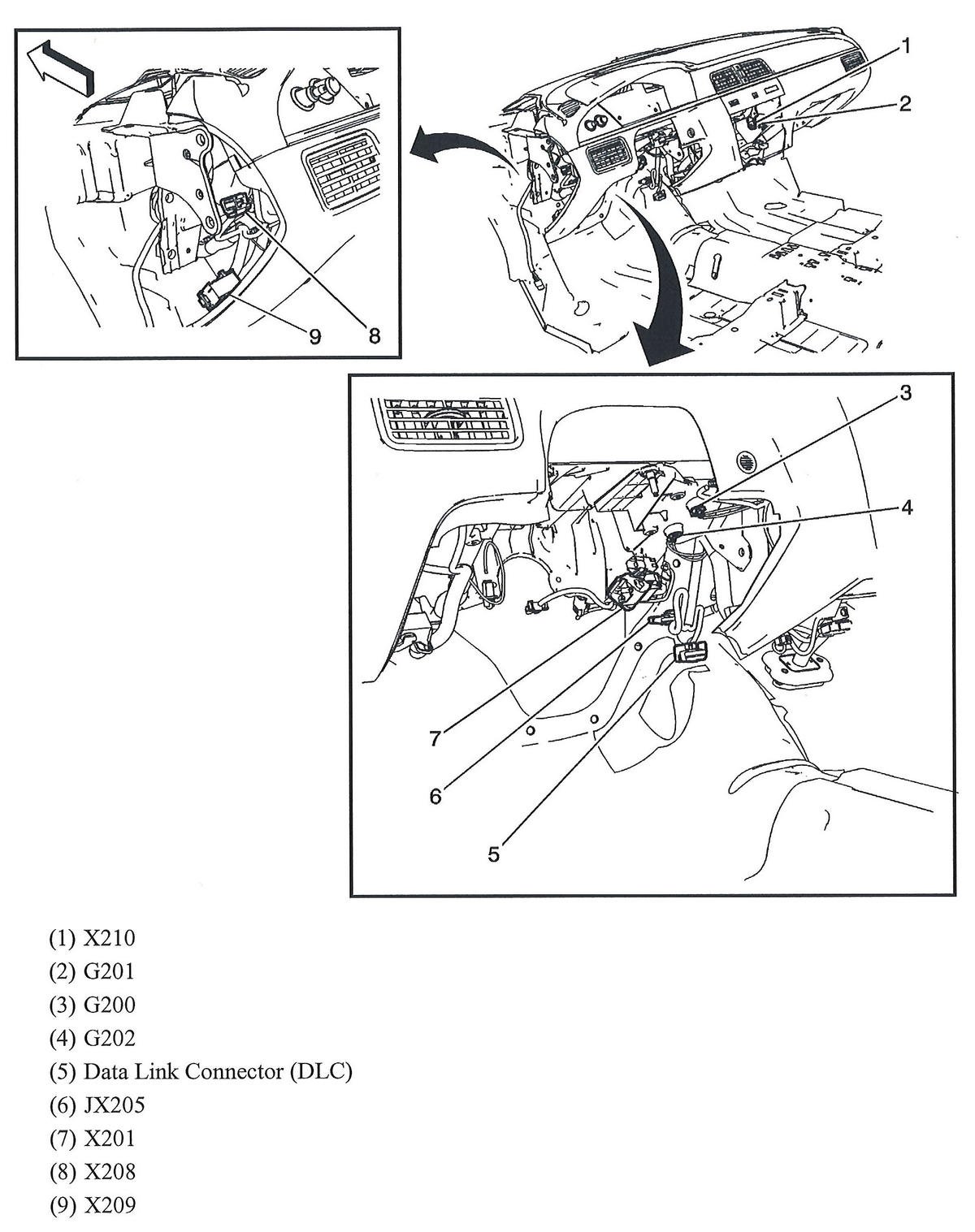

Fig 80: Center & Left Side Of Dash

G00470251

Courtesy of GENERAL MOTORS CORP.

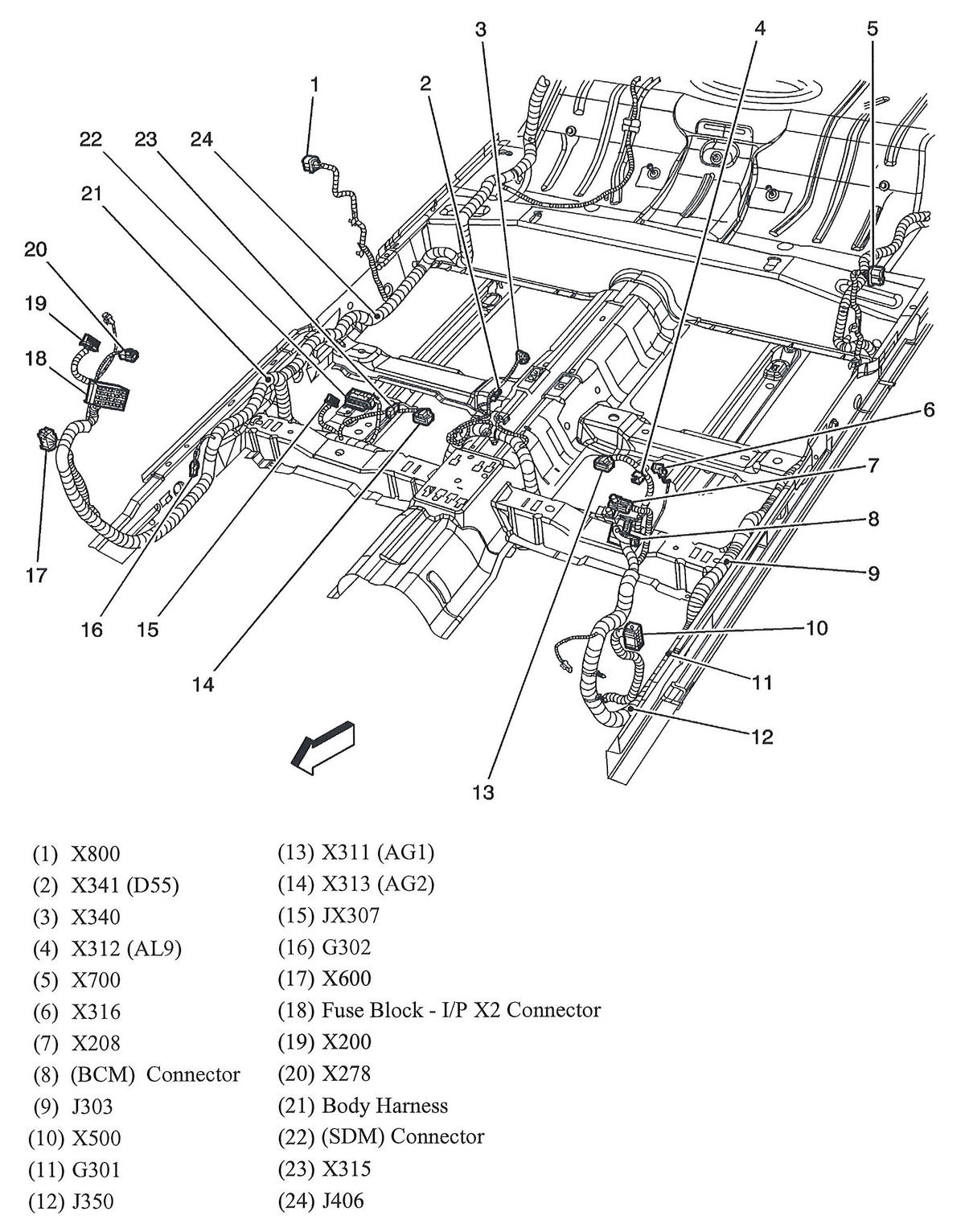

Fig 81: Front Of Passenger Compartment

G00470252

Courtesy of GENERAL MOTORS CORP.

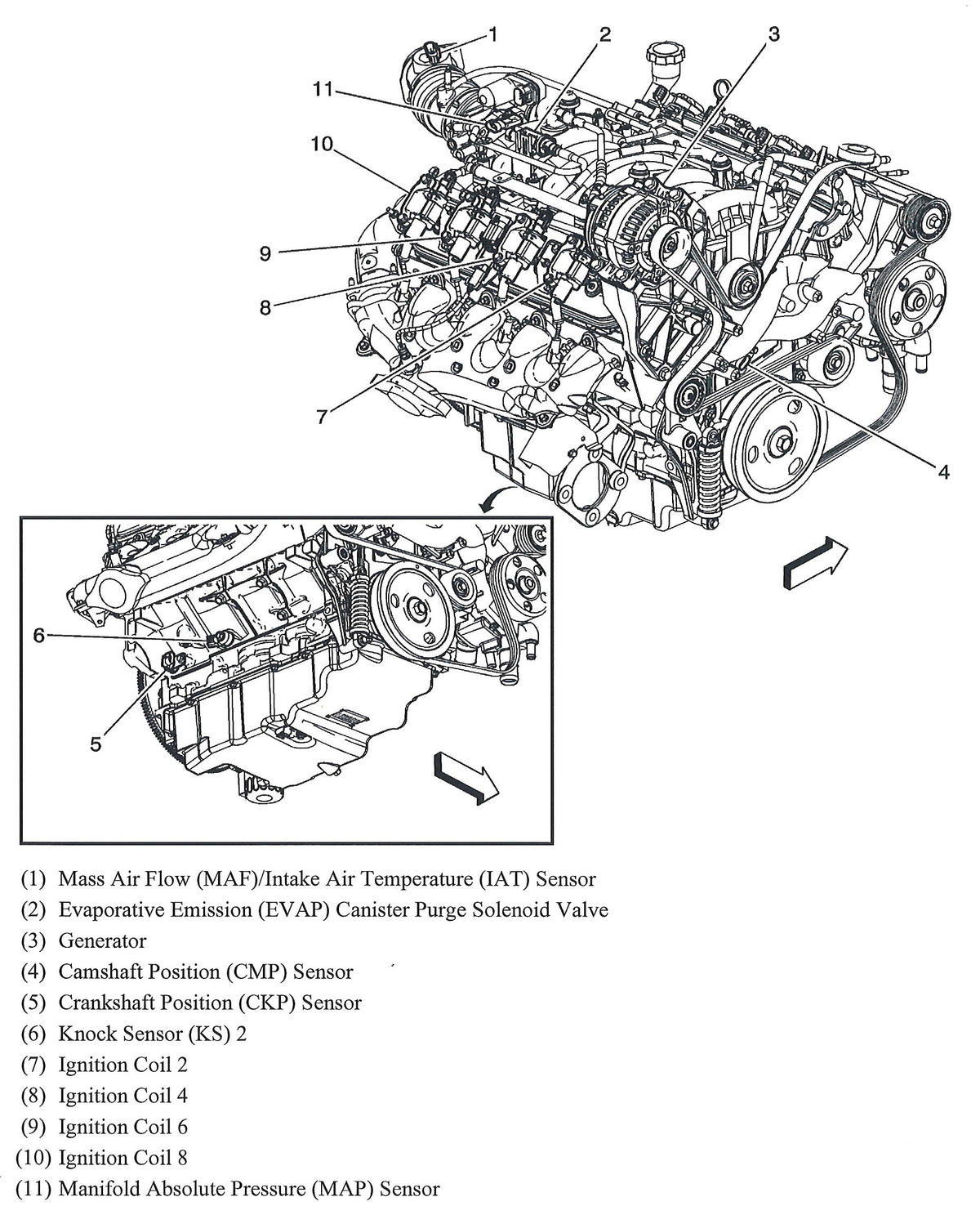

Fig 82: Engine (5.3L)

G00470254

Courtesy of GENERAL MOTORS CORP.

Fig 83: Right Frame & Underbody

G00364196

Courtesy of GENERAL MOTORS CORP.

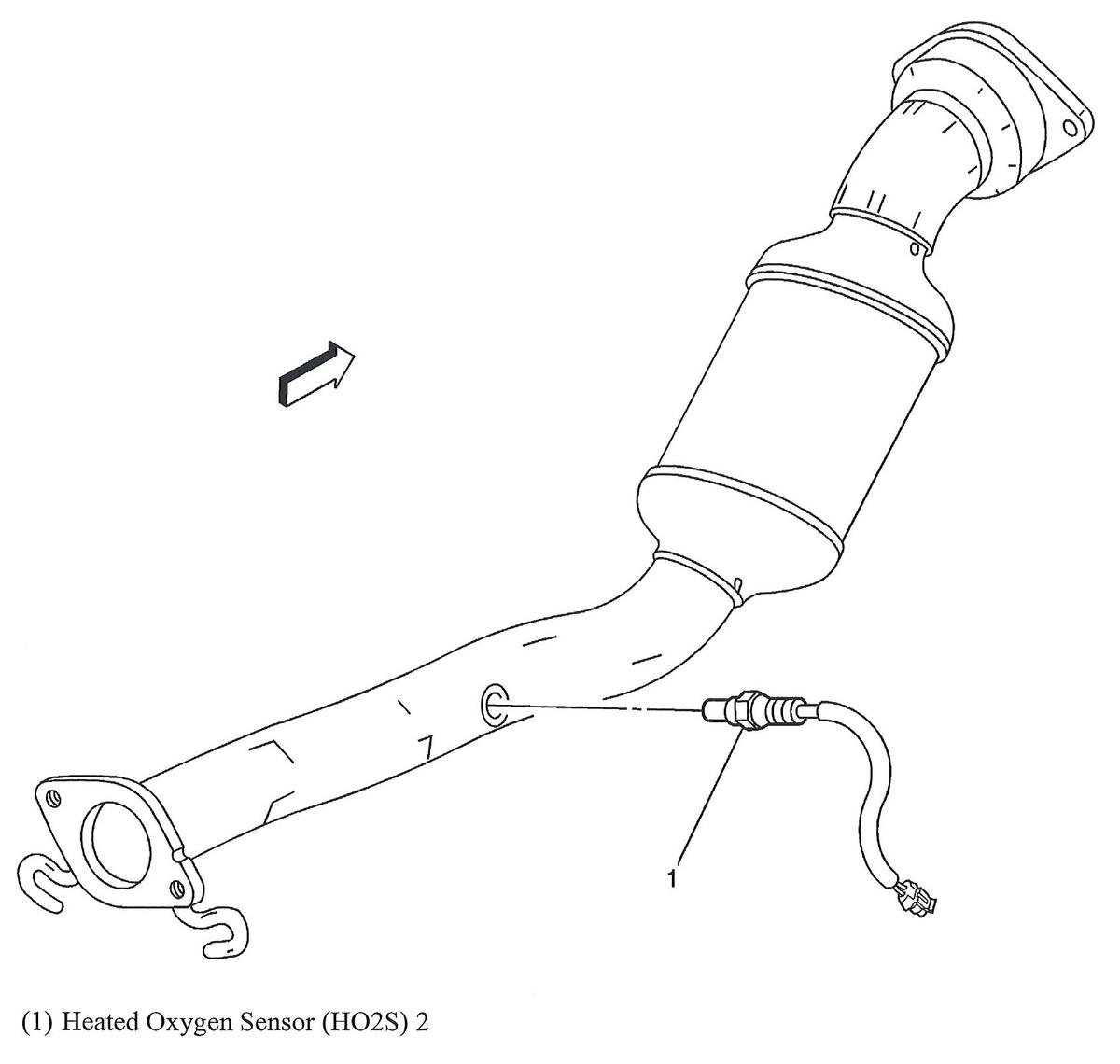

Fig 84: Exhaust (5.3L)

G00470256

Courtesy of GENERAL MOTORS CORP.
