Installation Procedure

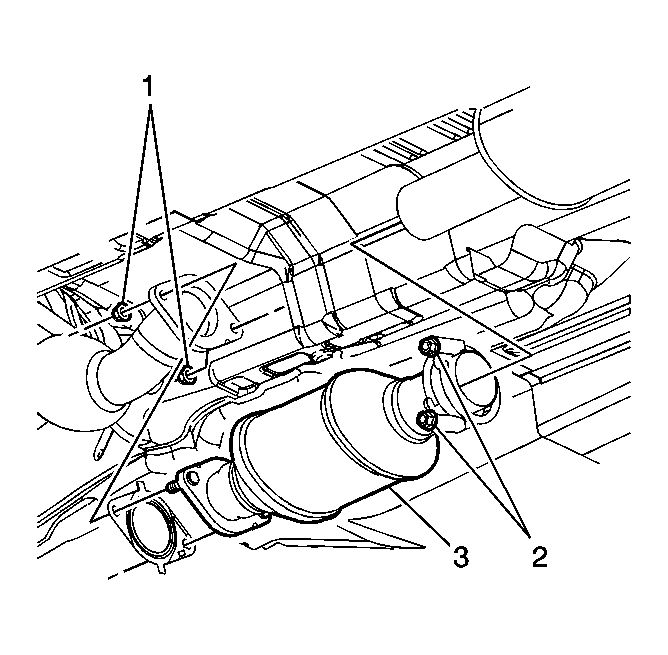

- Slide 2 service clamps (2) over the oxidation catalytic converter outlet pipe. Do not tighten at this time.
- Always install a NEW gasket between the two catalytic converters.
- It may be necessary to piratically lower the exhaust system in order to attach the catalytic converter to the muffler assembly.
- Position the oxidation catalytic converter (3) to the muffler assembly and the three way catalytic converter.
- Install the oxidation catalytic converter nuts (1) and tighten to 47 N.m (35 lb ft).
- Verify the alignment of the oxidation catalytic converter (3) to the muffler assembly and tighten the clamps (2) to 54 N.m (40 lb ft).
- Lower the vehicle.
- Verify there are no exhaust leaks.
NOTE:
NOTE:
The clamps must be positioned midway on the catalytic converter output pipe with the ends pointing in the opposite directions as close together as possible.
