Body Control System Schematics

Fig 1: BCM Power, Ground and DLC

Courtesy of GENERAL MOTORS CORP.

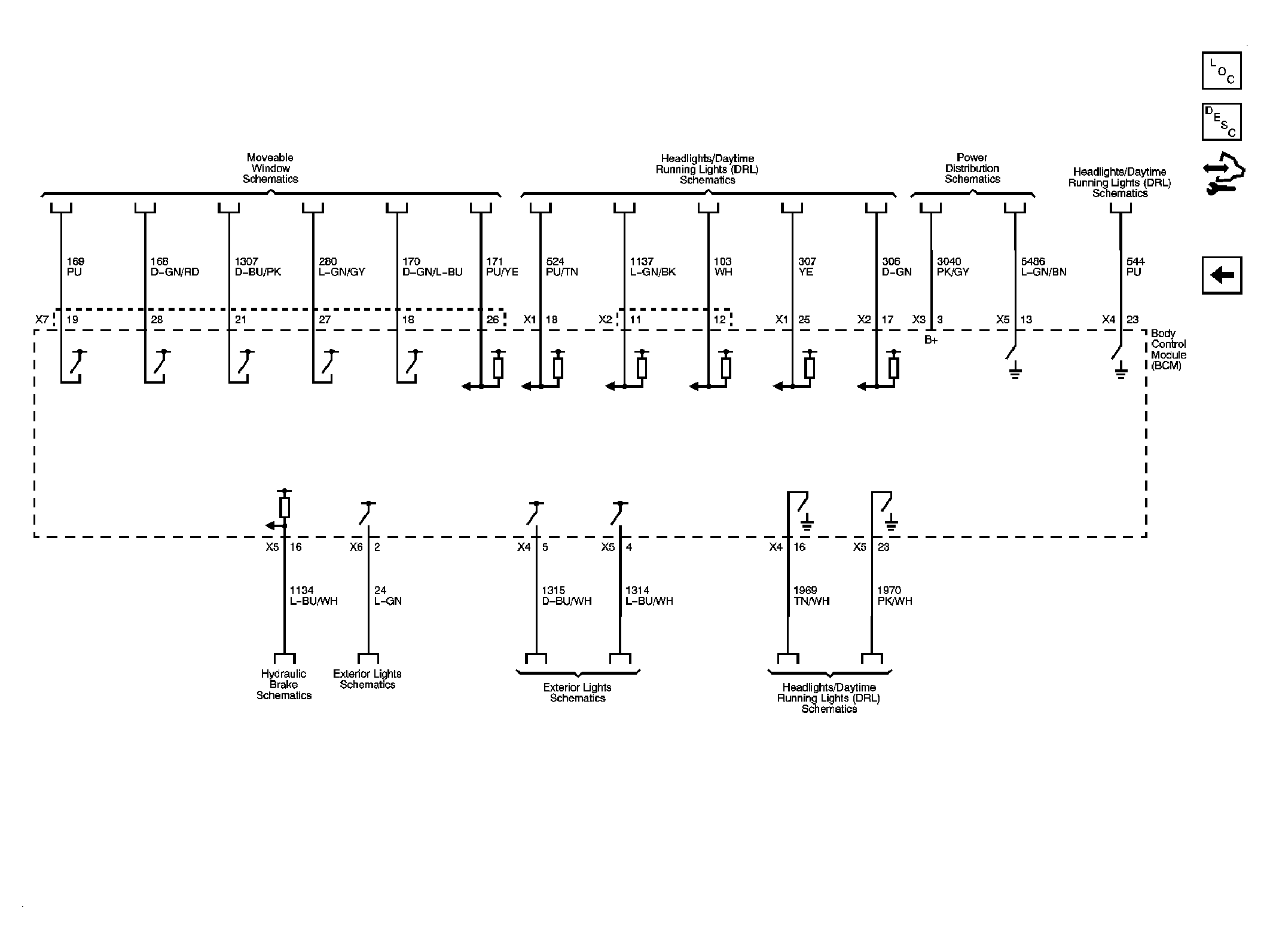

Fig 2: BCM Inputs and Outputs 1 of 4

Courtesy of GENERAL MOTORS CORP.

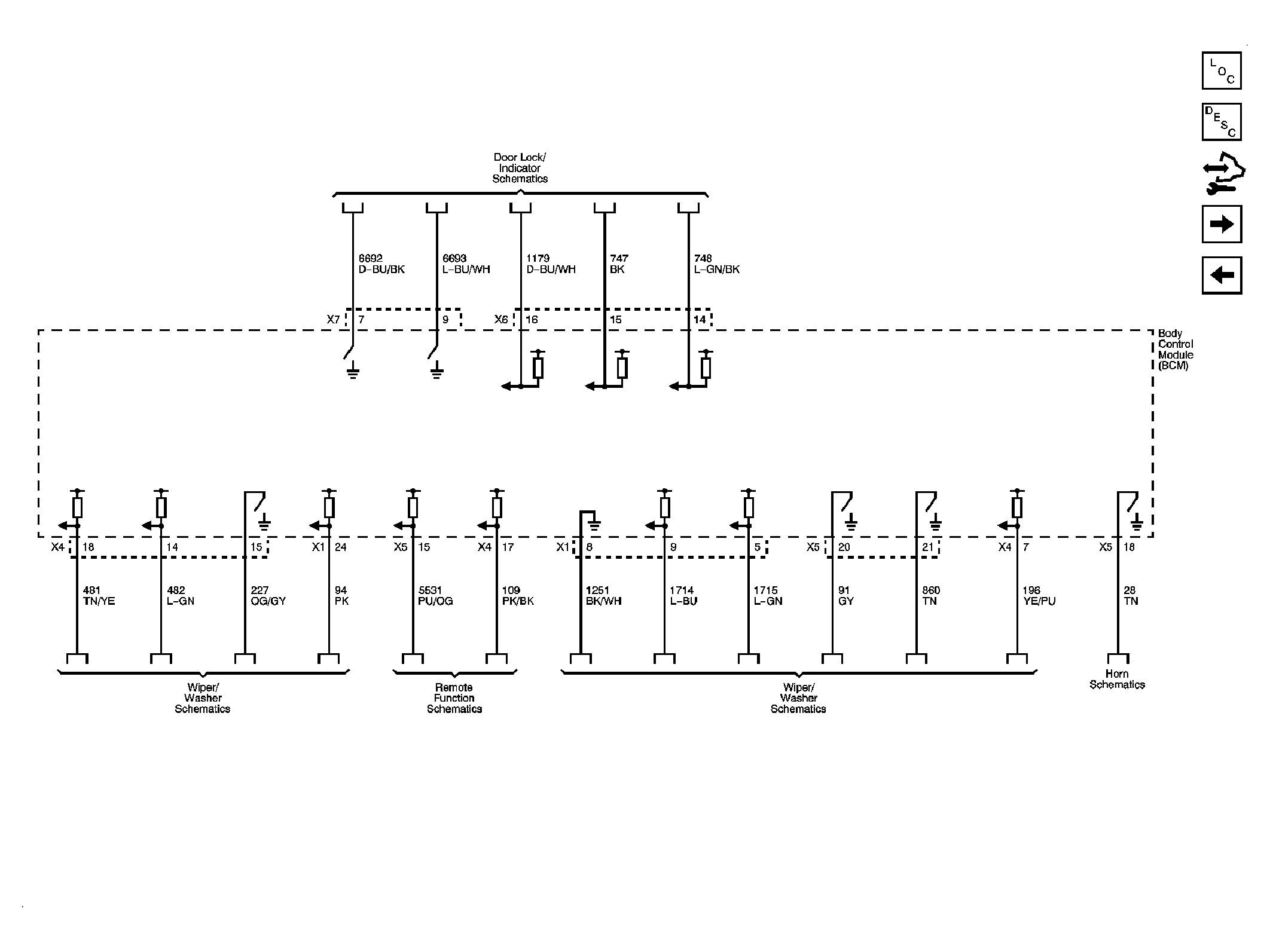

Fig 3: BCM Inputs and Outputs 2 of 4

Courtesy of GENERAL MOTORS CORP.

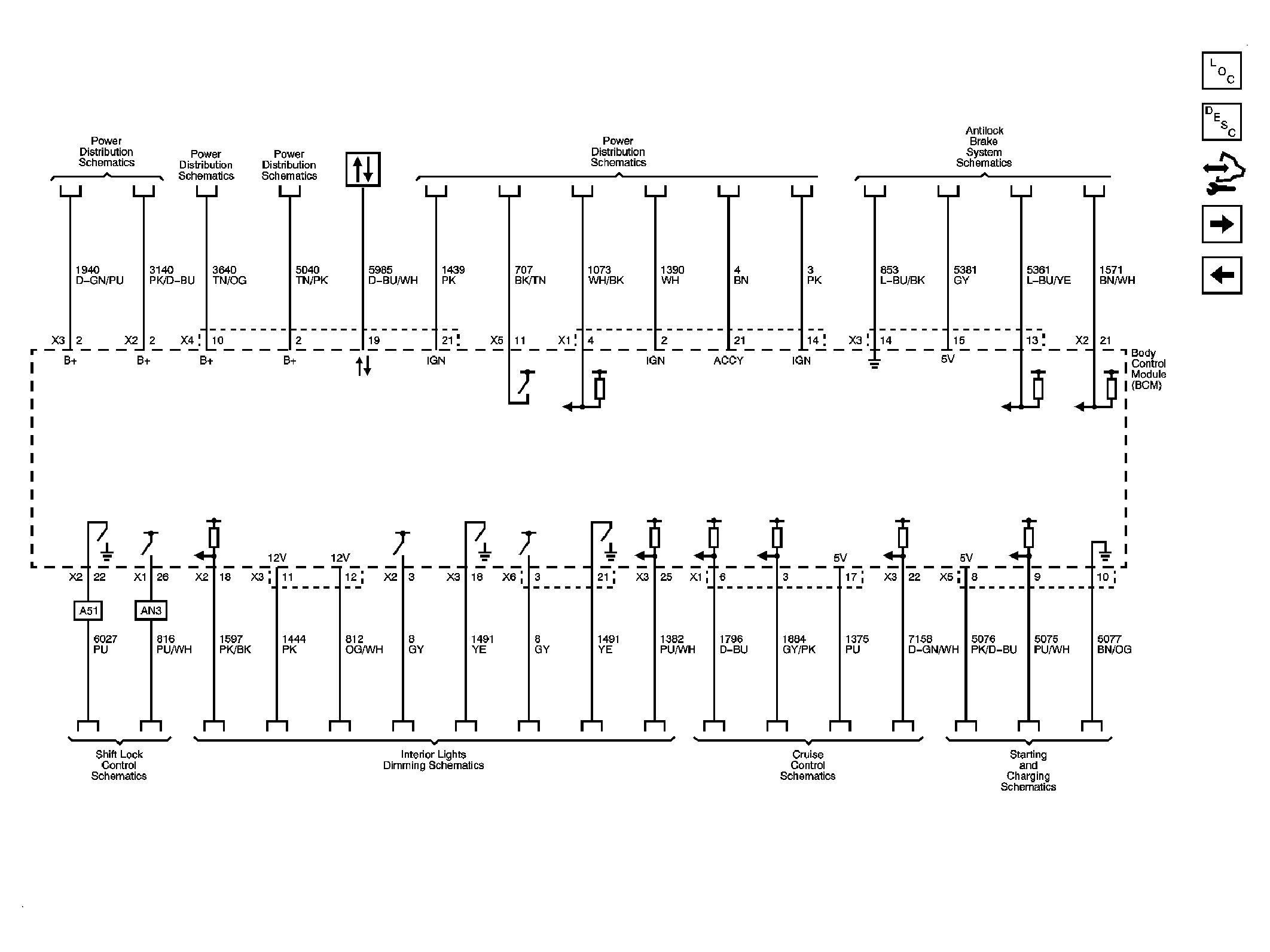

Fig 4: BCM Inputs and Outputs 3 of 4

Courtesy of GENERAL MOTORS CORP.

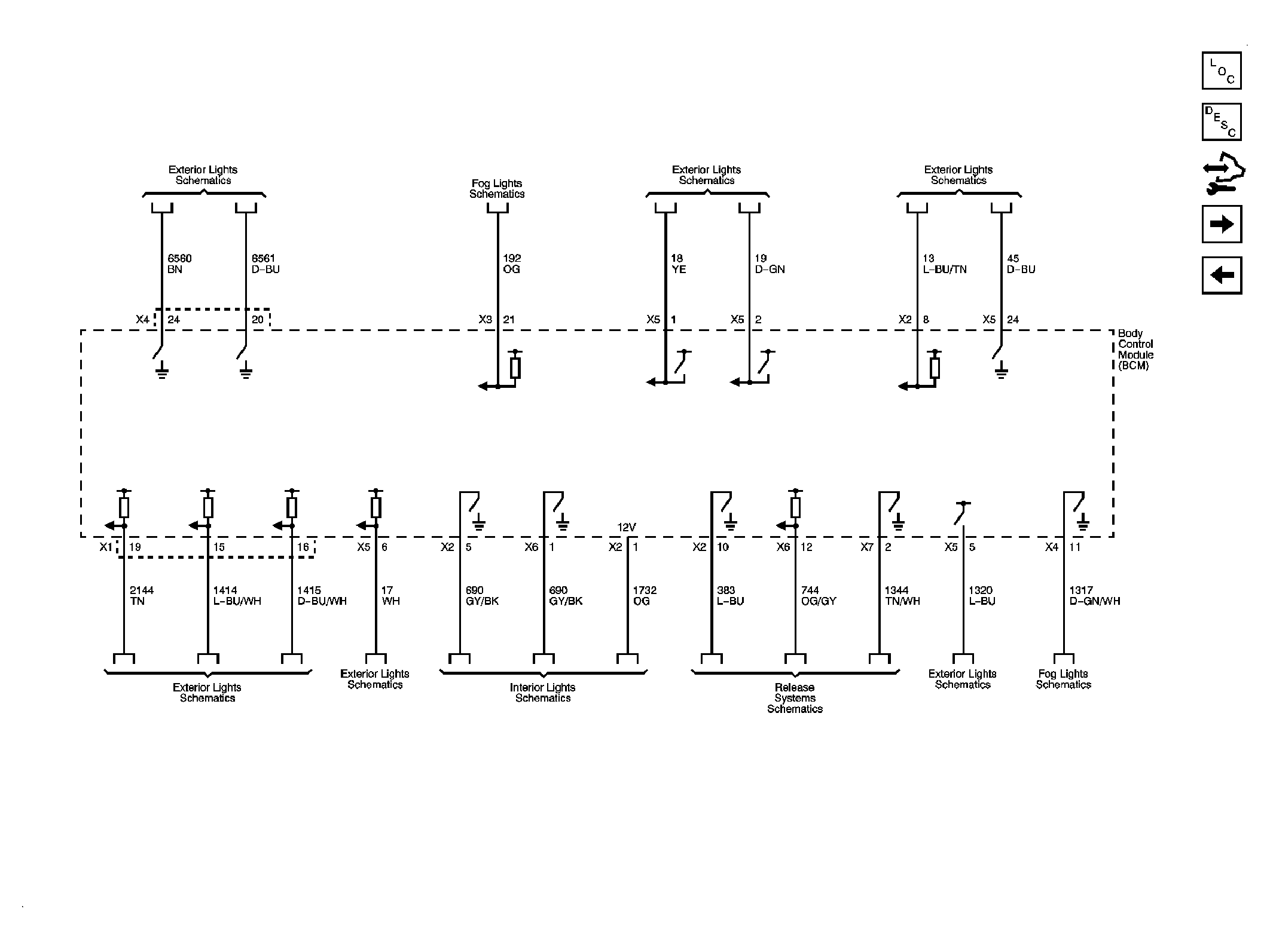

Fig 5: BCM Inputs and Outputs 4 of 4

Courtesy of GENERAL MOTORS CORP.
