Data Communication Schematics

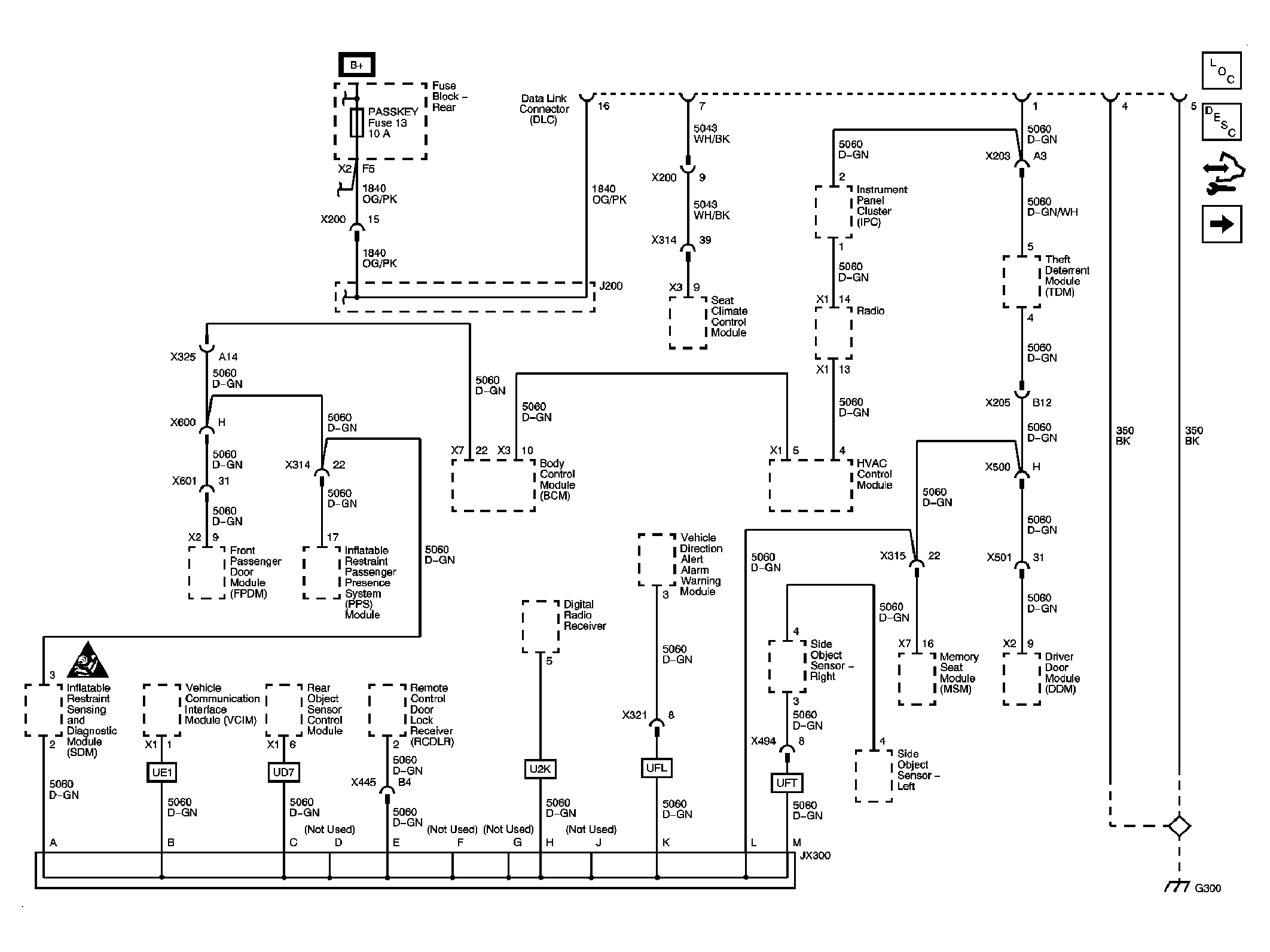

Fig 1: Power, Ground and Low Speed GMLAN
Courtesy of GENERAL MOTORS CORP.

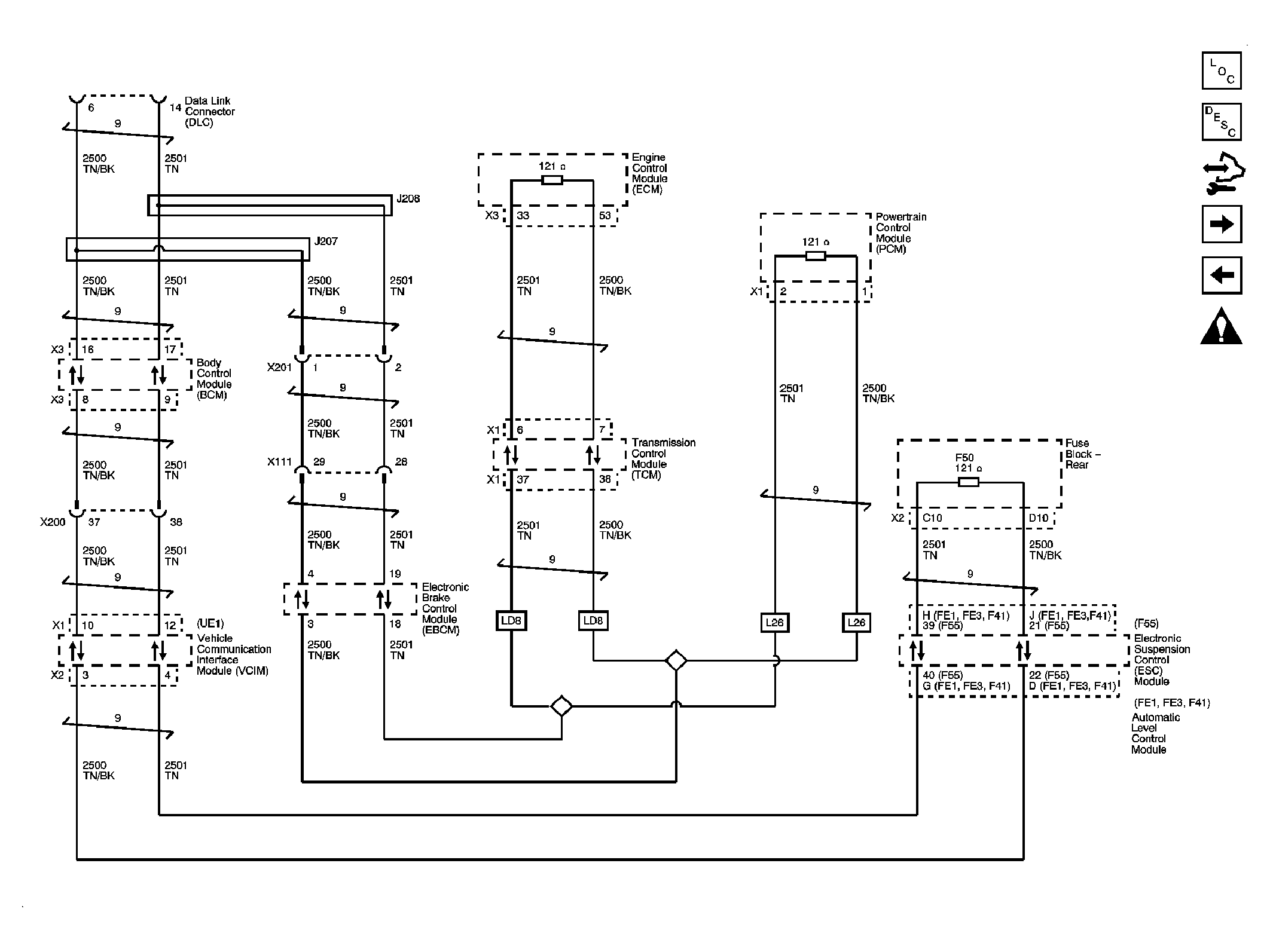

Fig 2: High Speed Serial Data
Courtesy of GENERAL MOTORS CORP.

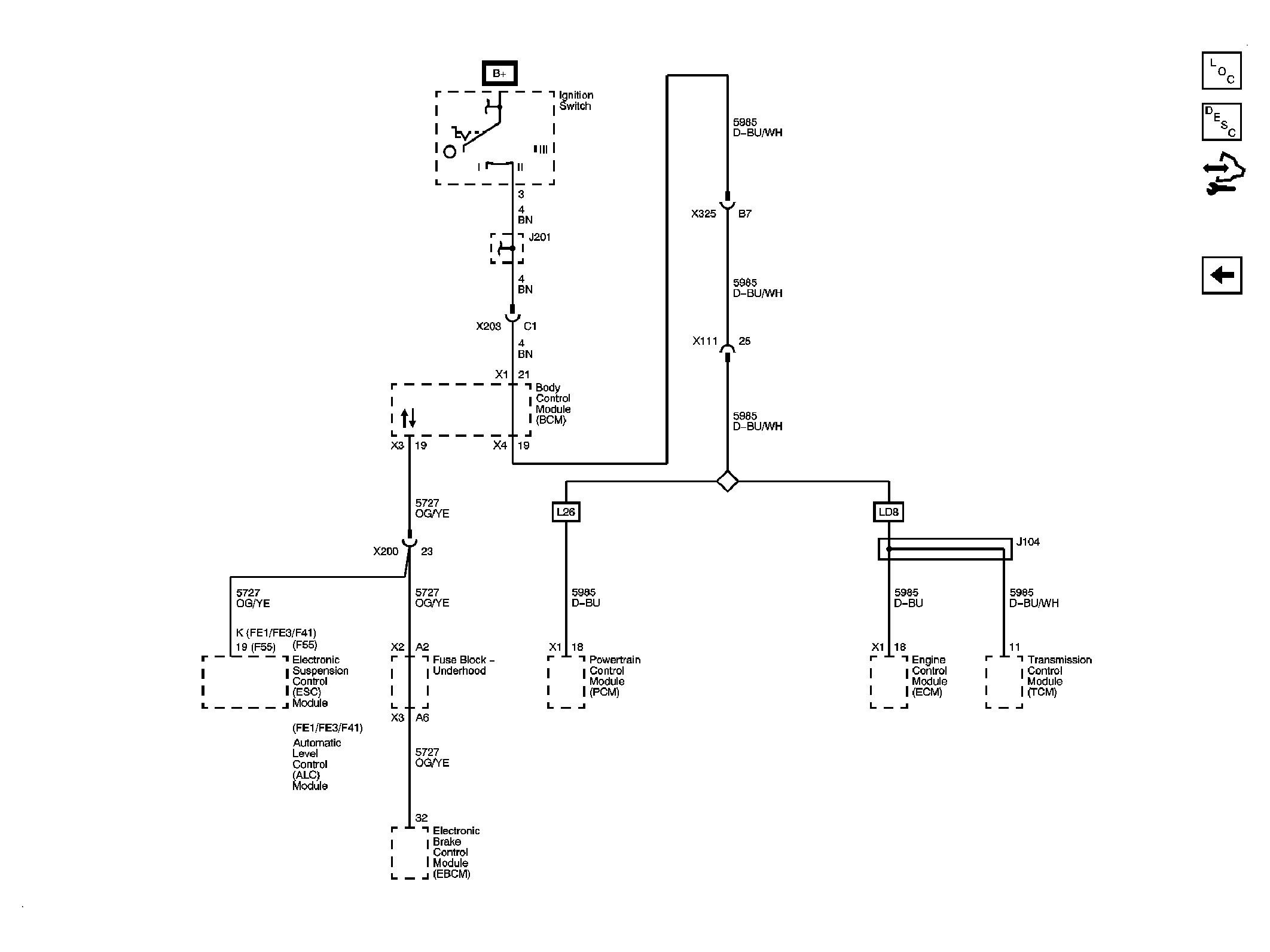

Fig 3: Serial Data Wake Up
Courtesy of GENERAL MOTORS CORP.
