Repair and Diagnosis
›
Electrical
›
Component Locations
›
Electrical Component Locator
›
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

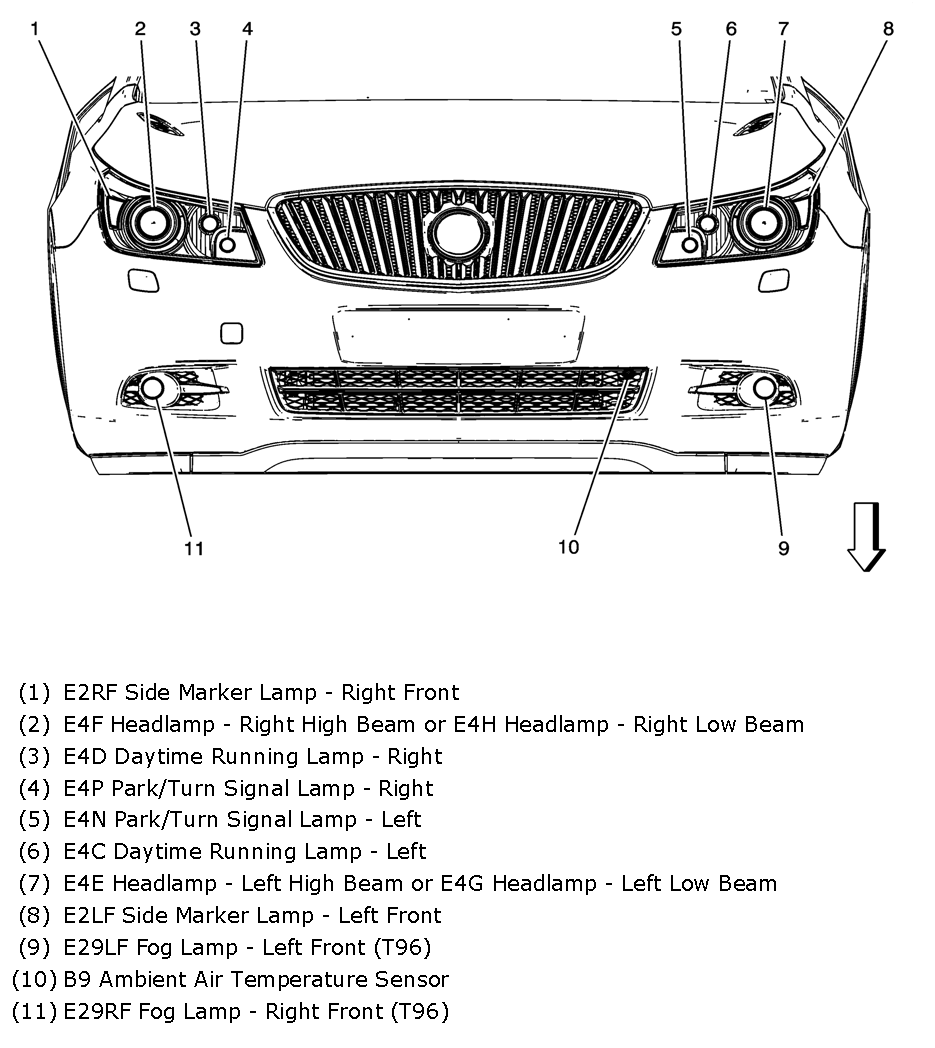

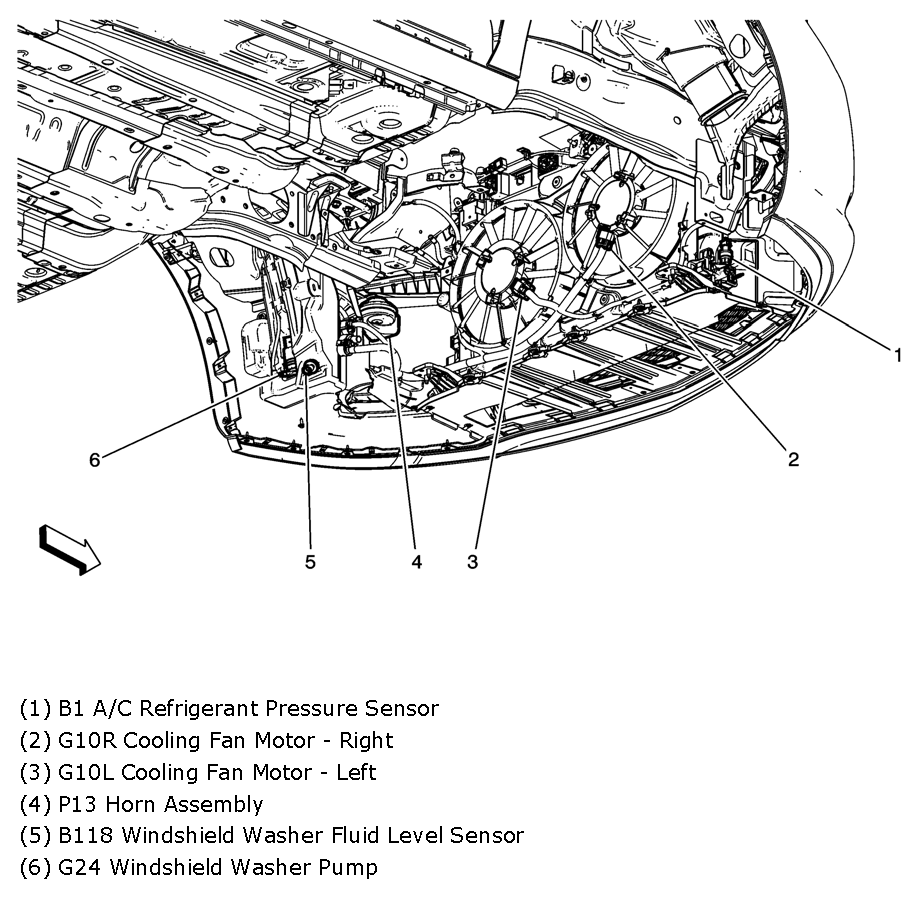

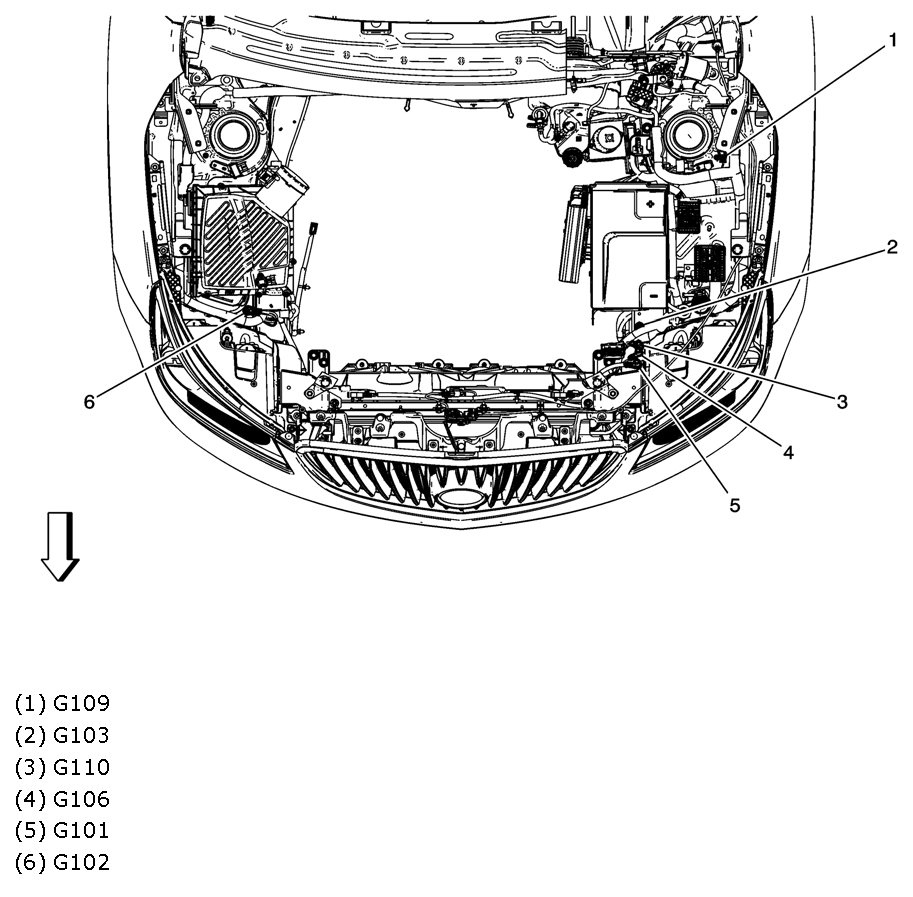

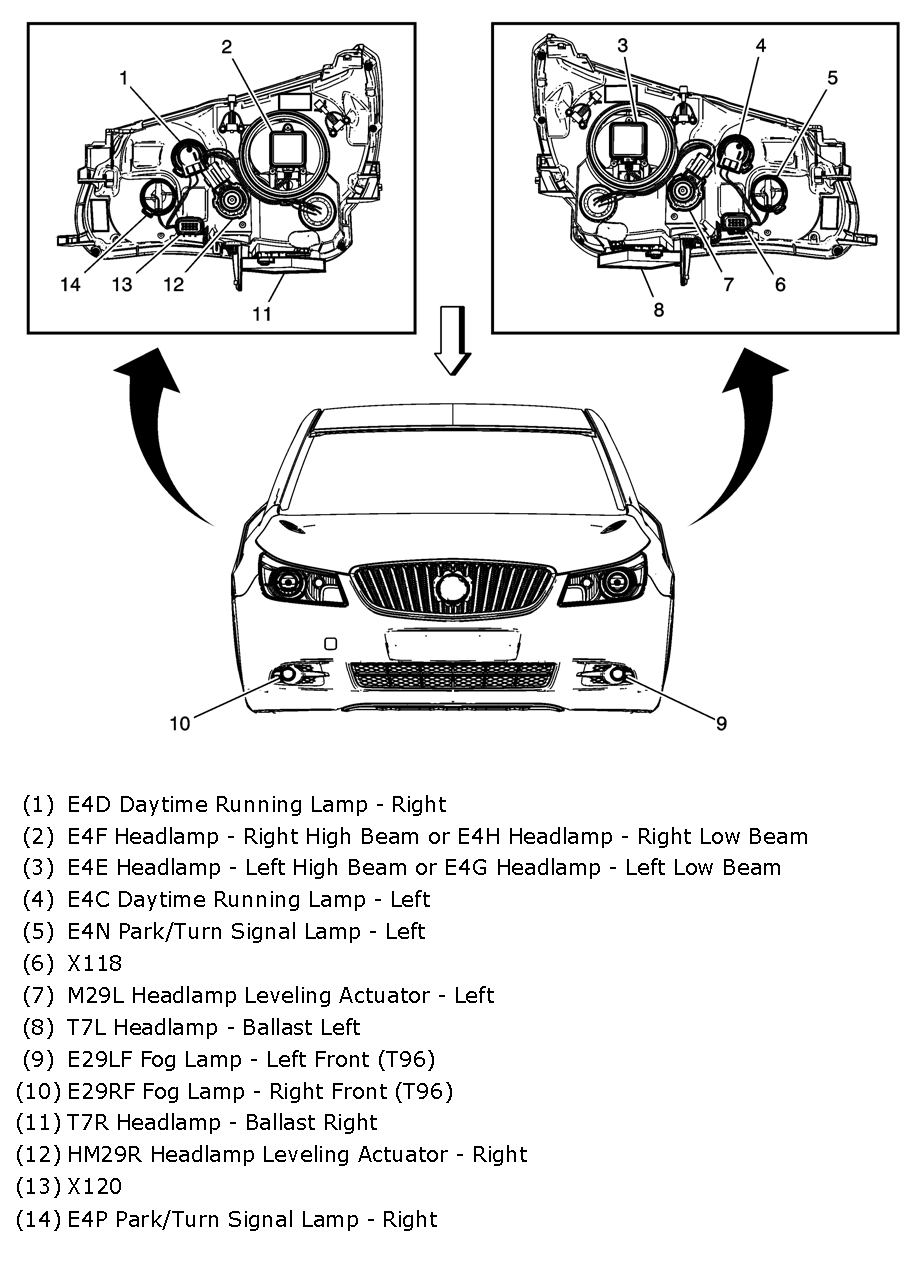

Fig 1: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

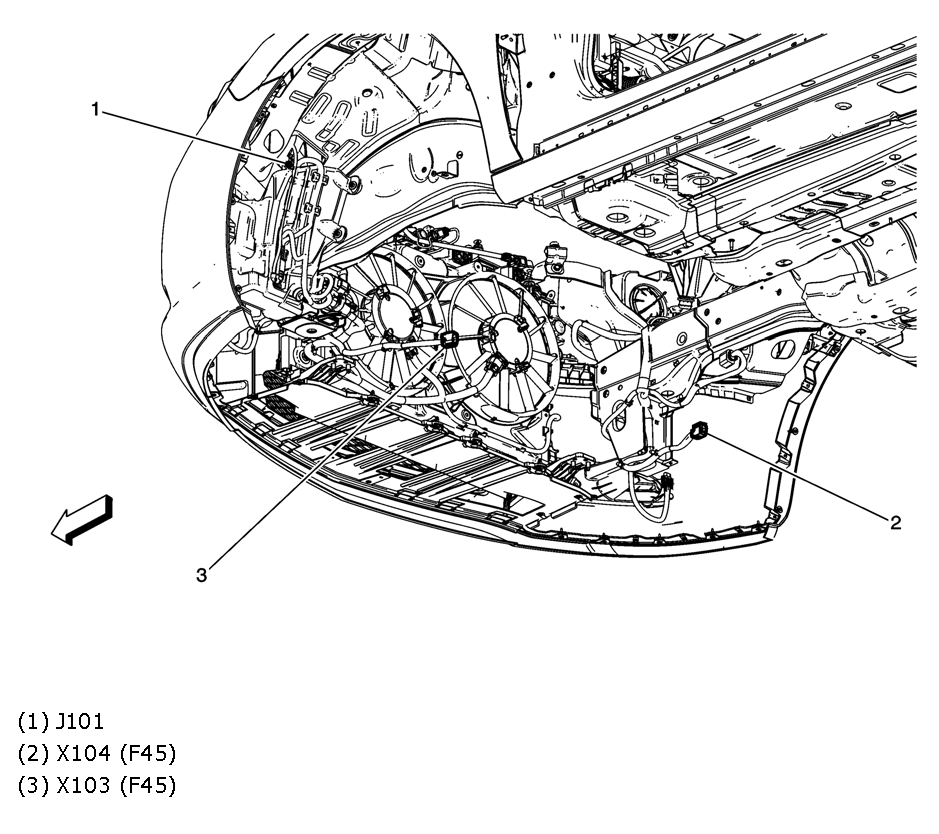

Fig 2: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

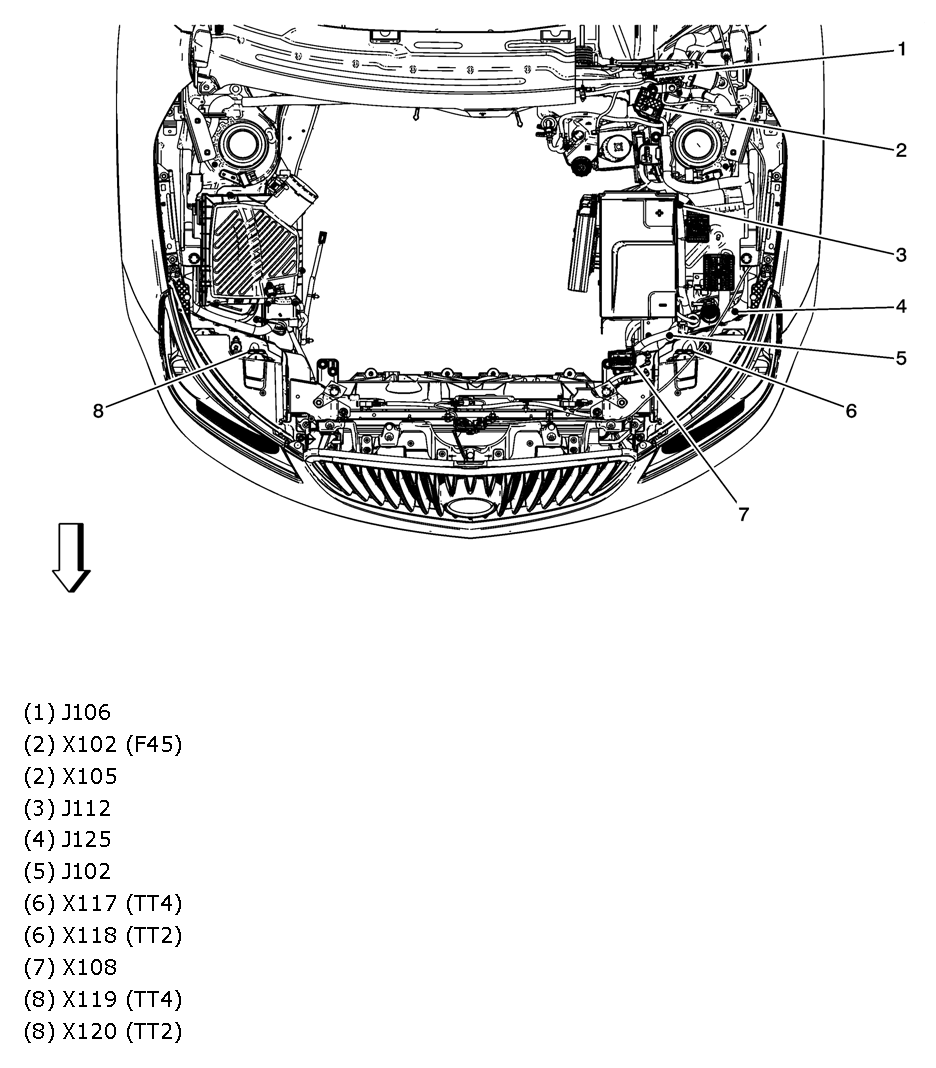

Fig 3: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 4: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

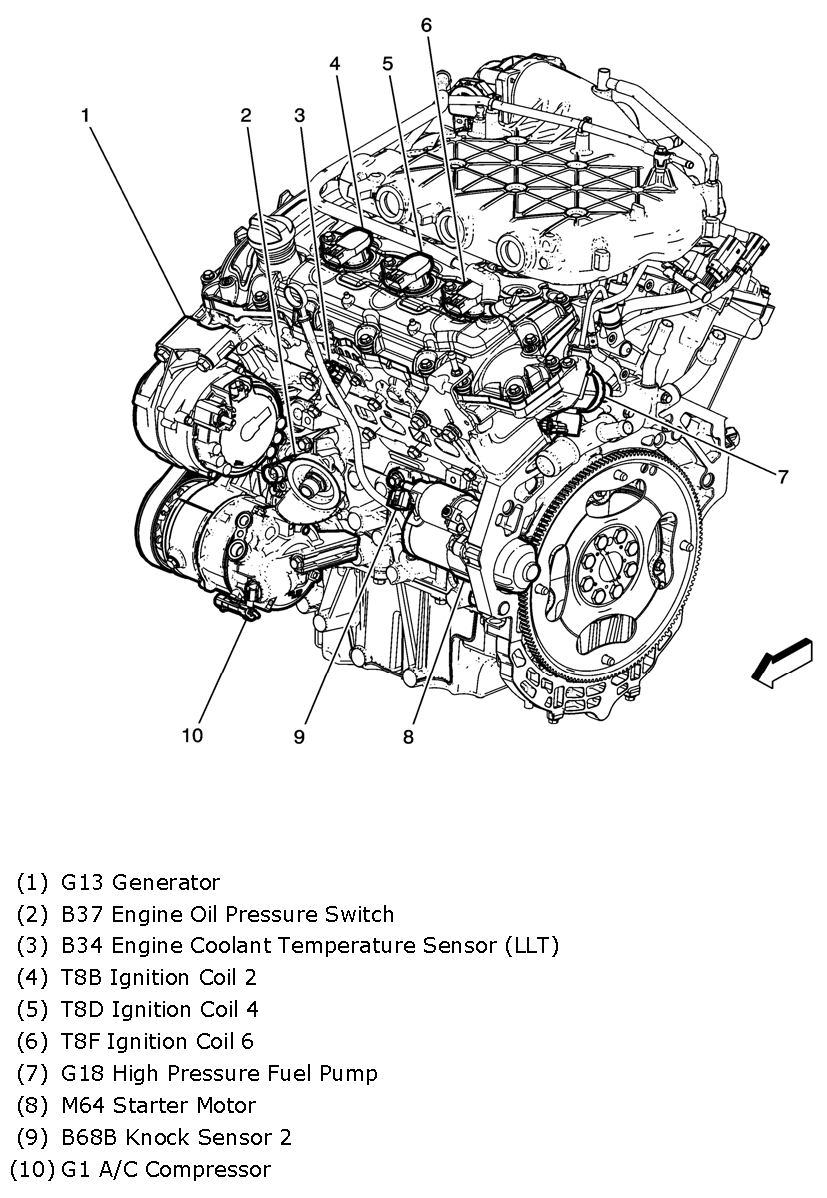

Fig 5: Left Front Of Engine (3.0L & 3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 6: Right Rear Of Engine (3.0L & 3.6L)
Courtesy of GENERAL MOTORS CORP.

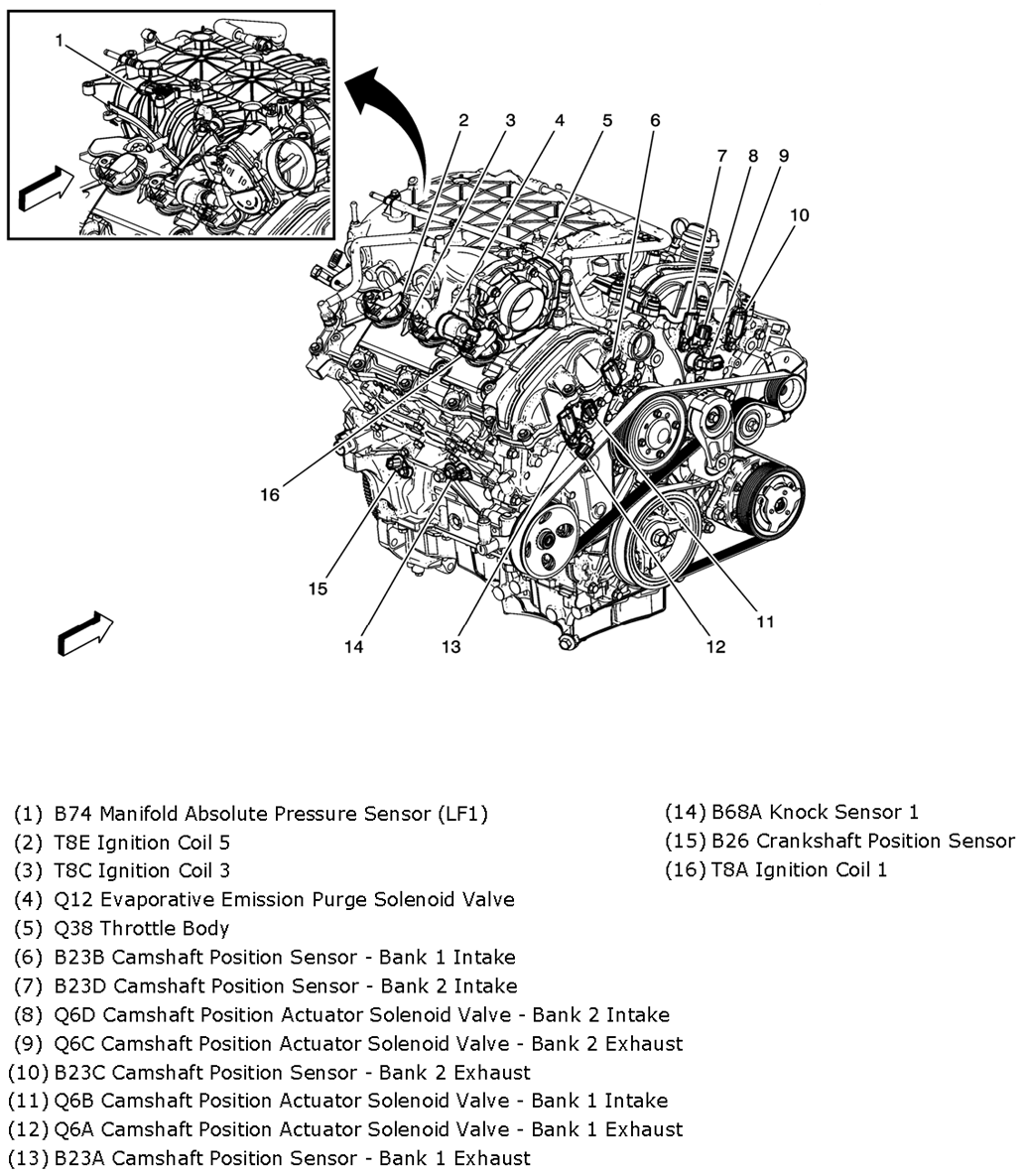

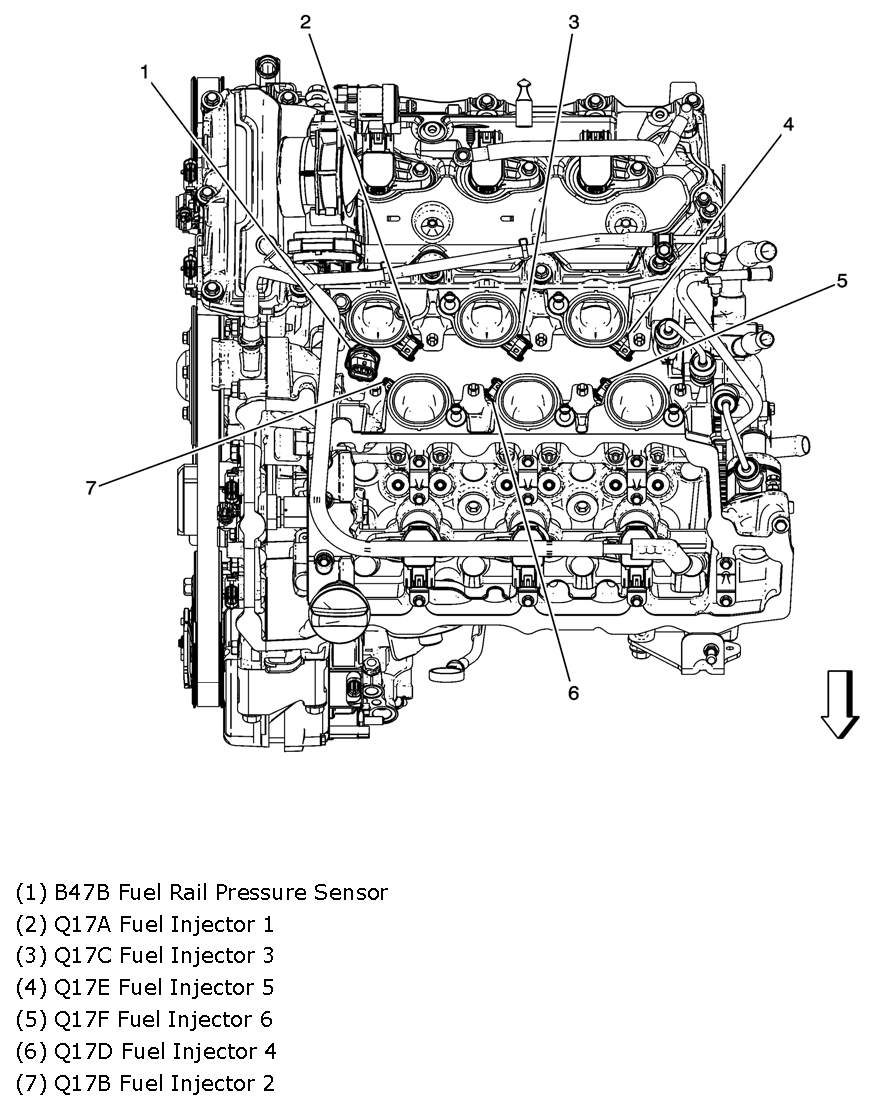

Fig 7: Top Of Engine (3.0L & 3.6L)
Courtesy of GENERAL MOTORS CORP.

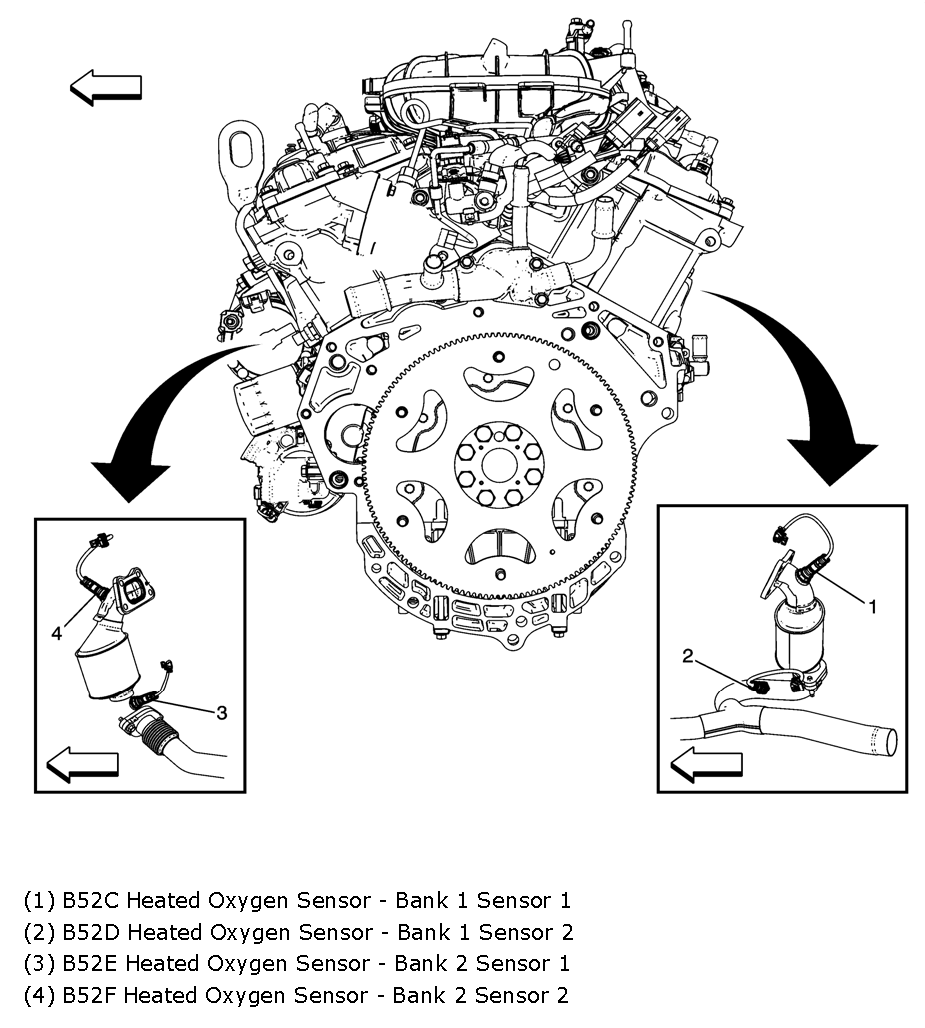

Fig 8: Oxygen Sensors (3.0L & 3.6L)
Courtesy of GENERAL MOTORS CORP.

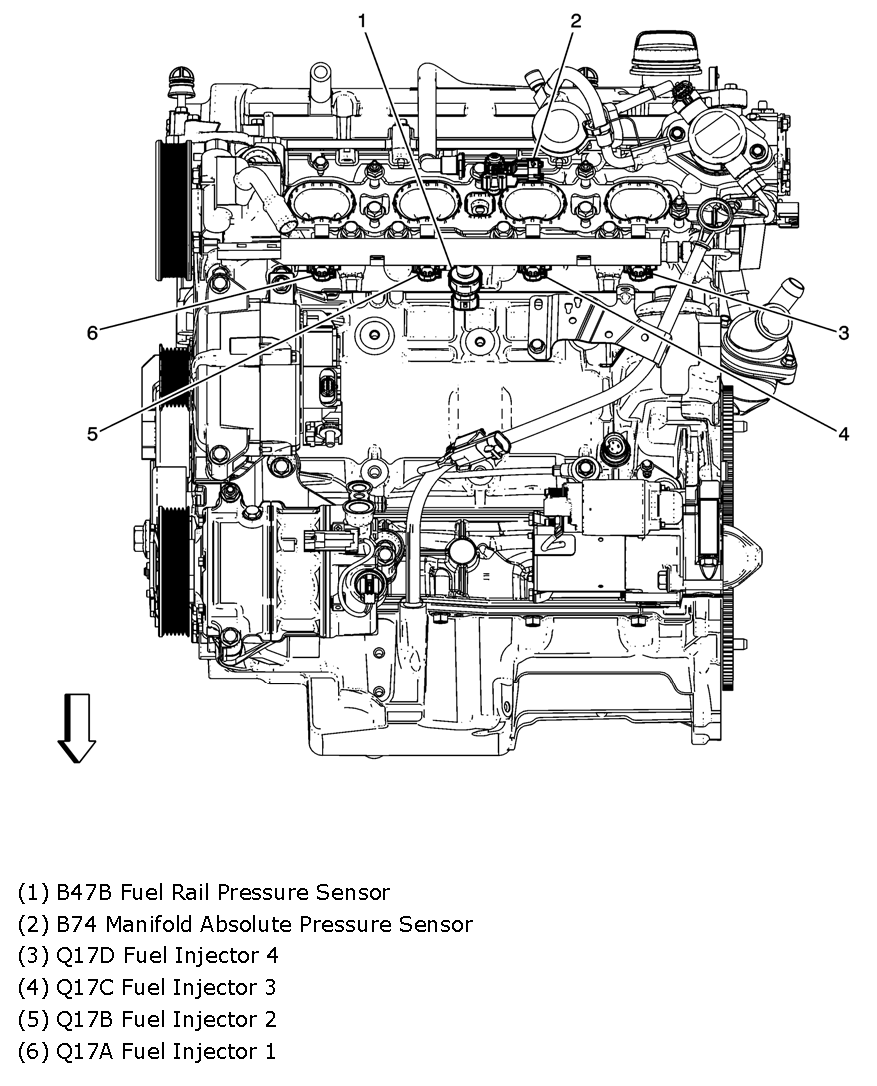

Fig 9: Front Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Front Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Left Rear Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.

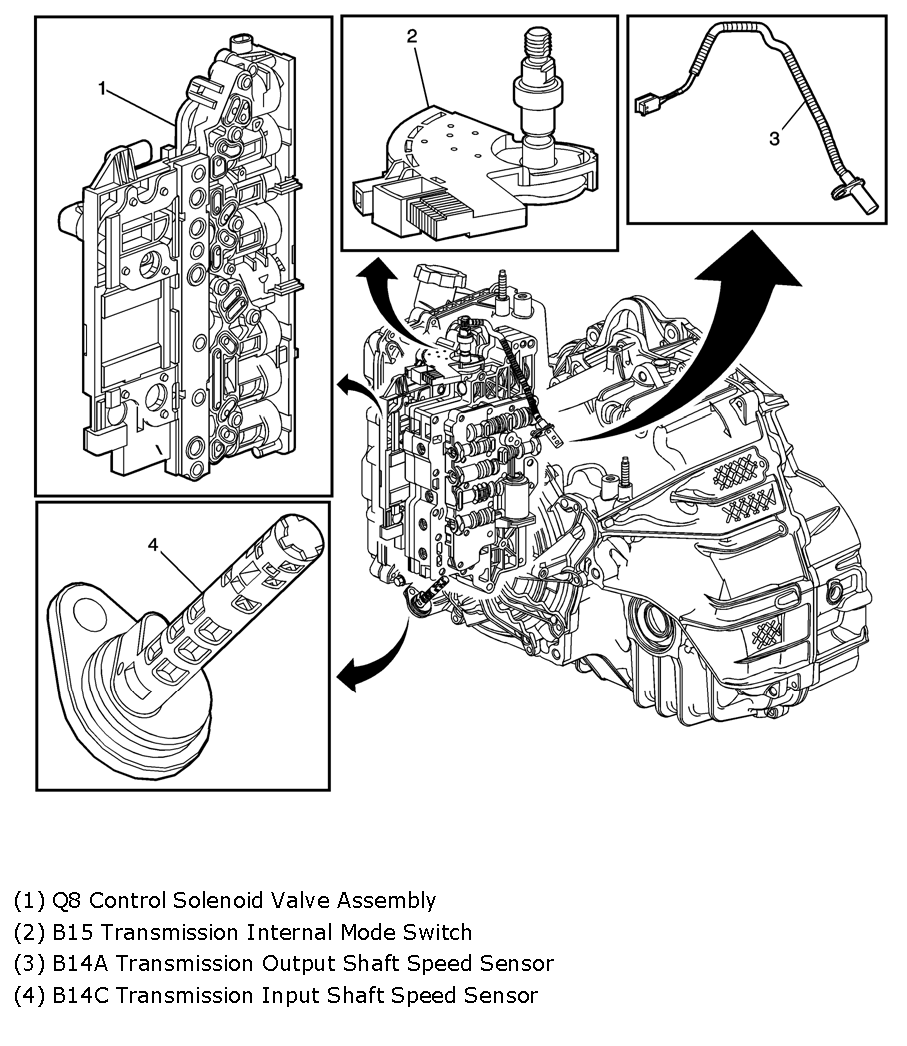

Fig 12: Transmission
Courtesy of GENERAL MOTORS CORP.

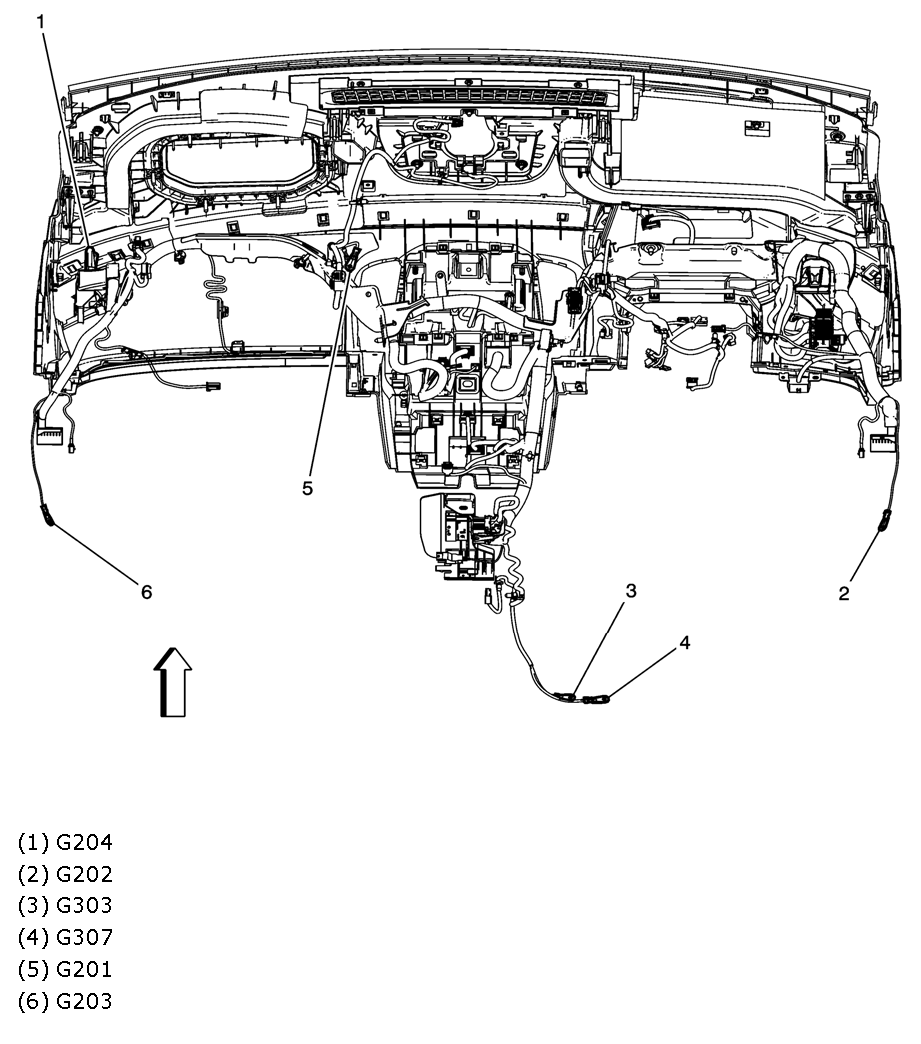

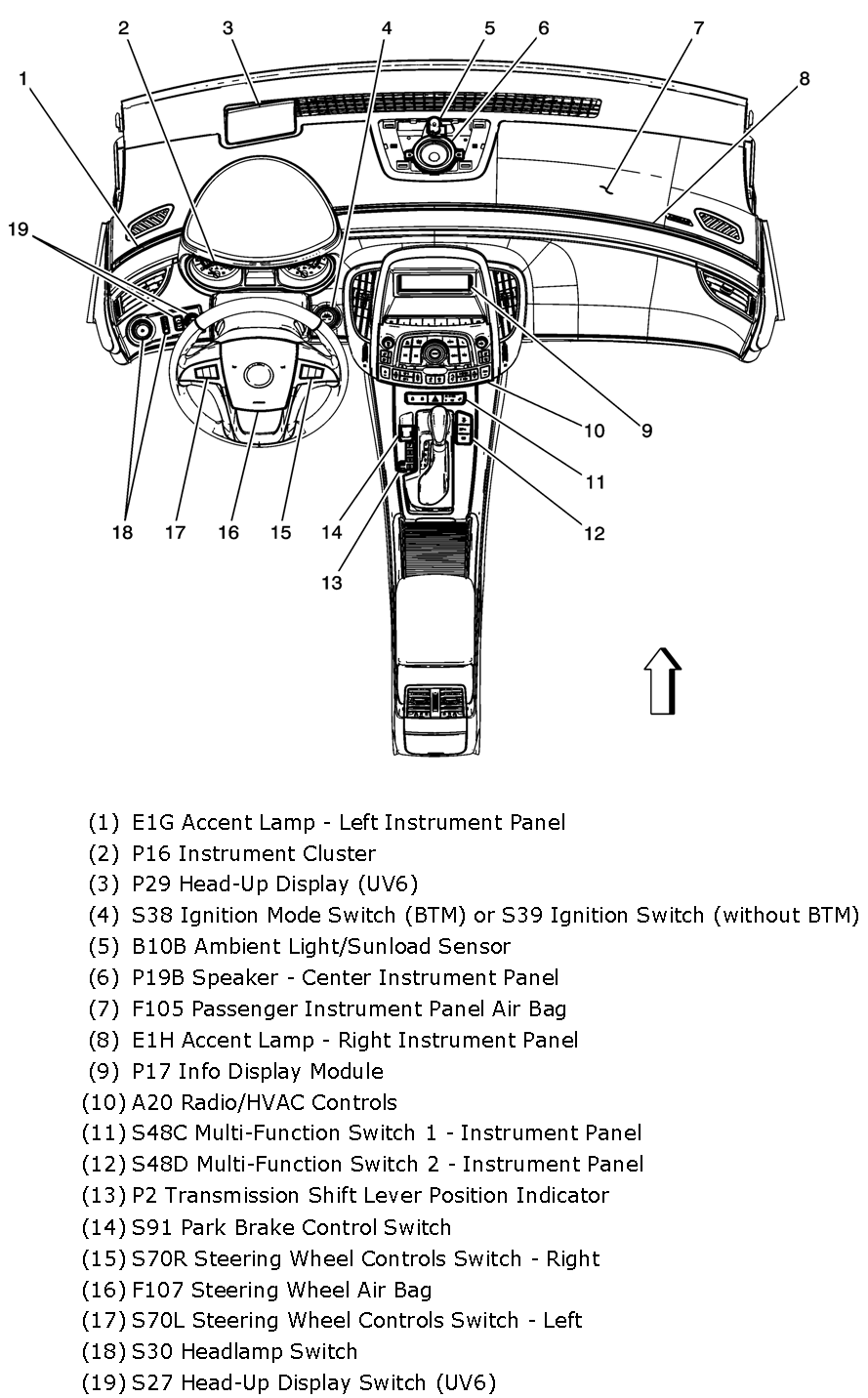

Fig 13: Dash
Courtesy of GENERAL MOTORS CORP.

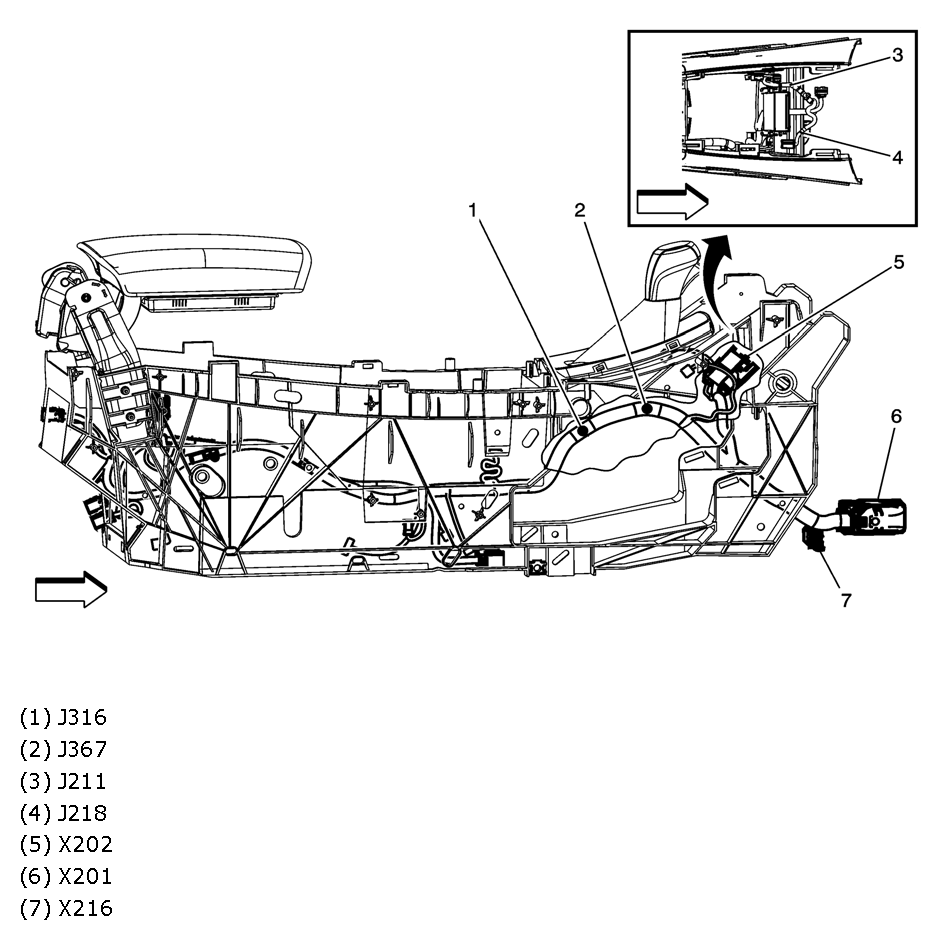

Fig 14: Dash & Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 15: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 16: HVAC Control Module
Courtesy of GENERAL MOTORS CORP.
Fig 17: Left Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 18: Right & Rear Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

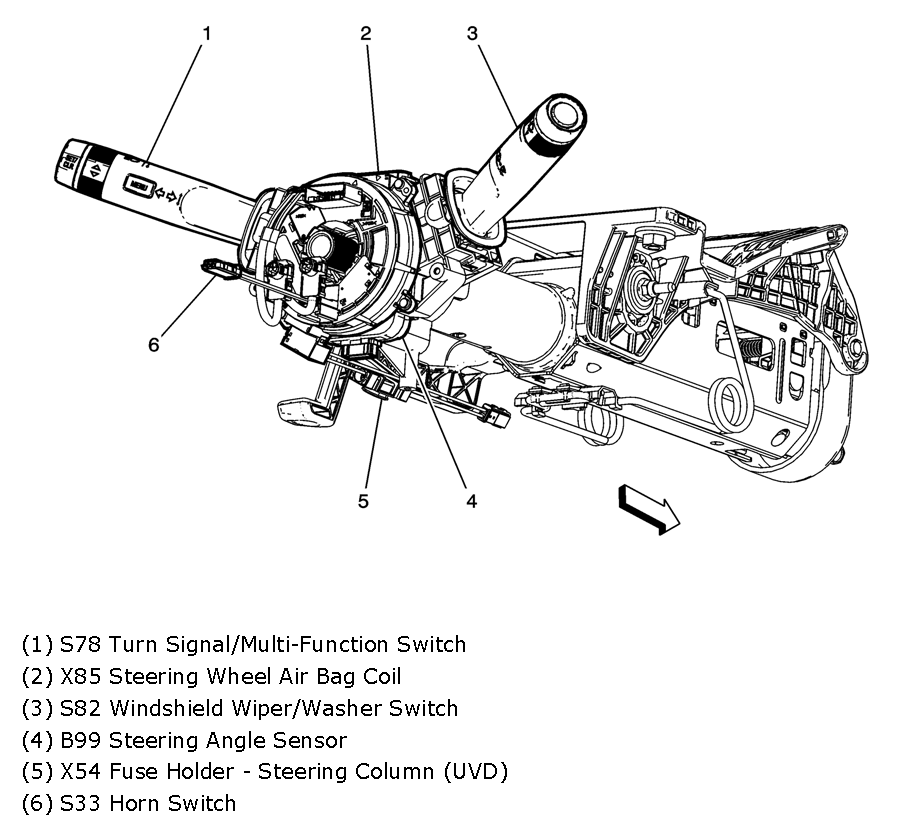

Fig 19: Steering Column
Courtesy of GENERAL MOTORS CORP.

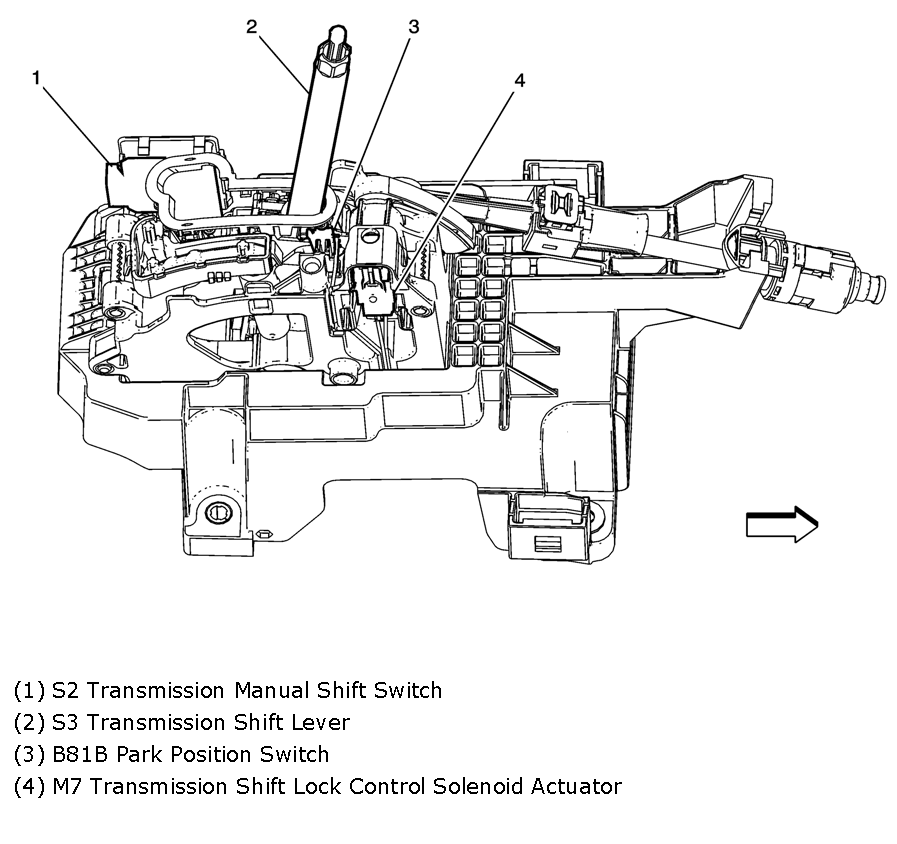

Fig 20: Shifter
Courtesy of GENERAL MOTORS CORP.
Fig 21: Sunroof
Courtesy of GENERAL MOTORS CORP.
Fig 22: Left Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 23: Left Front Seat
Courtesy of GENERAL MOTORS CORP.

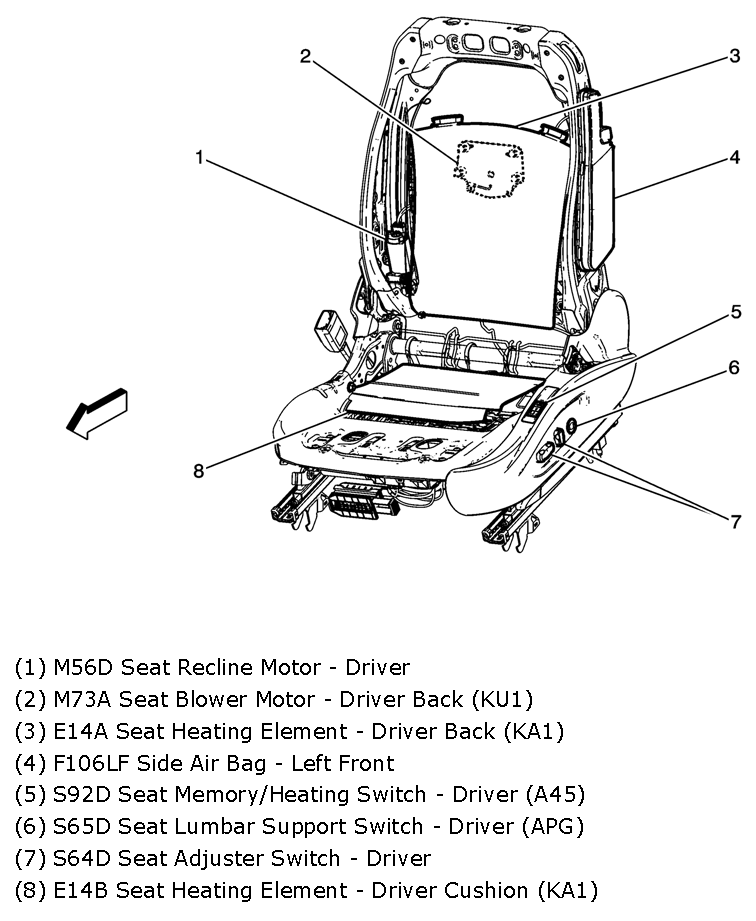

Fig 24: Driver Seat
Courtesy of GENERAL MOTORS CORP.

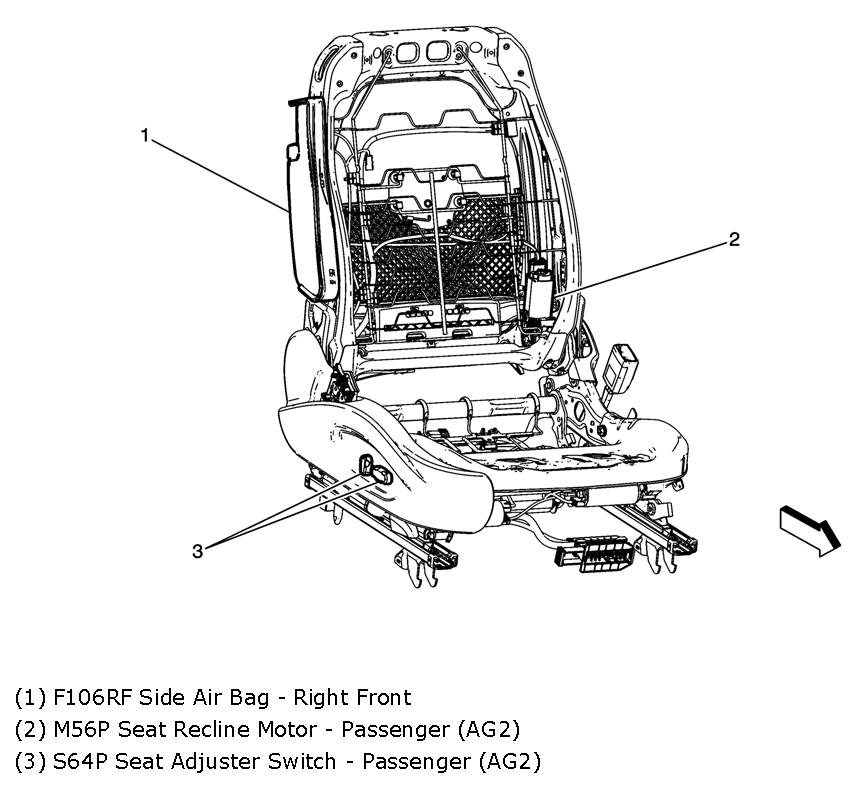

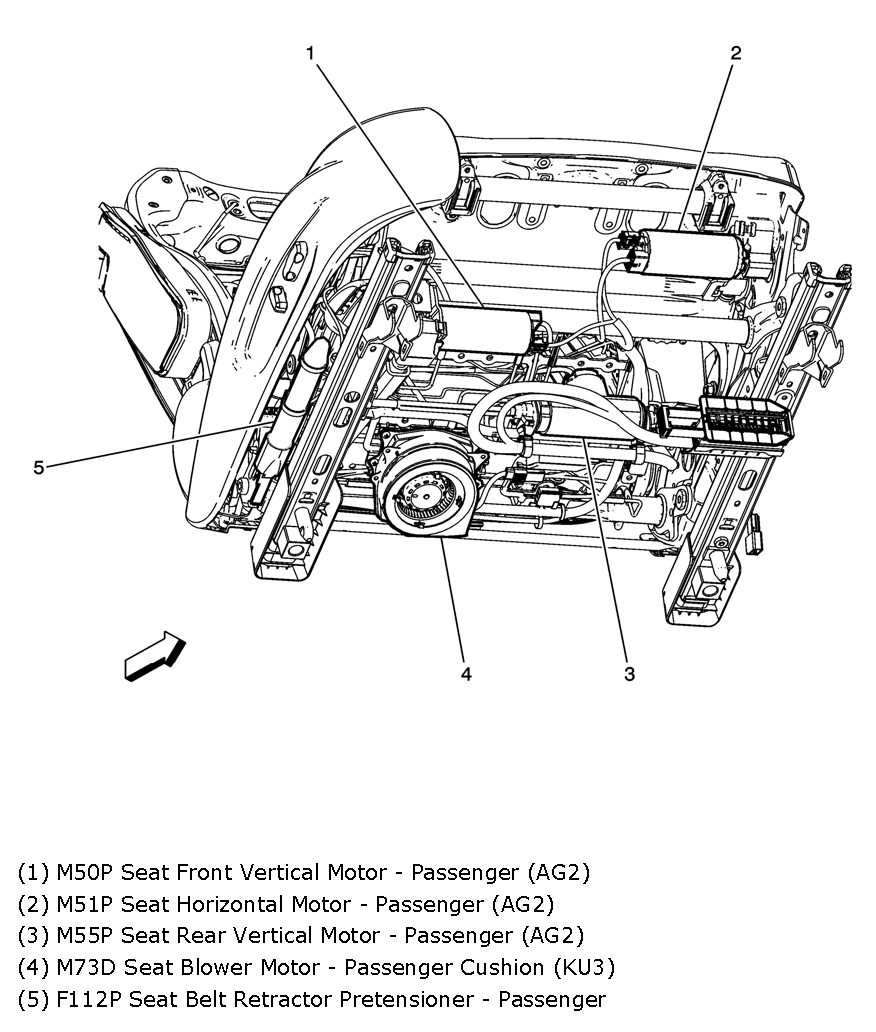

Fig 25: Front Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 26: Under Front Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 27: Front Passenger Seat
Courtesy of GENERAL MOTORS CORP.

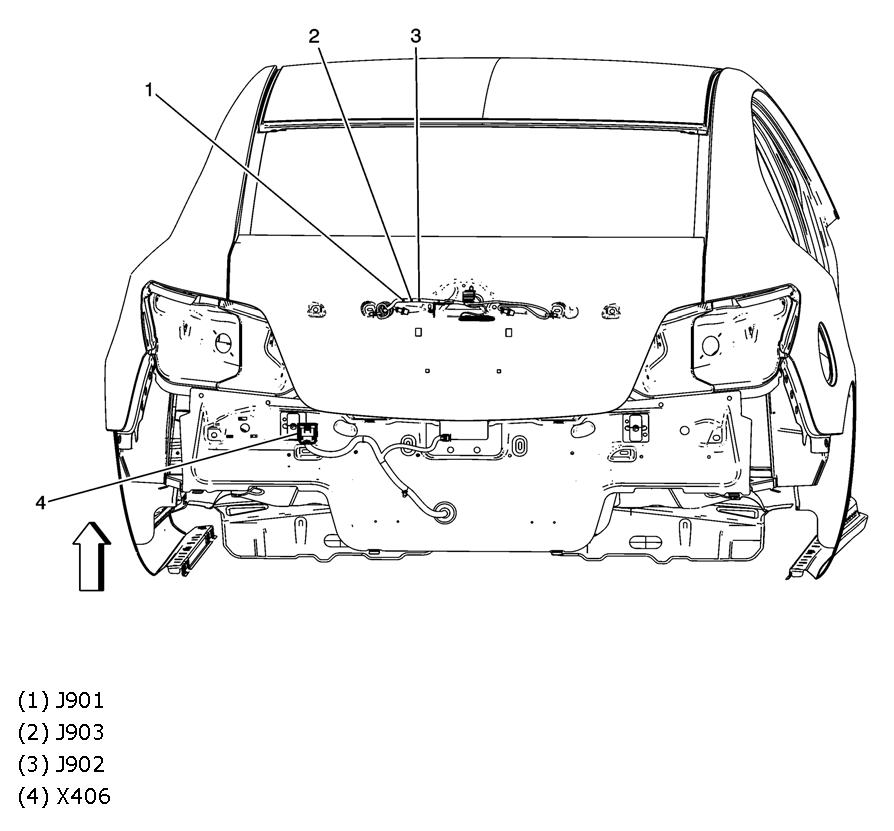

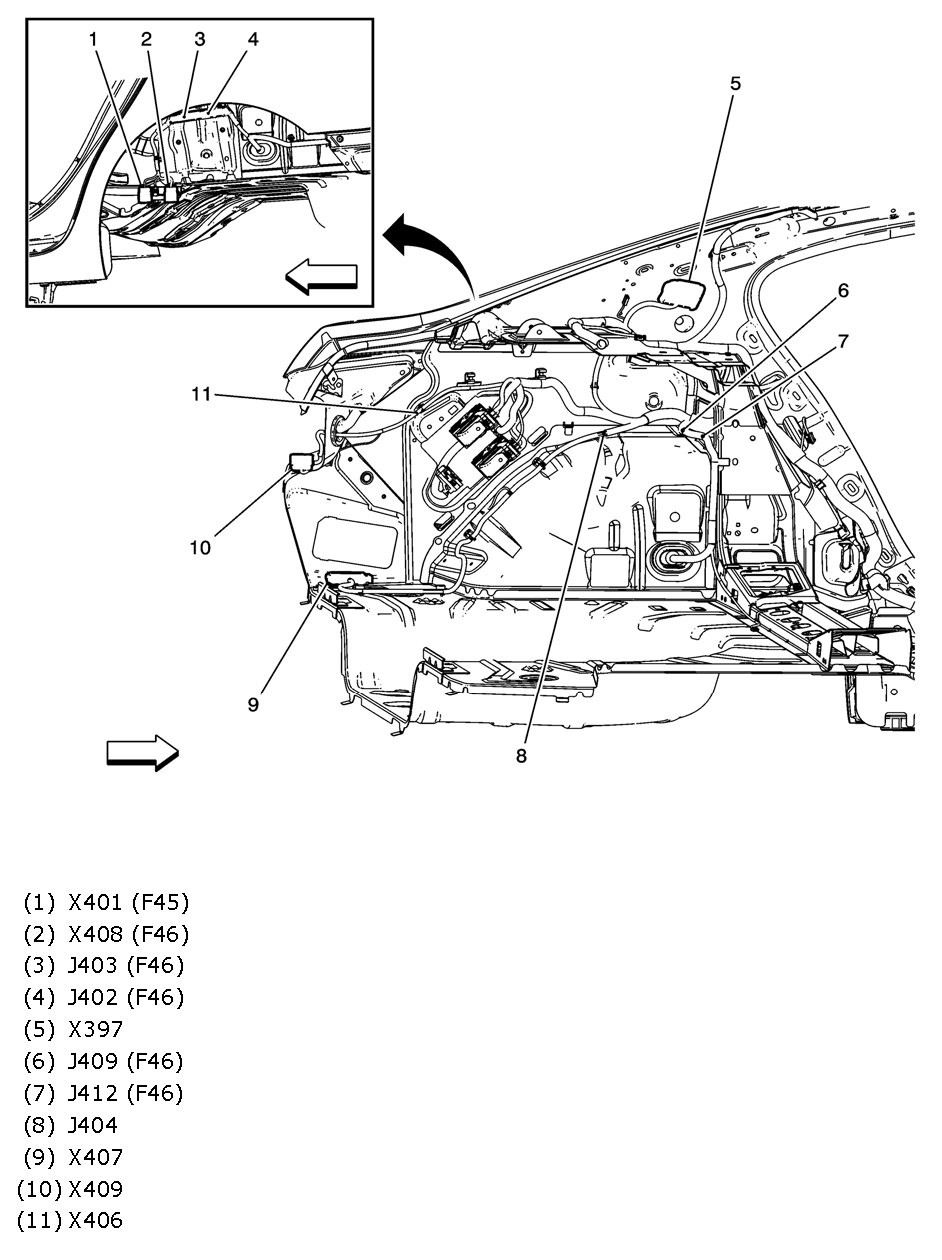

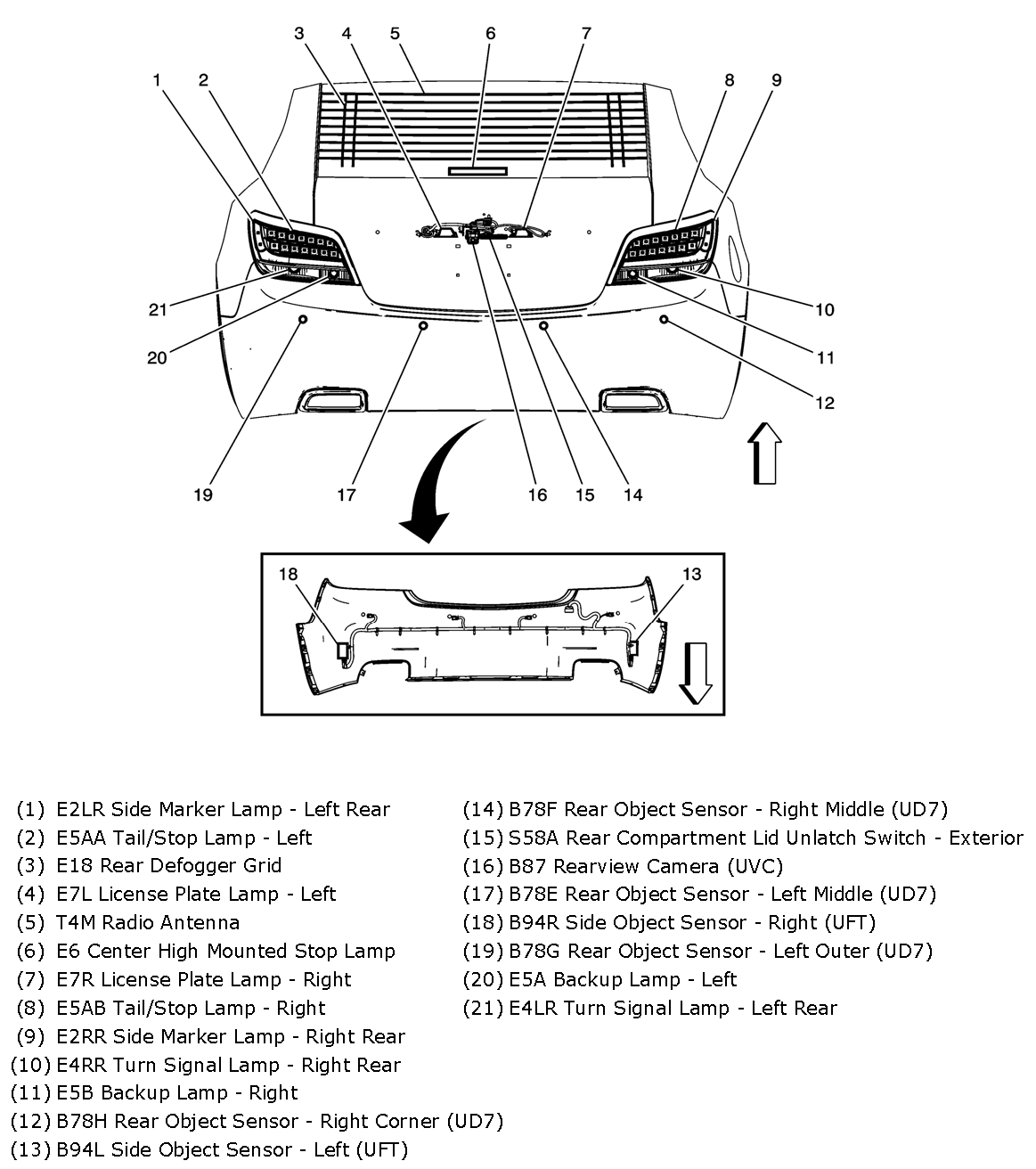

Fig 28: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 29: Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

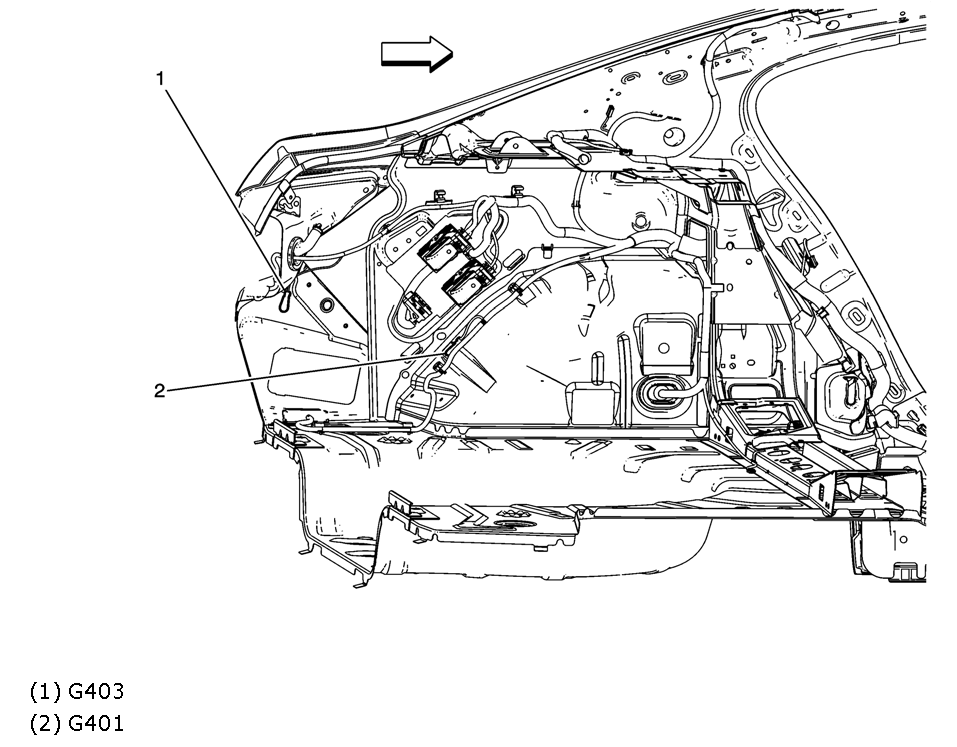

Fig 30: Right Rear Of Vehicle & Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.

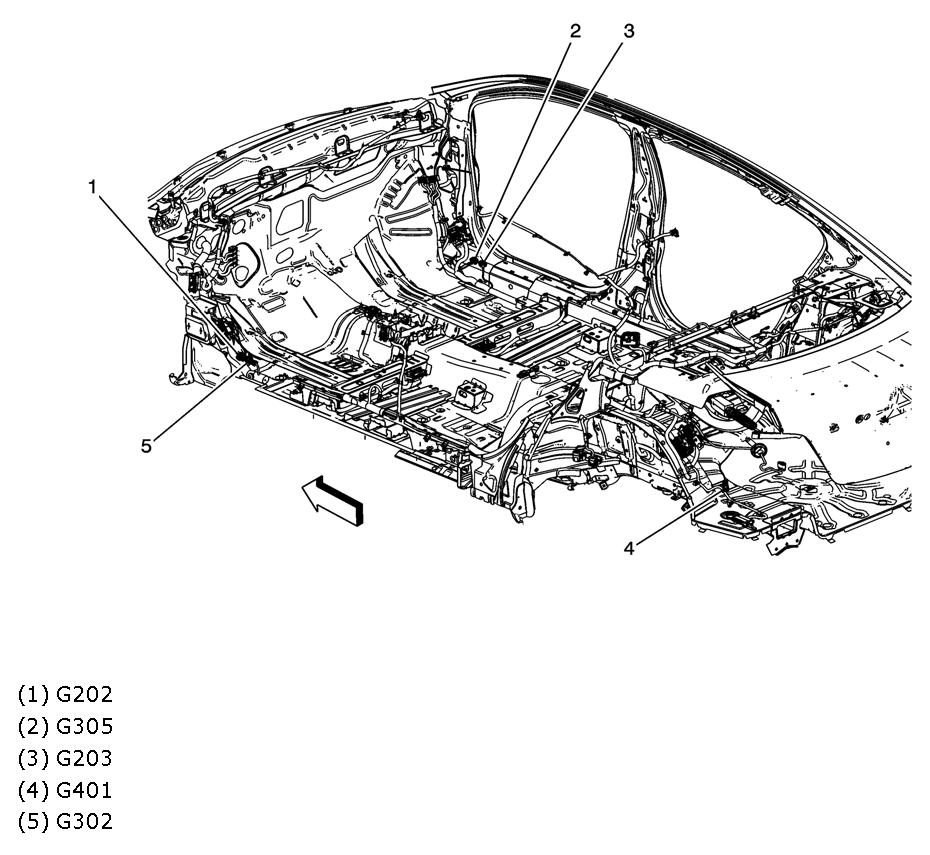

Fig 31: Vehicle Underbody
Courtesy of GENERAL MOTORS CORP.

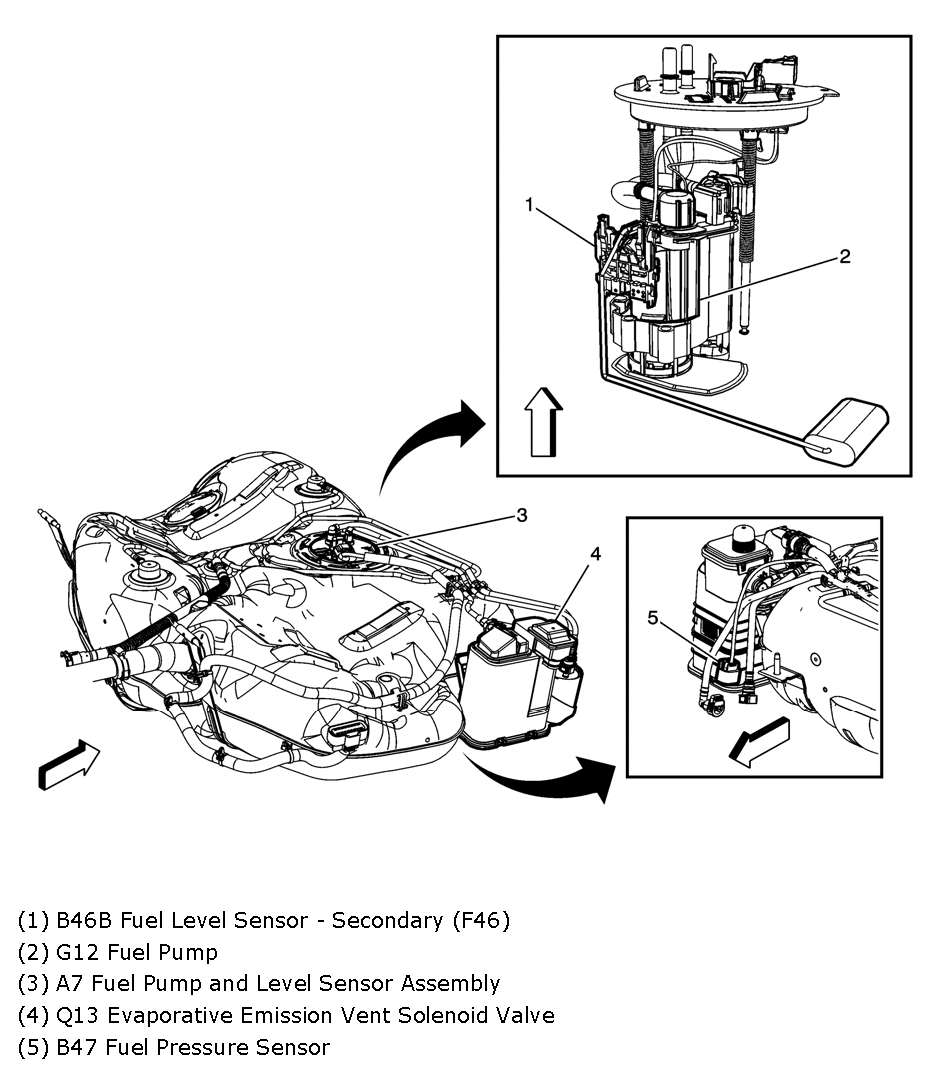

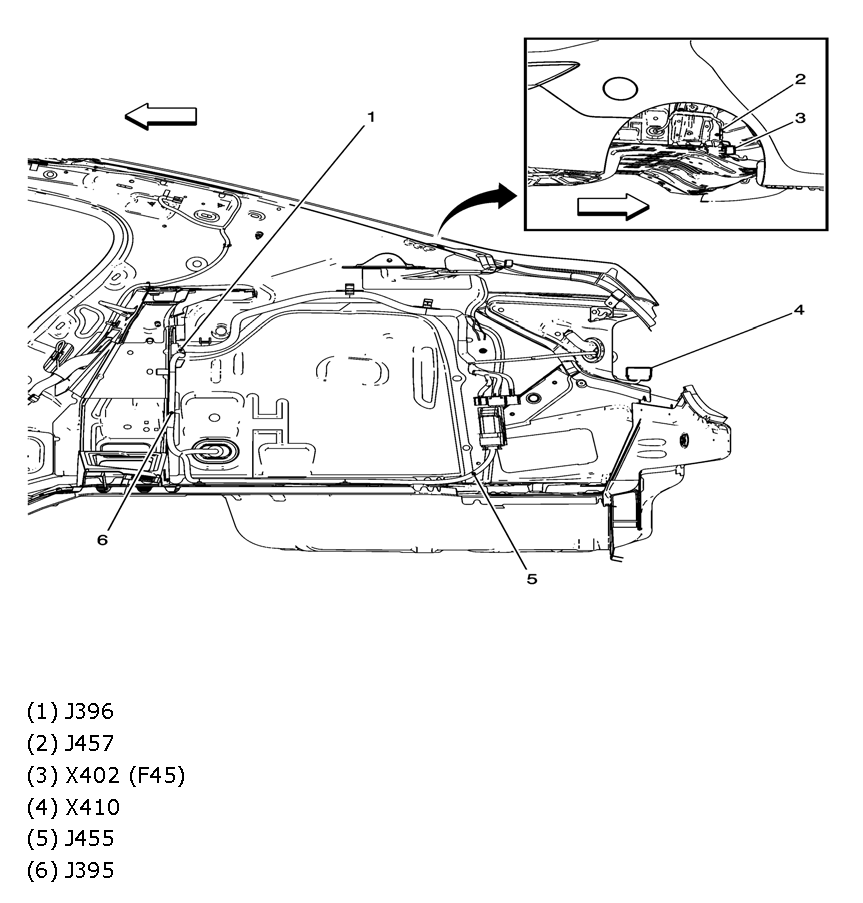

Fig 32: Fuel Tank
Courtesy of GENERAL MOTORS CORP.

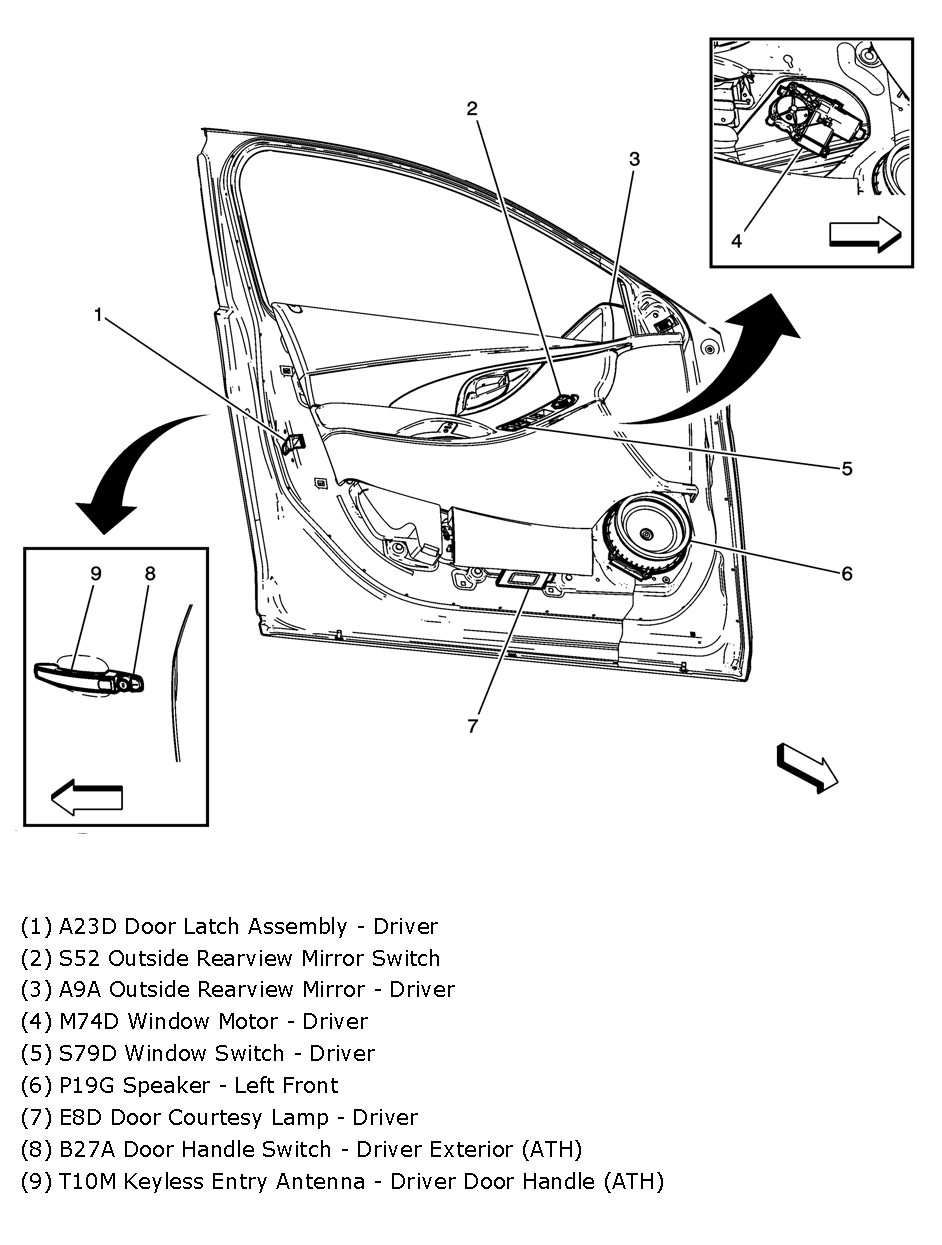

Fig 33: Left Front Door (Right Similar)
Courtesy of GENERAL MOTORS CORP.

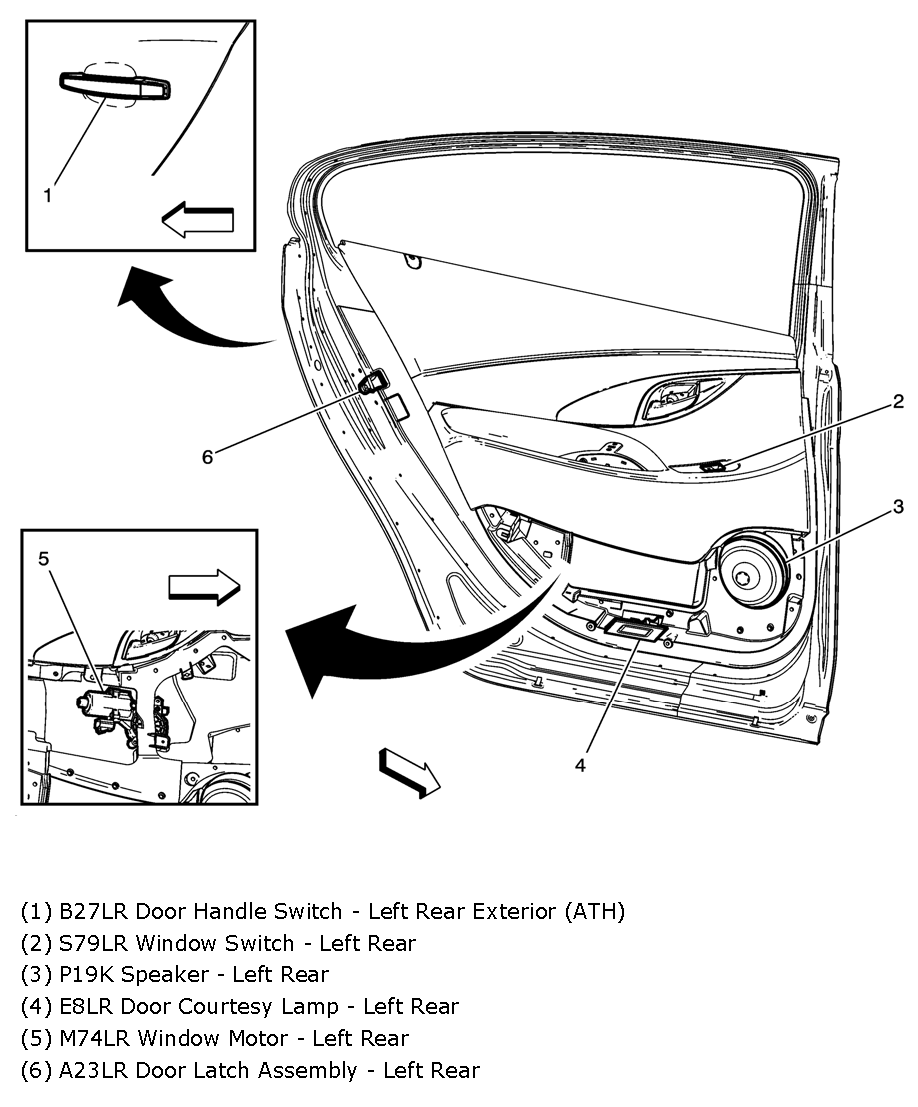

Fig 34: Left Rear Door (Right Similar)
Courtesy of GENERAL MOTORS CORP.

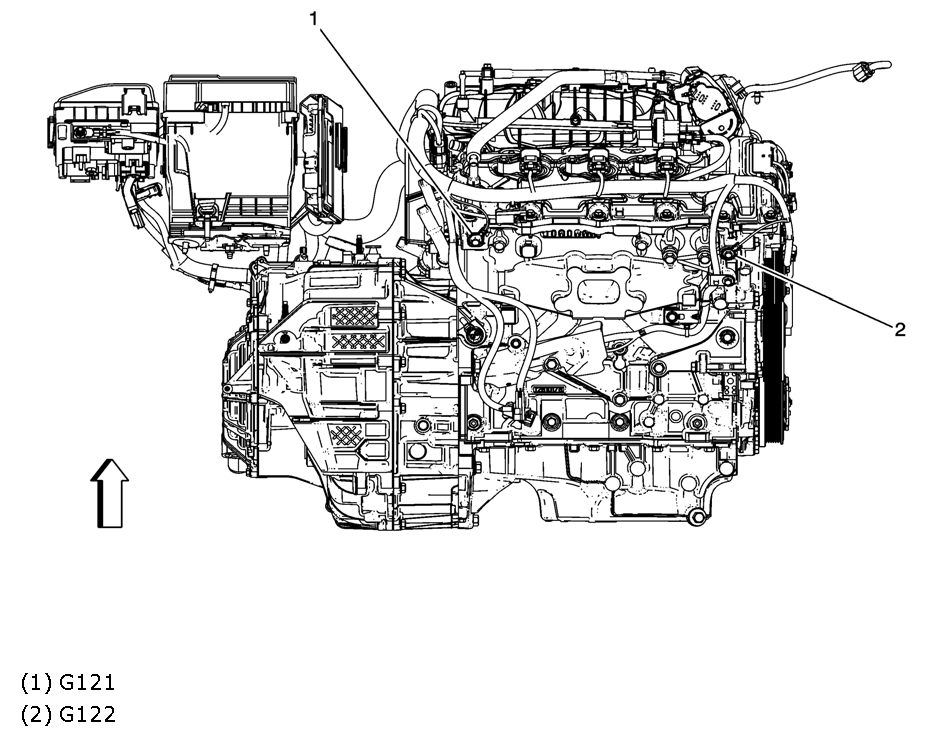

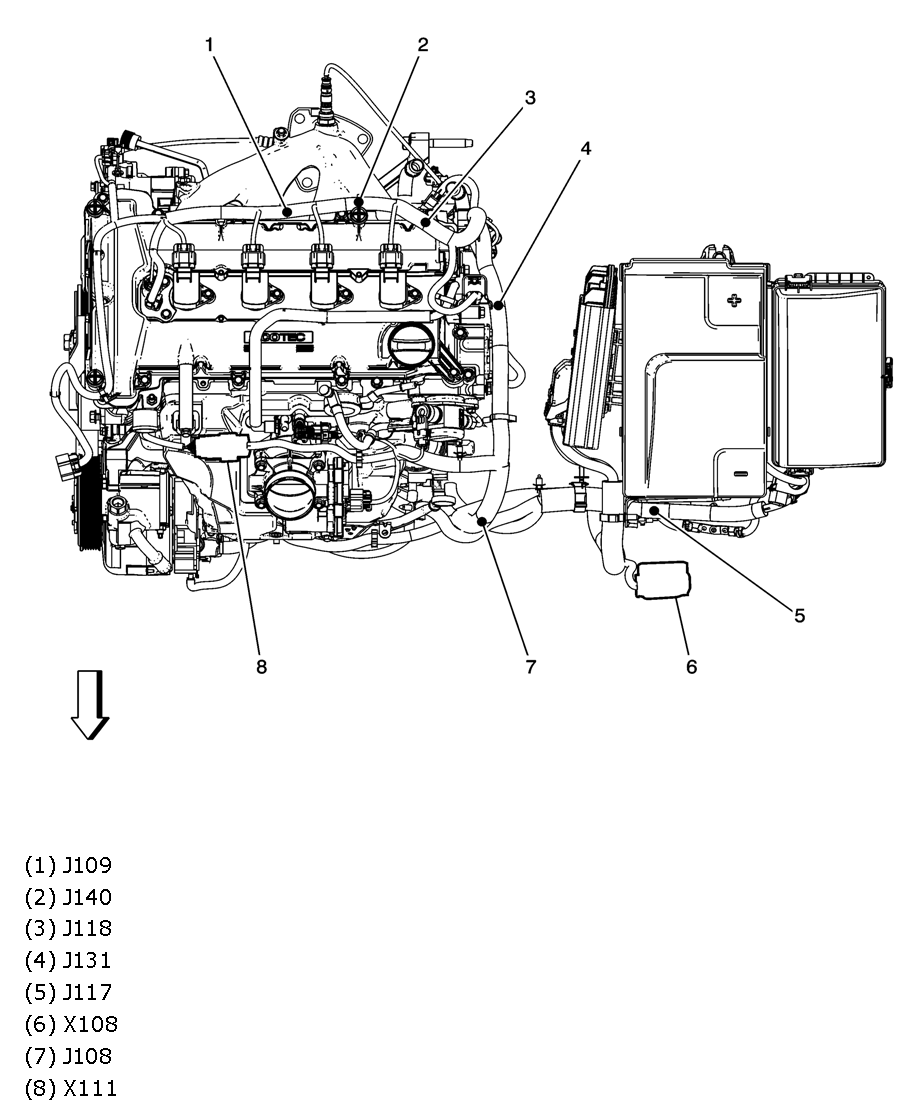

Fig 35: Engine Compartment Harness
Courtesy of GENERAL MOTORS CORP.
Fig 36: Engine Compartment Harness
Courtesy of GENERAL MOTORS CORP.

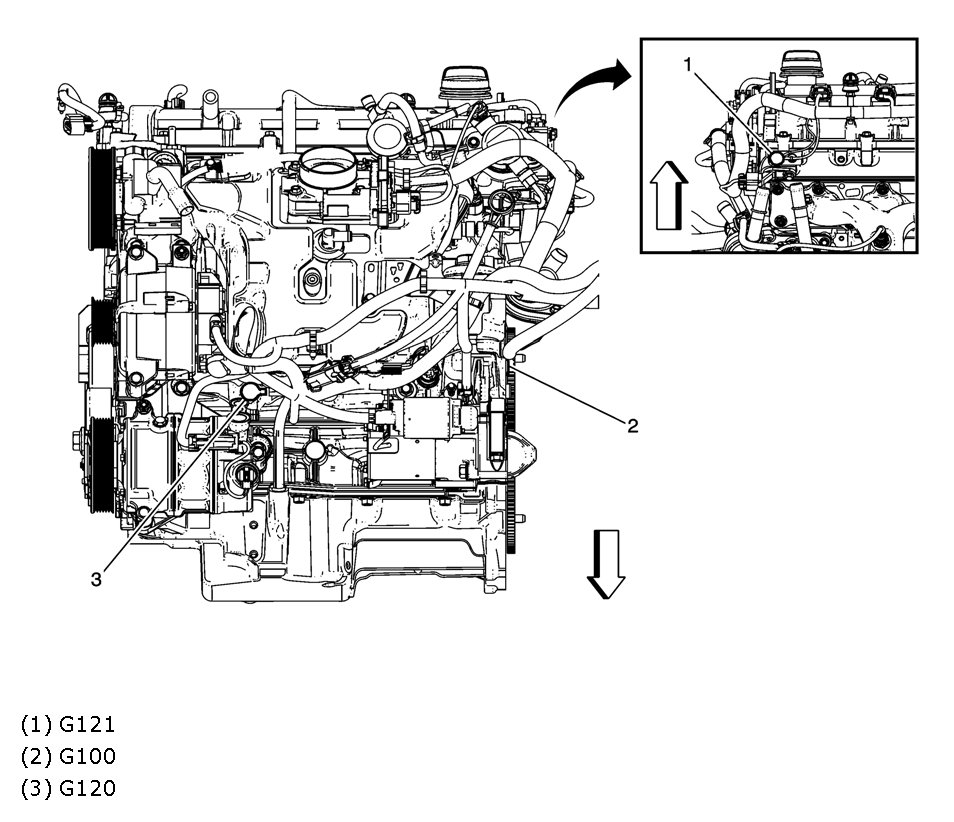

Fig 37: Engine Harness (2.4L)
Courtesy of GENERAL MOTORS CORP.

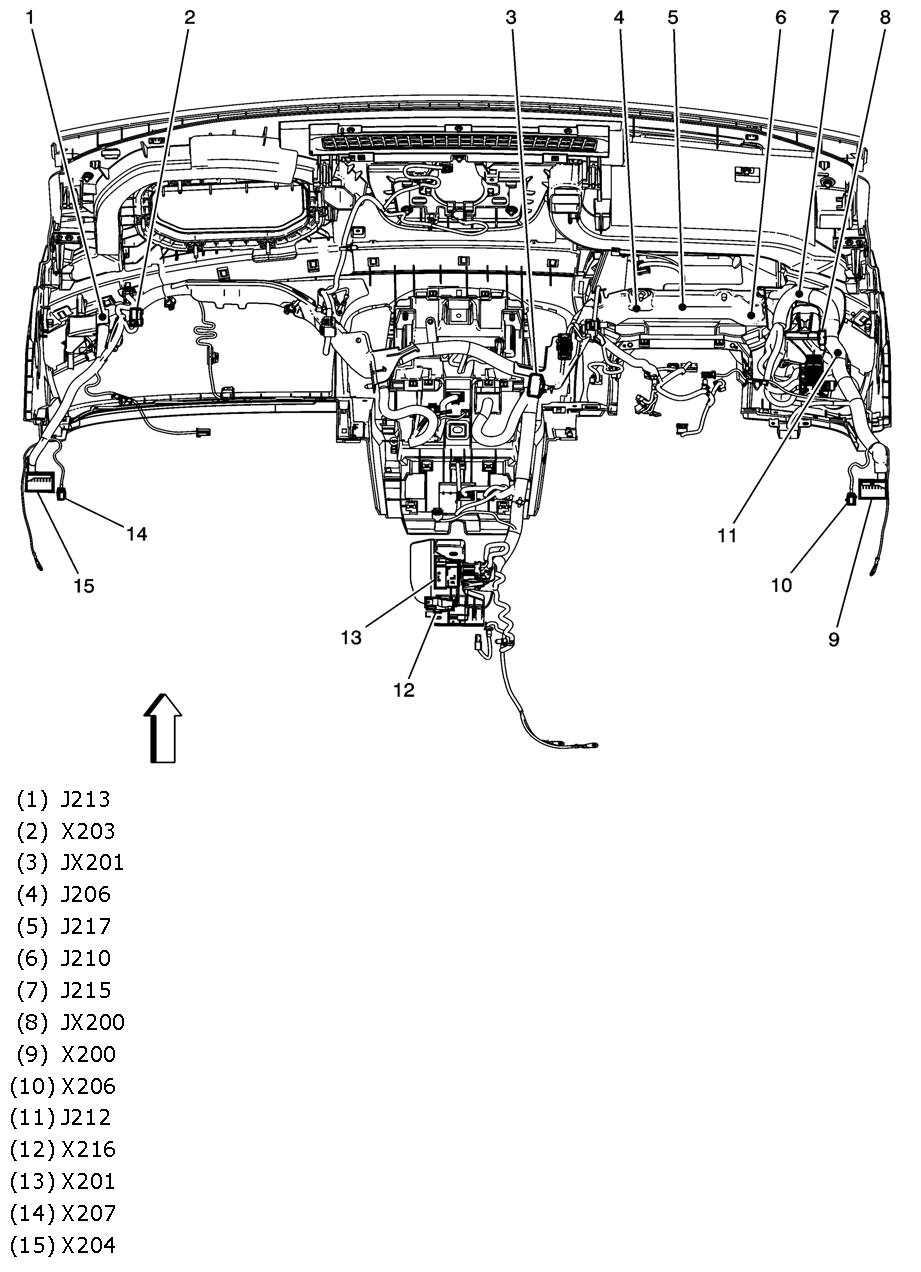

Fig 38: Instrument Panel Harness
Courtesy of GENERAL MOTORS CORP.
Fig 39: Floor Console Harness
Courtesy of GENERAL MOTORS CORP.

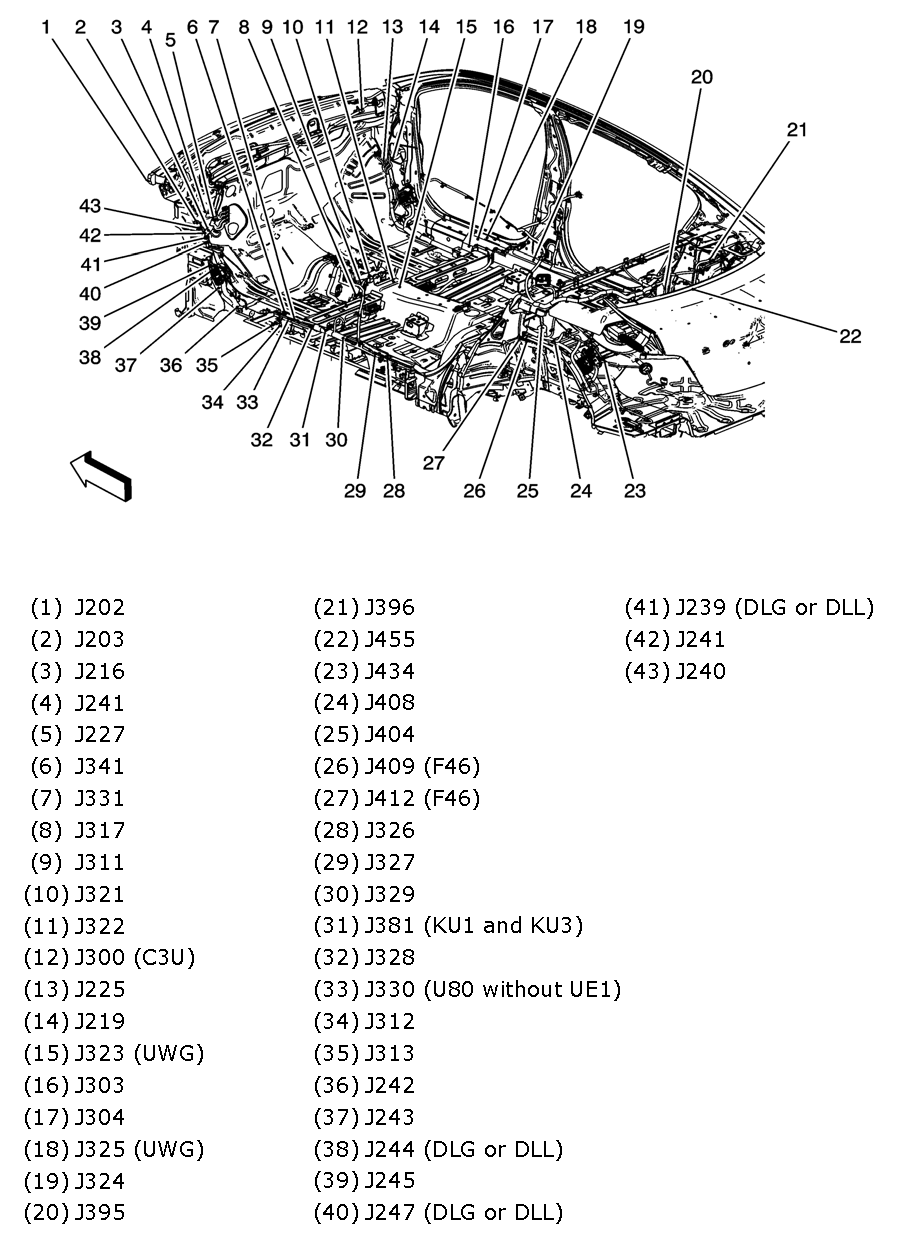

Fig 40: Body Harness
Courtesy of GENERAL MOTORS CORP.
Fig 41: Body Harness
Courtesy of GENERAL MOTORS CORP.

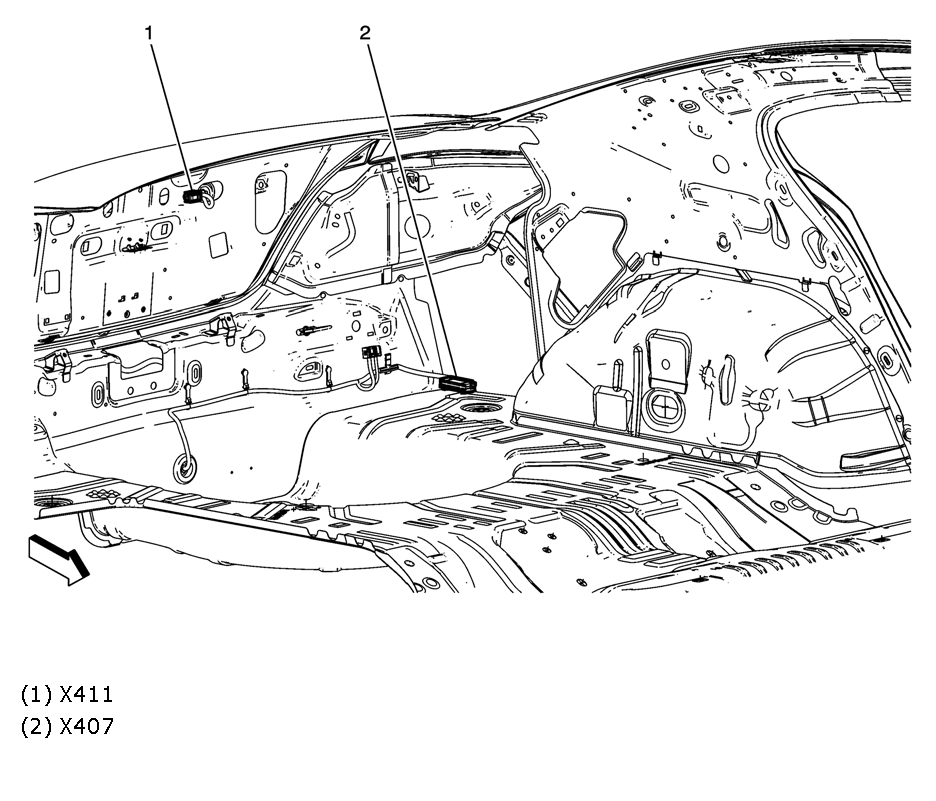

Fig 42: Body & License Lamp Harness
Courtesy of GENERAL MOTORS CORP.

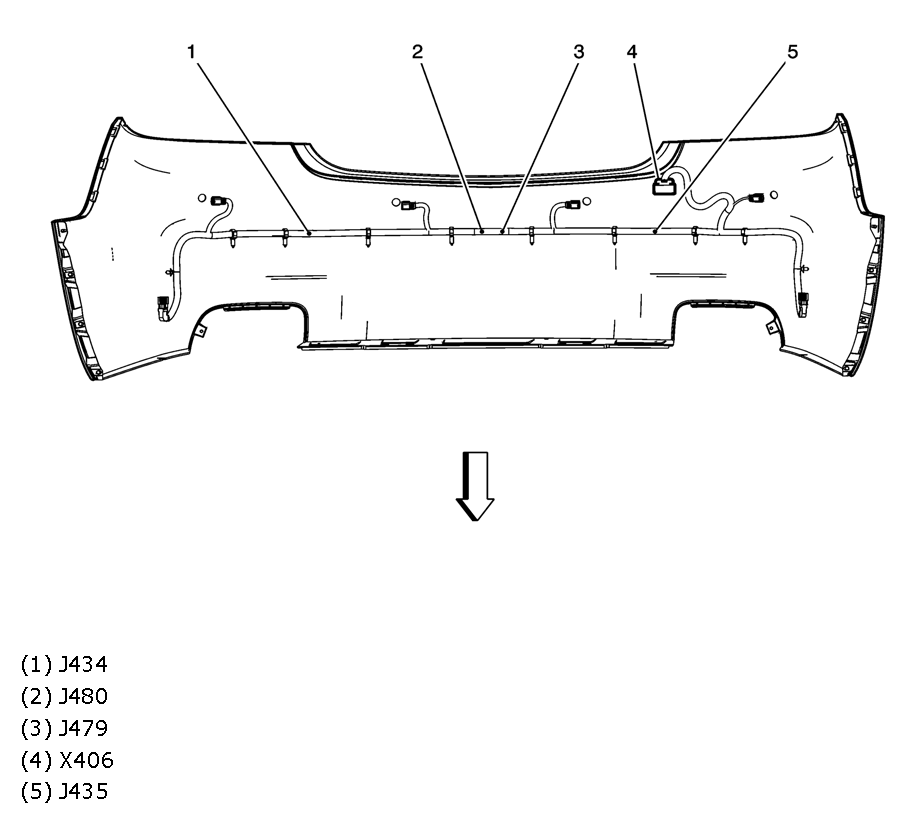

Fig 43: Rear Park Assist Harness
Courtesy of GENERAL MOTORS CORP.
Fig 44: Body & License Lamp Harness
Courtesy of GENERAL MOTORS CORP.

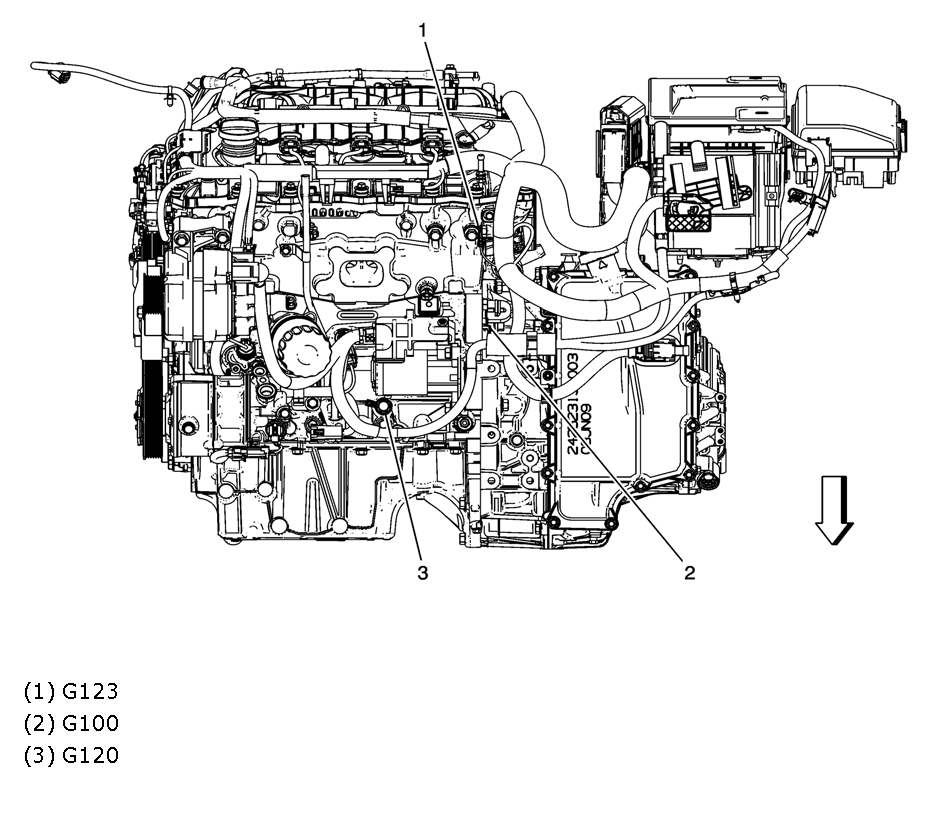

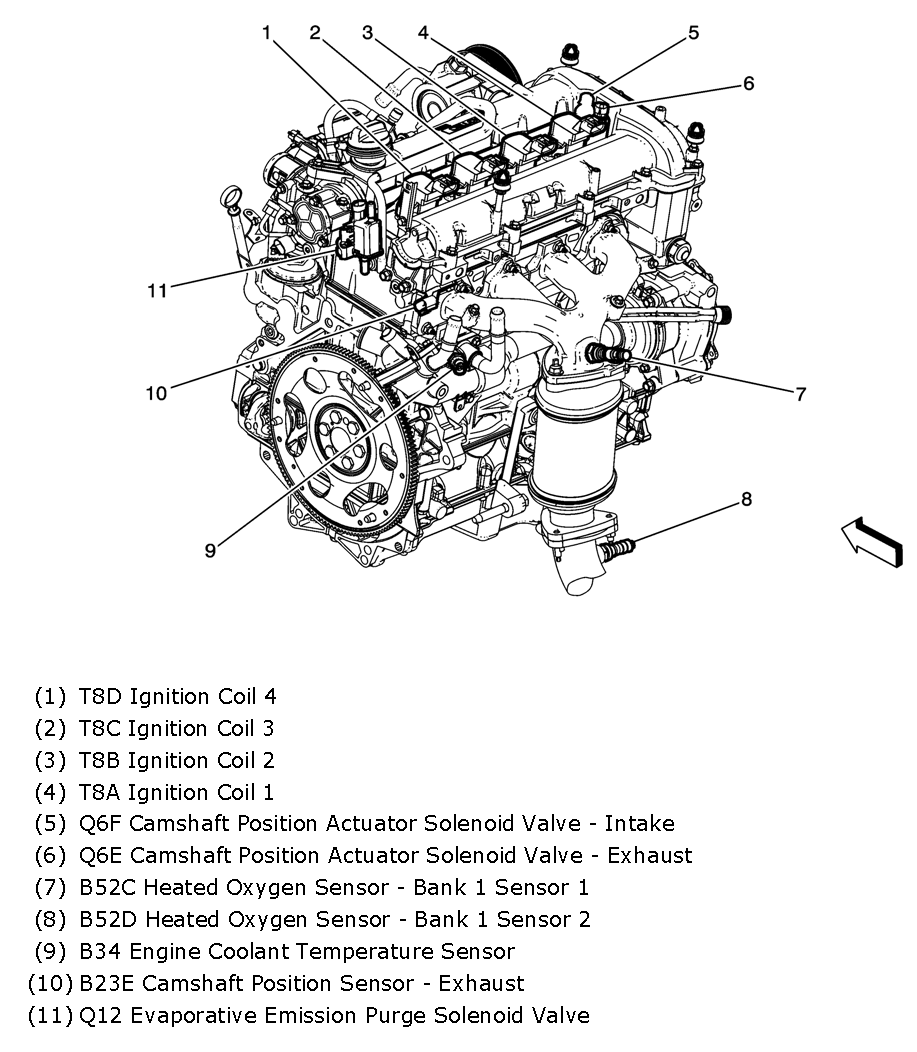

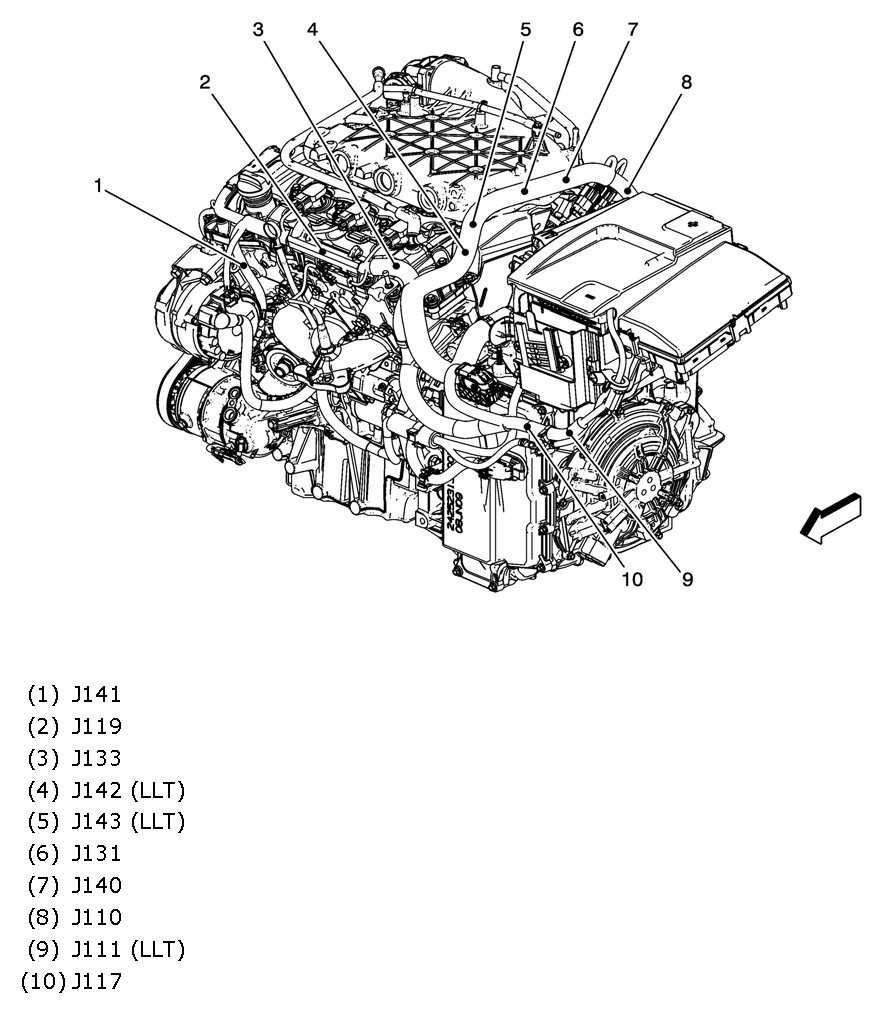

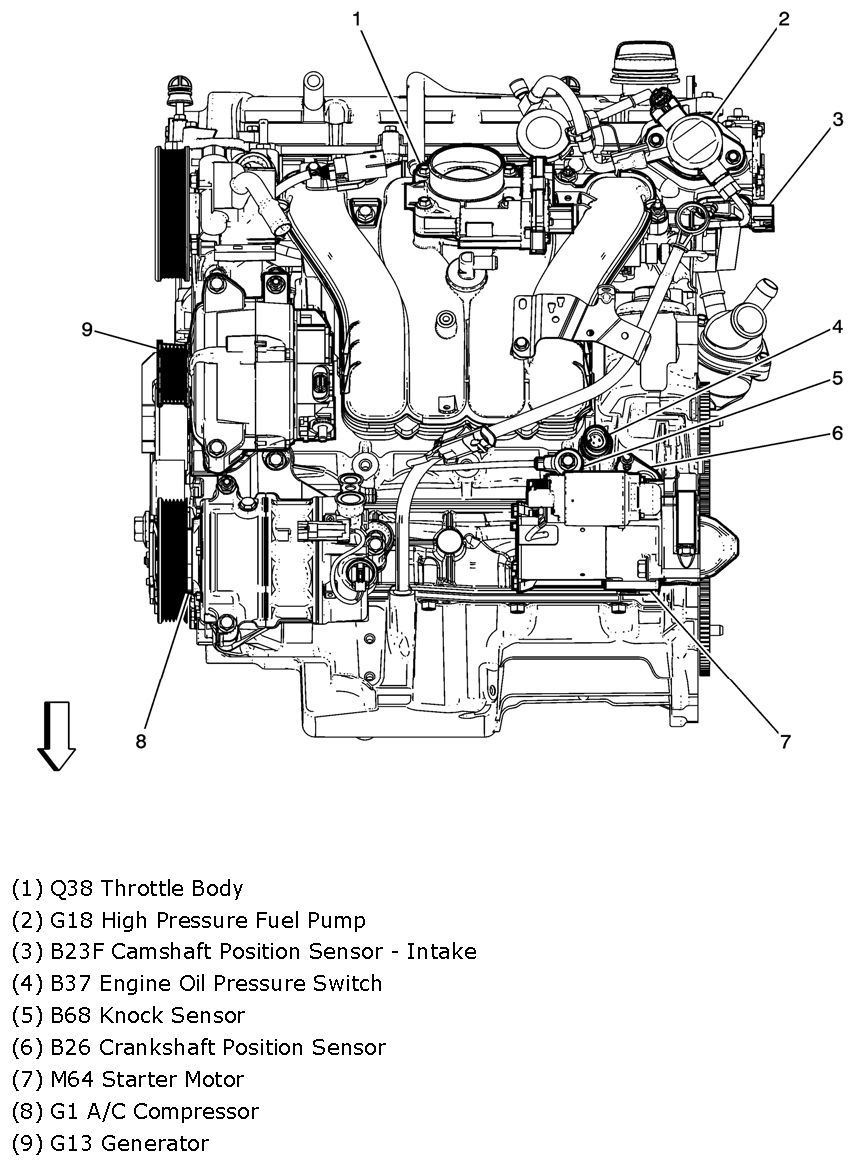

Fig 45: Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Engine (3.0L & 3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 48: Engine (3.0L & 3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Rear Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 50: Right Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

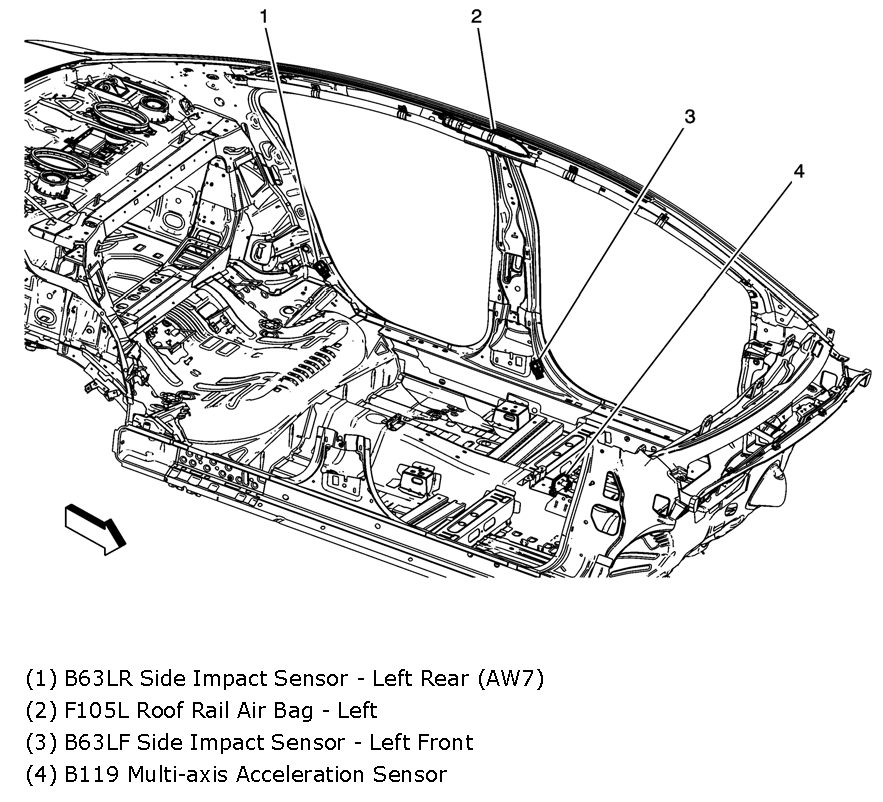

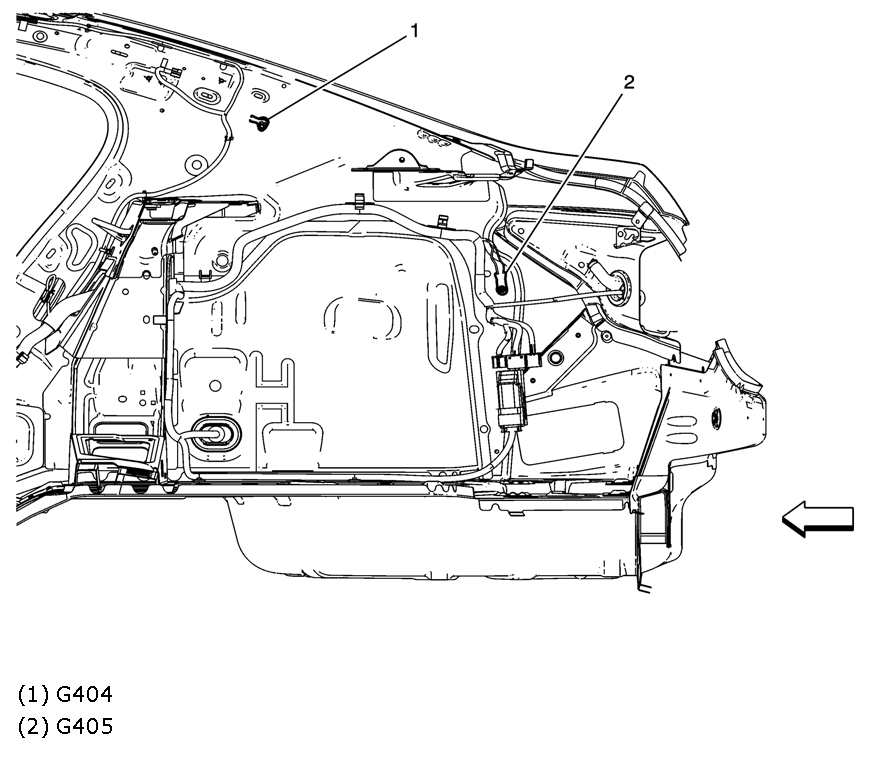

Fig 51: Left Side Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 52: Right Side Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 53: Engine (3.0L & 3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 54: Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

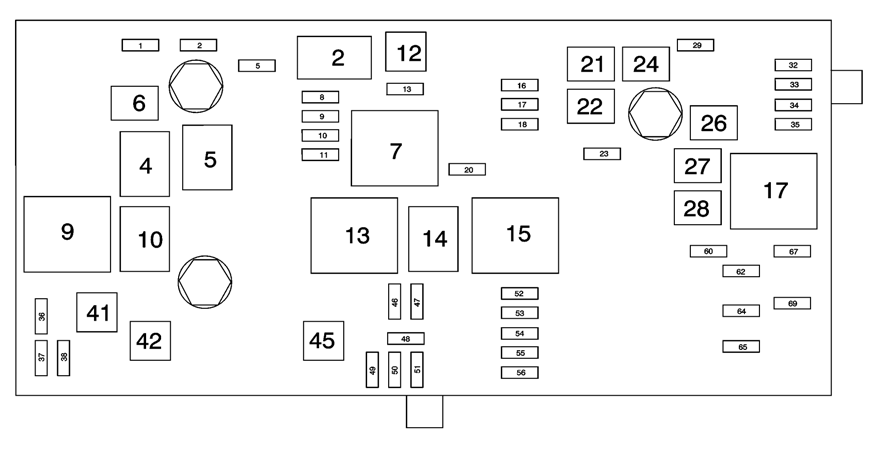

Fig 55: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

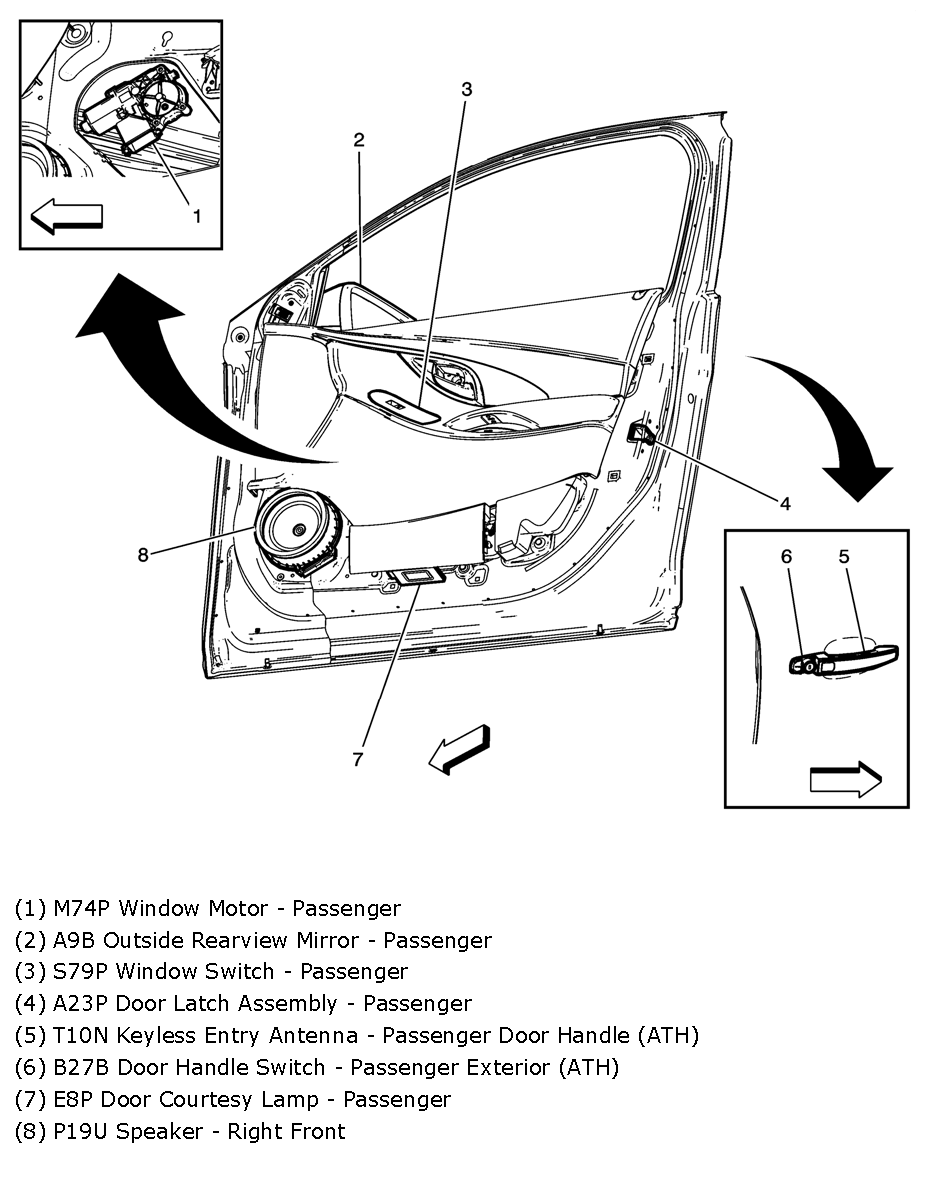

Fig 56: Right Front Door Components
Courtesy of GENERAL MOTORS CORP.
