Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

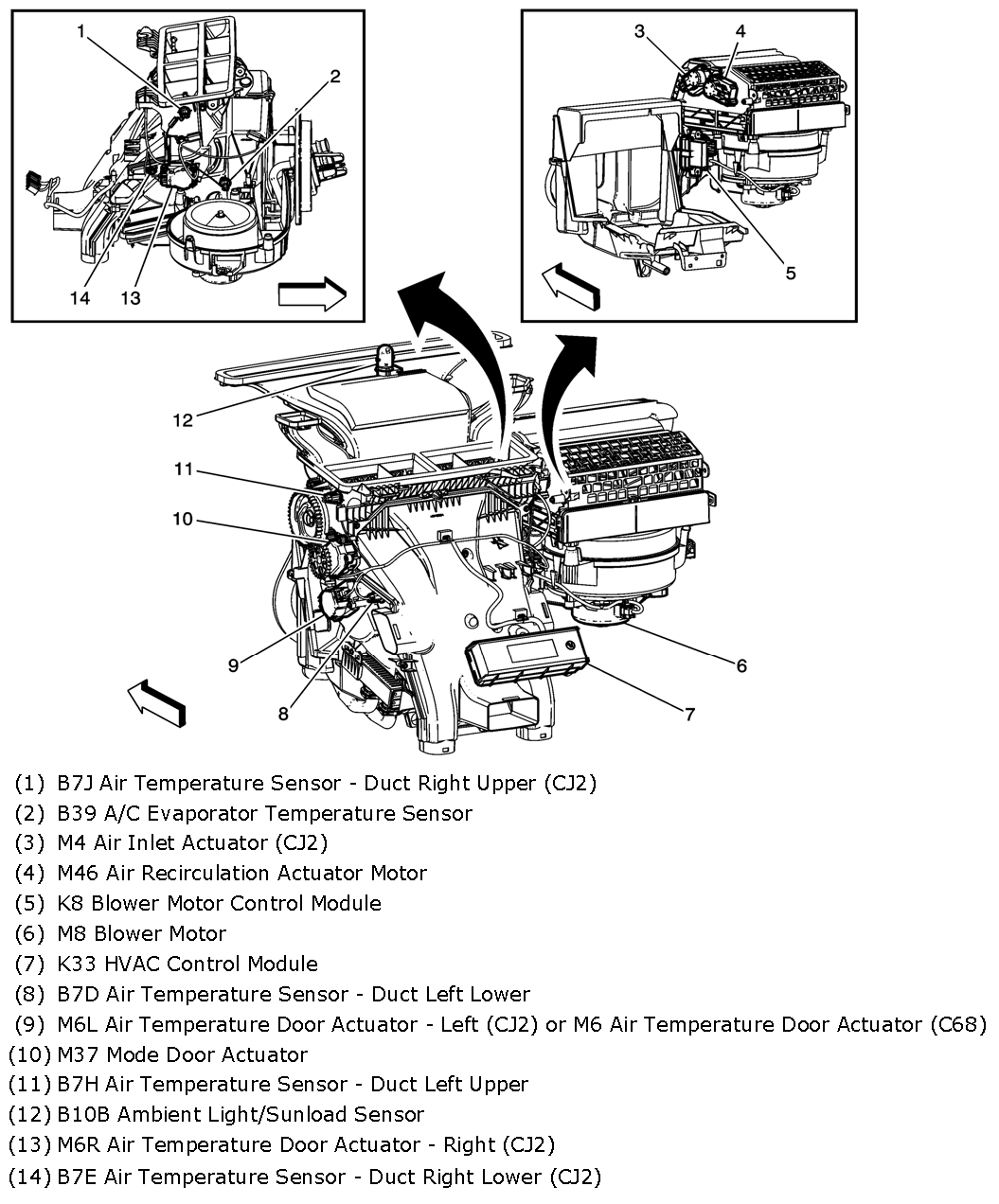

| Blower Motor Control Module | Right side of dash. See Figure. |
| Body Control Module | Left side of dash. See Figure. |
| Electronic Brake Control Module | Left side of engine compartment. See Figure. |
| Engine Control Module | Left front of engine compartment. See Figure. |

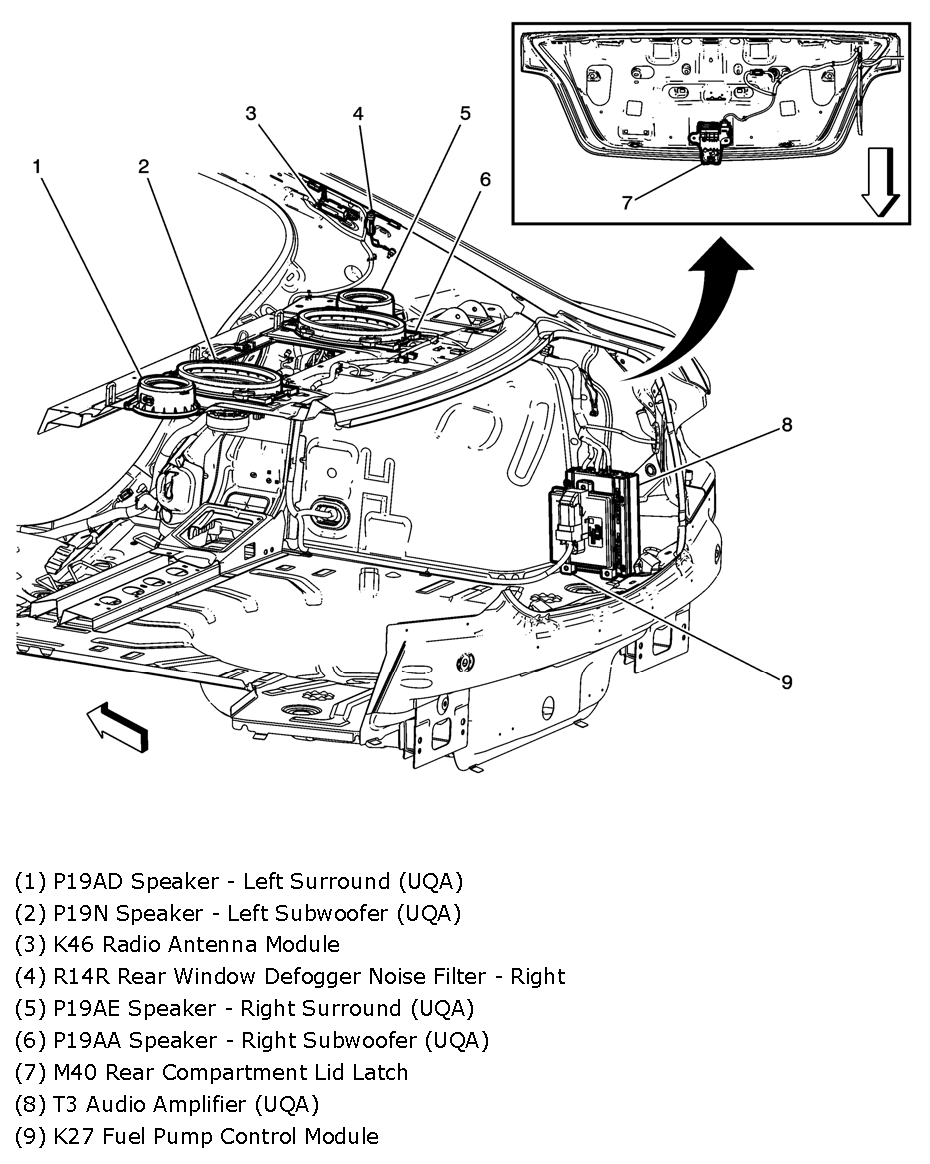

| Fuel Pump Control Module | Right rear corner of rear compartment. See Figure. |
| Headlamp Leveling Control Module | Lower left side of dash behind body control module. See Figure. |

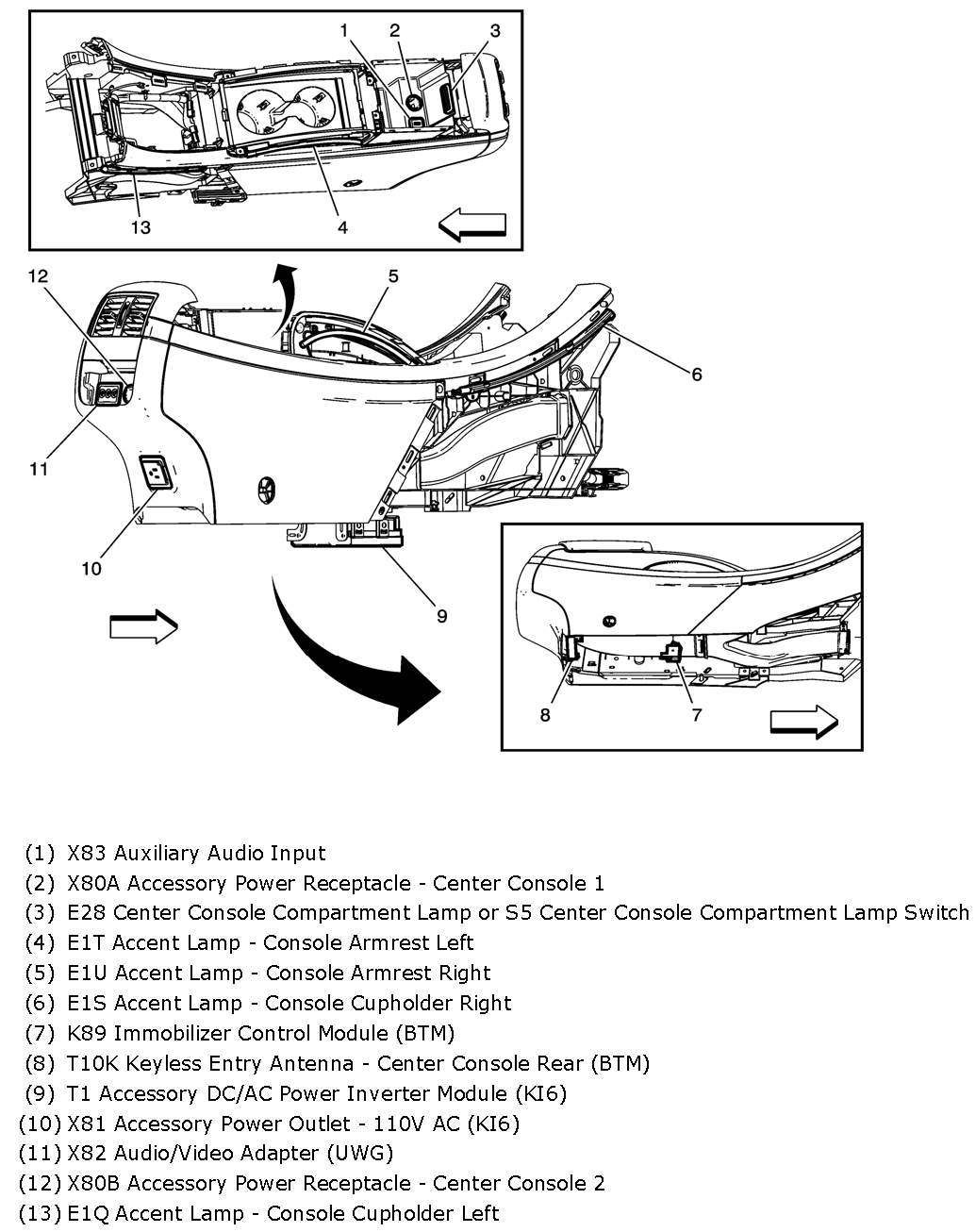

| Immobilizer Control Module (Keyless) | Center console. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module | Below Center Console. See Figure. |
| Keyless Entry Control Module | Right kick panel. |
| Parking Assist Control Module | Center of rear package shelf. See Figure. |

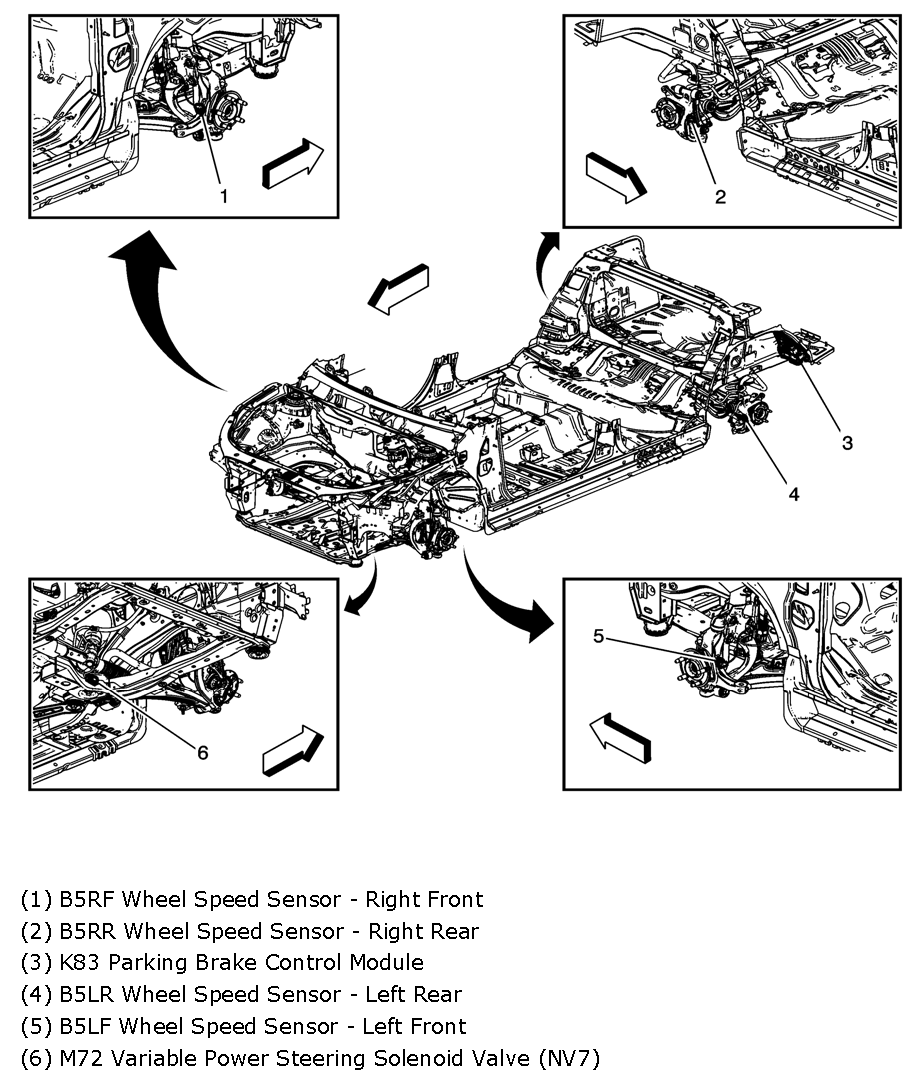

| Parking Brake Control Module | Behind left rear wheel liner. See Figure. |

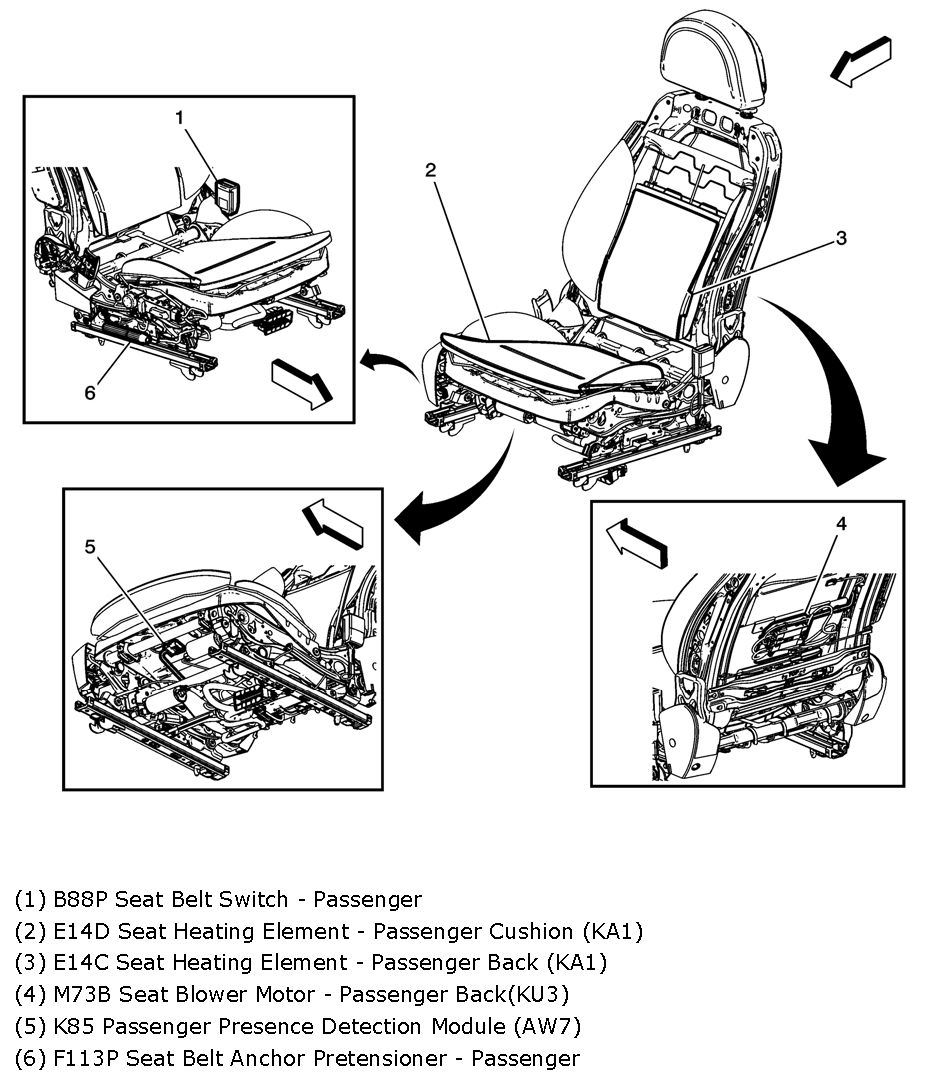

| Passenger Presence Detection Module | Under front passenger's seat. See Figure. |
| Power Steering Control Module | Lower left side of dash. See Figure. |
| Radio Antenna Module | Behind "C" pillar trim. See Figure. |
| Rear Differential Clutch Control Module | Mounted to rear differential. |
| Rear Window Sunshade Control Module | Left side of rear window shelf. |
| Remote Control Door Lock Receiver (RCDLR) | Right side of dash. |

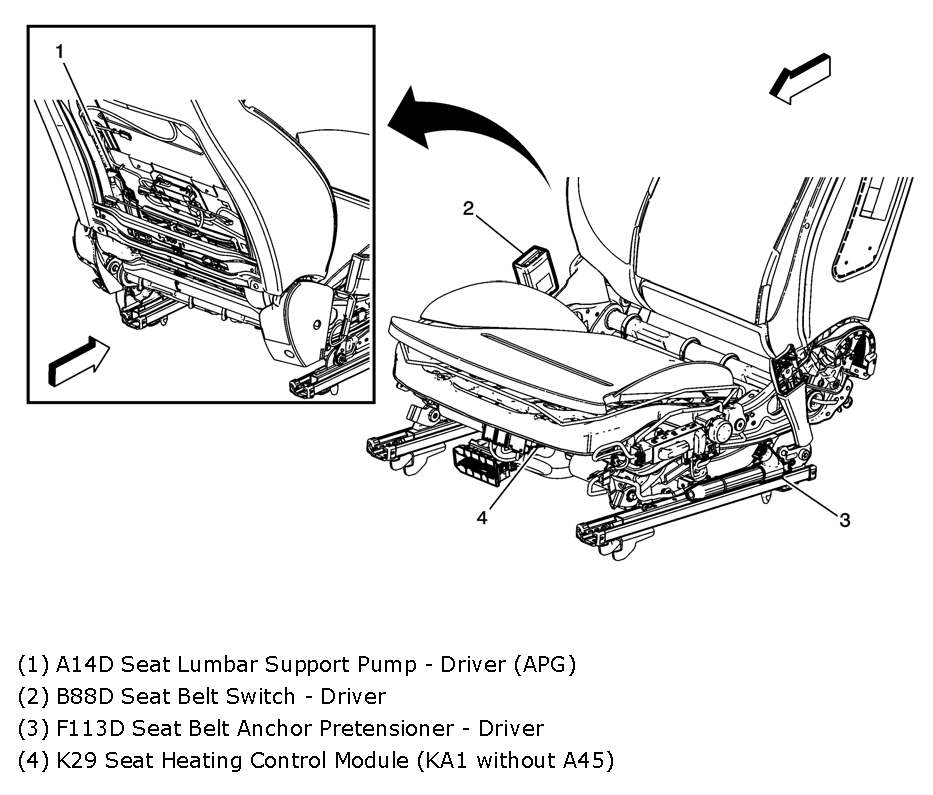

| Seat Heating Control Module | Under front center of driver seat. See Figure. |

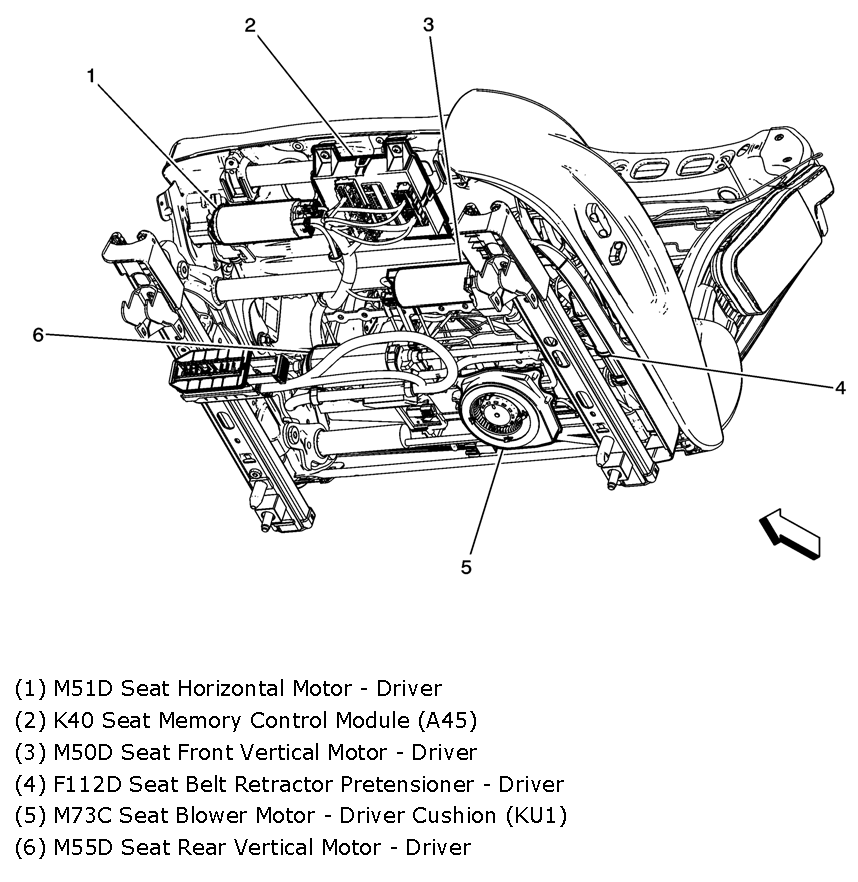

| Seat Memory Control Module | Under driver's seat. See Figure. |
| Steering Wheel Heating Control Module | Inside steering wheel. |

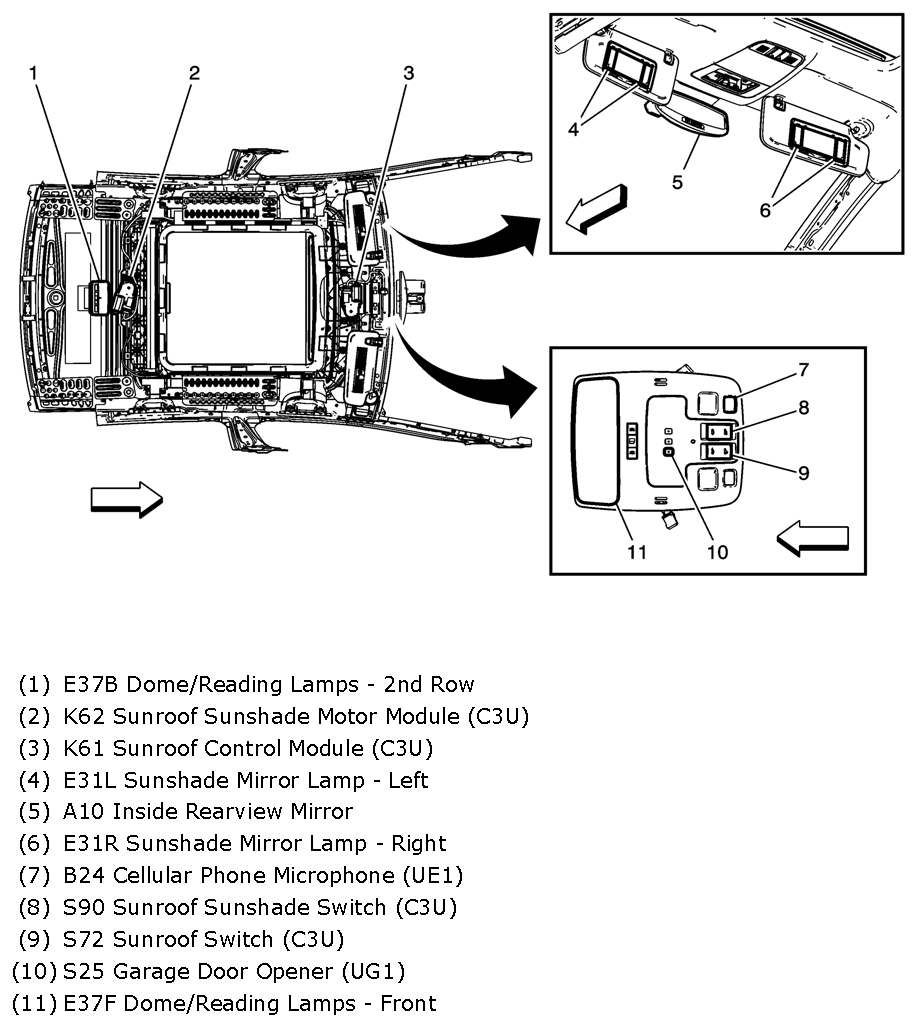

| Sunroof Control Module | Behind roof console. See Figure. |
| Sunroof Sunshade Motor Module | Rear of sunroof. See Figure. |
| Suspension Control Module | Left corner of rear compartment. See Figure. |

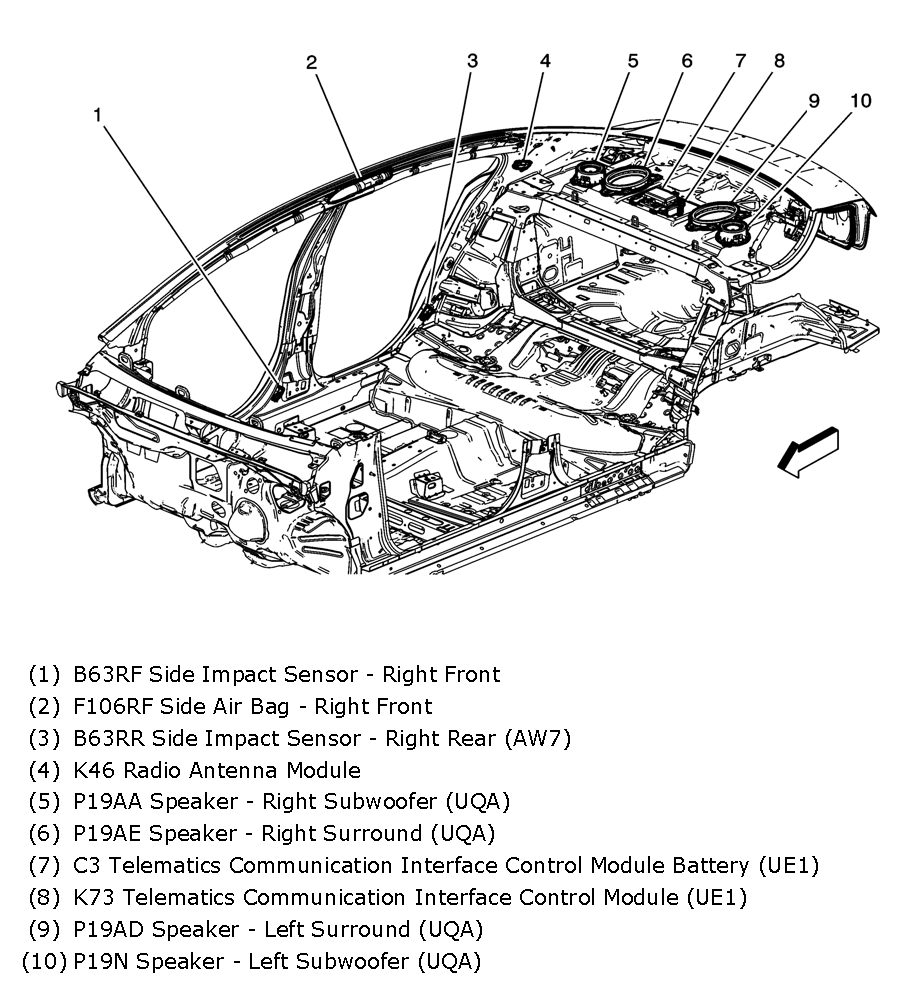

| Telematics Communications Interface Control Module | Center of rear window shelf. See Figure. |
| Transmission Control Module | Left front of engine compartment. |
