Remote Function Schematics
Remote Function Schematics

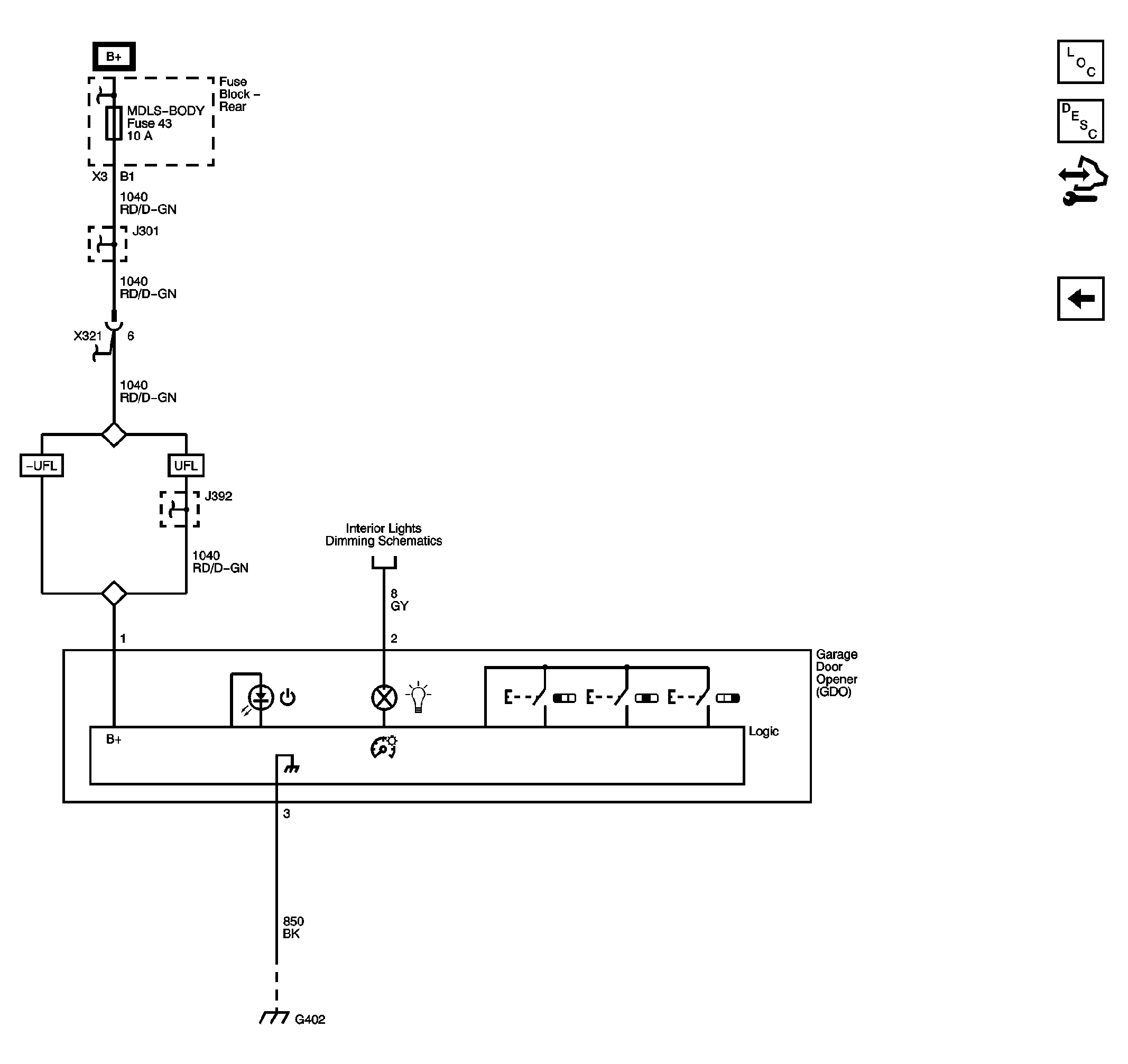

Fig 1: Garage Door Opener
Courtesy of GENERAL MOTORS CORP.

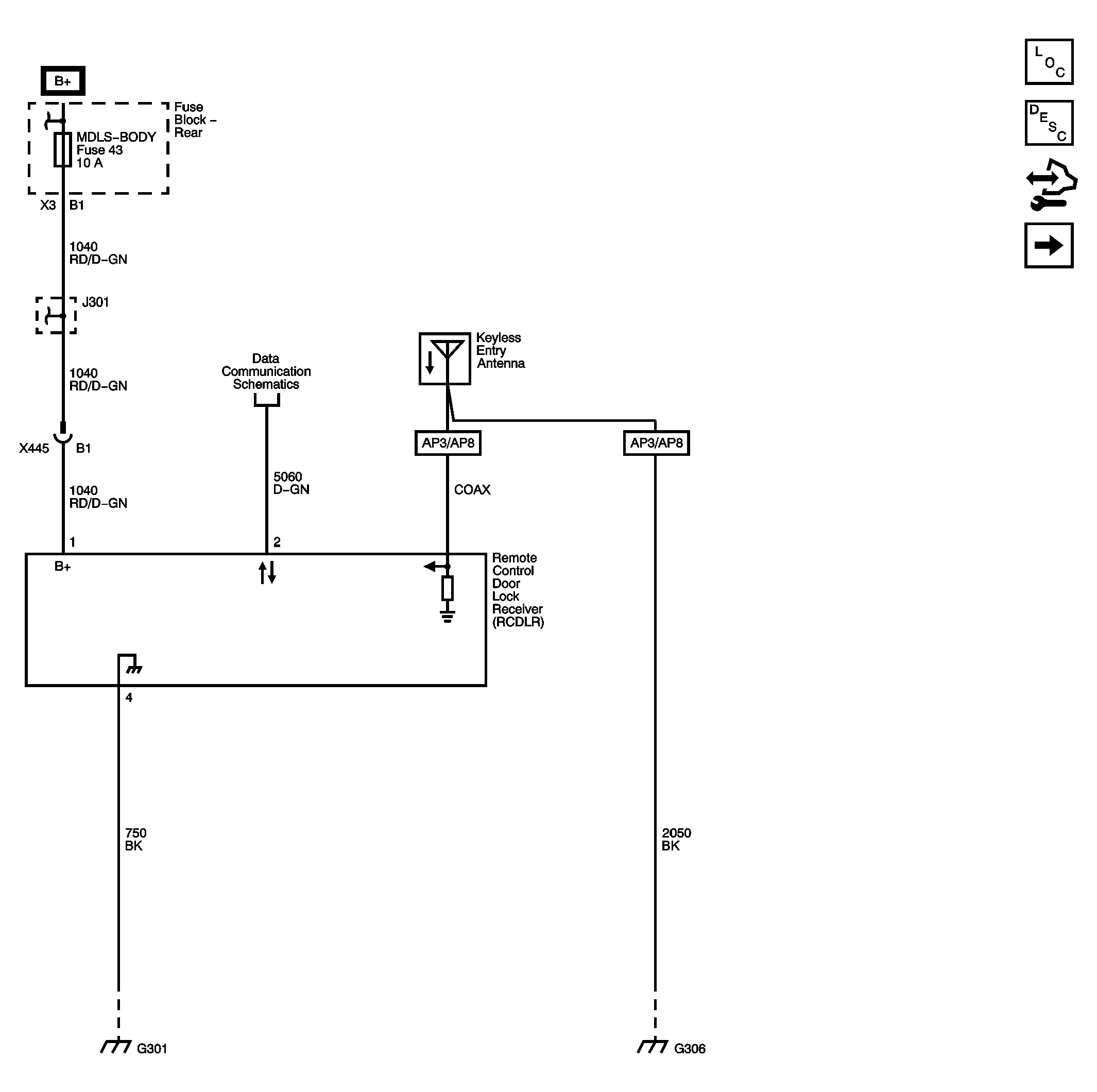

Fig 2: Remote Control Door Lock Receiver (RCDLR)
Courtesy of GENERAL MOTORS CORP.

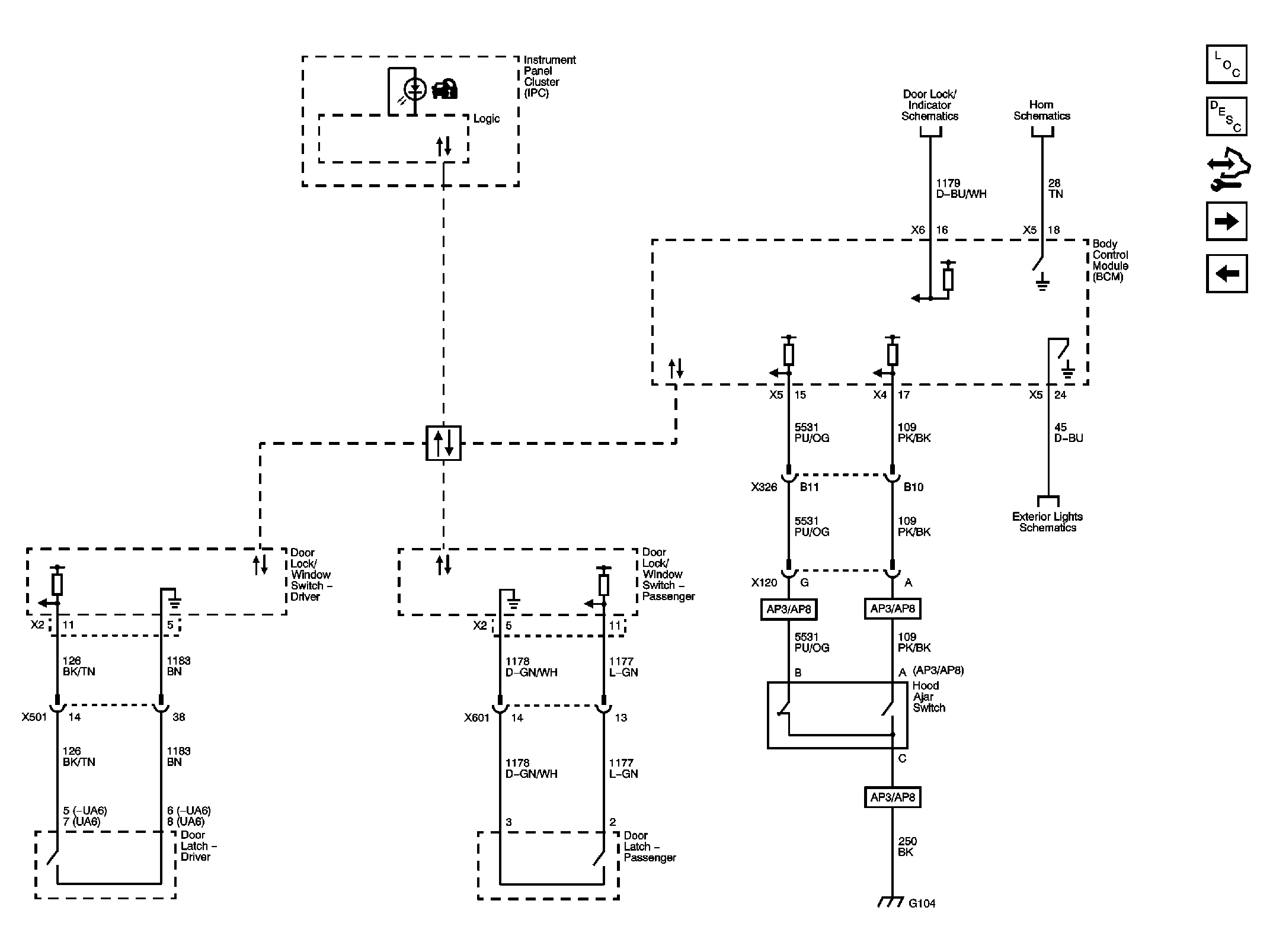

Fig 3: Door Latch Assemblies and Hood Ajar Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
