Ground Views

Fig 1: G101

GM1707103

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Front Strut Tower
2	G101

Fig 2: G104 and G111

GM1707099

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G104
2	Fuse Block - Underhood
3	G111

Fig 3: G110

GM1978253

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine - 4.6L
2	A/C Compressor Clutch
3	Generator
4	G110

Fig 4: G112, G114, and G115 (L37)

GM1707088

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Manifold
2	G114
3	G112
4	G115

Fig 5: G100 (L37)

GM1707093

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Gas Recirculation (EGR) Valve
2	Valve Cover
3	G100
4	Engine Coolant Temperature (ECT) Sensor

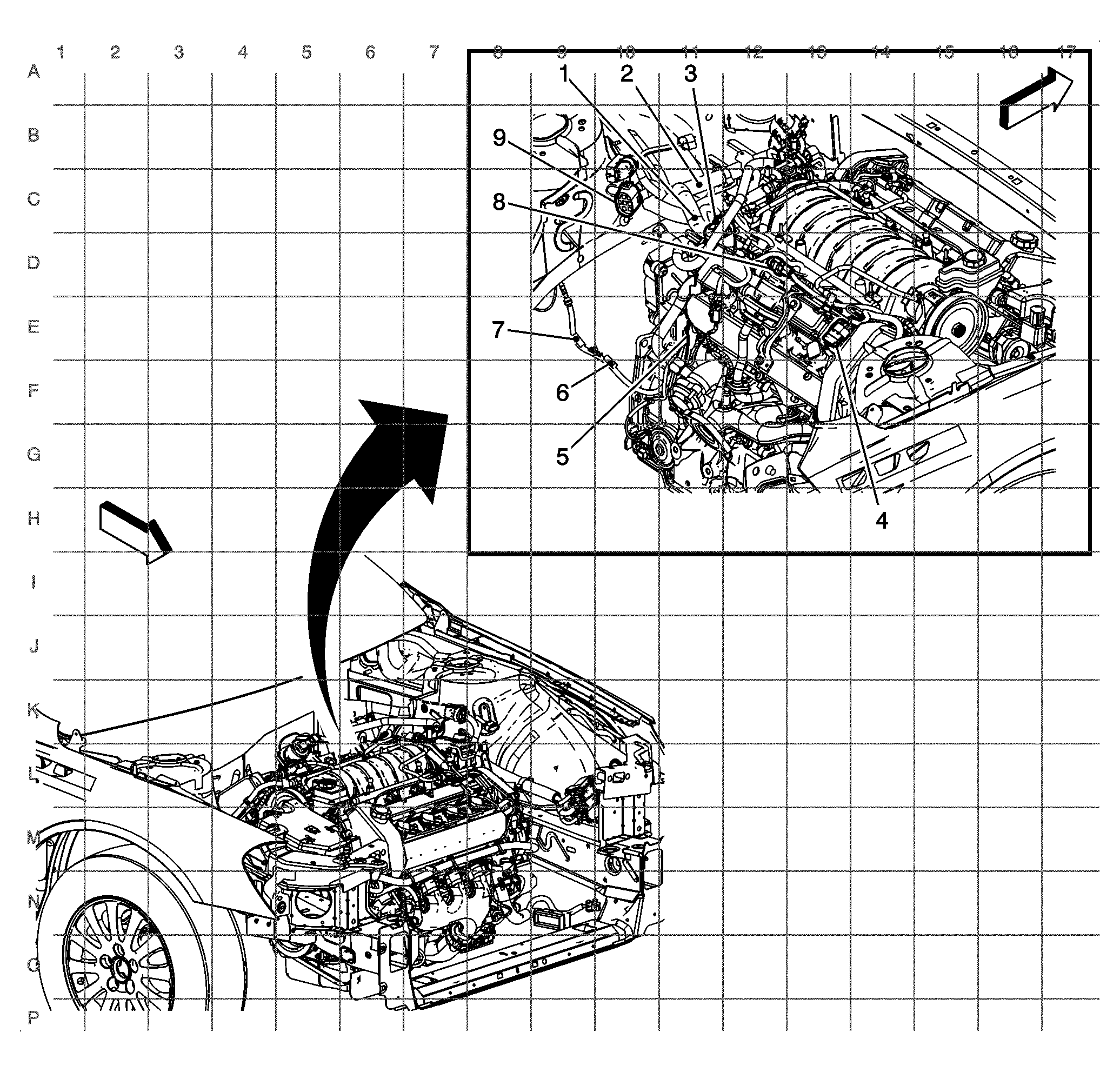

Fig 6: G100 and G111 (L37)

GM1920127

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J110
2	J102
3	X138
4	X140
5	G111
6	G100
7	J113
8	J114
9	X111

Fig 7: G300, G302, G304, and G305

GM1707178

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Panel
2	G304
3	G302
4	G305
5	G300

Fig 8: G301 and G303

GM2005000

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	JX300
2	Fuse Block - Rear
3	G301
4	Inflatable Restraint Sensing and Diagnostic Module (SDM)
5	Battery Current Sensor
6	G303
7	X335
8	Battery
9	Rear Seat

Fig 9: G403 and G407

GM1707175

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Rear C-Pillar
2	G407
3	G403
4	Deck Lid

Fig 10: G406

GM1707097

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G406
2	Left Rear C - Pillar
3	Rear Seat

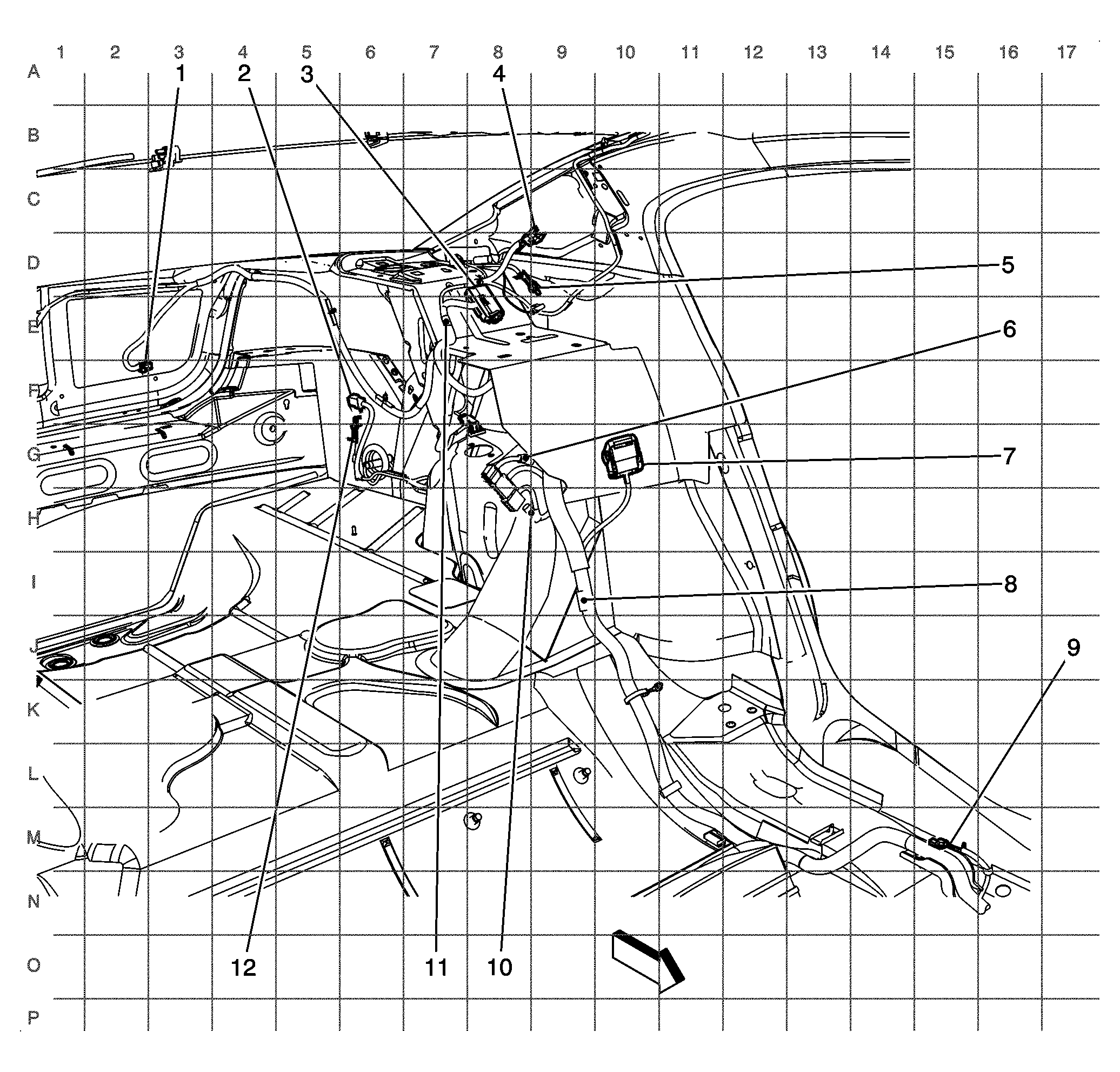

Fig 11: G301, G402, and G406

GM1920499

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X901
2	X498
3	X321
4	X311 (AY0)
5	G406
6	J366 (UQA)
7	X445
8	J372
9	G301
10	J365
11	J385
12	G402
