Object Detection Wiring Schematic

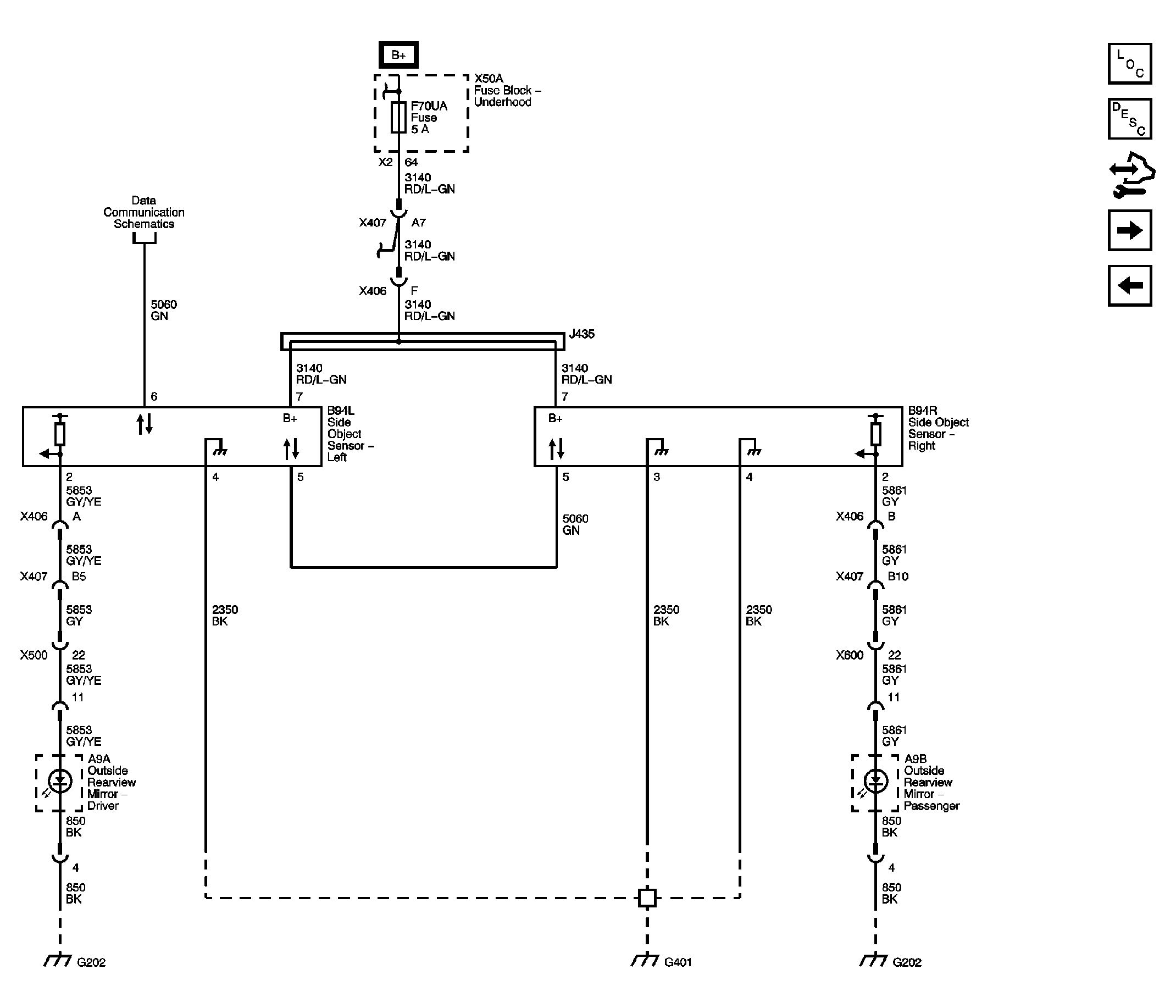

Fig 1: Side Object Detection (UFT) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

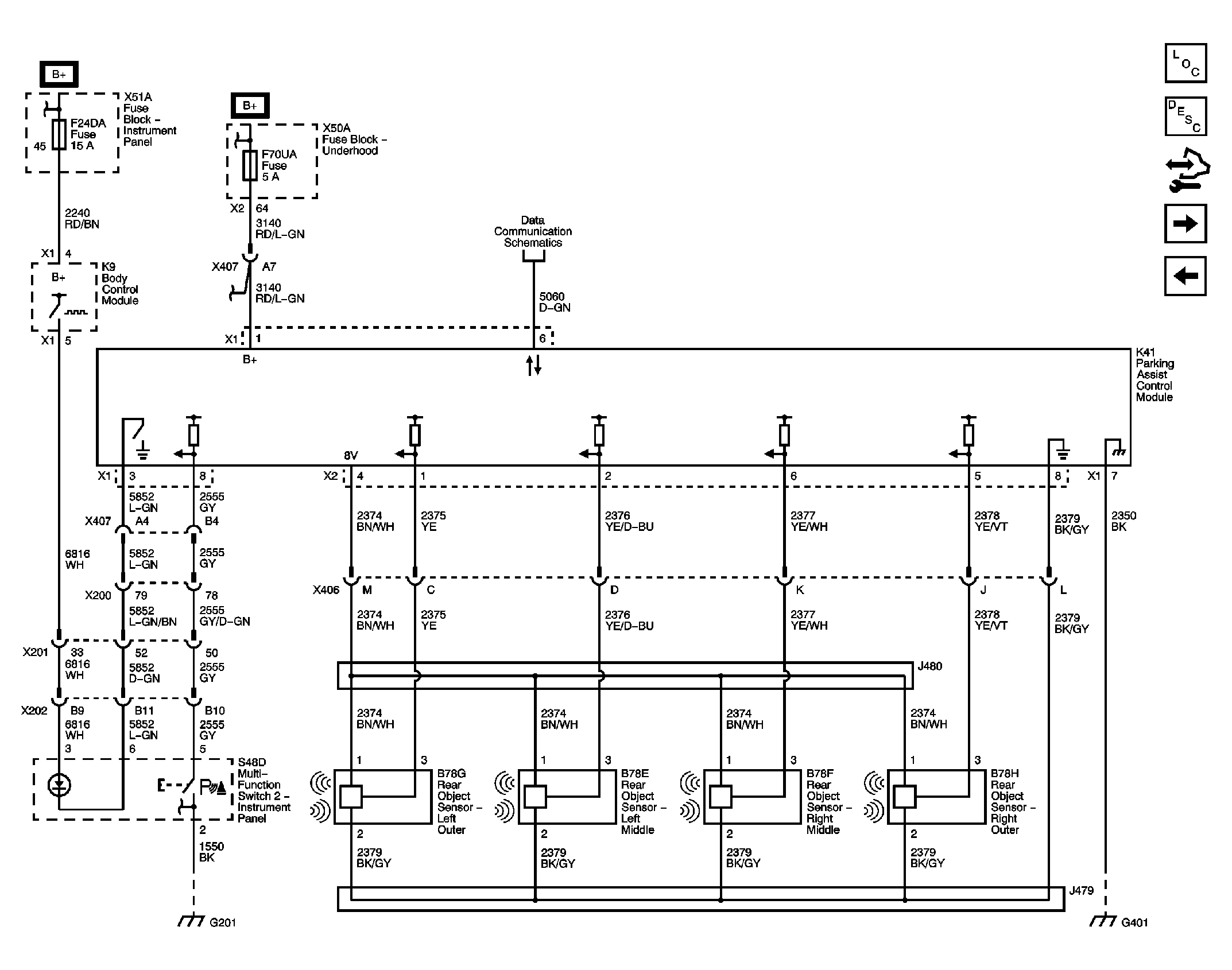

Fig 2: Rear Object Detection (UD7) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

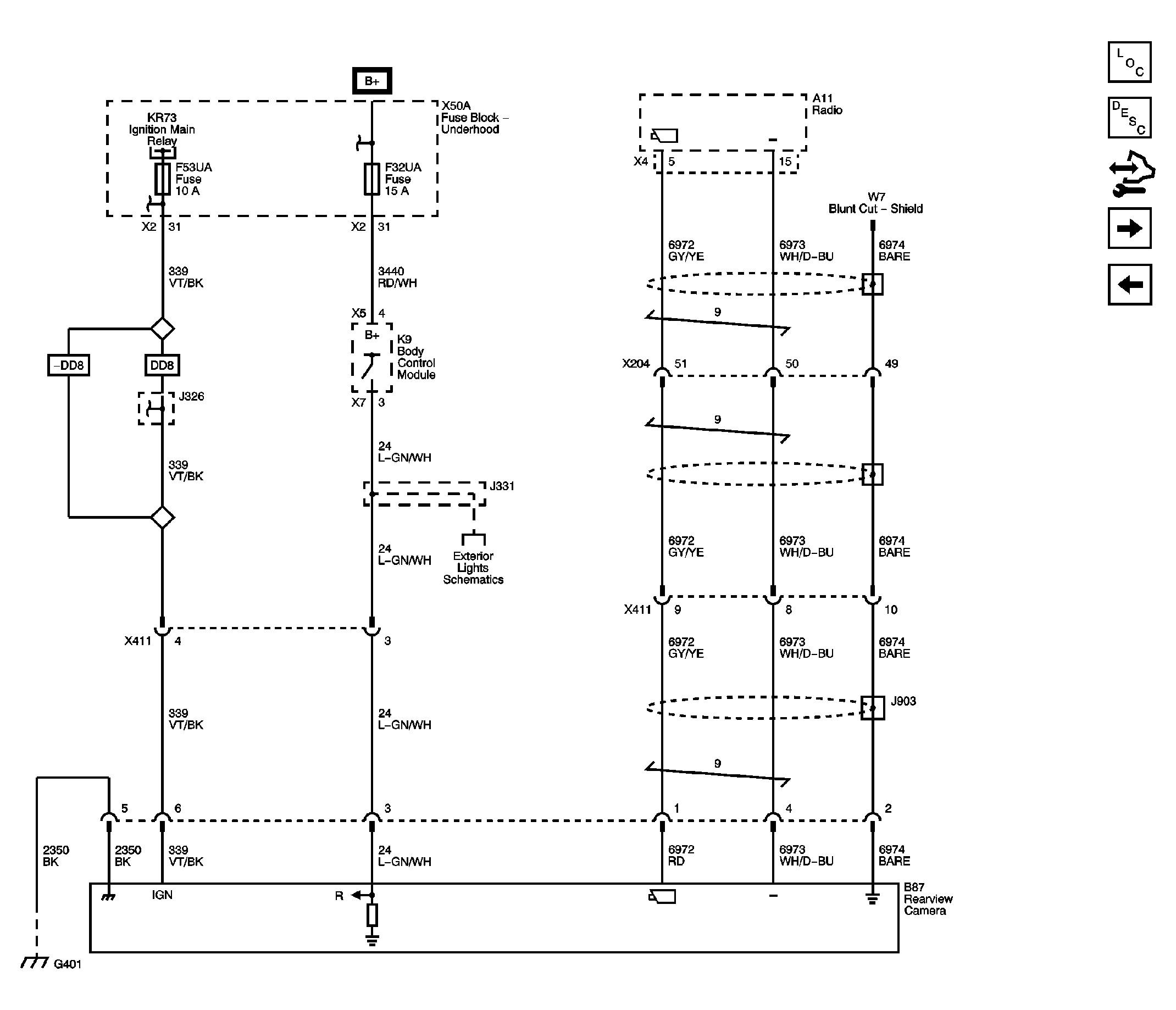

Fig 3: Rear Vision Camera (UVC) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

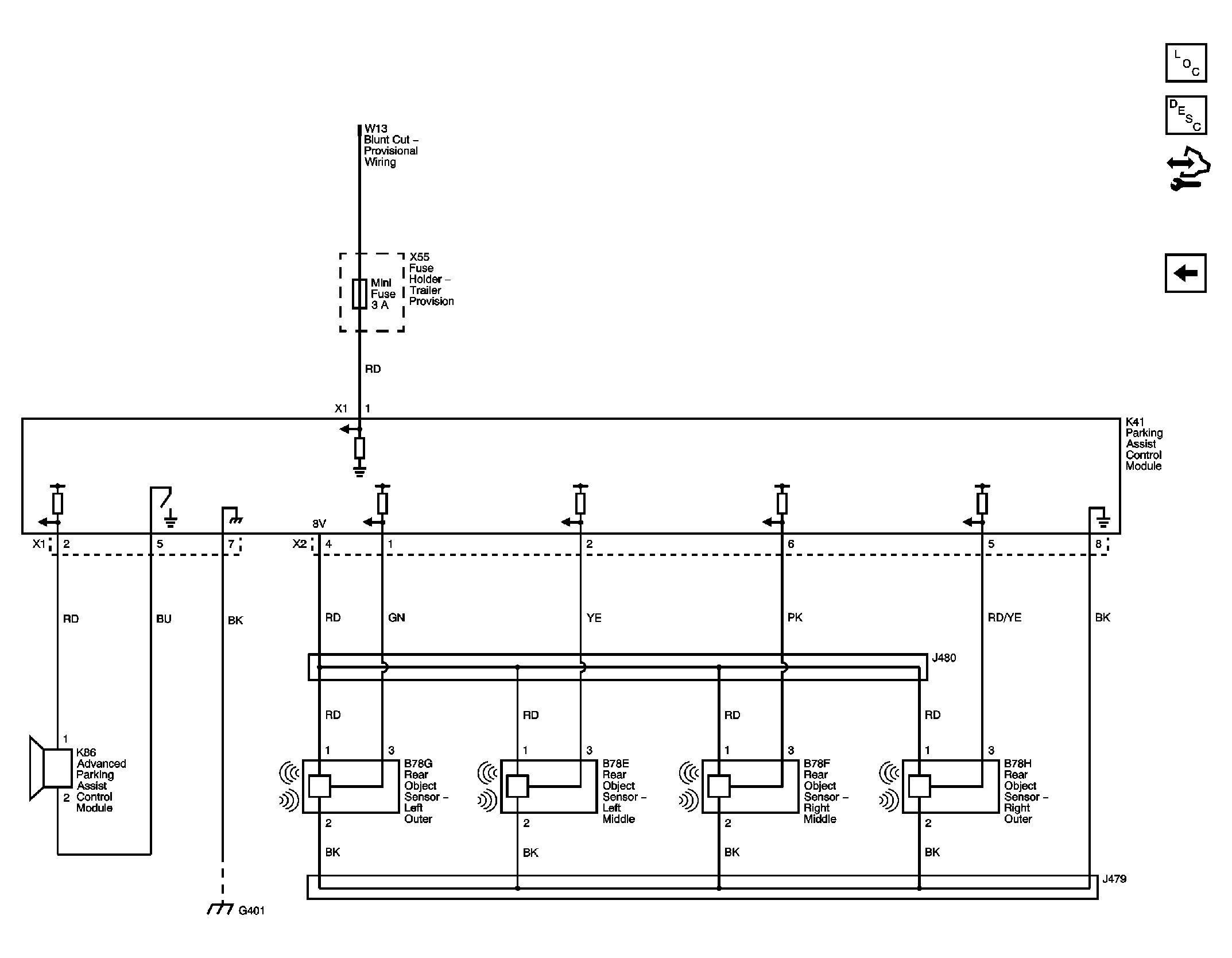

Fig 4: Rear Parking Assist Kit (SPO Accessory) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
