Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

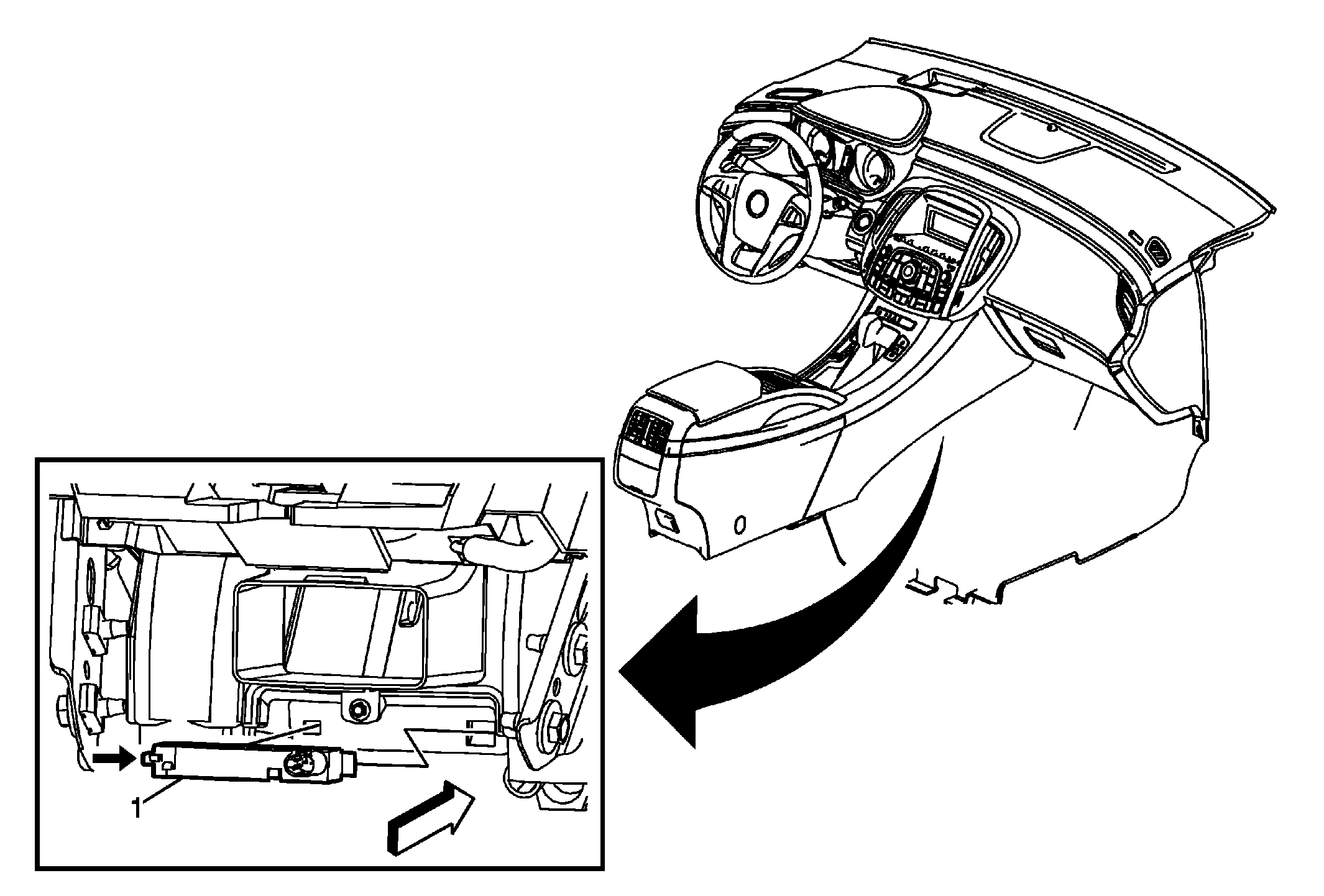

Fig 1: Ignition Lock Key Transmitter Antenna - Instrument Panel

GM2207213

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure

Remove the front floor console side cover. Refer to Front Floor Console Side Cover Replacement - Right Side .
Pull back the front floor panel carpet as needed. Refer to Front Floor Panel Carpet Replacement .

1

Ignition Lock Key Transmitter Antenna - Instrument Panel

Procedure

Unsnap to release the Ignition Lock Key Transmitter Antenna.
Disconnect the electrical connector.
