Air Cleaner Assembly Replacement (LF1)

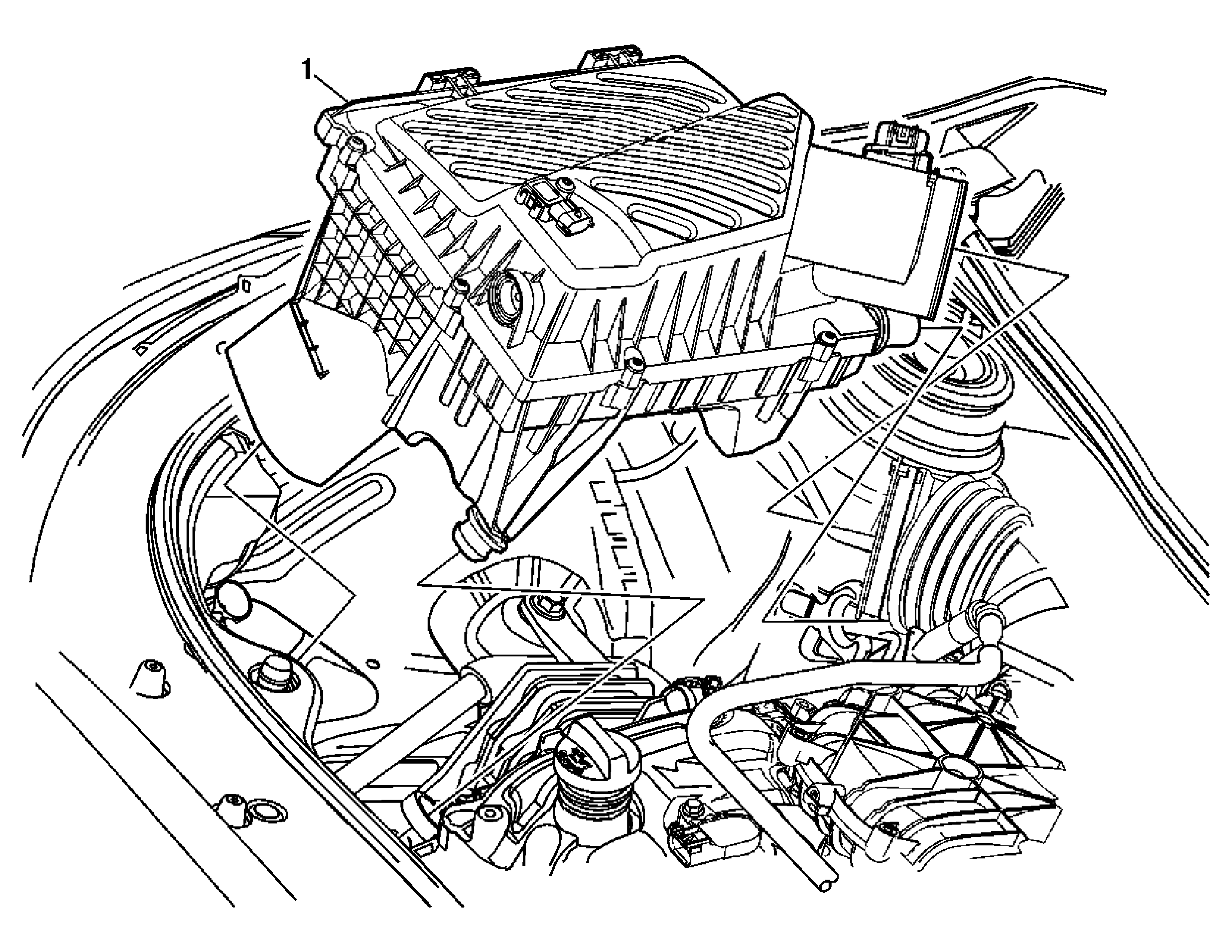

Fig 1: Air Cleaner Assembly (LF1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LLT) or Air Cleaner Outlet Duct Replacement (LF1) .
1	Air Cleaner Assembly Procedure Transfer parts as necessary. Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure:
Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LLT) or Air Cleaner Outlet Duct Replacement (LF1) .

Air Cleaner Assembly

Procedure
