Air Cleaner Assembly Replacement (LLT)

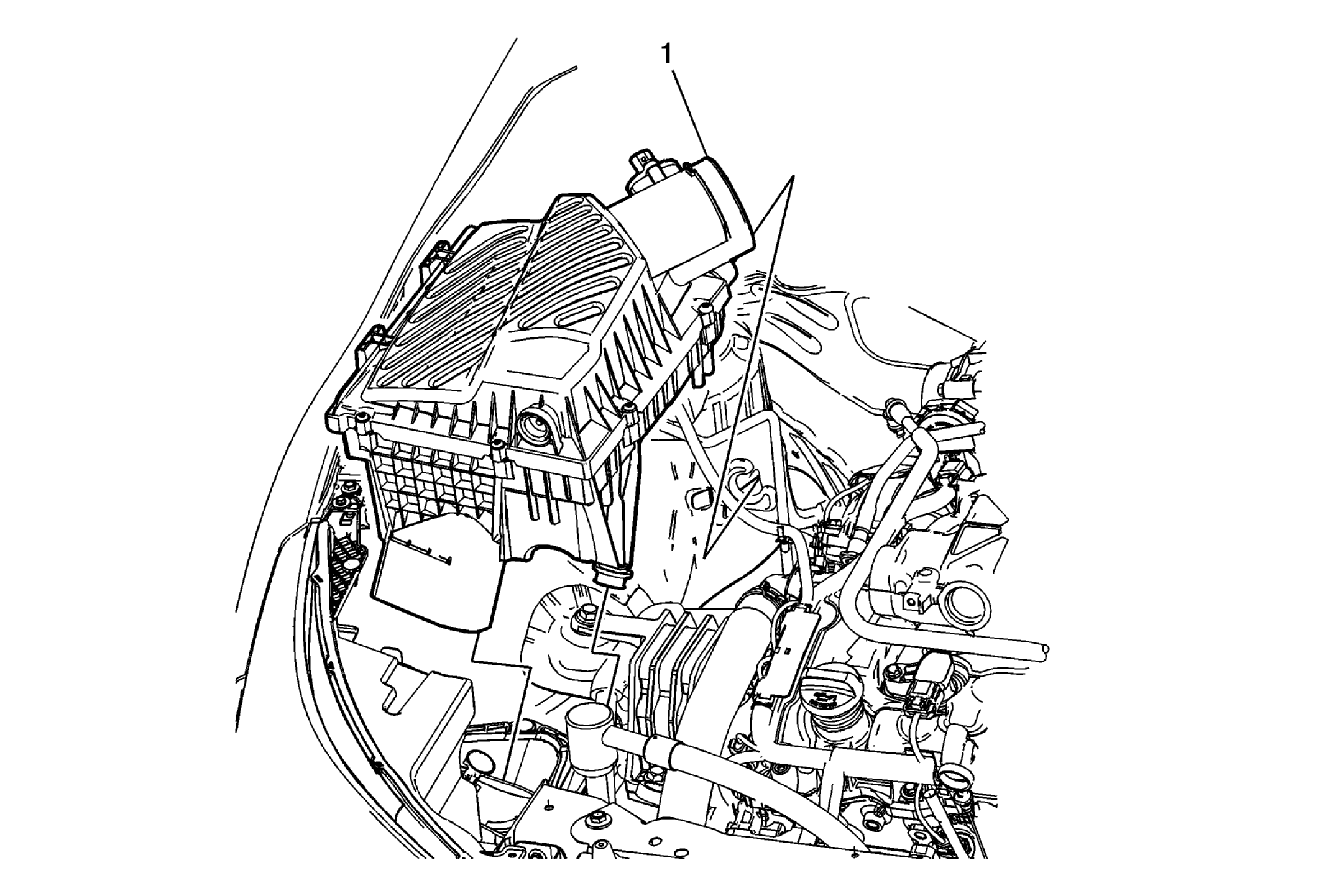

Fig 1: Air Cleaner Assembly (LLT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LLT) or Air Cleaner Outlet Duct Replacement (LF1) .
1	Air Cleaner Assembly Procedure Remove the air cleaner housing from the retainers, while guiding the housing out of the inlet duct. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure:
Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LLT) or Air Cleaner Outlet Duct Replacement (LF1) .

Air Cleaner Assembly

Procedure

Remove the air cleaner housing from the retainers, while guiding the housing out of the inlet duct.
Transfer parts as necessary.
