Barometric Pressure Sensor Replacement (LF1)

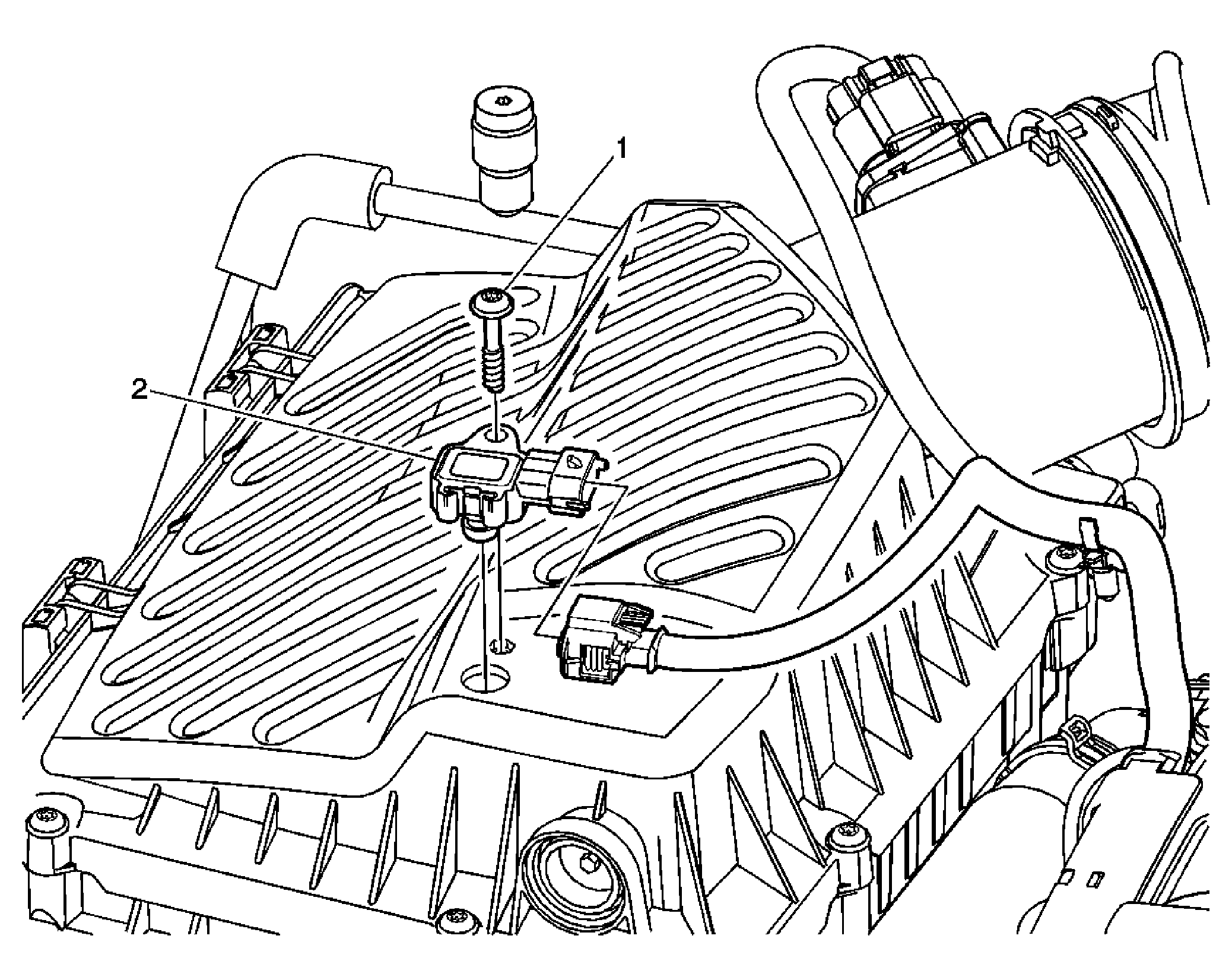

Fig 1: Barometric Pressure Sensor (LF1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bolt CAUTION: Refer to Fastener Caution . Tighten: 4 N.m (35 lb in)
2	Barometric Pressure Sensor Procedure Disconnect the MAP sensor harness connector. Install a NEW O-ring.

Callout

Component Name

Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 4 N.m (35 lb in)

Barometric Pressure Sensor

Procedure
