Fuel Pipe Shield Replacement (LLT)

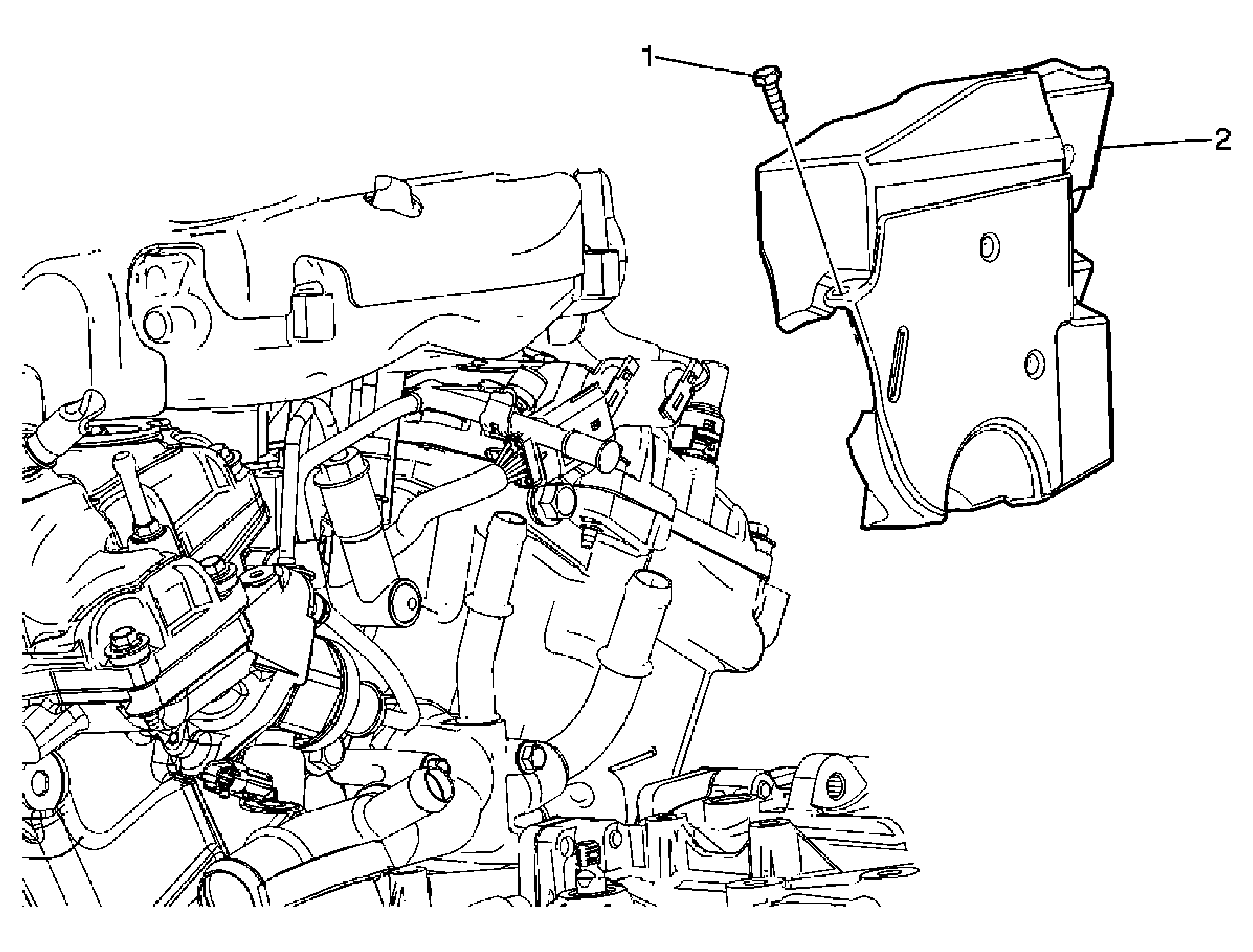

Fig 1: Fuel Pipe Shield (LLT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Bolt CAUTION: Refer to Fastener Caution . Tighten:  10 N.m (89 lb in)
2	Fuel Pipe Shield
