Shift Lock Control Wiring Schematic
Shift Lock Control Wiring Schematic

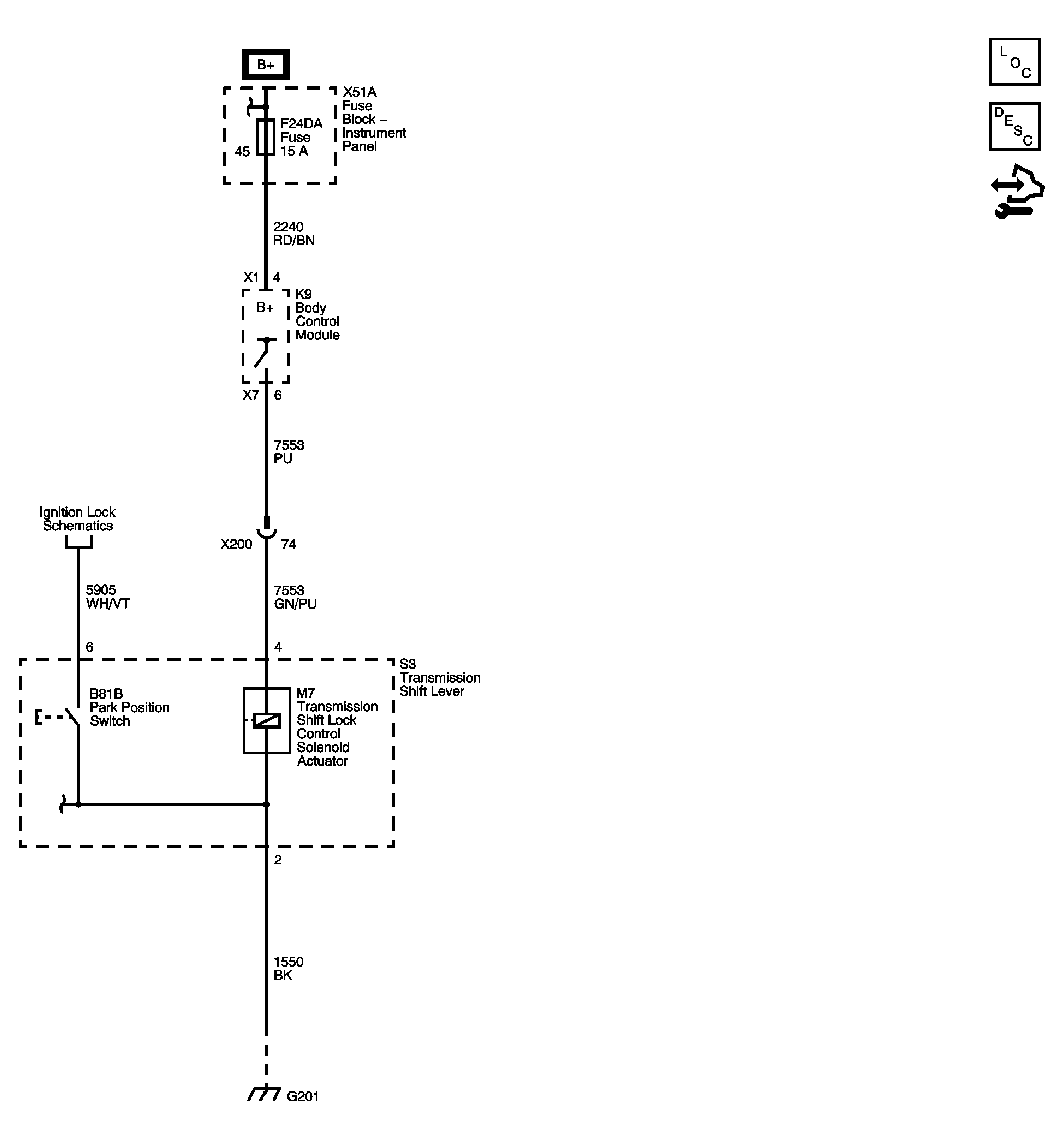

Fig 1: Shift Lock Control Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
