Installation Procedure

    Fig 1: Identifying Rear Generator Bolt & Ground Cable
    GM1669928Courtesy of GENERAL MOTORS COMPANY
  1. Position the engine ground cable to the generator.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the rear generator bolt and tighten to 50 N.m (37 lb ft).

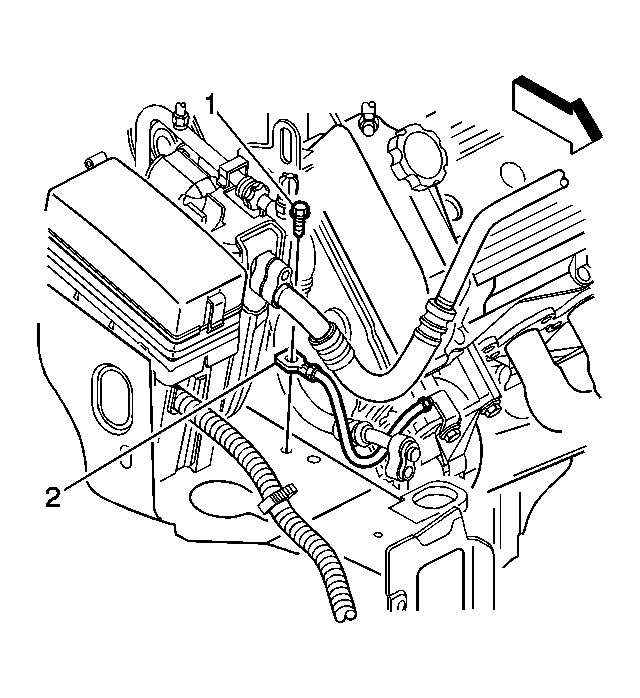

    3. Fig 2: Identifying Engine Ground Cable
    GM1664485Courtesy of GENERAL MOTORS COMPANY
  3. Install the bolt (1) securing the engine ground cable (2) to the right side body frame rail and tighten to 25 N.m (18 lb ft).
  4. Install the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement .
