Generator Replacement (V6)

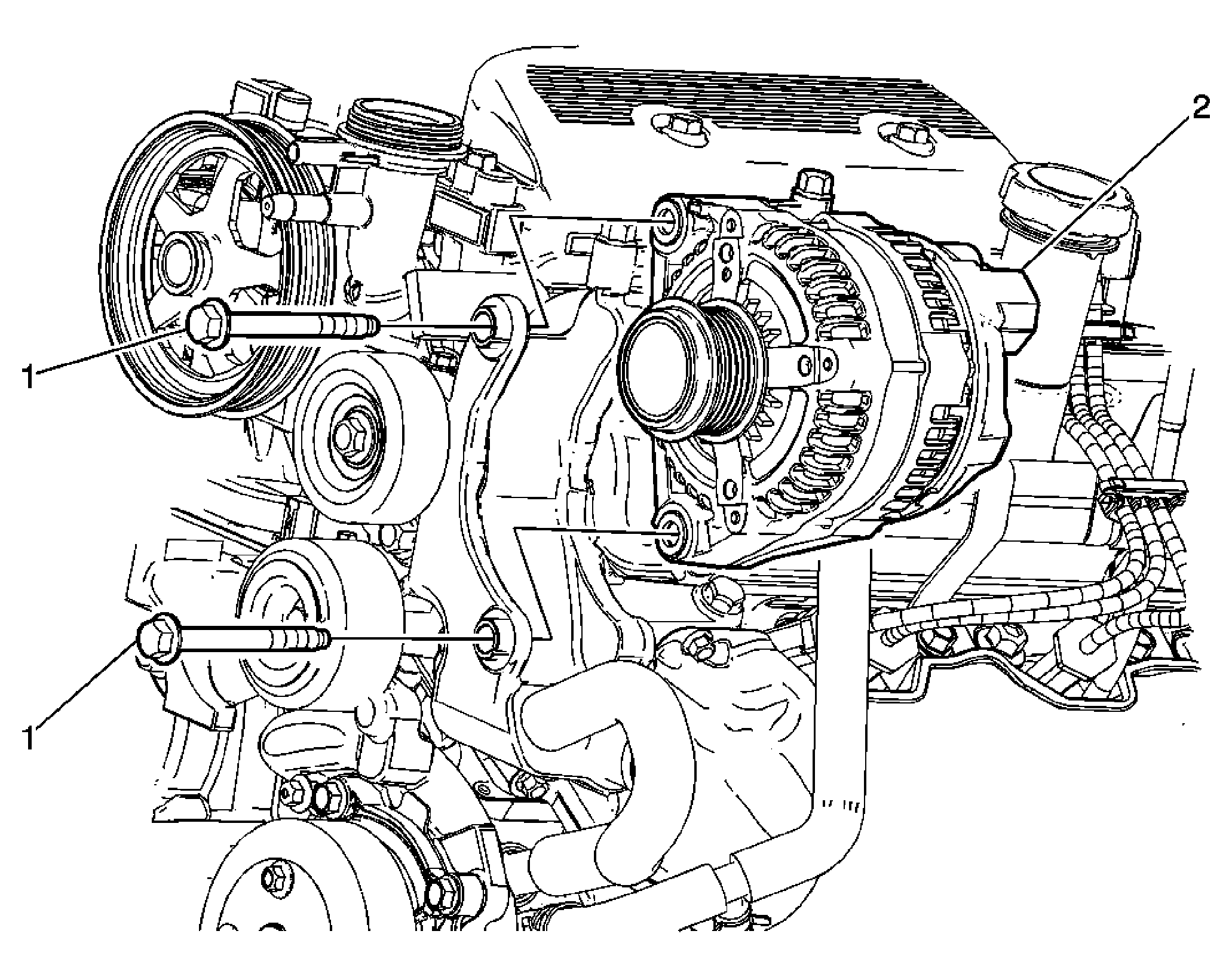

Courtesy of GENERAL MOTORS COMPANY Generator Replacement (V6)
| Callout |
Component Name |
|
Preliminary Procedure
- Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
- Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement
- Remove the drive belt. Refer to Drive Belt Replacement
.
|
| 1 |
Bolt (Qty: 2)
Tighten
50 N.m (37 lb ft) |
| 2 |
Generator Procedure
- Reposition the generator output battery terminal protective boot.
- Remove the generator output battery terminal nut.
Tighten
13 N.m (115 lb in)
- Remove the generator output battery Cable from the generator.
- Disconnect the generator electrical connector.
|
